Allen-Bradley 1746-IH16 Service-Ready Spare Part

Allen-Bradley 1746-IH16 Service-Ready Spare Part: Minimize Downtime with Reliable DC Input Replacement

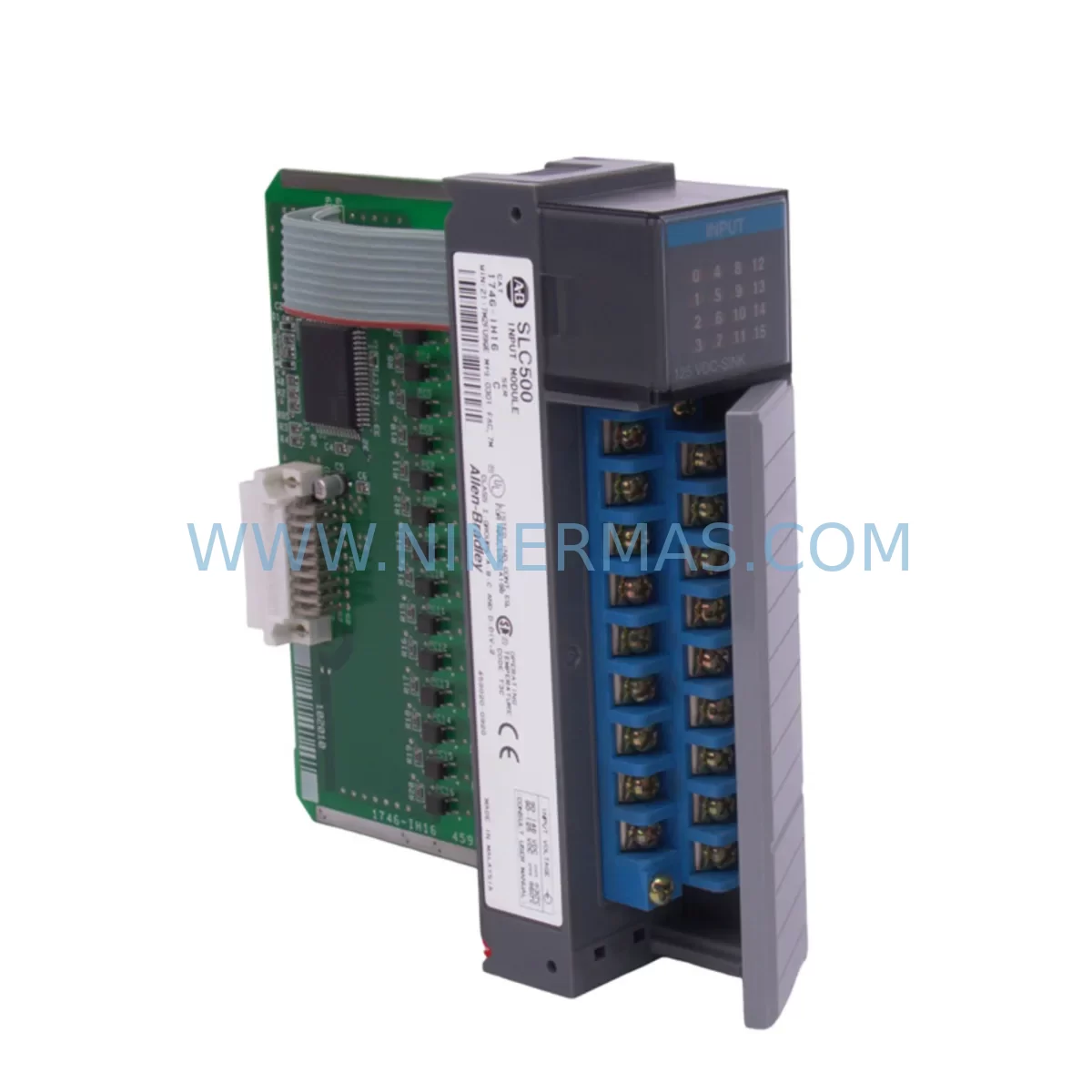

The Allen-Bradley 1746-IH16 is a ruggedized 16-point DC input module designed for the SLC 500 programmable controller platform. In industrial environments where uptime is non-negotiable, having a service-ready 1746-IH16 in your spare parts inventory is a fundamental risk-control measure. Whether you are managing a high-cycle discrete manufacturing line, a process control cabinet, or an aging SLC 500 system that must remain operational for years to come, this module delivers the signal integrity and environmental resilience that maintenance engineers depend on.

At NINERMAS, every 1746-IH16 unit is sourced as an original Allen-Bradley component, inspected prior to dispatch, and backed by a 12-month warranty. We support procurement engineers who need verified compatibility, traceable sourcing, and reliable long-term supply — not just a one-time transaction.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1746-IH16 input module fails or shows intermittent behavior, experienced maintenance engineers know that the fault rarely exists in isolation. A thorough site inspection should accompany any module replacement to prevent repeat failures and ensure the restored system operates reliably.

Begin by verifying the 24V DC field power supply feeding the input circuit. A degraded or undersized power supply — such as a 1746-P4 or 1746-P7 power supply module — can cause marginal input voltages that stress the 1746-IH16 over time, leading to premature failure. Confirm that supply voltage is within the 10–30V DC input range under full load conditions.

Next, inspect the wiring terminations at the module’s field-side connector. Loose or corroded terminals are a common root cause of intermittent input faults in harsh environments. Check the terminal blocks and field wiring for continuity, insulation integrity, and correct polarity. If the installation uses signal isolators between field sensors and the SLC 500 chassis, verify that the isolator output voltage is compatible with the 1746-IH16 input threshold.

Review the SLC 500 chassis backplane for signs of contamination or connector wear. The 1746 series modular chassis — available in 4-slot, 7-slot, 10-slot, and 13-slot configurations — should be inspected for bent backplane pins and secure module seating. If the chassis itself is aging, consider stocking a replacement chassis as part of your long-term maintenance plan.

For systems using a 1747-L553 or 1747-L543 SLC 5/05 or SLC 5/04 processor, confirm that the I/O configuration in RSLogix 500 correctly maps the 1746-IH16 slot address. After module replacement, always force an I/O scan and verify all 16 input points respond correctly before returning the system to production.

If the control cabinet includes a 1746-OB16 or 1746-OW16 output module in the same chassis, inspect those modules simultaneously during the maintenance window. Output modules in the same I/O scan cycle share backplane bandwidth, and a failing output module can generate diagnostic faults that mask input module issues.

For facilities running mixed discrete and analog I/O, check any 1746-NI4 or 1746-NO4I analog modules in adjacent slots. Analog signal noise can sometimes couple into adjacent digital input channels in high-density chassis configurations. Signal isolation barriers and proper cable routing are the recommended mitigation.

Communication modules such as the 1747-SDN DeviceNet scanner or 1747-KE DH-485 interface should also be verified during the maintenance window. A communication fault that coincides with an input module replacement can complicate fault isolation and delay system restoration.

Finally, if the system includes a PanelView or PanelView Plus HMI connected via DH+ or Ethernet/IP, confirm that the HMI tag database correctly reflects the restored I/O map after the 1746-IH16 replacement. Stale or mismatched HMI tags can cause operator confusion and mask real process alarms during the post-maintenance verification phase.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 1746-IH16 matches the original module’s catalog number and firmware revision if applicable. Cross-reference the module label against the SLC 500 I/O configuration printout or RSLogix 500 project file.

Step 2 — Safe Isolation: Place the SLC 500 processor in Program mode via the keyswitch or RSLogix 500 online connection. De-energize the field power supply feeding the 1746-IH16 input circuit. Do not rely solely on the processor mode switch — verify field power is off with a calibrated meter.

Step 3 — Module Removal: Disconnect the field wiring connector from the module. Release the module locking tab and slide the 1746-IH16 out of the chassis slot. Inspect the backplane connector on the removed module for damage or contamination.

Step 4 — New Module Installation: Slide the replacement 1746-IH16 firmly into the same chassis slot until the locking tab engages. Reconnect the field wiring connector, ensuring correct terminal orientation. Re-energize the field power supply.

Step 5 — System Verification: Return the processor to Run mode. Monitor the module’s per-point LED indicators and verify all 16 input points reflect the correct field states. Use RSLogix 500 online monitoring to confirm the I/O data table matches expected values. Document the replacement in the site maintenance log.

This workflow minimizes system downtime to under 30 minutes for a prepared maintenance team with a service-ready spare on hand — compared to days or weeks of lead time if no spare is stocked.

Spare Parts Support FAQ

Q1: Is the 1746-IH16 still available as a new original part, or only as refurbished?
NINERMAS supplies original Allen-Bradley 1746-IH16 modules. Each unit is inspected and tested before shipment. We clearly indicate the condition of every unit — new, surplus new, or factory-refurbished — so procurement engineers can make informed decisions aligned with their site’s spare parts policy.

Q2: How do I confirm compatibility with my existing SLC 500 chassis before ordering?
The 1746-IH16 is compatible with all standard 1746 series SLC 500 modular chassis. Provide your chassis catalog number and processor model when contacting us, and our technical team will confirm slot compatibility and I/O configuration requirements before the order is placed.

Q3: What does the 12-month warranty cover, and what is the replacement process?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, contact sale@ninermas.com with your order reference and fault description. We will arrange a replacement or credit with priority handling to minimize your downtime.

Q4: Can NINERMAS support long-term supply for ongoing maintenance programs?
Yes. We support blanket order arrangements and scheduled delivery programs for maintenance teams that require guaranteed stock availability for SLC 500 spare parts. Contact our sales team to discuss volume pricing, lead time commitments, and multi-SKU spare parts kitting for your control system maintenance program.
