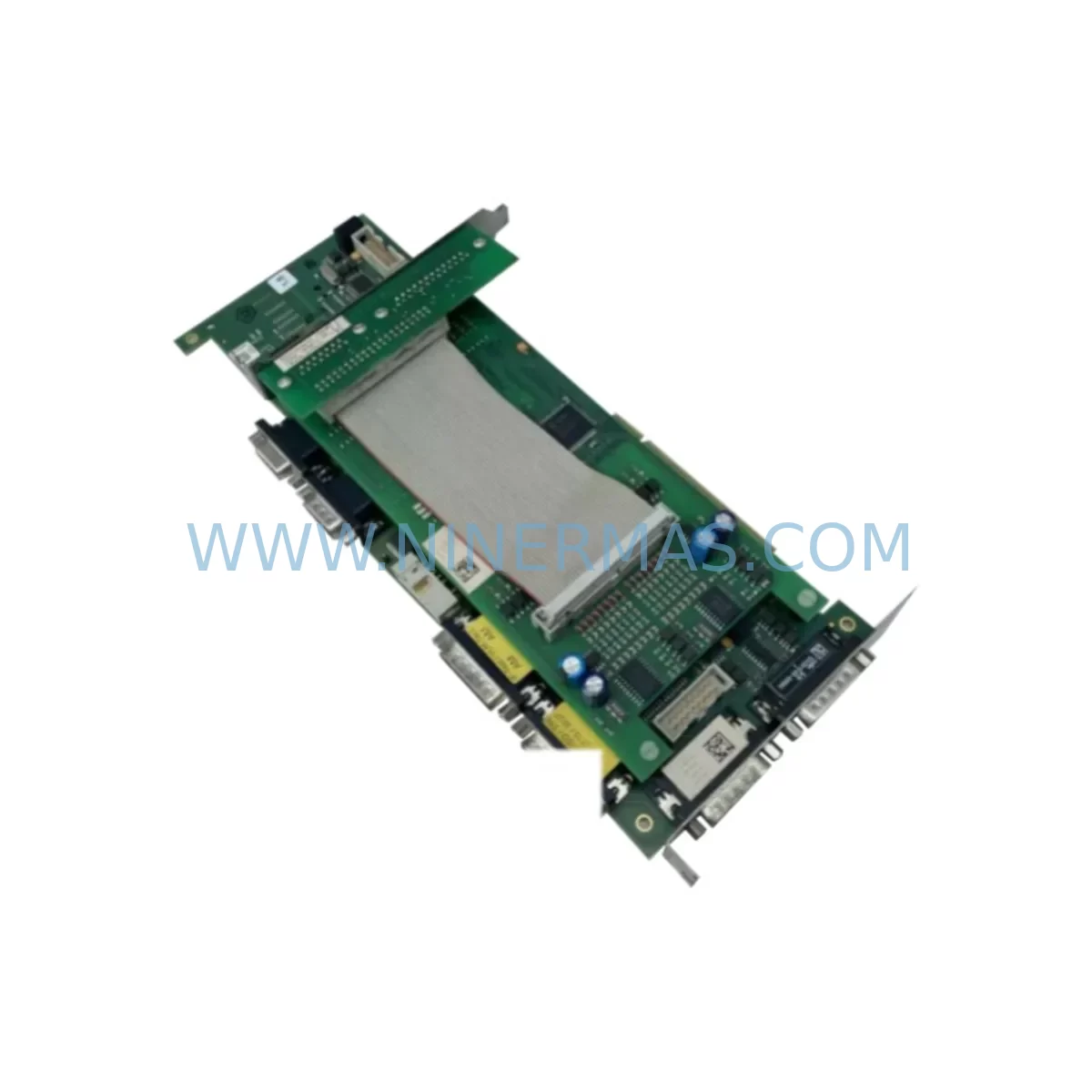

The ALI3 60016415 is a retrofit-compatible programmable logic controller designed to replace discontinued and end-of-life modules within the ABB AC31 Series control platform. As industrial facilities face increasing pressure to maintain aging automation infrastructure while managing the risks of obsolete hardware, the 60016415 provides a reliable, tested, and immediately deployable solution for engineers tasked with legacy system continuity, production line recovery, and phased control system modernization.

For maintenance and procurement engineers managing ABB AC31-based control cabinets, sourcing a verified replacement for the 60016415 is often the critical path item that determines how quickly a production line can be restored after an unplanned failure. NINERMAS stocks this unit with full pre-shipment functional testing, ensuring that each module shipped is verified against original ABB AC31 electrical and communication specifications before leaving our facility.

Whether your facility is executing a like-for-like spare replacement, a partial rack upgrade, or a full migration away from the AC31 platform, the 60016415 serves as a stable bridge component — maintaining your existing program logic, I/O mapping, and field wiring while you plan the next phase of your modernization roadmap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ALI3 60016415 into an existing AC31 control cabinet requires a structured pre-installation review. Engineers should begin by auditing the AC31 power supply module — typically a 24VDC rail-mounted unit — to confirm it can support the current draw of the replacement controller alongside any co-installed I/O expansion modules. Undersized power supplies are a common cause of intermittent faults after retrofit installations and should be replaced or supplemented proactively.

Next, inspect the AC31 backplane and rack assembly. Verify that the rack slot designated for the 60016415 is mechanically sound, that the bus connector pins are undamaged, and that the rack address configuration matches the system’s I/O map. In multi-rack configurations, also confirm that the inter-rack communication cable — typically a proprietary AC31 bus extension cable — is intact and properly terminated.

For facilities running AC31 digital input modules and AC31 digital output modules alongside the controller, this is an ideal time to inspect those modules for contact wear, blown output drivers, or degraded input thresholds. Replacing the CPU module while leaving aging I/O modules in place can shift the failure point without resolving the underlying reliability risk.

Communication continuity is another critical checkpoint. If the AC31 system interfaces with an HMI panel — such as an ABB CP600 or a third-party operator panel connected via RS-232 or RS-485 — confirm that the communication parameters (baud rate, parity, station address) are documented before removing the old module. These settings must be replicated exactly on the 60016415 to avoid HMI communication loss after restart.

For systems that have been extended with PROFIBUS DP communication modules or Modbus RTU adapters, verify that the fieldbus master/slave configuration is preserved in the replacement module’s parameter settings. In some AC31 configurations, fieldbus node addresses are set via hardware DIP switches on the module itself — photograph and document these before removal.

Finally, if the facility uses signal isolators or analog signal conditioners between field instruments and the AC31 analog input modules, confirm that the signal ranges (4–20mA, 0–10V) are correctly matched. Analog I/O mismatches are a frequent source of post-retrofit calibration errors that can delay production restart.

Downtime Control During System Migration

Minimizing downtime during an AC31 retrofit begins with preparation, not installation. Before any hardware is removed from the control cabinet, engineers should perform a full program backup from the existing AC31 CPU using the original AC31 programming software (typically ABB’s 907 PC 331 or equivalent). This backup must be stored in at least two locations — a local engineering laptop and a secure network share — before the retrofit proceeds.

During the physical swap, label all field wiring terminations on the AC31 terminal modules and I/O wiring harnesses before disconnection. Even in well-documented facilities, field wiring labels fade over time, and an undocumented rewiring error can add hours to a restart sequence. Use a structured terminal-by-terminal verification checklist rather than relying on memory or legacy drawings alone.

Once the ALI3 60016415 is seated in the rack and powered, perform a cold-start sequence with the program loaded but outputs disabled. Verify that all I/O modules are recognized by the controller, that communication links to the HMI and any fieldbus devices are established, and that analog input readings match expected field values before enabling outputs. This staged commissioning approach protects both the process and the equipment from restart faults caused by undetected wiring or configuration errors.

For facilities with tight maintenance windows, NINERMAS recommends pre-staging the 60016415 as a configured hot-spare — loaded with the current program and pre-tested on a bench rack — so that the on-site swap time is reduced to a physical installation and communication verification only. This approach can reduce unplanned downtime from several hours to under 30 minutes in well-prepared facilities.

Spare Parts Support FAQ

Q1: Is the ALI3 60016415 a direct drop-in replacement for the original ABB AC31 module?
The 60016415 is designed for retrofit compatibility with the AC31 platform. In most configurations it is a functional replacement, but engineers should verify the firmware revision, rack slot address, and DIP switch settings against the original module before installation. NINERMAS provides pre-shipment functional testing and technical support to assist with compatibility confirmation.

Q2: What commissioning steps are required after installing the 60016415?
After physical installation, restore the program backup from the original AC31 CPU, verify I/O module recognition, confirm HMI communication parameters, and test all fieldbus links before enabling outputs. A staged cold-start with outputs disabled is strongly recommended to catch any configuration mismatches before the system returns to production.

Q3: Can NINERMAS supply the 60016415 for long-term inventory stocking?
Yes. NINERMAS maintains stock of the ALI3 60016415 and can support both immediate single-unit orders and bulk procurement for spare parts inventory programs. All units are tested before shipment and covered by a 12-month warranty. Contact our team at sale@ninermas.com to discuss volume pricing and lead times.

Q4: What is covered under the 12-month warranty?
All units supplied by NINERMAS are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing documentation is available upon request. Warranty claims are handled directly through NINERMAS with replacement or repair support as applicable.
