AIENSN CT-USB-CABLE(SP1406) Retrofit-Compatible PLC Cable

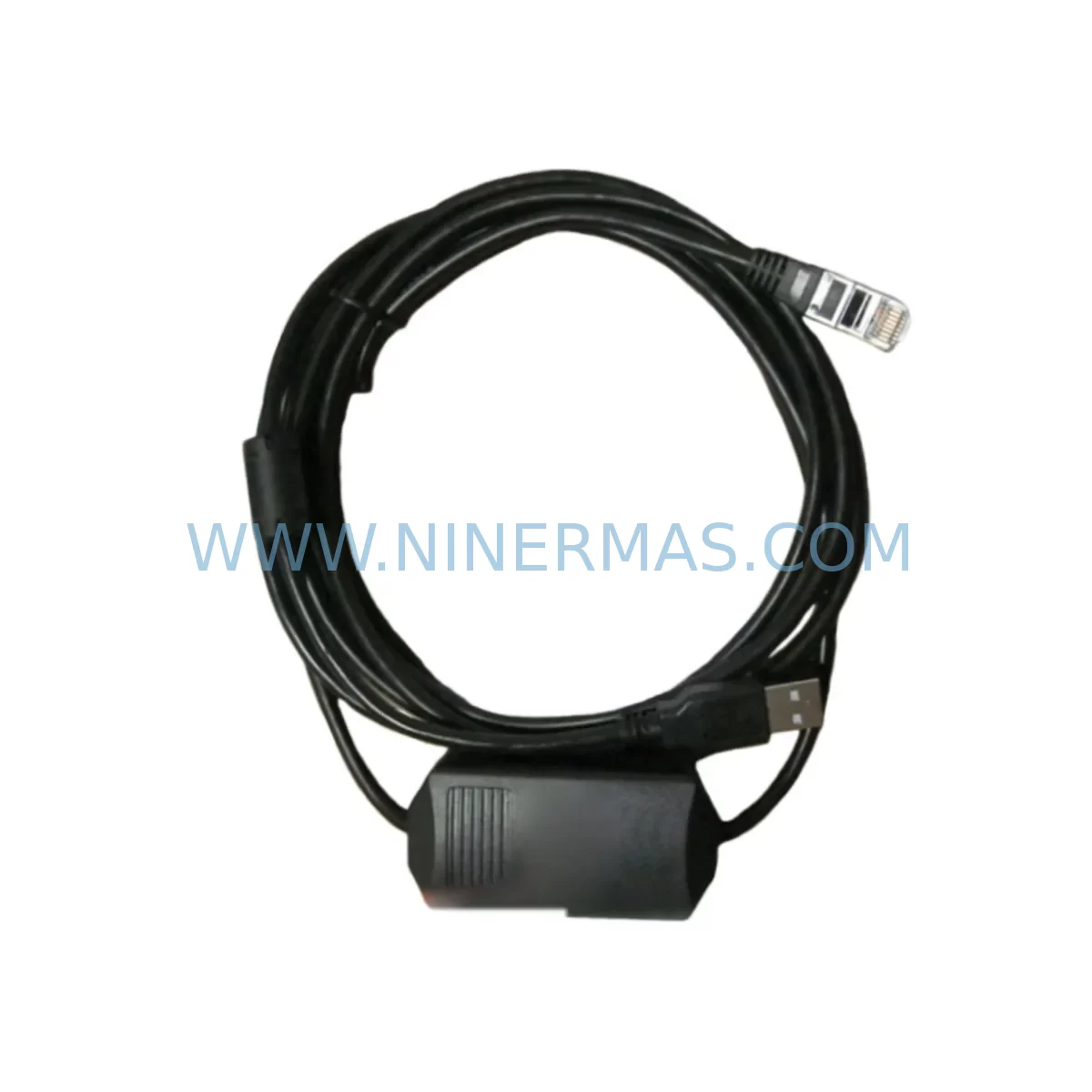

AIENSN CT-USB-CABLE(SP1406): Retrofit-Compatible PLC Programming Cable for Legacy SP Series Systems

The AIENSN CT-USB-CABLE(SP1406) is a purpose-built USB-to-PLC programming cable engineered for seamless integration into legacy SP series automation environments. Whether you are executing a full control cabinet overhaul, replacing a discontinued communication interface, or restoring a production line that relies on aging AIENSN SP series controllers, this cable delivers the reliable, low-latency connection required to maintain programming continuity without disrupting existing ladder logic or function block structures.

Industrial facilities operating SP series PLCs — including the SP-20, SP-28, SP-40, and SP-60 CPU modules — frequently encounter the challenge of sourcing compatible programming interfaces as original equipment reaches end-of-life. The CT-USB-CABLE(SP1406) addresses this directly, providing a verified replacement path that eliminates the need for costly hardware re-engineering or software migration to an entirely new control platform.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the CT-USB-CABLE(SP1406), engineers must account for the full communication chain between the programming workstation and the SP series CPU. In most legacy installations, the SP series rack houses not only the CPU module but also discrete I/O modules — typically 8-point or 16-point digital input and output cards — as well as analog I/O expansion modules for process signal acquisition. Before disconnecting the existing programming cable, it is essential to perform a full program upload from the controller to preserve the current ladder logic, including any retentive data registers, timer presets, and counter accumulator values.

Many SP series cabinets also incorporate an AIENSN HMI panel — such as the TP series or MT series touch screens — connected to the CPU via RS-485 or RS-422 serial links. During the cable replacement process, care must be taken not to disturb these HMI communication wiring terminals, as any interruption to the HMI-PLC link will cause screen communication fault alarms that require manual reset and baud rate re-verification on both the HMI configuration and the PLC communication port parameters.

For systems that include an AIENSN communication expansion module — for example, an Ethernet module or a PROFIBUS-DP adapter mounted in the same backplane — the module address settings and network node IDs must be documented before any physical intervention. The CT-USB-CABLE(SP1406) connects exclusively to the dedicated programming port on the CPU front panel and does not interfere with these network modules, but technicians should confirm that the backplane bus termination resistors remain correctly positioned after any rack disturbance.

Power supply capacity is another critical checkpoint. SP series racks are typically powered by a dedicated 24 VDC rail sourced from an AIENSN or third-party DIN-rail power supply module. Before inserting or removing any module — including during a cable swap that requires accessing the rear of the cabinet — verify that the power supply output current rating is sufficient for the total I/O load, including any newly added expansion modules that may have been introduced as part of a broader upgrade scope.

Signal isolation is also worth addressing during the retrofit window. If the existing installation uses signal isolators between field sensors and the SP series analog input modules, this is an opportune moment to verify isolator channel mapping and confirm that 4–20 mA loop integrity is maintained. Any wiring changes at the terminal strip should be documented with updated as-built drawings before the system is returned to service.

Downtime Control During System Migration

Minimizing production downtime during a programming cable replacement or broader SP series system migration requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, the engineering team should complete a verified program backup using the existing cable or an alternative communication path, confirm that the backup file opens correctly in the programming software, and prepare a commissioning checklist that covers COM port assignment, driver installation, baud rate configuration, and a forced I/O test sequence.

During the outage, the CT-USB-CABLE(SP1406) should be connected to the CPU programming port before powering down the rack, allowing the technician to confirm physical fit and driver recognition while the system is still live. Once the rack is de-energized, any additional module swaps or terminal rewiring can proceed. Upon re-energization, the program should be downloaded to the CPU and verified against the backed-up version using a checksum or block-by-block comparison function available in the SP-Soft programming environment.

For facilities where continuous control is critical, consider staging the migration on a spare rack populated with equivalent SP series I/O modules and the same CPU firmware version. This parallel commissioning approach allows full functional testing — including HMI screen navigation, analog signal scaling, and communication link verification — before the live system is touched, reducing the actual production outage to the time required for a controlled switchover rather than a full commissioning cycle.

Retaining the original program logic without modification is the safest migration strategy. The CT-USB-CABLE(SP1406) supports full read/write access to the SP series CPU memory, enabling technicians to restore the exact pre-retrofit program state if any unexpected behavior is observed after the cable replacement or associated hardware changes.

Retrofit Support FAQ

Q1: Is the CT-USB-CABLE(SP1406) a direct replacement for the original AIENSN programming cable?
Yes. The CT-USB-CABLE(SP1406) is designed as a direct functional replacement for the original SP series programming interface cable. No changes to module addressing, PLC program structure, or communication port parameters are required when substituting this cable into an existing installation.

Q2: What commissioning steps are required after installing the CT-USB-CABLE(SP1406)?
After physical installation, install the USB driver (FTDI or CH340 depending on chipset variant), assign the correct COM port in Device Manager, configure the programming software communication settings to match the PLC port baud rate (typically 9600 or 19200 bps), and perform a test read of the CPU to confirm successful communication before downloading any program changes.

Q3: Can this cable be used with SP series PLCs that have Ethernet or PROFIBUS expansion modules installed?
Yes. The CT-USB-CABLE(SP1406) connects to the dedicated front-panel programming port of the SP series CPU and operates independently of any Ethernet, PROFIBUS-DP, or RS-485 network modules installed in the same rack. Network module configurations and node addresses are unaffected by the programming cable connection.

Q4: What are the supply and warranty terms?
The CT-USB-CABLE(SP1406) is held in stock and available for immediate shipment. Each unit undergoes functional communication testing prior to dispatch. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and communication interface failures under normal operating conditions. For volume orders or urgent retrofit requirements, contact our sales team directly.
