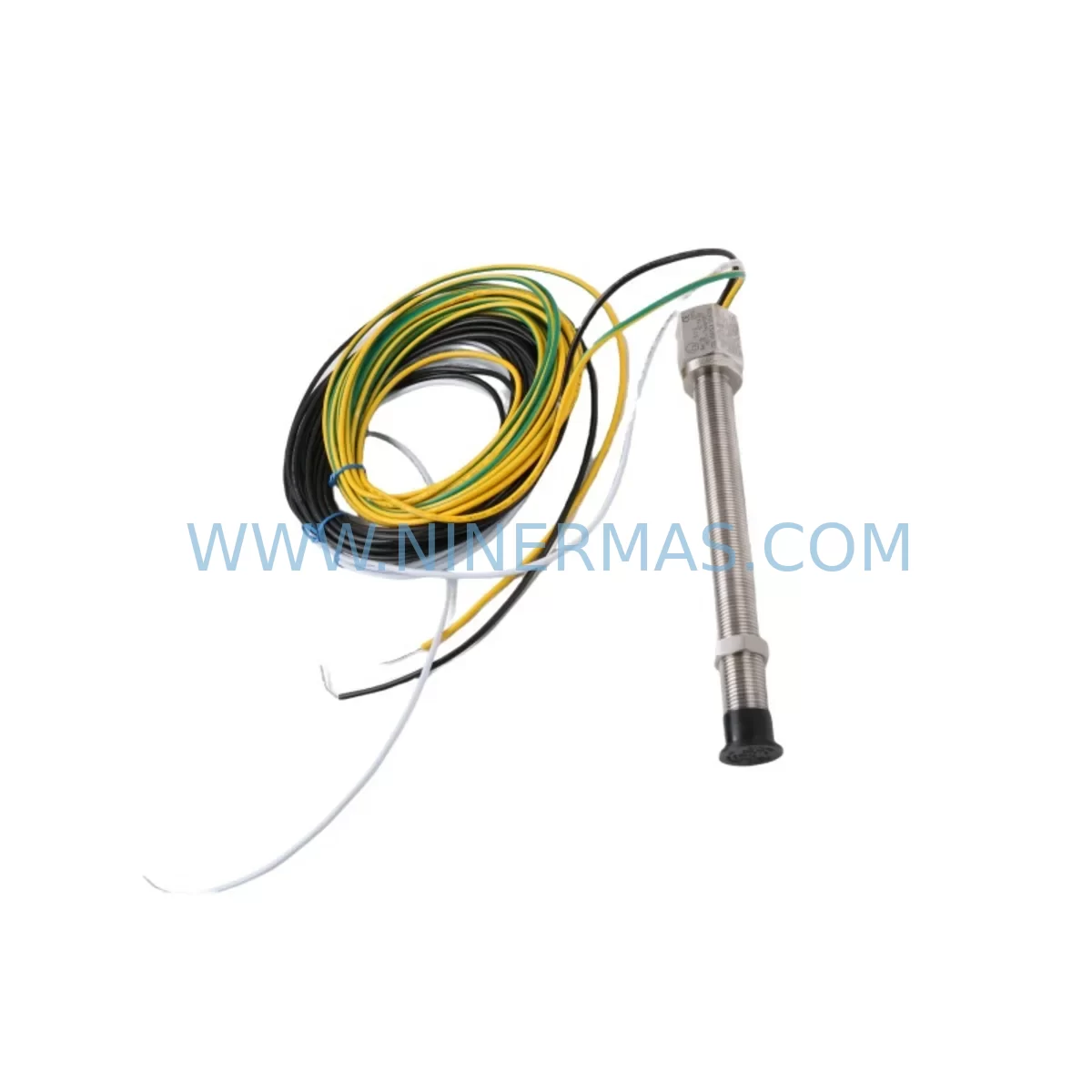

AI-Tek 70084-1713-111 Retrofit-Compatible Passive Speed Sensor

AI-Tek 70084-1713-111 Retrofit-Compatible Passive Speed Sensor for Legacy System Modernization

The AI-Tek 70084-1713-111 is a passive magnetic speed sensor engineered for industrial automation environments where legacy motion control systems require reliable, drop-in replacement components. As original OEM units reach end-of-life and spare parts become increasingly scarce, the 70084-1713-111 serves as a proven retrofit solution for aging drive systems, conveyor lines, turbine monitoring panels, and rotating machinery control cabinets. Whether you are managing a planned upgrade or responding to an unplanned failure, this sensor supports continuity of operation with minimal downtime and no requirement for PLC reprogramming in most standard retrofit scenarios.

The AI-Tek 70084-1713-111 generates a sinusoidal output signal proportional to the rotational speed of a ferromagnetic gear or toothed wheel target. Its passive (self-generating) design eliminates the need for external power supply to the sensing element itself, simplifying installation in retrofit applications where existing wiring harnesses and terminal blocks are being reused. The sensor’s robust stainless steel housing and wide operating temperature range make it suitable for harsh industrial environments including steel mills, paper machines, extruder lines, and wind turbine nacelles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AI-Tek 70084-1713-111 into an existing control system begins well before the sensor arrives on site. Maintenance engineers should start by auditing the existing wiring diagram to confirm the terminal block assignments for the speed feedback loop. In many legacy installations, the sensor signal is routed through a signal conditioning module — such as a frequency-to-voltage converter or a pulse shaper card — before reaching the PLC speed input. If the original signal conditioner is also obsolete, sourcing a compatible replacement unit from the same control platform family will prevent signal mismatch errors during commissioning.

For systems built around older Siemens SIMATIC S5 or early S7-300 series controllers, the speed feedback is often processed through a dedicated FM 350 counter module or a CP 340 communications processor. When migrating to a current-generation S7-1500 platform, engineers must verify that the new CPU’s technology object configuration correctly maps the sinusoidal input from the 70084-1713-111 to the appropriate speed setpoint register. Similarly, in Rockwell Automation environments using legacy SLC 500 or PLC-5 racks, the analog input module — such as a 1746-NI4 or 1771-IFE — must be confirmed compatible with the sensor’s output voltage range at the expected operating speed.

Backplane and rack space is another critical consideration. When a control cabinet is being upgraded from an older modular rack system, the physical dimensions of replacement I/O modules, power supply units, and communication adapters must be verified against available slot count and DIN rail space. Adding a new Ethernet/IP communication module or a PROFIBUS DP adapter card alongside the speed monitoring circuit may require rack expansion or cabinet reorganization. In such cases, a structured retrofit plan should account for cable management, earthing bar relocation, and updated cabinet door labeling.

For installations where the 70084-1713-111 feeds into a variable frequency drive (VFD) speed feedback terminal — such as those found on ABB ACS800, Danfoss FC302, or Yaskawa A1000 drives — the drive’s encoder/speed feedback parameter group must be reconfigured to accept a passive magnetic sensor input rather than an active encoder signal. This typically involves setting the feedback type parameter, adjusting the pulse-per-revolution value to match the gear tooth count, and verifying the minimum detectable speed threshold against the application’s lowest operating RPM.

HMI screen updates are often overlooked during sensor retrofit projects. If the original HMI — whether a Siemens TP700 Comfort panel, a Rockwell PanelView Plus, or a Weintek cMT series display — shows a speed trend or alarm based on the feedback signal tag, the tag address and scaling factor must be reviewed after the new sensor is commissioned. Failure to update the HMI scaling can result in incorrect speed readings being displayed to operators even when the underlying control logic is functioning correctly.

Downtime Control During System Migration

Minimizing production downtime during a speed sensor retrofit requires a structured pre-commissioning checklist and a clear rollback plan. Before the scheduled maintenance window, the replacement AI-Tek 70084-1713-111 should be bench-tested using a signal generator or a slow-speed test rig to confirm coil resistance, output amplitude, and polarity. This pre-shipment verification step — which is included as part of our standard outgoing quality check — ensures that the unit arriving on site is ready for immediate installation.

During the maintenance window, the original sensor should be removed carefully, preserving the existing cable and connector if possible. Measuring the air gap on the original installation provides a baseline for setting the replacement unit. If the original air gap specification is not documented, a starting point of 0.5 mm to 1.5 mm is typical for most AI-Tek 70084 series applications, with fine adjustment based on signal amplitude measurement at low speed.

Once the 70084-1713-111 is installed and the control system is powered up, the commissioning engineer should monitor the speed feedback signal in the PLC or drive diagnostic screen before enabling the drive output. Confirming that the speed reading tracks correctly through the full operating range — from minimum speed to maximum speed — before resuming production protects both the equipment and the process. If the original PLC program uses a speed-dependent interlock or a ramp rate limiter tied to the feedback signal, these logic blocks should be verified in simulation mode before live commissioning where possible.

For critical continuous-process applications where even a brief unplanned stop is unacceptable, a hot-standby wiring arrangement — where the replacement sensor is pre-wired in parallel with the original and switched over at the terminal block — can reduce the actual changeover time to under five minutes. This approach is particularly effective in paper machine drives, extruder lines, and compressor control systems where the cost of an unplanned shutdown far exceeds the cost of the additional wiring work.

Retrofit Support FAQ

Q1: Is the AI-Tek 70084-1713-111 a direct drop-in replacement for other 70084 series variants?
The 70084-1713-111 shares the same basic sensing principle and housing family as other AI-Tek 70084 series passive speed sensors, but coil resistance, sensitivity, and connector configuration may differ between sub-variants. Always compare the original part’s datasheet against the 70084-1713-111 specification before installation. Where the original datasheet is unavailable, our technical team can assist with cross-reference verification based on the application description and measured coil resistance of the unit being replaced.

Q2: What wiring changes are required when replacing a legacy speed sensor with the 70084-1713-111?
In most cases, the existing two-conductor shielded cable can be reused. Confirm that the cable shield is grounded at one end only (typically at the control panel end) to avoid ground loop interference. If the original sensor used a connector type that differs from the 70084-1713-111’s termination, a short adapter pigtail can be fabricated on site using standard industrial connector components. Polarity is not critical for passive magnetic sensors, but consistent wiring practice should be maintained for documentation purposes.

Q3: Has the unit been tested before shipment, and what does the 12-month warranty cover?
Yes. Every AI-Tek 70084-1713-111 unit shipped from our inventory undergoes outgoing inspection including coil resistance measurement and visual inspection of the housing, threads, and connector. The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, excessive vibration beyond the rated specification, or chemical exposure. Warranty claims are processed with a replacement unit dispatched upon receipt and inspection of the returned item.

Q4: How quickly can the unit be shipped, and do you maintain stock for ongoing maintenance contracts?
We maintain ready stock of the AI-Tek 70084-1713-111 to support both emergency breakdown orders and planned maintenance schedules. Standard lead time for in-stock units is 1–3 business days for international express shipment. For customers managing multi-site maintenance contracts or annual shutdown schedules, we offer reserved stock arrangements to guarantee availability. Contact our sales team to discuss volume pricing and consignment stock options for your facility.
