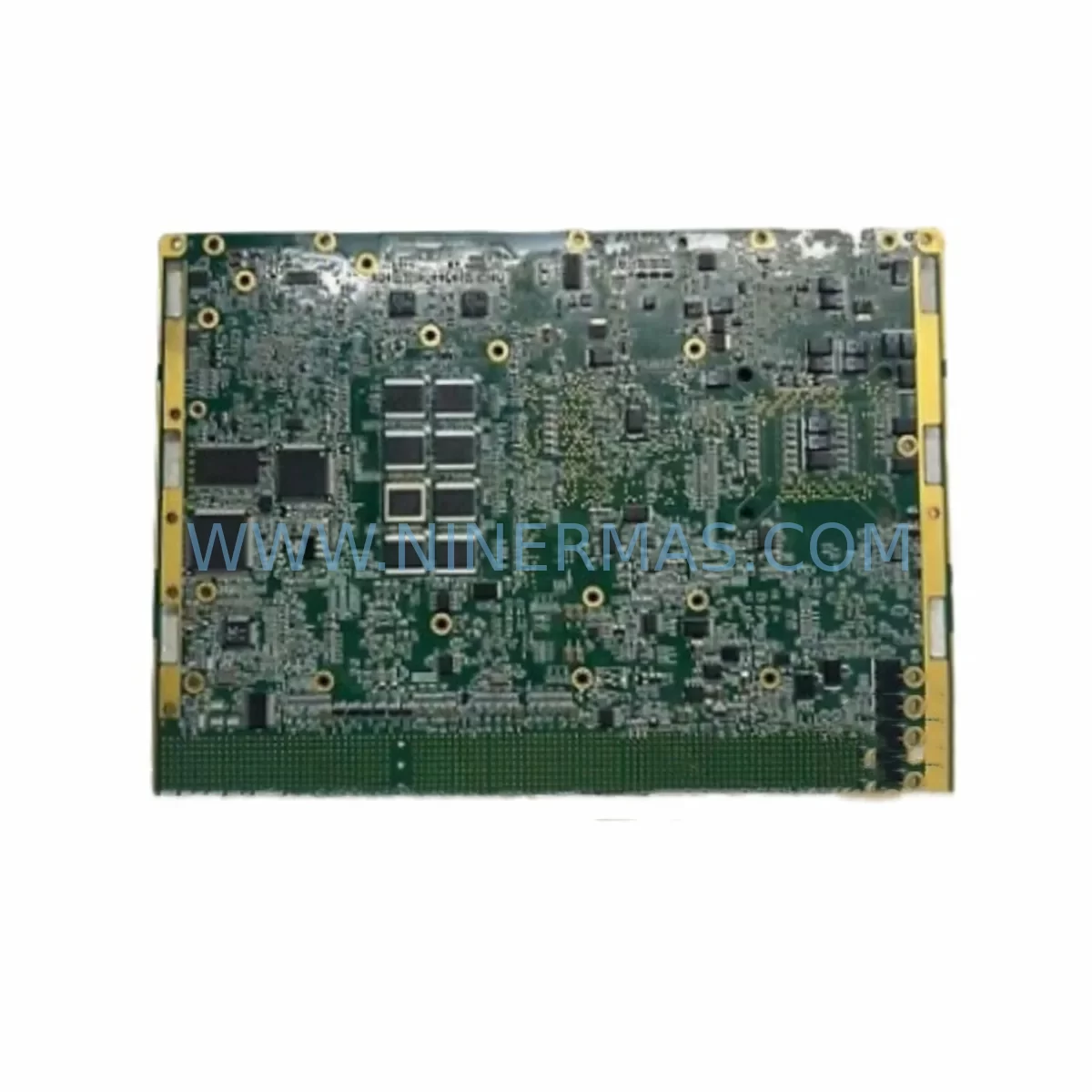

The Advantech MIC-3392MILS is a ruggedized single-board computer (SBC) module designed for deployment in harsh industrial, military, and mission-critical environments. Built to the PICMG 1.0 standard, this motherboard module delivers reliable processing performance under extreme temperature ranges, high vibration, and elevated humidity conditions that would compromise standard commercial hardware. For maintenance engineers managing aging automation infrastructure, the MIC-3392MILS represents a direct-fit replacement solution that restores system uptime without requiring chassis redesign or software reconfiguration.

When a control system built around the MIC-3000 series experiences an unplanned shutdown, every hour of downtime translates into measurable production loss. Sourcing a verified, pre-tested MIC-3392MILS spare from a reliable supplier is the fastest path to restoring normal operation. NINERMAS maintains reserved inventory of the MIC-3392MILS to support emergency replacement requests, scheduled annual maintenance, and long-term spare parts programs for facilities operating Advantech-based control platforms.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MIC-3392MILS in a live control cabinet requires a structured approach that goes beyond swapping the board itself. Maintenance engineers should treat this replacement as an opportunity to audit the entire control subsystem and reduce the risk of secondary failures that could cause another unplanned outage within weeks of the initial repair.

Begin by inspecting the backplane into which the MIC-3392MILS is installed. Advantech MIC-3000 series passive backplanes, such as the MIC-BP13 or MIC-BP08, are subject to connector wear and trace oxidation over extended service life. If the backplane shows signs of arcing, discoloration, or loose slot retention, it should be replaced concurrently with the SBC module to prevent intermittent faults after restoration.

The power supply feeding the MIC-3392MILS is equally critical. Ruggedized systems in this class typically draw regulated +5V and +12V rails from a dedicated industrial power supply module. Units such as the Advantech PWR-244 or equivalent MIC-series power modules should be load-tested before the new SBC is installed. A degraded power supply that delivers marginal voltage under load will shorten the service life of the replacement board and may cause erratic system behavior that is difficult to diagnose remotely.

I/O expansion modules connected to the MIC-3392MILS via the backplane bus — including digital input/output cards, analog signal conditioning modules, and serial communication adapters — should be inspected for firmware currency and connector integrity. In systems where the MIC-3392MILS interfaces with a CompactPCI or ISA-based I/O rack, verify that each expansion card is properly seated and that its edge connector shows no signs of corrosion or mechanical stress.

Communication modules handling fieldbus protocols such as PROFIBUS, CANopen, or RS-485 serial links should be tested for signal integrity after the SBC replacement. A faulty communication module can mask itself as a CPU fault, leading to misdiagnosis and repeated board replacements. Similarly, any signal isolators or surge protection devices installed on the I/O wiring should be checked, as transient events that damaged the original MIC-3392MILS may have also degraded upstream protection components.

If the system includes an HMI panel connected to the MIC-3392MILS via a serial or USB interface, verify that the HMI firmware and communication parameters are compatible with the replacement board’s BIOS configuration. Advantech MIC-series SBCs may have BIOS revisions that affect COM port assignments or boot device priority, and these settings should be confirmed against the original system documentation before returning the machine to service.

For facilities maintaining multiple MIC-3000 series platforms, a proactive spare parts inventory that includes at least one MIC-3392MILS, one compatible backplane, and one power supply module will reduce mean time to repair (MTTR) from days to hours. Pairing this with a documented replacement procedure and a pre-tested spare reduces the risk of configuration errors during emergency maintenance.

Site Replacement Workflow

The MIC-3392MILS is a direct replacement for earlier MIC-3000 series SBC variants, including the MIC-3392A and MIC-3393, in systems where the PICMG 1.0 backplane slot and power rail specifications are compatible. Before initiating replacement, confirm the following steps to minimize downtime and avoid compatibility issues:

Step 1 — System Isolation: Follow site lockout/tagout (LOTO) procedures. Power down the control cabinet and discharge any residual energy in the power supply capacitors before opening the chassis.

Step 2 — Configuration Backup: If the original MIC-3392MILS is still partially functional, capture the BIOS settings, boot device configuration, and any hardware jumper positions before removal. Photograph the board orientation and cable routing for reference during reinstallation.

Step 3 — Board Removal and Inspection: Remove the faulty board and inspect the backplane slot for bent pins, debris, or thermal damage. Clean the slot with appropriate contact cleaner before installing the replacement.

Step 4 — Replacement Installation: Insert the new MIC-3392MILS into the designated backplane slot, ensuring full engagement of the edge connector. Secure the retention bracket and reconnect all cables in the documented sequence.

Step 5 — BIOS Configuration: Power on the system and enter the BIOS setup to verify that all hardware parameters match the original configuration. Confirm COM port assignments, boot priority, and any watchdog timer settings required by the application software.

Step 6 — Functional Verification: Run a full I/O check and communication loop test before returning the system to automatic operation. Verify that all connected modules — including the MIC-3395 or MIC-3396 expansion cards if present — are recognized and responding correctly.

This structured workflow reduces the risk of secondary faults and ensures that the replacement MIC-3392MILS is operating within its specified parameters before the system is returned to production.

Spare Parts Support FAQ

Q1: Is the MIC-3392MILS compatible with all MIC-3000 series chassis?
The MIC-3392MILS is designed for PICMG 1.0 passive backplanes used across the MIC-3000 series. Compatibility depends on the backplane slot count, power rail availability, and chassis depth. Customers should confirm the target chassis model and backplane part number before ordering. NINERMAS technical support can assist with compatibility verification based on the existing system configuration.

Q2: What pre-shipment testing is performed on the MIC-3392MILS?
Each MIC-3392MILS unit shipped by NINERMAS undergoes a functional power-on test, POST verification, and I/O interface check before dispatch. Units that do not pass the full test sequence are not shipped. A test report is available upon request for customers with quality documentation requirements.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified temperature and humidity range. Warranty claims are processed through NINERMAS directly, with replacement or repair options depending on the nature of the fault.

Q4: Can NINERMAS support long-term supply commitments for the MIC-3392MILS?
Yes. NINERMAS offers reserved inventory programs for customers operating large fleets of MIC-3000 series systems or managing multi-year maintenance contracts. Long-term supply agreements include guaranteed stock allocation, priority dispatch, and fixed pricing for the contract period. Contact the NINERMAS procurement team to discuss volume and lead time requirements.
