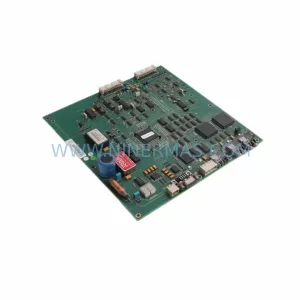

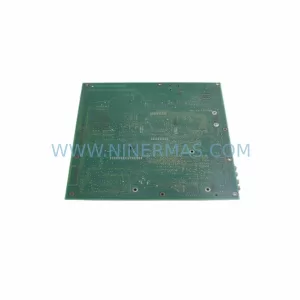

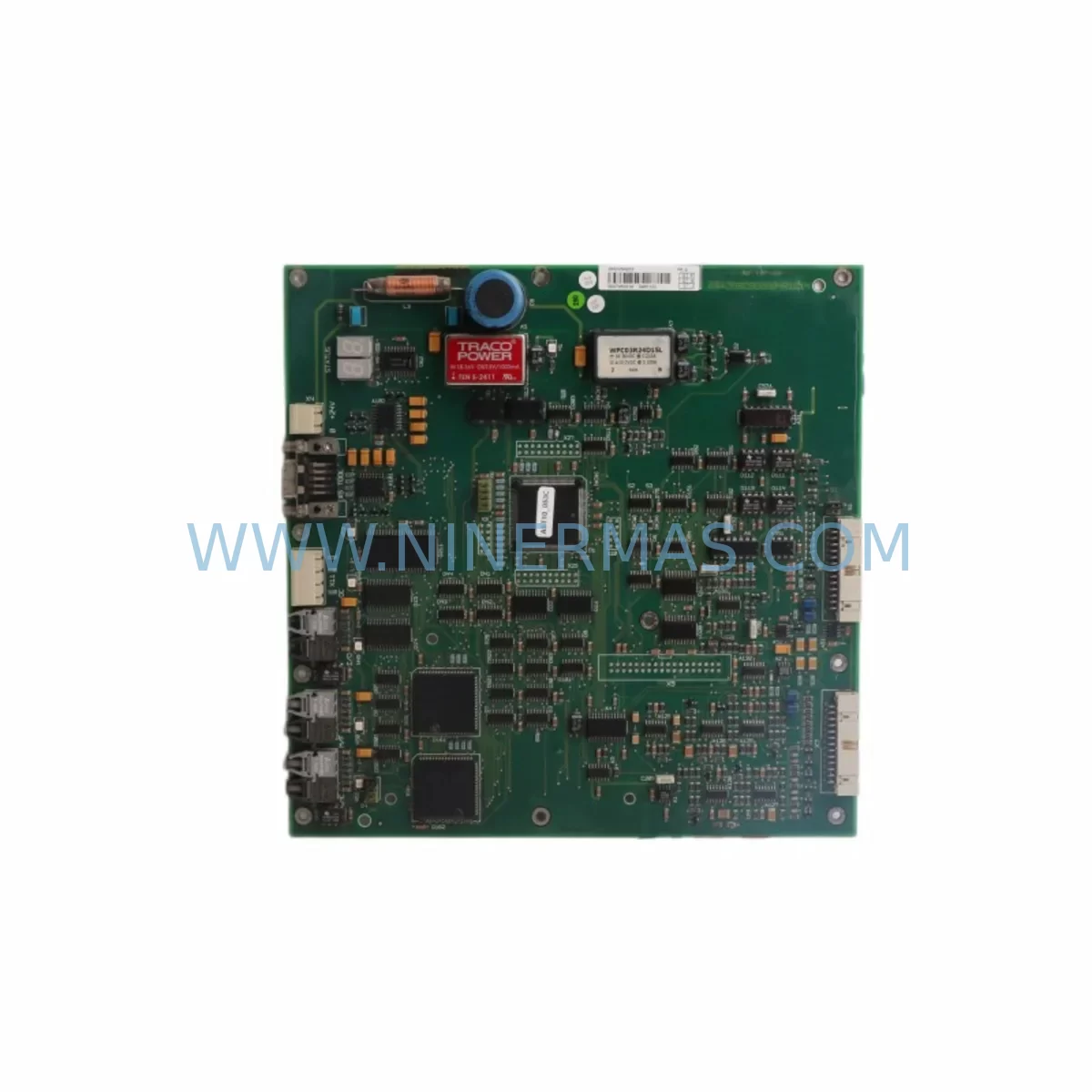

ABB DAPC100 3ASC25H203 Retrofit-Compatible Drive Control Board

ABB DAPC100 3ASC25H203 Retrofit-Compatible Drive Control Board: Legacy System Compatibility & Smooth Upgrade

The ABB DAPC100 3ASC25H203 is a drive control board designed for ABB’s DAPC100 series DC drive platforms, widely deployed across heavy industrial applications including steel mills, paper machines, cranes, extruders, and marine propulsion systems. As ABB has progressively phased out legacy DC drive product lines in favor of modern platforms such as the DCS800 and ACS800, the 3ASC25H203 has become a critical spare part for facilities that must maintain existing infrastructure without full drive replacement.

NINERMAS maintains verified inventory of the ABB DAPC100 3ASC25H203 to support retrofit projects, emergency breakdowns, and planned maintenance cycles. Each unit is function-tested prior to shipment and covered by a 12-month warranty, giving procurement and maintenance teams confidence in both availability and reliability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the ABB DAPC100 3ASC25H203 in a live production environment requires careful pre-planning to avoid extended downtime and configuration loss. The DAPC100 platform was engineered for high-performance DC motor control, and its control board is the intelligence center of the drive — managing speed reference processing, armature current regulation, field excitation control, and protection logic.

Before initiating a board swap, maintenance engineers should back up all drive parameters using DriveWindow or the DriveAP software tool via the serial programming cable (typically a USB-to-RS232 adapter connected to the drive’s front panel port). Parameter sets include motor nameplate data, speed scaling, current limits, ramp times, and any application-specific macro configurations. Losing this data without a backup can add hours to recommissioning.

On the hardware side, engineers must verify the SDCS-PIN (power interface board) and SDCS-CON (control board) revision compatibility within the same drive chassis. In multi-drive systems or coordinated line configurations, the NAMC (motor control application module) and NINT (inverter control interface) boards may also be present and must remain undisturbed during the control board replacement. If the system uses DDCS fiber optic communication links to a higher-level controller or AC800M DCS, the fiber connections should be labeled and documented before any board removal.

For facilities running coordinated DC drive lines — such as multi-stand rolling mills or winder/unwinder systems — the 3ASC25H203 replacement must be synchronized with the master speed reference chain. Any deviation in the speed follower ratio or current share parameters can cause tension faults or mechanical stress on the driven equipment. It is strongly recommended to perform the swap during a planned maintenance window with the full drive line de-energized and locked out.

In control cabinets where space is constrained, engineers should also confirm that the replacement board’s connector locking tabs engage fully with the backplane, and that no adjacent modules — such as the NDIO digital I/O extension module or the NOIA analog I/O board — are displaced during the swap. Terminal wiring on the drive’s I/O terminal strip should be photographed or mapped before any work begins.

For systems that include an ABB Panel PC or third-party HMI running SCADA visualization, the HMI tag database and alarm configuration should be verified post-swap to confirm that drive status words, fault codes, and speed feedback signals are still mapping correctly to the HMI display. In some legacy installations, the HMI communicates via Modbus RTU or Profibus DP through an adapter module, and the communication link should be tested end-to-end after the board is reinstalled and powered.

Downtime Control During System Migration

Minimizing production downtime during a DAPC100 3ASC25H203 board replacement is achievable with the right preparation. The most effective strategy is to have a pre-tested, pre-configured replacement board on-site before the maintenance window begins. NINERMAS can provide function-tested units with lead times suitable for both emergency and planned procurement cycles.

The recommended replacement sequence is as follows: First, perform a full parameter backup via the programming interface. Second, de-energize the drive and discharge the DC bus capacitors — confirm zero voltage with a calibrated meter before touching any internal components. Third, remove the faulty 3ASC25H203 board, taking note of any jumper settings or DIP switch configurations that may be present. Fourth, install the replacement board, restore jumper settings, and reconnect all ribbon cables and fiber links. Fifth, power up the drive in local control mode and verify that the drive self-test completes without fault. Sixth, restore the parameter backup and perform a no-load motor run to confirm speed feedback and current regulation are functioning correctly before returning the drive to automatic production control.

This structured approach protects the original program logic, maintains field control continuity, and reduces the risk of secondary faults caused by incorrect recommissioning. For facilities with strict SLA requirements, NINERMAS also supports pre-shipment configuration assistance to reduce on-site commissioning time.

Retrofit Support FAQ

Q1: Is the ABB DAPC100 3ASC25H203 a direct drop-in replacement for my existing board?
In most cases, yes — the 3ASC25H203 is designed as a direct replacement within the DAPC100 drive platform. However, you should verify the board revision level and confirm that any jumper or DIP switch settings on the original board are replicated on the replacement. NINERMAS technical support can assist with compatibility verification before shipment.

Q2: Has the unit been tested before shipment?
Yes. All NINERMAS units undergo functional testing prior to dispatch. Each board is verified for power rail integrity, signal output, and basic control logic operation. A test report is available upon request. Units are shipped with ESD-protective packaging to prevent transit damage.

Q3: What warranty does the 3ASC25H203 carry?
NINERMAS provides a 12-month warranty on all ABB DAPC100 3ASC25H203 units. The warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q4: Do you maintain stock, and what are typical lead times?
NINERMAS maintains active inventory of the ABB DAPC100 3ASC25H203 to support both emergency breakdown and planned maintenance procurement. Typical lead times for in-stock units are 3–7 business days for international shipments. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and shipping options to your location.
