Advanced 23020207-A Service-Ready Industrial Maintenance Spare

Advanced 23020207-A Service-Ready Industrial Maintenance Spare

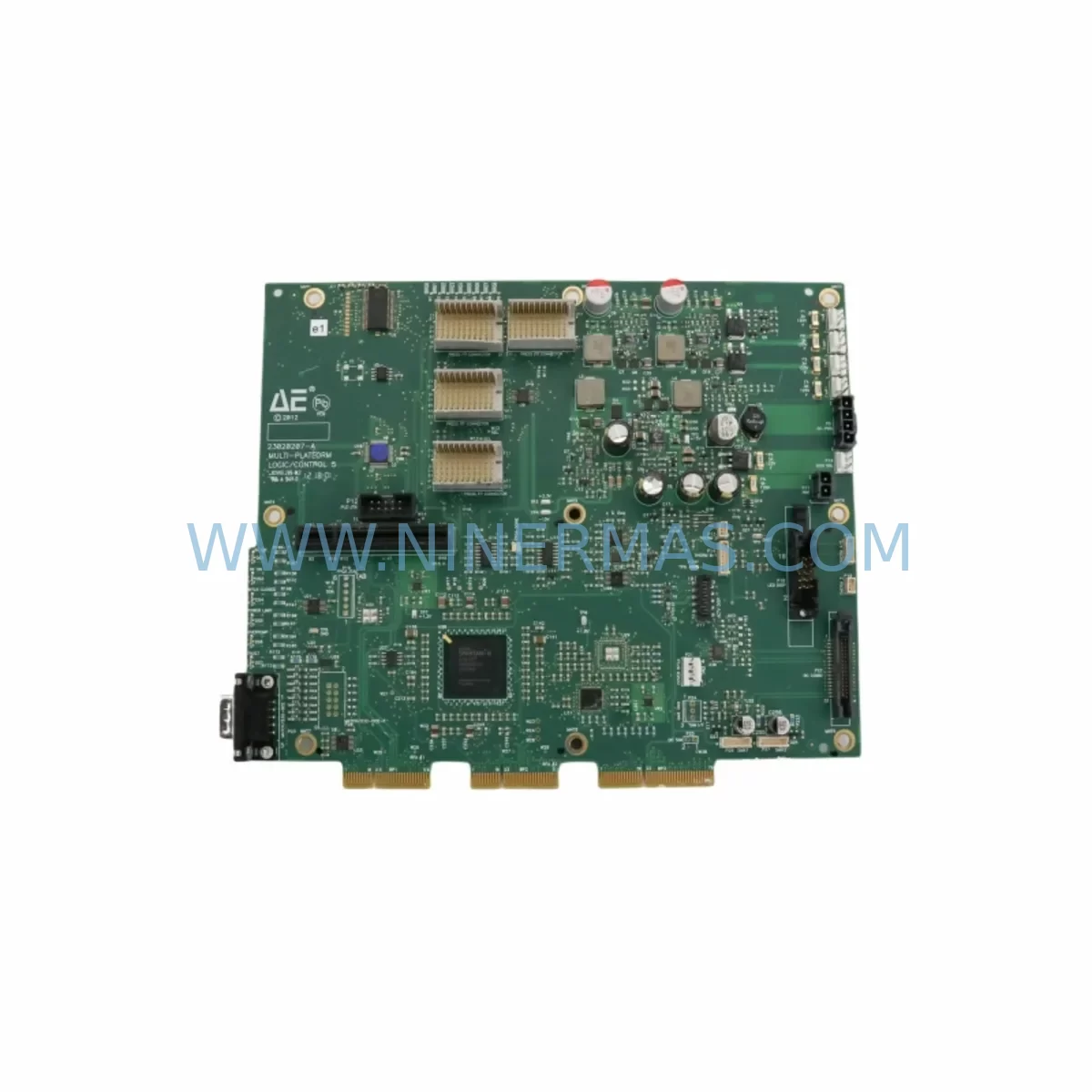

The Advanced 23020207-A is a ruggedized logic control module engineered for continuous operation in demanding industrial environments. Designed to withstand wide temperature ranges, vibration, and electrical noise, this module serves as a critical spare part for maintenance engineers managing legacy and active automation systems. Whether you are responding to an unplanned shutdown or executing a scheduled annual overhaul, having a verified, service-ready 23020207-A in your spare parts inventory is a fundamental risk mitigation strategy.

For facilities running continuous process lines, discrete manufacturing cells, or safety-instrumented systems, the failure of a logic control module can cascade into hours or days of unplanned downtime. The Advanced 23020207-A is stocked, pre-shipment tested, and available for immediate dispatch to support rapid site replacement and production recovery. Each unit is supplied with a 12-month warranty covering manufacturing defects and functional performance, giving procurement engineers confidence in long-term supply reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective spare parts planning for a control cabinet housing the Advanced 23020207-A extends well beyond the module itself. Maintenance engineers conducting routine inspections or fault isolation should simultaneously evaluate the health of adjacent components to prevent secondary failures after a module swap.

The 23020207-A logic control module operates in close electrical relationship with the system’s power supply module — typically an Advanced 23020206-A or equivalent 24 VDC regulated supply. A degraded power supply delivering voltage ripple or transient spikes is a leading cause of premature logic module failure. Always verify supply output stability before commissioning a replacement module.

On the I/O side, inspect all digital and analog I/O modules connected to the same backplane or rack. Faulty field wiring, shorted sensors, or overloaded output channels can stress the logic module’s internal bus interface. Terminal blocks and field wiring connectors should be checked for corrosion, loose terminations, and insulation breakdown — particularly in high-humidity or chemically aggressive environments where the ruggedized design of the 23020207-A provides an advantage.

Communication integrity is equally important. If the control system uses Profibus, Modbus RTU, or DeviceNet communication modules, verify that network termination resistors are correctly installed and that cable shielding is intact. A communication fault misdiagnosed as a logic module failure is a common and costly error in field maintenance.

For systems with signal isolators between field instruments and the control module, inspect isolator output levels and check for ground loop conditions. Degraded signal isolation can introduce noise into the logic module’s analog input channels, causing erratic control behavior that mimics module failure.

Relay output modules and solid-state relay (SSR) assemblies connected downstream of the logic module should be tested for contact resistance and switching integrity. A welded relay contact can create a dangerous condition during module replacement if the output circuit is not properly de-energized.

Finally, inspect the backplane connectors and rack chassis for bent pins, oxidation, or mechanical damage. A poor backplane connection is a frequent root cause of intermittent logic module faults that are difficult to reproduce during bench testing. Including a spare backplane connector kit and a set of blade-type fuses or miniature circuit breakers for the control cabinet in your annual maintenance kit will significantly reduce mean time to repair (MTTR) when the Advanced 23020207-A or any adjacent module requires replacement.

Site Replacement Workflow

Replacing the Advanced 23020207-A on-site follows a structured sequence to minimize downtime and ensure system compatibility:

Step 1 — Isolation and Documentation: Place the control system in a safe state. Document the current module configuration, firmware version, and any DIP switch or jumper settings on the existing unit before removal. Photograph the wiring and connector positions.

Step 2 — Compatibility Verification: Confirm that the replacement 23020207-A matches the hardware revision of the installed unit. Check the system’s bill of materials or engineering drawings for any revision-specific requirements. If the system uses a companion module such as a 23020207-B or a paired I/O expansion card, verify cross-compatibility before proceeding.

Step 3 — Physical Replacement: Remove the faulty module following ESD precautions. Insert the replacement unit, ensuring the backplane connector is fully seated. Restore any jumper or switch settings to match the documented configuration.

Step 4 — Power-Up and Functional Test: Restore power and monitor the module’s status indicators during initialization. Verify communication with the host controller and confirm that all I/O channels respond correctly to test signals before returning the system to production.

Step 5 — Documentation Update: Record the replacement in the maintenance log, including the new module’s serial number, installation date, and warranty expiry. Update the spare parts inventory to trigger a reorder for the consumed 23020207-A unit.

Spare Parts Support FAQ

Q1: Is the Advanced 23020207-A compatible with all revisions of the Advanced control system?
The 23020207-A is designed for use within the Advanced series control architecture. However, hardware and firmware revisions may affect compatibility with specific system configurations. We recommend providing your system’s model number and current firmware version when placing an order so our technical team can confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every Advanced 23020207-A unit undergoes functional verification prior to dispatch, including power-on self-test, I/O channel continuity checks, and communication interface validation where applicable. Units are shipped with a test report and are covered by a 12-month warranty from the date of shipment.

Q3: How should I manage long-term inventory for end-of-life control modules like the 23020207-A?
For end-of-life or last-time-buy components, we recommend maintaining a minimum of two spare units per production line. We offer reserved inventory agreements that allow you to secure stock at current pricing with phased delivery, reducing procurement risk as the component approaches market scarcity. Contact our team to discuss a long-term supply arrangement.

Q4: What is the lead time if the 23020207-A is not in stock?
We maintain active stock of the Advanced 23020207-A to support urgent maintenance requirements. In the event of a temporary stock gap, our global sourcing network typically allows us to fulfill orders within 3–10 business days. For critical applications, we recommend establishing a standing order or consignment stock arrangement to eliminate lead time risk entirely.
