ACS SPiiPlusSAnt-HP-4-E-M0 Retrofit Motion Controller

ACS SPiiPlusSAnt-HP-4-E-M0 Retrofit-Compatible Motion Controller for Legacy Systems

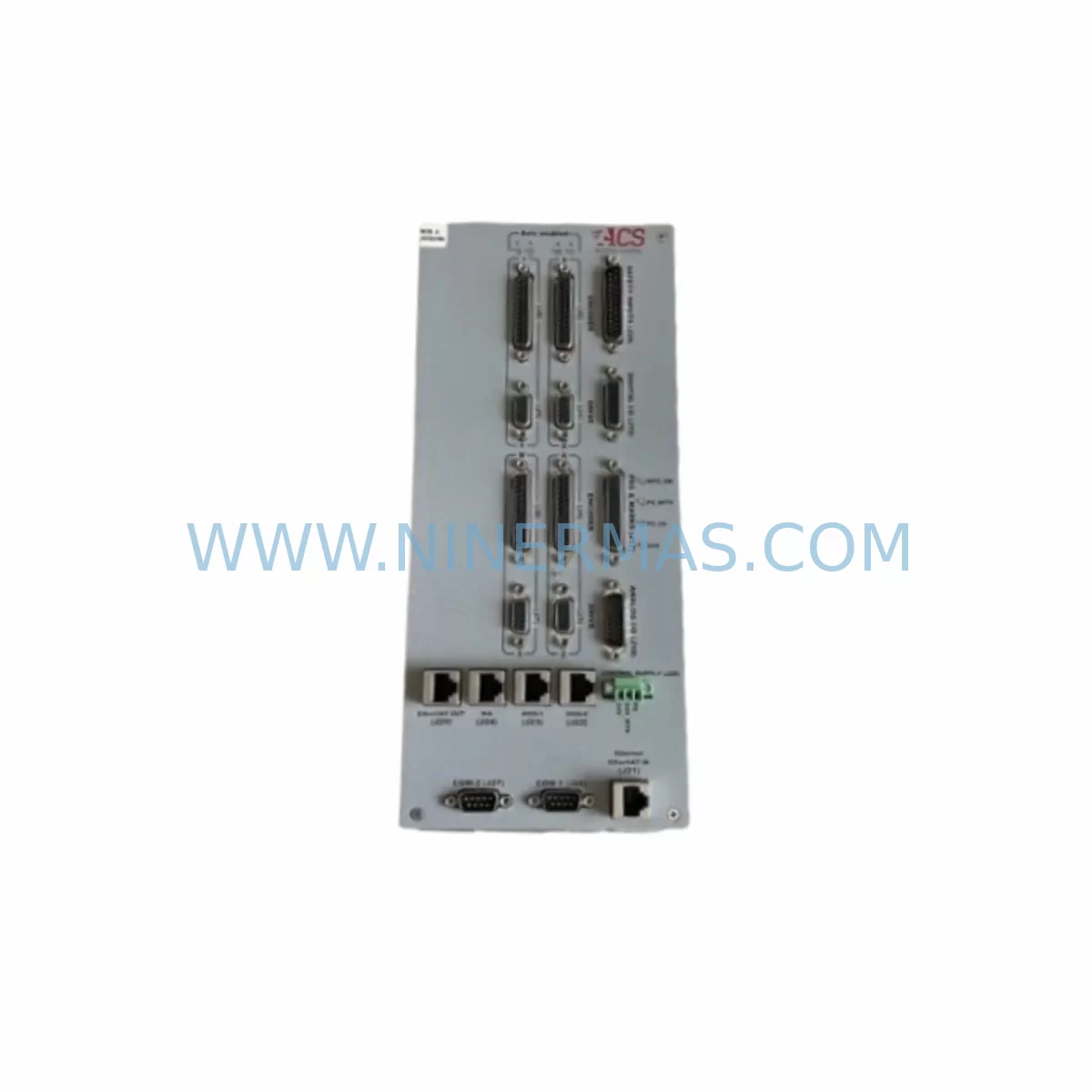

The ACS SPiiPlusSAnt-HP-4-E-M0 is a high-performance standalone motion controller from ACS Motion Control, engineered for multi-axis coordinated motion in precision automation environments. As legacy SPiiPlus-series platforms approach end-of-life or become increasingly difficult to source, the SPiiPlusSAnt-HP-4-E-M0 serves as a validated retrofit solution for existing control cabinets, machine frames, and automation architectures that were originally built around ACS motion platforms.

This unit supports up to 4 axes of EtherCAT-based servo control, making it directly applicable to systems previously running on older SPiiPlus NT or SPiiPlus EC controllers. Engineers undertaking a control system modernization project will find that the SPiiPlusSAnt-HP-4-E-M0 preserves compatibility with existing ACSPL+ motion programs, reducing the need for full software rewrites during migration. Pre-shipment functional testing is performed on every unit prior to dispatch, and all units are covered by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the SPiiPlusSAnt-HP-4-E-M0 begins with a thorough audit of the existing control architecture. Engineers should document the current axis topology, servo drive models, feedback device types (encoder, resolver, or linear scale), and the existing EtherCAT or fieldbus network layout before ordering replacement hardware.

In most legacy ACS installations, the motion controller interfaces with EtherCAT-compatible servo drives such as the ACS UDMsd or ACS UDMlc drive modules. These drives typically remain serviceable and do not require replacement during a controller swap, provided they already operate on EtherCAT CoE protocol. If the existing drives use an older communication standard such as CANopen or SERCOS III, a protocol migration plan must be developed in parallel with the controller replacement.

For I/O expansion, the SPiiPlusSAnt-HP-4-E-M0 integrates with standard EtherCAT I/O terminals — for example, Beckhoff EK1100 EtherCAT couplers with EL1008 digital input and EL2008 digital output terminals are commonly used in mixed-vendor retrofit projects. Signal isolation between the new controller and legacy field wiring should be verified; in some installations, a signal isolator module or relay output terminal is required to protect the controller’s I/O from inductive loads or voltage mismatches on older wiring harnesses.

The programming cable and software environment also require attention. The ACS SPiiPlus MMI Application Studio is the primary development and commissioning tool for this controller family. Engineers migrating from an older SPiiPlus NT system should export existing ACSPL+ programs and validate motion profiles, homing sequences, and safety interlock logic against the new hardware configuration. In many cases, axis parameter tables — including PID gains, velocity feedforward, and position error limits — can be transferred directly, significantly reducing commissioning time.

Backplane and rack considerations are minimal for the SPiiPlusSAnt standalone form factor, but cabinet space planning remains critical. Confirm that the existing control cabinet provides adequate clearance for the controller body, EtherCAT patch cables, and 24 VDC power wiring. If the legacy system used a SPiiPlus CABI rack-mounted controller, the transition to a standalone DIN-rail unit may free up significant panel space, which can be repurposed for additional EtherCAT I/O modules or a managed Ethernet switch to support real-time network segmentation.

HMI integration is another key checkpoint. If the existing operator interface communicates with the legacy ACS controller via a proprietary serial protocol or an older OPC server, the migration to the SPiiPlusSAnt-HP-4-E-M0’s Ethernet TCP/IP interface will require updating the HMI communication driver and remapping variable addresses. Modern SCADA or HMI platforms — including those running on Weintek cMT or Siemens TP series panels — can typically establish communication with the ACS controller via the built-in ACS Ethernet driver or a custom TCP socket interface.

Downtime Control During System Migration

Minimizing production downtime is the primary operational concern during any motion controller replacement. For the SPiiPlusSAnt-HP-4-E-M0 retrofit, a structured migration approach is strongly recommended:

1. Parallel Preparation: Configure and bench-test the new SPiiPlusSAnt-HP-4-E-M0 offline before the scheduled maintenance window. Load the migrated ACSPL+ program, verify axis parameters, and simulate I/O states using the SPiiPlus MMI Application Studio diagnostics tools. This eliminates the majority of software debugging from the live changeover window.

2. Program Backup: Before powering down the legacy controller, perform a full backup of the existing ACSPL+ program, axis parameter files, and any stored motion profiles. Store backups on a local engineering laptop and a network share. If the legacy system uses a SPiiPlus NT controller with onboard flash storage, use the MMI backup utility to export all user files.

3. Wiring Changeover: Label all terminal connections on the legacy controller before disconnection. The SPiiPlusSAnt-HP-4-E-M0 uses standard M12 or RJ45 EtherCAT connectors for drive communication and a 24 VDC terminal block for power. Reconnect EtherCAT drive cables in the same network order as the original topology to preserve axis addressing. Verify 24 VDC supply polarity and current capacity before powering on.

4. Commissioning and Verification: After power-on, use the ACS SPiiPlus MMI to scan the EtherCAT network and confirm all drives and I/O modules are detected. Run axis enable sequences at reduced velocity before executing full-speed motion profiles. Verify all safety interlocks, limit switch responses, and emergency stop logic before returning the machine to production.

A well-prepared retrofit of this type can typically be completed within a single 4–8 hour maintenance window, preserving original program logic and minimizing retraining requirements for machine operators.

Retrofit Support FAQ

Q1: Is the SPiiPlusSAnt-HP-4-E-M0 a direct replacement for the SPiiPlus NT 4-axis controller?
Functionally, yes. The SPiiPlusSAnt-HP-4-E-M0 supports the same ACSPL+ programming language and EtherCAT drive communication as the SPiiPlus NT series. Mechanical mounting differs — the SPiiPlusSAnt uses DIN-rail or panel mounting rather than a rack backplane — so cabinet layout adjustments may be required. Axis parameter files and motion programs are transferable with minor revision.

Q2: What pre-shipment testing is performed on this unit?
Every SPiiPlusSAnt-HP-4-E-M0 unit undergoes functional power-on testing, EtherCAT port verification, and I/O continuity checks prior to dispatch. Units are shipped with a test report confirming operational status. A 12-month warranty is included from the date of shipment.

Q3: Can this controller communicate with non-ACS servo drives?
Yes. The SPiiPlusSAnt-HP-4-E-M0 supports standard EtherCAT CoE (CANopen over EtherCAT) protocol, which is compatible with a wide range of third-party EtherCAT servo drives. Drives from Panasonic MINAS A6B series, Delta ASDA-A3-E series, and Yaskawa Sigma-7S EtherCAT variants have been used in mixed-vendor retrofit projects with this controller family. Drive-specific ESI files must be imported into the ACS MMI configuration.

Q4: What is the lead time and stock availability?
This unit is maintained in inventory to support urgent retrofit and spare parts requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For time-critical production line recoveries, expedited dispatch is available — contact our sales team to confirm current stock levels and shipping options.
