ABB YPP110A 3ASD573001A1 Retrofit-Compatible Digital Processor

ABB YPP110A 3ASD573001A1 Retrofit-Compatible Digital Processor for Legacy Systems

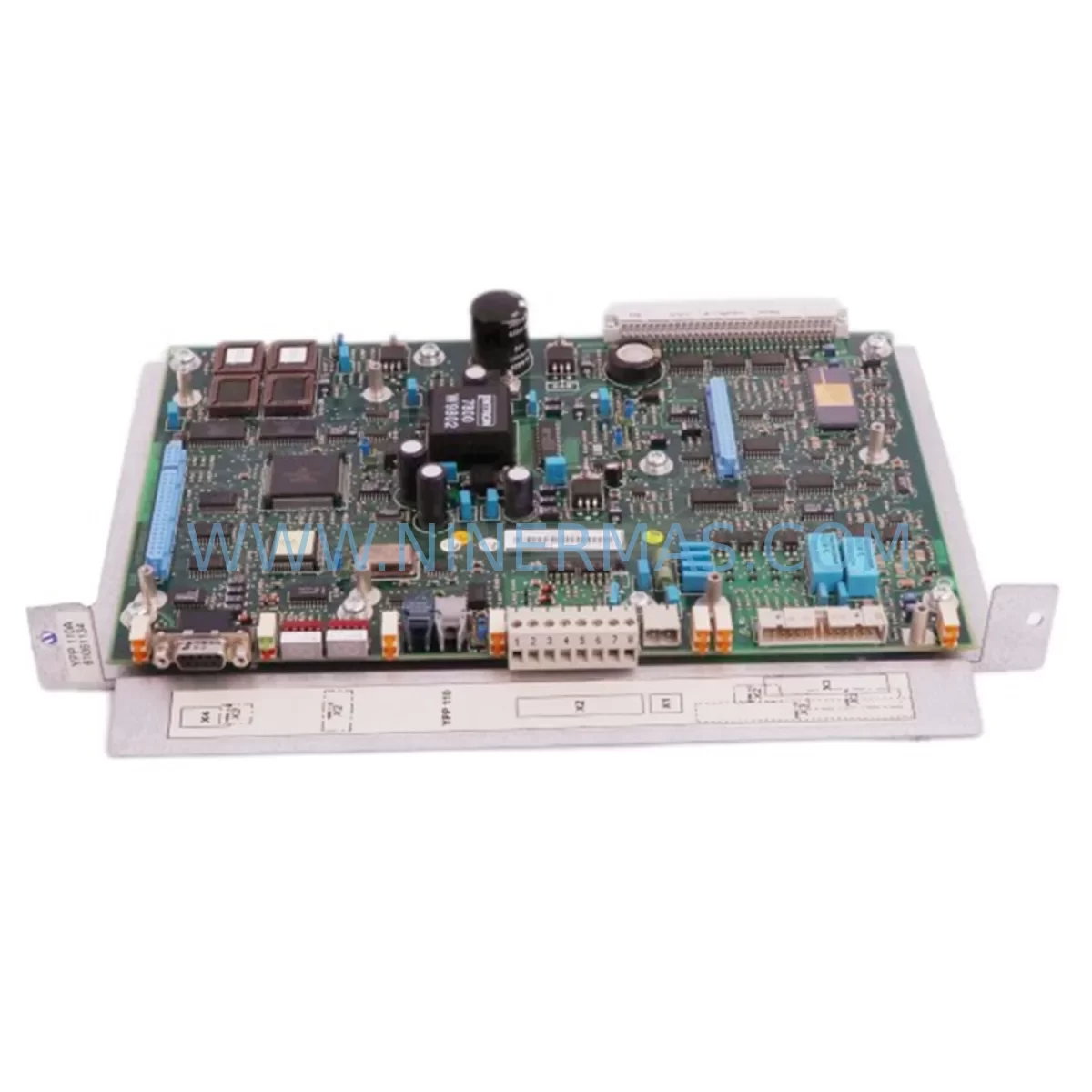

The ABB YPP110A (3ASD573001A1) is a digital processor module originally designed for ABB’s AC31 and Advant Controller series — a platform that powered thousands of industrial automation installations across manufacturing, utilities, and process control industries. As ABB has progressively phased out the AC31 and Advant product lines, end users operating legacy control panels are now facing the critical challenge of sourcing compatible replacement modules to sustain production continuity without committing to a full system overhaul.

NINERMAS maintains verified stock of the YPP110A 3ASD573001A1 specifically to support retrofit projects, emergency spare part replacement, and phased migration programs. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to plan around a reliable supply chain.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the YPP110A 3ASD573001A1, the scope of work extends well beyond swapping the processor module itself. A successful migration requires a systematic review of every component in the control architecture that interfaces with the CPU.

Start with the power supply module — the AC31 rack typically uses a dedicated 24 VDC PSU such as the ABB NPBA-12 or equivalent. Confirm that the existing power supply can sustain the full load of the processor plus all connected I/O modules before proceeding. Undersized power supplies are a leading cause of intermittent faults after processor replacement.

Next, audit the I/O modules installed in the same rack. The AC31 platform supports a range of digital and analog I/O cards — modules such as the ABB YPQ110A digital output module and ABB YPR110A analog input module are commonly found alongside the YPP110A in mixed-signal control cabinets. Verify that the module addresses configured in the original program still match the physical slot assignments after the processor is replaced. Address mismatches will cause the CPU to fault on startup.

For systems using CS31 system bus communication, inspect the bus termination resistors and cable shielding on all remote I/O drops. The YPP110A acts as the CS31 master, and any degraded cabling that was previously masked by the old processor’s error tolerance may surface as communication faults with the replacement unit. Similarly, if the installation uses PROFIBUS-DP for upstream communication to a SCADA or DCS layer, confirm that the GSD file and station address settings are preserved in the new processor configuration.

HMI connectivity is another critical checkpoint. Many AC31-based systems use ABB CP430 or CP600 series operator panels connected via serial RS-232 or RS-485 links. After replacing the YPP110A, re-validate the HMI communication parameters — baud rate, parity, and station address — to ensure the operator interface resumes correctly without requiring a full HMI project re-download.

For installations where the AC31 rack is mounted inside a legacy control cabinet alongside third-party components, measure the available installation space carefully. The YPP110A occupies a standard AC31 module slot, but if the cabinet has been modified over the years, physical clearance for the module’s front connector and status LEDs should be confirmed before ordering. In some cases, a signal isolator or terminal block adapter may be needed to bridge legacy wiring to the replacement module’s connector pinout.

Finally, ensure that the application program — typically stored in the original processor’s flash memory or uploaded from a backup — is available in a compatible format for the ABB Automation Builder or legacy ABB Control Builder programming environment. If the original program was developed in an older IEC 61131-3 toolchain, a compatibility check against the replacement module’s firmware version is strongly recommended before live commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a processor swap on a live production line. The following approach has proven effective for YPP110A replacements in AC31-based systems:

1. Pre-swap program backup: Before powering down the rack, use the programming cable (typically a CS31 USB adapter or RS-232 serial cable) to upload and verify a complete backup of the application program, including all data blocks, retain variables, and I/O configuration. Store the backup in at least two locations — a local engineering laptop and a network share.

2. Document current I/O states: Record the live status of all digital outputs and analog setpoints. This snapshot allows the commissioning engineer to verify that the system returns to the correct operating state after restart, and provides a reference if any output behaves unexpectedly during the first power-on cycle.

3. Staged power-down sequence: Follow the manufacturer’s recommended shutdown sequence for the AC31 rack. Avoid hot-swapping the processor module — the YPP110A is not designed for live insertion, and doing so risks corrupting the backplane bus or damaging adjacent I/O modules.

4. Post-swap verification: After installing the replacement YPP110A 3ASD573001A1 and downloading the program, perform a cold-start cycle and monitor the CPU’s diagnostic LEDs and fault register. Confirm that all CS31 remote I/O drops are recognized, all PROFIBUS slaves are online, and the HMI is communicating before releasing the system to production.

With proper preparation, a YPP110A processor swap can typically be completed within a 2–4 hour maintenance window, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the YPP110A 3ASD573001A1 a direct drop-in replacement for other AC31 CPU variants?
The YPP110A is the standard CPU module for the ABB AC31 rack platform. It is mechanically and electrically compatible with the AC31 backplane. However, firmware versions and memory capacity may differ between sub-variants. Always confirm the firmware revision of the original module and match it to the replacement unit’s specification sheet before installation. NINERMAS technical support can assist with version verification prior to shipment.

Q2: What commissioning steps are required after replacing the processor?
After physical installation, the replacement YPP110A requires a program download from the engineering workstation using ABB’s programming software. Set the CPU to STOP mode, download the application program and configuration data, verify I/O module addresses, and perform a controlled cold start. Check all communication links — CS31 bus, PROFIBUS-DP, and any serial HMI connections — before switching to RUN mode.

Q3: How do I verify wiring compatibility between the old and new processor modules?
The YPP110A uses a standard AC31 front connector. Compare the terminal assignment diagram of the original module (available in the ABB AC31 hardware manual) against the replacement unit’s datasheet. Pay particular attention to the CS31 bus terminals, power input pins, and any diagnostic output signals. If the original wiring used non-standard extensions or field modifications, document these before removal.

Q4: What does the 12-month warranty cover, and what is the lead time?
All YPP110A 3ASD573001A1 units supplied by NINERMAS are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Units are pre-tested before shipment. Standard lead time for in-stock units is 3–7 business days for international delivery. Express shipping options are available for emergency breakdown situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for availability confirmation.
