ABB V18347-2041150001 Retrofit-Compatible Positioner for Legacy Automation Systems

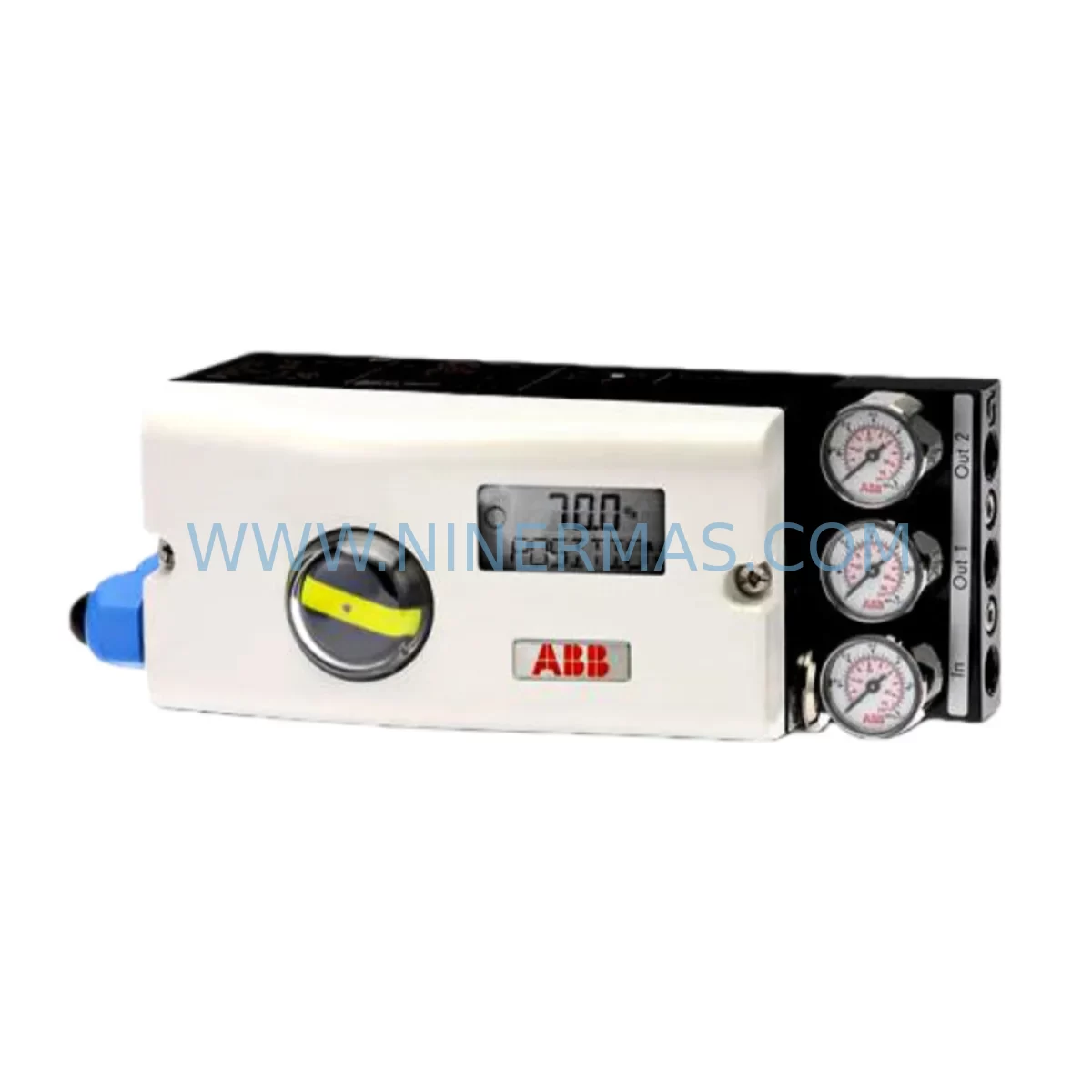

The ABB V18347-2041150001 is a TZIDC series intelligent electro-pneumatic valve positioner engineered for precise valve control in process automation environments. As legacy DCS and PLC platforms age out of manufacturer support, the V18347-2041150001 has become a critical retrofit component for facilities seeking to extend the operational life of existing control loops without committing to a full system overhaul. NINERMAS maintains verified stock of this unit with full functional testing and a 12-month warranty, making it a reliable choice for maintenance teams managing aging infrastructure across chemical, oil & gas, power generation, and water treatment industries.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the ABB V18347-2041150001 into an existing control loop, the retrofit process begins well before the unit arrives on site. Engineers must audit the current positioner’s wiring configuration — particularly the 4–20 mA loop supply, HART segment topology, and any intrinsic safety barriers or galvanic isolators in the signal path. If the legacy positioner was wired through a Pepperl+Fuchs or MTL signal isolator, verify that the new unit’s input impedance is within the isolator’s drive capacity before energizing the loop.

Mounting compatibility is the next checkpoint. The V18347-2041150001 follows the NAMUR VDI/VDE 3845 standard, which means it will bolt directly onto most rotary and linear valve actuators without modification. However, if the existing actuator uses a proprietary feedback shaft — common in older Rotork or Auma actuator assemblies — a NAMUR adapter kit will be required. Confirm actuator shaft diameter and travel range before ordering.

For facilities running ABB System 800xA or ABB Freelance DCS, the V18347-2041150001 integrates natively via HART or PROFIBUS PA. Device Description (DD) files are available through ABB’s library and can be loaded into the DCS asset management layer without custom configuration. Sites using Siemens PCS 7 or Honeywell Experion PKS can also integrate this positioner via HART multiplexers such as the Pepperl+Fuchs HiDMux2700 or the Emerson 475 Field Communicator for loop diagnostics.

I/O card compatibility should be confirmed at the DCS or PLC level. If the existing analog output card — for example an ABB AI810 or a Siemens SM 331 — is already sourcing 4–20 mA to the old positioner, no card replacement is needed. The V18347-2041150001 accepts standard loop-powered input and will auto-calibrate to the valve’s mechanical travel limits using its built-in self-calibration routine, eliminating the need for manual span adjustment in most cases.

Control cabinet space is rarely a concern since the positioner mounts directly on the valve actuator in the field, but the associated junction box wiring — terminal blocks, cable glands, and earthing arrangements — should be inspected and updated if corroded or undersized. Use shielded twisted-pair cable for the HART segment to minimize noise interference, particularly in environments with variable frequency drives (VFDs) or high-voltage switchgear nearby.

For sites migrating from older pneumatic-only positioners (such as the ABB TZID-C predecessor or legacy Fisher 3582 units), the V18347-2041150001 introduces digital diagnostics that were not previously available. This includes partial stroke testing (PST) capability, which allows safety valve proof testing without taking the valve fully offline — a significant advantage for SIL-rated loops in process safety applications. The PST results can be logged via the HART interface and exported to a safety management system for compliance documentation.

Downtime Control During System Migration

Minimizing unplanned downtime during a positioner swap is the primary concern for maintenance planners. The V18347-2041150001 supports hot-swap replacement in most configurations: the new unit can be pre-configured on the bench using ABB’s Device Type Manager (DTM) software before the maintenance window begins. Load the valve tag, travel limits, action direction, and split-range parameters offline, then transfer the configuration via HART during the brief loop isolation period.

The recommended migration sequence is: isolate the pneumatic supply, disconnect the signal wiring at the terminal head (not at the marshalling cabinet), remove the legacy positioner, mount the V18347-2041150001, reconnect wiring in the same terminal sequence, restore pneumatic supply, and run the auto-calibration routine. Total elapsed time for a trained technician on a standard linear valve is typically 45–90 minutes per loop, allowing multiple loops to be migrated within a single planned shutdown window.

Preserving the original control program logic is straightforward since the positioner operates transparently within the 4–20 mA loop — the DCS or PLC sees no change in the I/O signal structure. HMI faceplate displays, alarm setpoints, and PID tuning parameters remain valid. The only configuration change required at the control system level is updating the device tag in the asset management database and, if HART pass-through is enabled, loading the updated DD file for the new positioner model.

For critical loops where even brief interruption is unacceptable, a bypass valve arrangement can maintain process flow while the positioner is exchanged. Document the bypass procedure in the site’s Management of Change (MOC) system and ensure the field technician has a pre-tested spare unit available before breaking containment on the pneumatic supply.

Retrofit Support FAQ

Q1: Is the ABB V18347-2041150001 a direct drop-in replacement for the V18345 and V18346 positioners?
A: Yes, the V18347-2041150001 shares the same NAMUR mounting footprint and 4–20 mA input specification as the V18345 and V18346 series. Terminal wiring assignments are identical in standard configurations. Verify the action direction (air-to-open vs. air-to-close) and re-run auto-calibration after installation to confirm travel limits match the valve’s mechanical stroke.

Q2: Can this positioner be commissioned without a HART communicator?
A: Yes. The V18347-2041150001 includes a local auto-calibration button that initiates a full self-calibration cycle without any external tools. For advanced parameter configuration — such as split-range operation, partial stroke testing, or custom characterization curves — ABB DTM software or a HART 475/375 communicator is recommended.

Q3: What is included with each unit shipped by NINERMAS, and what warranty coverage applies?
A: Each V18347-2041150001 unit shipped by NINERMAS includes the positioner module, mounting hardware, and a functional test report confirming output linearity and signal response prior to dispatch. All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited shipping and pre-shipment inspection certificates are available on request.

Q4: How do I verify compatibility with my existing DCS before ordering?
A: Confirm that your DCS analog output card supports 4–20 mA HART-enabled output (most modern cards from ABB, Siemens, Honeywell, and Yokogawa do). Check the HART revision supported by your multiplexer or modem — the V18347-2041150001 is compatible with HART 5, 6, and 7. If your site uses PROFIBUS PA or Foundation Fieldbus, confirm the optional communication module variant is specified at the time of order. Contact NINERMAS with your DCS model and I/O card part number for a pre-sale compatibility review.
