ABB UN1000b-Z 3BHE014557R0003 Safety-Reliable AVR for Critical Control Sites

ABB UN1000b-Z 3BHE014557R0003 Safety-Reliable AVR for Critical Control Sites

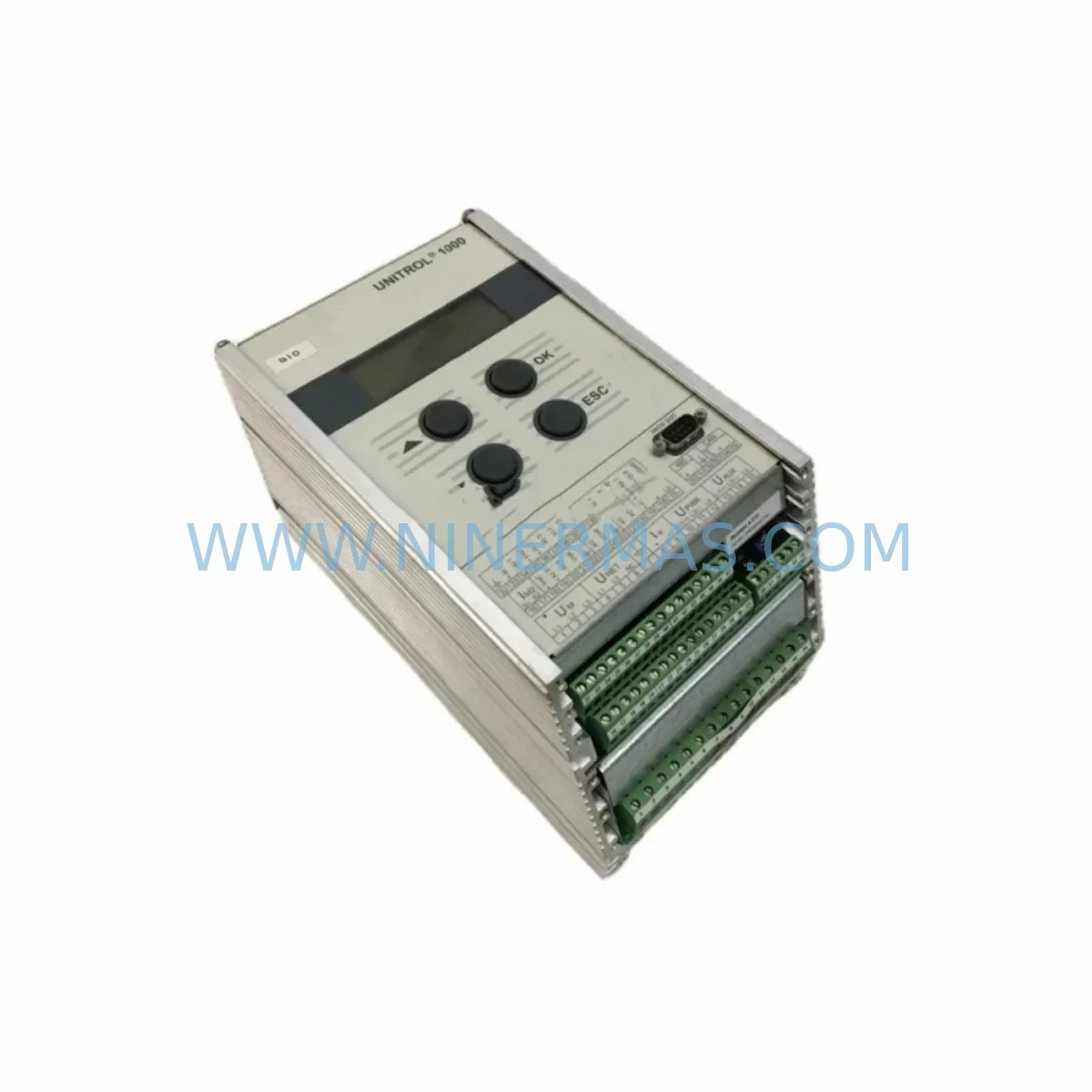

The ABB UN1000b-Z (3BHE014557R0003) is a precision Automatic Voltage Regulator (AVR) module from ABB’s UNITROL UN1000b excitation control series, engineered for continuous, safety-critical generator and synchronous machine control in demanding industrial environments. Designed to maintain stable terminal voltage under dynamic load conditions, this module is a cornerstone component in power generation control cabinets where unplanned downtime, voltage instability, or excitation failure carry severe operational and safety consequences.

At NINERMAS, every ABB UN1000b-Z 3BHE014557R0003 unit is sourced from verified original supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring your critical control infrastructure remains protected from the moment of installation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes power generation and industrial drive applications, the ABB UN1000b-Z 3BHE014557R0003 functions as the voltage regulation brain of the excitation system. Its failure — whether from aging, surge damage, or firmware corruption — can cascade into generator trips, process shutdowns, or even equipment damage. A proactive spare parts strategy centered on this module dramatically reduces mean time to repair (MTTR) and eliminates the risk of extended outages caused by long lead times on obsolete components.

Within a typical UNITROL UN1000b excitation control cabinet, the UN1000b-Z AVR module works in close coordination with the ABB UNITROL UN1000b Power Interface Board (3BHE014556R0001), which manages the thyristor firing signals and field current bridge. Voltage feedback accuracy depends equally on the ABB Voltage Transducer NDCU-12C and associated current transformer input modules — any drift in these sensing components will compromise AVR regulation quality and trigger nuisance trips.

For installations subject to high electromagnetic interference — common in arc furnace substations, variable frequency drive (VFD) environments, and large motor starting applications — the ABB UNITROL UN1000b Fiber Optic Communication Module provides galvanically isolated PROFIBUS or Modbus communication, preventing signal corruption that could cause erroneous AVR commands. Pairing the UN1000b-Z with a dedicated ABB UPS module (e.g., UNITROL 1000 auxiliary power supply) ensures the excitation controller remains operational during momentary AC supply dips, protecting against uncontrolled de-excitation events.

Surge and transient protection is equally critical. The ABB ZETADYN surge protection device or equivalent DIN-rail SPD installed upstream of the excitation panel safeguards the UN1000b-Z from lightning-induced transients and switching surges — a common failure mode in outdoor substations and coastal industrial facilities. Complementing this, the ABB REF615 feeder protection relay or similar generator protection relay provides upstream overcurrent and differential protection, ensuring that a generator fault does not propagate destructive fault currents back into the excitation control cabinet.

For plants operating redundant generator sets, the ABB UNITROL UN1000b Parallel Operation Module enables reactive power sharing and synchronization between units — a function that depends entirely on the UN1000b-Z AVR module operating within calibrated parameters. Maintaining a certified spare of the 3BHE014557R0003 on-site ensures that parallel operation can be restored within hours rather than weeks in the event of a module failure.

Finally, in control cabinets where thermal management is a concern — particularly in tropical climates, underground mining installations, or enclosed offshore platform panels — pairing the excitation system with ABB cabinet climate control units and anti-condensation heaters extends the operational life of the UN1000b-Z module and reduces humidity-induced insulation degradation on the field winding circuit.

Critical Industrial Safety Applications

The ABB UN1000b-Z 3BHE014557R0003 is deployed across a wide spectrum of safety-critical and continuous-process industrial sites where generator excitation stability is non-negotiable:

Petrochemical & Refinery Plants: In continuous catalytic cracking and distillation processes, generator excitation failure can trigger emergency shutdowns with multi-million-dollar restart costs. The UN1000b-Z AVR maintains terminal voltage within ±0.5% under load swings caused by large compressor motor starts, preventing voltage collapse and protecting sensitive DCS and SIS instrumentation.

Thermal & Hydroelectric Power Stations: Grid-connected generators require precise reactive power control to maintain power factor within utility grid codes. The UNITROL UN1000b-Z supports VAR/PF control modes that allow operators to optimize reactive power dispatch, reduce penalty charges, and maintain grid stability during peak demand periods.

Mining & Mineral Processing: Underground and open-pit mining operations rely on diesel generator sets for primary or backup power. In these high-vibration, dust-laden environments, the UN1000b-Z’s robust construction and wide operating temperature range ensure reliable excitation control even when ambient conditions exceed standard industrial ratings.

Water Treatment & Pumping Stations: Municipal water infrastructure depends on uninterrupted pump operation. A generator excitation fault during peak demand can interrupt water supply to entire districts. Stocking the ABB 3BHE014557R0003 as a certified spare ensures rapid restoration of generator capability within the same maintenance shift.

Metallurgy & Steel Mills: Rolling mill drives and arc furnace operations impose severe harmonic and reactive power demands on plant generators. The UN1000b-Z’s high EMI immunity and fast AVR response time (typically <100ms) allow it to track rapid load changes without voltage excursions that could damage sensitive mill control electronics.

Port & Marine Applications: Shore power systems and vessel generator sets operating in salt-laden, high-humidity environments benefit from the UN1000b-Z’s corrosion-resistant design and sealed connector interfaces, which resist the accelerated degradation common in coastal and offshore installations.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the ABB UN1000b-Z 3BHE014557R0003?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair turnaround commitments to minimize your site downtime.

Q2: How is the ABB 3BHE014557R0003 tested before shipment?
Every unit undergoes a pre-shipment inspection protocol that includes visual examination for physical damage, connector integrity verification, and where applicable, functional bench testing against ABB UNITROL UN1000b series specifications. Test records are available upon request for critical plant procurement requirements.

Q3: Is this module compatible with all UNITROL UN1000b series excitation systems?
The UN1000b-Z (3BHE014557R0003) is designed as a direct replacement within the ABB UNITROL UN1000b platform. Compatibility with specific hardware revisions or firmware versions should be confirmed against your existing system’s documentation. NINERMAS technical support can assist with cross-referencing your installed base configuration prior to order.

Q4: Can NINERMAS guarantee long-term supply of this part?
NINERMAS maintains active sourcing relationships across the global ABB spare parts supply network, including certified distributors and tested-good refurbished stock for end-of-life components. We support long-term maintenance contracts and scheduled spare parts programs for plants requiring multi-year supply assurance for critical excitation control components.
