ABB DSQC647 3HAC026272-001 Service-Ready Spare Part

ABB DSQC647 3HAC026272-001 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

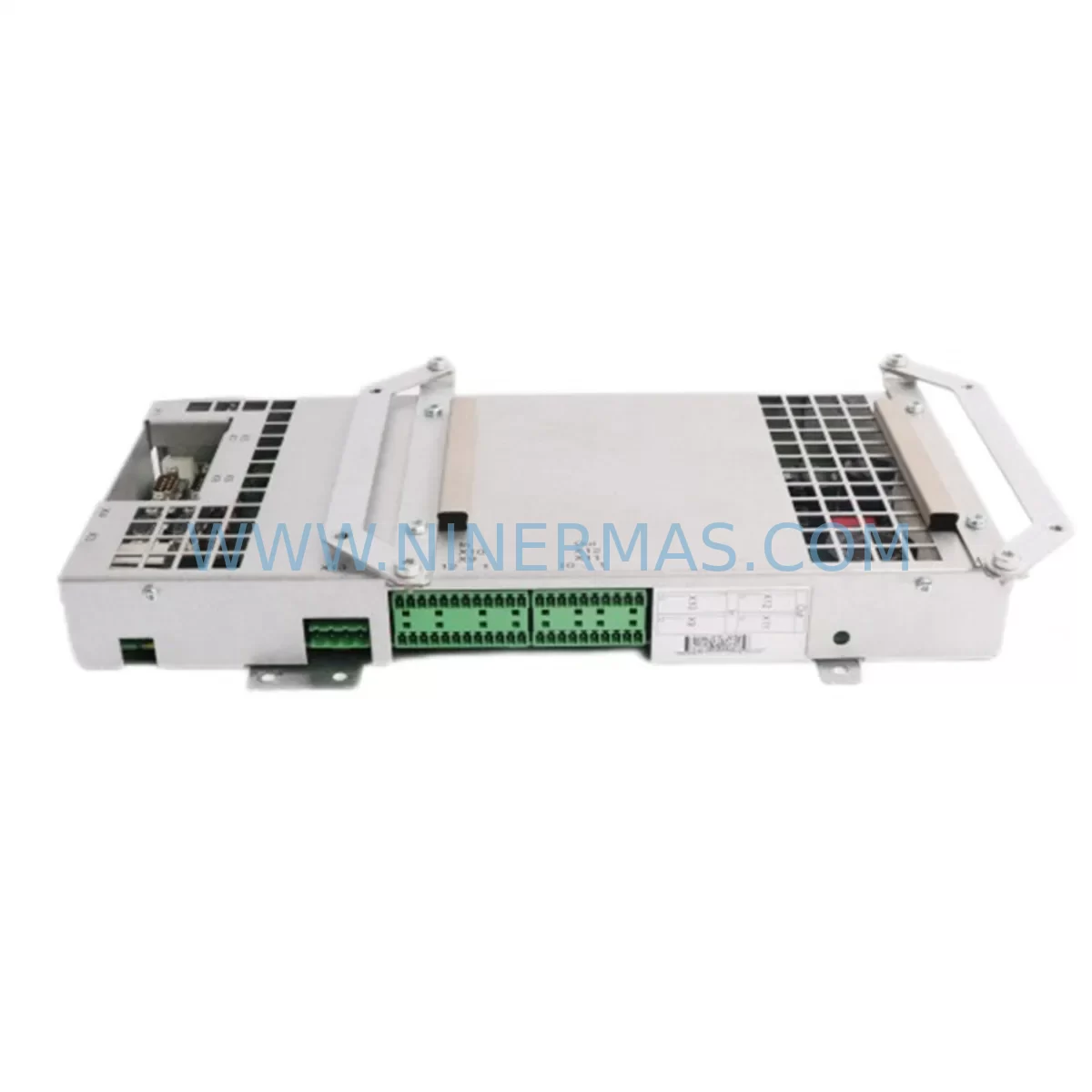

The ABB DSQC647 (3HAC026272-001) is the dedicated SafeMove safety unit integrated into ABB’s IRC5 robot controller platform. As a core safety-critical component, the DSQC647 monitors and enforces robot motion boundaries, speed supervision, and safe standstill functions — making it indispensable in collaborative and guarded robotic workcells across automotive, electronics, food processing, and general manufacturing environments.

When the DSQC647 fails or reaches end-of-life, the entire IRC5 controller may enter a safety fault state, halting production immediately. Maintaining a verified, tested spare unit in your on-site inventory is the most effective strategy to minimize unplanned downtime and protect production continuity. NINERMAS supplies the DSQC647 3HAC026272-001 as a service-ready spare: fully tested before shipment, backed by a 12-month warranty, and available for rapid dispatch to support your maintenance and emergency replacement requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DSQC647 3HAC026272-001 is rarely an isolated task. Experienced maintenance engineers understand that a SafeMove safety fault often signals stress across adjacent systems within the IRC5 controller cabinet. A structured inspection of the following components is strongly recommended whenever the DSQC647 is replaced or suspected of failure:

Power Distribution: The DSQC661 and DSQC662 power supply units feed the IRC5 backplane. Voltage irregularities from a degraded power unit can cause intermittent SafeMove faults that mimic DSQC647 failure. Always verify DC bus stability before condemning the safety unit. Similarly, inspect the DSQC663 axis computer power supply if drive-related faults accompany the safety error.

Backplane and Slot Integrity: The IRC5 backplane (DSQC668 or equivalent) carries all inter-module communication. Inspect connector pins, seating depth, and backplane bus integrity when installing a replacement DSQC647. A damaged backplane slot can cause the new unit to fault immediately after installation.

I/O and Safety Wiring: SafeMove relies on hardwired safety inputs — emergency stop chains, enabling devices, and safety gate interlocks — routed through the DSQC652 I/O unit or dedicated safety relay modules. Inspect all safety circuit wiring, terminal blocks, and relay contacts for wear, loose terminations, or insulation breakdown before commissioning the replacement unit.

Communication Modules: If the IRC5 system uses DSQC688 (Ethernet/IP) or DSQC658 (DeviceNet) fieldbus communication modules, verify that network configuration and safety PLC handshaking are intact after the DSQC647 replacement. SafeMove parameters may need to be reloaded from the robot controller backup.

FlexPendant and HMI: The IRC5 FlexPendant (teach pendant) is the primary interface for SafeMove configuration and fault acknowledgment. Confirm that the pendant cable, connector, and pendant unit itself are functional, as a faulty pendant can prevent safety system reset after module replacement.

Fuses and Protection Devices: Check all cabinet-internal fuses, particularly those protecting the 24VDC safety circuit rail. A blown fuse on the safety supply can cause DSQC647 to report a power fault rather than an internal failure.

Procurement engineers sourcing the DSQC647 should also consider stocking the DSQC643 (axis computer) and DSQC646 (drive unit) as complementary critical spares, since these modules share the same IRC5 cabinet environment and are subject to similar thermal and electrical stress cycles. A well-structured IRC5 spare parts kit — covering safety, power, I/O, and communication layers — dramatically reduces mean time to repair (MTTR) across the robot fleet.

Site Replacement Workflow

Step 1 — Safety Isolation: Place the IRC5 controller in manual mode and engage the main isolator. Confirm zero energy state before opening the cabinet. Follow your site LOTO (Lockout/Tagout) procedure.

Step 2 — Backup Robot Configuration: Using RobotStudio or the FlexPendant, create a full system backup including SafeMove configuration, RAPID programs, and I/O settings. The DSQC647 stores SafeMove parameters; these must be restored after replacement.

Step 3 — Module Removal: Disconnect all connectors from the DSQC647. Note connector positions and cable routing before removal. Slide the module out of the backplane slot carefully to avoid pin damage.

Step 4 — Inspect and Clean: Inspect the backplane slot, connector pins, and adjacent modules (DSQC661, DSQC652) for contamination, corrosion, or physical damage. Clean with appropriate electronics-safe materials if required.

Step 5 — Install Replacement Unit: Seat the new DSQC647 3HAC026272-001 firmly into the backplane slot. Reconnect all cables in the correct positions. Verify secure seating before powering up.

Step 6 — Restore SafeMove Configuration: Power up the controller and restore the system backup. Reload SafeMove parameters and perform a supervised test cycle to validate all safety zones, speed limits, and standstill monitoring functions before returning the robot to automatic operation.

Step 7 — Document and Update Records: Record the replacement in your maintenance management system (CMMS). Update the spare parts inventory and initiate replenishment of the consumed DSQC647 unit to maintain buffer stock.

This workflow applies equally to planned annual maintenance replacements and emergency fault-driven replacements. Having a pre-tested DSQC647 spare on hand — sourced from NINERMAS with shipment test documentation — eliminates the lead time risk that turns a 2-hour replacement into a multi-day production stoppage.

Spare Parts Support FAQ

Q1: Is the DSQC647 3HAC026272-001 supplied by NINERMAS an original ABB part?
Yes. NINERMAS supplies original ABB spare parts. Each DSQC647 unit is inspected and functionally tested prior to shipment. A test report and 12-month warranty certificate are provided with every order.

Q2: How do I confirm compatibility with my specific IRC5 controller version?
The DSQC647 3HAC026272-001 is designed for ABB IRC5 controllers equipped with the SafeMove safety option. Compatibility depends on your RobotWare version and SafeMove license. Please provide your controller serial number and RobotWare version when inquiring, and our technical team will confirm compatibility before shipment.

Q3: What is the recommended inventory strategy for the DSQC647 in a multi-robot facility?
For facilities operating 5 or more IRC5 robots with SafeMove, we recommend maintaining a minimum of 1–2 DSQC647 units as on-site critical spares. For larger fleets or high-OEE production lines, a 1:10 spare ratio is a common industry benchmark. NINERMAS supports long-term supply agreements to ensure consistent availability without requiring large upfront inventory investments.

Q4: What happens if the DSQC647 develops a fault within the 12-month warranty period?
NINERMAS provides a full 12-month warranty on all supplied spare parts. In the event of a confirmed unit fault within the warranty period, we will arrange priority replacement shipment to minimize your downtime exposure. Contact our support team at sale@ninermas.com with your order reference and fault description to initiate the warranty process.

—
