ABB TZIDC-110 Service-Ready Spare Part for Industrial Maintenance

ABB TZIDC-110 Service-Ready Spare Part for Industrial Maintenance

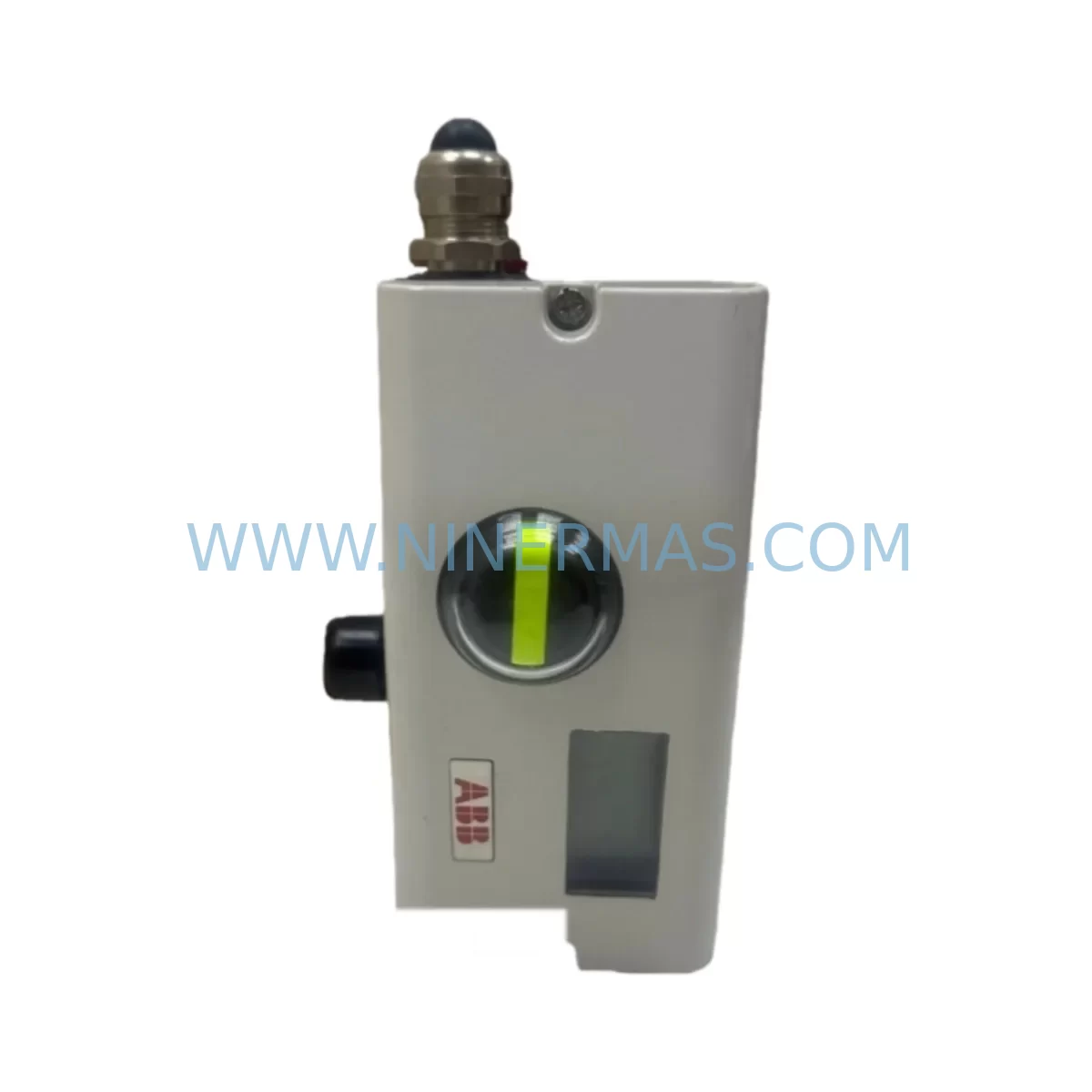

The ABB TZIDC-110 is a high-performance digital positioner designed for precise valve control in demanding industrial automation environments. As a service-ready spare part, the TZIDC-110 is engineered to deliver drop-in replacement capability for aging or failed units within the TZIDC series, minimizing unplanned downtime and restoring process control integrity with minimal intervention. Whether you are managing a scheduled annual overhaul, responding to an emergency shutdown, or building a proactive spare parts inventory for your control cabinet, the TZIDC-110 represents a critical line item in any maintenance engineer’s toolkit.

Sourced and tested to original ABB specifications, this unit supports HART communication protocol and is compatible with pneumatic actuators across a broad range of valve types including globe, rotary, and butterfly configurations. Its integrated microprocessor-based control logic enables auto-calibration, position feedback, and diagnostic reporting — features that are essential for modern predictive maintenance strategies and IIoT-ready plant environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the TZIDC-110 in the field, a thorough maintenance review of the surrounding control loop is strongly recommended. Maintenance engineers should begin by verifying the integrity of the 4–20 mA signal cable and associated cable glands, as signal degradation at the wiring level is a common root cause of positioner faults that are often misattributed to the positioner itself. The ABB TZID-C series shares a common wiring architecture with many ABB valve controllers, so inspecting the terminal block connections and shielding continuity is a standard first step.

Beyond the signal wiring, the pneumatic supply circuit deserves equal attention. The upstream air filter-regulator unit — often an ABB or equivalent brand FRL assembly — should be inspected for moisture contamination and pressure stability. A failing regulator can cause erratic positioner behavior even after a new TZIDC-110 is installed. Similarly, the solenoid valve in the pneumatic circuit, if present for fail-safe or emergency shutdown (ESD) functions, should be tested for proper switching response and seal integrity.

In control cabinet environments, the TZIDC-110 typically interfaces with a DCS or PLC I/O card via the 4–20 mA loop. Engineers should verify the analog output channel on the I/O module — such as an ABB S800 I/O module or equivalent — is delivering a clean, stable signal within specification. A faulty AO channel can cause the new positioner to behave erratically, leading to unnecessary repeat replacements. If the plant uses a HART multiplexer or HART-enabled I/O card, confirm that the HART communication path is active and that the device address is correctly configured after installation.

For plants running older ABB Freelance or System 800xA DCS platforms, the TZIDC-110 replacement is also an opportunity to update the device description (DD) file in the asset management system. Outdated DD files can prevent full diagnostic visibility into the new positioner. Alongside the positioner swap, consider inspecting the associated junction box, terminal strips, and any signal isolators or barriers in the loop — particularly in hazardous area installations where Zener barriers or galvanic isolators protect the intrinsically safe circuit. A degraded isolator can introduce loop resistance that affects positioner calibration accuracy.

For facilities maintaining a structured spare parts inventory, the TZIDC-110 is best stocked alongside complementary components: pneumatic tubing and fittings for the positioner output connections, a spare feedback shaft and coupling kit for rotary actuator installations, and a set of positioner mounting hardware per the NAMUR standard. Procurement engineers should also consider holding a spare ABB TZIDC-200 or TZIDC-300 unit if the plant operates mixed positioner generations, ensuring cross-compatibility coverage across the valve control network.

Site Replacement Workflow

Replacing the TZIDC-110 on-site follows a structured sequence designed to minimize valve downtime and avoid process upsets. Begin by placing the control loop in manual mode at the DCS or PLC level and confirming the valve is in its fail-safe position. Isolate the pneumatic supply to the positioner using the upstream isolation valve, then disconnect the 4–20 mA signal wires and HART communication leads, labeling each connection for accurate reinstallation.

Remove the old TZIDC-110 from the actuator mounting bracket, taking care to note the feedback shaft orientation and coupling type — linear or rotary — before disassembly. Install the new TZIDC-110 using the same mounting configuration, reconnect all pneumatic and electrical connections per the original wiring diagram, and restore the pneumatic supply. Perform the auto-calibration routine using the positioner’s local pushbuttons or via a HART communicator to establish the travel limits and zero/span settings. Verify the position feedback signal at the DCS I/O card matches the physical valve position across the full travel range before returning the loop to automatic control.

This workflow is applicable whether you are replacing a failed unit during an emergency callout or executing a planned swap during a scheduled shutdown window. The TZIDC-110’s auto-calibration capability significantly reduces commissioning time compared to older analog positioners, making it a preferred choice for maintenance teams focused on rapid line restoration and reduced mean time to repair (MTTR).

Spare Parts Support FAQ

Q1: Is the TZIDC-110 a direct drop-in replacement for older TZIDC series positioners?
Yes. The TZIDC-110 is designed as a direct mechanical and electrical replacement within the ABB TZIDC series. It shares the same NAMUR mounting interface and 4–20 mA / HART signal architecture as earlier TZIDC variants. Minor firmware or configuration differences may require a re-calibration after installation, which can be performed using the onboard auto-setup function or a standard HART communicator.

Q2: How do you verify compatibility before shipment?
Each TZIDC-110 unit undergoes pre-shipment functional testing including signal response verification, pneumatic output check, and HART communication confirmation. A test report is available upon request. Customers are encouraged to provide the existing positioner’s nameplate data and actuator specifications to allow our technical team to confirm compatibility before the order is dispatched.

Q3: What is the warranty coverage and what does it include?
All TZIDC-110 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, component failure under normal operating conditions, and HART communication faults attributable to the unit itself. It does not cover damage resulting from incorrect installation, overpressure, or exposure to conditions outside the rated specification. Warranty claims are supported with replacement unit dispatch or repair service as appropriate.

Q4: Can NINERMAS support long-term or repeat supply of the TZIDC-110?
Yes. NINERMAS maintains stock and sourcing channels for the TZIDC-110 and related ABB TZIDC series components to support long-term maintenance contracts and annual shutdown procurement programs. Customers with recurring demand are encouraged to discuss framework agreements to secure pricing, lead time guarantees, and priority allocation during peak maintenance seasons.
