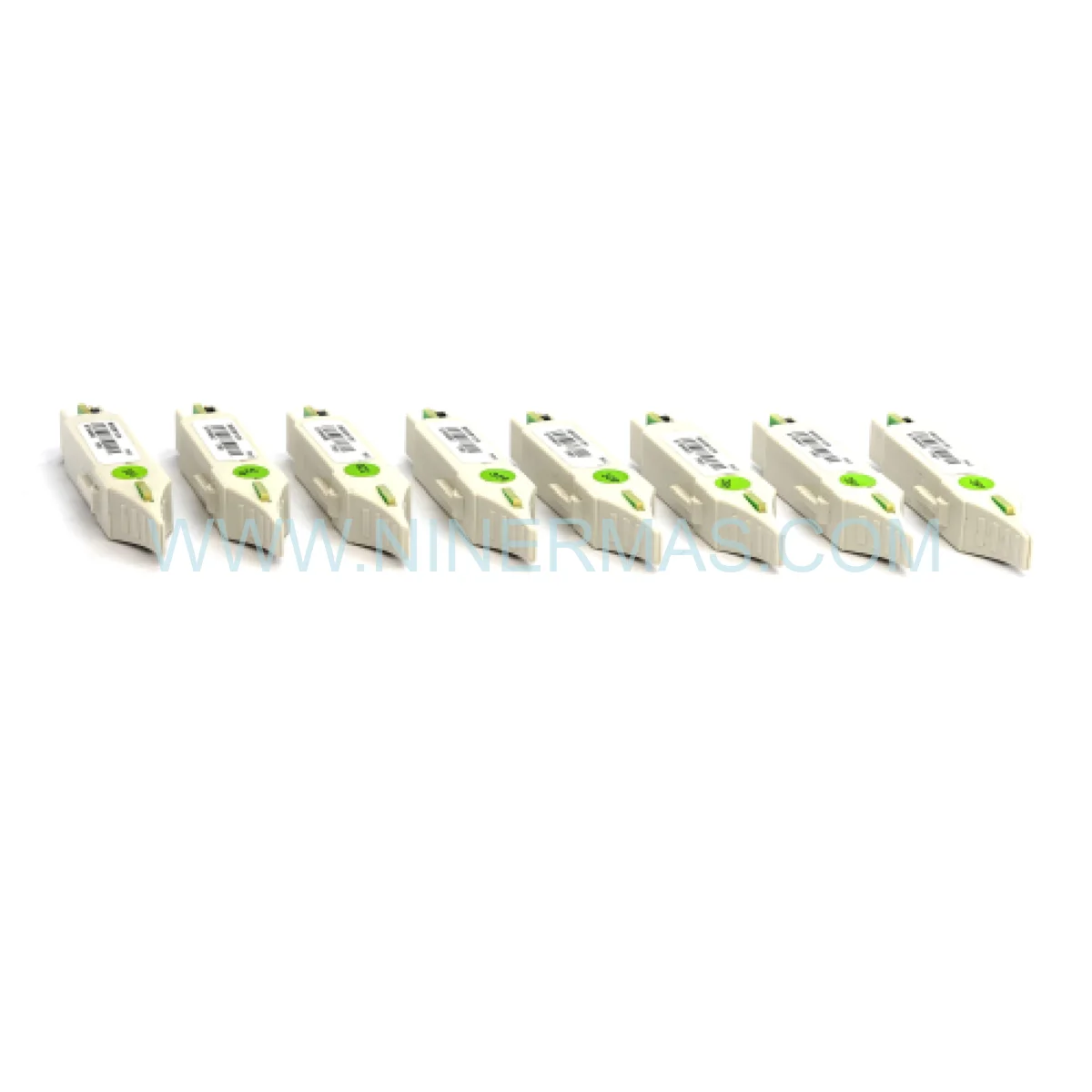

ABB TY801K01 3BSE023607R1 | Retrofit Calibration Shunt for S800 I/O Systems

ABB TY801K01 3BSE023607R1 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead specializing in industrial control system upgrades, the ABB TY801K01 3BSE023607R1 stands out as a mission-critical calibration instrument that directly supports the performance enhancement and operational longevity of aging S800 I/O infrastructures. In DCS modernization projects where analog input accuracy is non-negotiable, this precision dual-resistor shunt stick provides the diagnostic backbone that keeps legacy systems running at peak efficiency — without requiring costly full-system replacements. The ABB TY801K01 3BSE023607R1 enables retrofit engineers to validate loop integrity and signal accuracy in-situ, dramatically reducing the risk of unplanned downtime during phased migration programs.

One of the most compelling advantages of this component is its seamless integration with the existing S800 I/O framework. Its backward-compatible design ensures that AI845 and AI880A analog input modules — even those deployed in first-generation System 800xA architectures — can be calibrated and verified without hardware replacement. This legacy compatibility makes it an indispensable tool for facilities pursuing a “maintain and migrate” strategy, where operational continuity must be preserved while modernization proceeds in parallel.

From a cost-and-risk perspective, deploying the TY801K01 as part of a structured retrofit program significantly lowers migration expenditure. By enabling online calibration without field wiring disconnection, it eliminates the labor overhead and process interruption typically associated with analog input verification — translating directly into reduced migration risk, lower engineering hours, and faster commissioning cycles across multi-rack I/O installations.

Upgrade Highlights & Compatibility

✅ Drop-In Legacy Compatibility: Fits TU834, TU844, TU845, and TU854 terminal units — no hardware modification required, preserving your existing rack architecture.
Online Calibration Without Wiring Disruption: Insert and activate while the process runs — zero downtime impact on live control loops.
? Dual-Channel Efficiency: Two independent 125Ω ±0.1% precision resistors allow simultaneous differential input verification, doubling throughput in large-scale retrofit campaigns.
Future-Proof Accuracy: Class 0.1 tolerance and ±15 ppm/°C thermal stability ensure calibration validity across extended equipment lifecycles and harsh industrial environments.
? Software-Integrated Activation: Compatible with Control Builder M and System 800xA for remote shunt activation — enabling centralized, scalable retrofit workflows.
Reusable Across Entire I/O Racks: Spring-loaded gold-plated contacts rated for thousands of insertion cycles — maximizing ROI across multi-site upgrade programs.

Modernization Use Cases & Success Stories

DCS Analog Input Validation During Phased Migration: In a refinery DCS modernization project spanning 18 months, retrofit teams used the TY801K01 to perform live loop checks on over 400 AI845 channels without halting crude distillation operations. The shunt’s online insertion capability allowed calibration verification to proceed during normal production shifts, compressing the commissioning schedule by an estimated 30% compared to traditional offline methods.

Turbine Supervisory Instrumentation (TSI) Retrofit Support: During a gas turbine control system upgrade at a combined-cycle power plant, the TY801K01 was deployed to validate temperature and pressure analog inputs on legacy AI880A modules before migration to the new control platform. Its dual-resistor design enabled simultaneous differential channel testing, ensuring that critical turbine protection signals met accuracy specifications prior to system cutover — a key risk mitigation step in any TSI modernization program.

Pharmaceutical Process Control Upgrade: A pharmaceutical manufacturer upgrading its batch control infrastructure used the TY801K01 to verify 4-20mA loop integrity across TU845 terminal units during a System 800xA expansion. The ability to perform calibration without disconnecting transmitter wiring was essential for maintaining GMP compliance and avoiding process deviations during the upgrade window.

Water Treatment Facility Modernization: In a municipal water treatment plant transitioning from legacy PLCs to a modern DCS architecture, the TY801K01 enabled retrofit engineers to validate flow and level analog inputs on retained S800 I/O hardware, confirming signal accuracy before integrating with the new supervisory layer — a seamless integration approach that protected the facility’s existing instrumentation investment.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Full Model Number | ABB TY801K01 3BSE023607R1 | | Resistance Configuration | Dual 125Ω ±0.1% (Class 0.1) | | Compatible Analog Input Modules | AI845, AI880A | | Supported Terminal Units | TU834, TU844, TU845, TU854 | | Temperature Coefficient | ±15 ppm/°C | | Power Rating | 0.25W per resistor | | Operating Temperature Range | -40°C to +85°C | | Contact Type | Spring-loaded, gold-plated | | Housing Material | ABS (industrial-grade) | | Dimensions | 85 — 12 — 8 mm | | Engineering Tool Compatibility | Control Builder M, System 800xA | | Lifecycle Status | Active — Supported Component | | Retrofit Application | Online loop calibration, signal verification, fault diagnosis | | Warranty | 12 months against manufacturing defects |

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All TY801K01 units are sourced as genuine ABB components, supplied in original manufacturer packaging with full traceability documentation — critical for quality-audited retrofit and modernization projects.

Expedited Global Logistics: We maintain ready inventory to support urgent retrofit timelines. Express international shipping is available to all major industrial regions, with customs documentation and export compliance handled end-to-end to minimize deployment delays.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in S800 I/O retrofit and migration scenarios. Whether you need compatibility confirmation for a specific terminal unit configuration, guidance on shunt activation procedures within System 800xA, or assistance sourcing complementary legacy components, we provide responsive, application-specific technical support throughout your upgrade program.

Calibration Certificates Available: For quality-critical installations in pharmaceutical, nuclear, or safety-instrumented system (SIS) environments, calibration certificates can be provided upon request to support IQ/OQ documentation requirements.

Retrofit FAQ (Upgrade Guide)

Q: Is the TY801K01 physically compatible with all S800 I/O terminal unit generations, including early-production TU834 units?
A: Yes. The TY801K01’s spring-loaded contact design is dimensionally standardized across all TU834, TU844, TU845, and TU854 terminal unit variants, including early production runs. No mechanical adaptation or rack modification is required, making it a true drop-in retrofit tool for installations of any age.

Q: How does the TY801K01 communicate with legacy System 800xA versions during shunt activation?
A: Shunt activation is managed via software commands within Control Builder M or System 800xA engineering tools. The TY801K01 is passive hardware — it does not require firmware or protocol updates. Compatibility extends to legacy 800xA versions (5.0 and above), ensuring that older DCS installations can leverage the shunt without engineering tool upgrades.

Q: Can the TY801K01 serve as a direct replacement for third-party shunt sticks used in non-ABB retrofit projects?
A: The TY801K01 is specifically engineered for ABB S800 I/O terminal units and is not a universal shunt. However, in retrofit projects where S800 I/O hardware is being retained as part of a hybrid modernization strategy, it is the definitive calibration reference tool and cannot be substituted with generic resistor assemblies without risking measurement accuracy.

Q: What is the recommended procedure for using the TY801K01 during a live DCS cutover?
A: During a live cutover, insert the TY801K01 into the designated shunt position on the terminal unit before activating the software shunt command. Verify that the analog input module reads the expected resistance value (125Ω per channel) via the engineering tool before proceeding with signal source switchover. This sequence ensures continuous loop monitoring and eliminates blind spots during the migration transition.

Q: Are there alternative ABB spare parts that can extend the operational life of AI845 modules in legacy installations?
A: Yes. The AI845 ecosystem includes complementary terminal units (TU845, TU854) and redundancy modules that can extend hardware service life significantly. For installations where AI845 modules are approaching end-of-support, a phased hardware upgrade path to AI880A — which is also compatible with the TY801K01 — provides a low-risk performance upgrade without full rack replacement.

Q: How many insertion cycles can the TY801K01 withstand in a high-frequency maintenance environment?
A: The spring-loaded gold-plated contacts are rated for thousands of insertion cycles under standard operating conditions. In high-frequency maintenance environments such as annual turnarounds or quarterly calibration campaigns across large I/O racks, the TY801K01 delivers consistent contact reliability throughout its service life, making it a cost-effective long-term retrofit tool.
