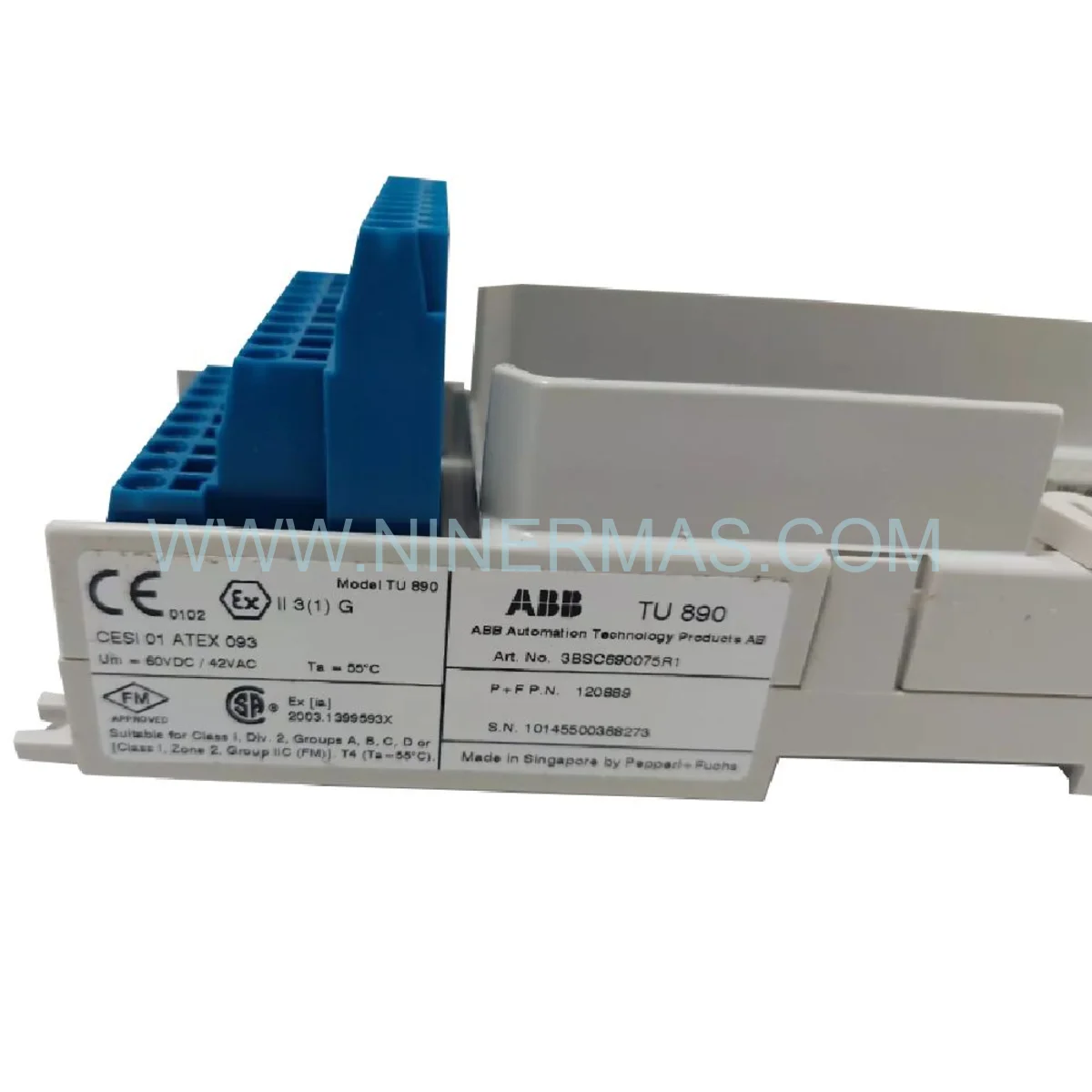

ABB TU890 IS MTU 3BSC690075R1 | Intrinsically Safe Termination Unit – New & Original

ABB TU890 IS MTU 3BSC690075R1 | Reliable Automation Component for Hazardous Environments

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the ABB TU890 IS MTU 3BSC690075R1 is not merely a passive termination unit — it is a mission-critical interface that directly governs system availability in classified hazardous zones. Deployed within ABB’s S800 distributed I/O architecture, the 3BSC690075R1 establishes certified, energy-limited signal pathways between field instruments and the control system, ensuring uninterrupted process data flow even in Zone 0, Zone 1, and Zone 2 explosive atmospheres. Its role in process optimization is foundational: without a properly rated termination unit, the entire intrinsically safe loop loses its certification integrity, forcing costly shutdowns for re-validation.

Engineered for operational excellence in demanding industrial environments, the TU890 IS MTU withstands ambient temperatures from -40°C to +70°C and maintains IP20 protection when correctly installed on DIN rail within an S800 I/O cluster. Site engineers must observe strict segregation of IS and non-IS wiring during installation — a discipline that preserves ATEX and IECEx certification compliance and prevents nuisance faults from capacitive or inductive coupling. Galvanic isolation between the field side and system side further shields the control network from transient surges common in petrochemical and offshore environments.

As production lines age and original equipment manufacturers discontinue legacy modules, maintaining a strategic inventory of the 3BSC690075R1 becomes a non-negotiable element of any reliability-centered maintenance program. A single unavailable termination unit can cascade into a full I/O cluster outage, halting automation components across an entire process unit. Proactive sourcing of genuine, factory-packaged spares is the most cost-effective insurance against unplanned downtime.

Key Operational Features

Intrinsic Safety Certified: ATEX and IECEx approved for Zone 0/1/2 (gas) and Zone 20/21/22 (dust) — no additional safety barriers required in compliant loop designs.
3-9 Terminal Architecture: 27 individual connection points deliver high-density field wiring capacity within a compact DIN rail footprint, supporting seamless integration with AI890, DI890, and DO890 IS-rated modules.
Galvanic Isolation: Full electrical separation between field and system sides eliminates ground loop interference, a prerequisite for high-availability control in corrosive or electrically noisy plant areas.
Redundancy-Ready Design: Compatible with ABB 800xA and System 800xA High Integrity platforms, enabling redundant I/O configurations that sustain operational continuity during single-point failures.
HART Signal Transparency: Provides unobstructed pass-through for HART digital communication, enabling remote diagnostics and smart device management without compromising IS loop parameters.
Wide Thermal Tolerance: Rated from -40°C to +70°C, ensuring reliable performance across arctic offshore installations and high-ambient tropical refineries alike.

Maintenance & Performance Benchmarks

The 3BSC690075R1 is engineered to slot into both small skid-mounted control panels and large-scale plant-wide DCS architectures without configuration changes. In multi-cluster S800 I/O networks, each TU890 IS MTU operates as an independent node, meaning a single unit replacement does not require system-wide reconfiguration — a critical advantage during live maintenance windows where minimizing process interruption is paramount.

Performance benchmarks from field deployments confirm that the TU890 IS MTU sustains signal integrity across cable runs exceeding 300 meters when entity parameters (capacitance and inductance limits) are respected. Maintenance teams should verify loop entity parameters against the module’s certified values during commissioning and after any field cable modification. Periodic insulation resistance testing of field wiring — recommended annually in high-humidity environments — is the primary preventive maintenance action for this component class.

For system integration in legacy plant expansions, the 3BSC690075R1 is backward-compatible with earlier S800 I/O revisions, reducing engineering risk when extending existing certified installations. This compatibility makes it a preferred automation component for brownfield projects where full system replacement is cost-prohibitive.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every ABB 3BSC690075R1 dispatched from our inventory is supplied in original factory packaging, complete with manufacturer labels, certification documentation, and traceability records. This ensures that your receiving inspection and regulatory audit requirements are met without additional paperwork burden.

For urgent plant maintenance scenarios, same-day dispatch is available on confirmed in-stock units (order cut-off times apply by region). Our global logistics network covers major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas, with express freight options that typically deliver within 3-7 business days to most destinations.

We specialize in global supply for EOL and legacy modules — including discontinued ABB S800 I/O components that are no longer available through standard distribution channels. Our sourcing team maintains relationships with authorized surplus networks worldwide, enabling us to fulfill orders for obsolete automation components that would otherwise force costly system redesigns. Condition reports and test certificates are available upon request for all surplus-sourced units.

Engineering Support & FAQ

Q1: What are the correct installation steps for the TU890 IS MTU on an S800 I/O cluster?
A: Mount the 3BSC690075R1 on a grounded DIN rail within the designated IS cluster zone. Attach the compatible IS I/O module (e.g., AI890) to the termination unit before connecting field cables. Route IS field wiring through dedicated cable ducts, maintaining physical separation from non-IS circuits. Verify entity parameters (Ui, Ii, Pi, Ci, Li) against your certified loop documentation before energizing.

Q2: Which firmware versions are compatible with the TU890 IS MTU?
A: The TU890 IS MTU is a passive termination unit and does not contain firmware. Firmware compatibility considerations apply to the active I/O modules (AI890, DI890, etc.) mounted on it. Consult the ABB S800 I/O Release Notes for your specific 800xA system version to confirm module firmware requirements.

Q3: How do I initiate a warranty claim for a defective 3BSC690075R1?
A: Contact our technical support team at sale@ninermas.com with your order number, a description of the observed fault, and photographic evidence of the defect. We will issue a Return Merchandise Authorization (RMA) within 24 business hours. Replacement units are dispatched upon receipt and inspection of the returned item.

Q4: Can the TU890 IS MTU be used with third-party IS I/O modules?
A: The 3BSC690075R1 is designed exclusively for ABB S800 I/O modules using ABB’s proprietary module bus connector. It is not mechanically or electrically compatible with third-party I/O systems. Using non-ABB modules would void ATEX/IECEx certification and create an uncontrolled safety risk.

Q5: What is the maximum cable length for field wiring connected to this termination unit?
A: Maximum cable length is determined by the entity parameters of the connected IS loop — specifically the certified maximum capacitance (Co) and inductance (Lo) of the associated I/O module. In practice, field cable runs of 300-500 meters are achievable with standard IS cable, but each installation must be individually verified against the certified entity parameter limits documented in the module’s safety certificate.

Q6: Is the TU890 IS MTU compatible with redundant power supply configurations?
A: Yes. When integrated into an S800 I/O cluster with redundant ModuleBus communication and redundant power distribution, the 3BSC690075R1 supports full high-availability architectures. Redundancy is managed at the cluster controller level; the termination unit itself requires no special configuration for redundant operation.
