ABB TU818V1 3BSE069209R1 Service-Ready Spare Part for Industrial Maintenance

ABB TU818V1 3BSE069209R1 Service-Ready Spare Part for Industrial Maintenance

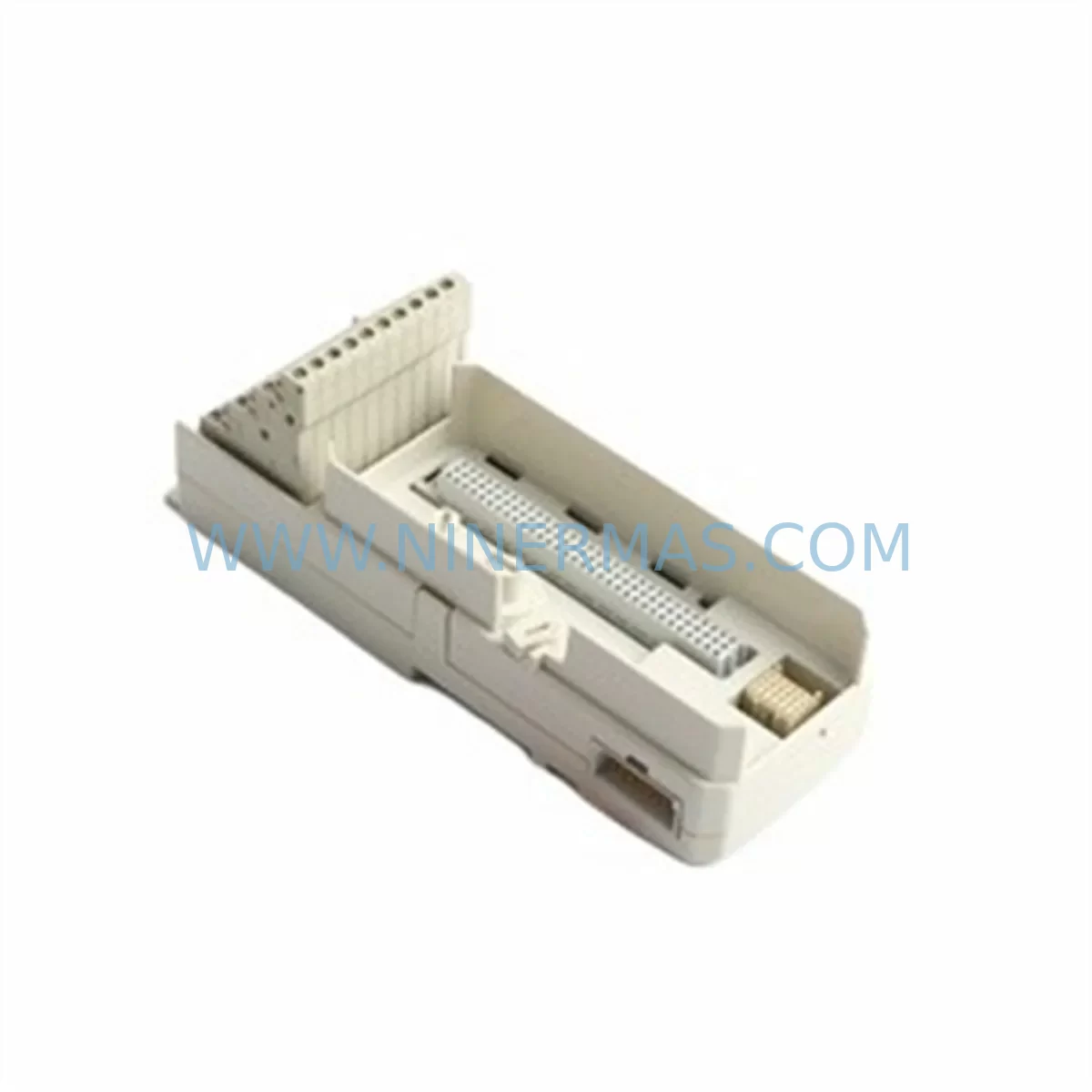

The ABB TU818V1 (3BSE069209R1) is an original S800 I/O Terminal Unit designed for use within ABB’s AC800M Distributed Control System architecture. As a field-proven base unit for S800 I/O modules, the TU818V1 provides the critical electrical and mechanical interface between I/O signal modules and the field wiring termination layer. In industrial maintenance environments — from chemical processing and power generation to pulp & paper and oil & gas — this terminal unit is a foundational component in sustaining continuous process control and minimizing unplanned downtime.

For maintenance engineers managing aging DCS infrastructure, sourcing a verified, original-spec TU818V1 is essential. Counterfeit or incompatible terminal units introduce signal integrity risks, grounding faults, and module communication failures that can cascade into full-loop shutdowns. NINERMAS supplies the ABB 3BSE069209R1 as a tested, original spare with full traceability, ready for immediate deployment or controlled inventory stocking.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB TU818V1 in an S800 I/O cabinet, a disciplined maintenance engineer does not stop at swapping the terminal unit alone. The TU818V1 interfaces directly with the field wiring harness and the I/O signal module seated above it — both of which must be inspected for wear, corrosion, or terminal loosening before the new unit is commissioned.

Begin by verifying the condition of the ABB AI810 or AO810V2 analog I/O modules mounted on the terminal unit. These modules are subject to thermal cycling stress and should be bench-tested if the cabinet has experienced overtemperature events. Similarly, inspect the ABB DI810 and DO810 digital I/O modules in adjacent slots — a failed terminal unit often masks underlying module degradation that only becomes apparent after the base is replaced.

Check the ABB TB820V2 ModuleBus Modem or the CI854 PROFIBUS DP communication interface connected to the same I/O cluster. Communication faults at the terminal unit level can propagate upstream and generate false diagnostics in the AC800M controller. Confirm that the PM866 or PM891 processor module is not logging persistent I/O bus errors before closing the maintenance work order.

Field wiring connected to the TU818V1 should be re-terminated using calibrated torque tools. Loose terminations on analog signal loops — particularly 4–20 mA circuits — introduce measurement drift that is difficult to distinguish from sensor failure. If the cabinet includes ABB SA801F or similar signal isolators in the loop, verify their output accuracy with a loop calibrator before returning the system to automatic control.

For cabinets operating in high-vibration or high-humidity environments, inspect the DIN rail mounting integrity and check adjacent ABB TU810V1 or TU812V1 terminal units for similar wear patterns. A proactive replacement of neighboring terminal units during the same maintenance window reduces the probability of repeat call-outs within the same maintenance cycle.

Power supply integrity is equally critical. Confirm that the ABB SD802F or equivalent 24 VDC system power supply is within voltage tolerance and that the redundant supply switchover (if configured) is functioning correctly. An undervoltage condition at the I/O bus level is a common root cause of intermittent terminal unit faults that are misdiagnosed as module failures.

For procurement engineers building annual MRO spare parts lists, the TU818V1 / 3BSE069209R1 should be stocked at a minimum of one unit per S800 I/O cluster in critical process areas. Given ABB’s product lifecycle management for legacy S800 components, early procurement is advisable to avoid extended lead times as the product approaches end-of-availability status.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Place the affected I/O loop in manual control at the DCS operator station. Document all field wiring termination positions using photographs or loop drawings before disconnecting any wiring from the TU818V1.

Step 2 — Module Removal: Carefully unlatch and remove the S800 I/O signal module (e.g., AI810, DI810) seated on the terminal unit. Store it in an ESD-safe bag. Do not apply mechanical force to the module connector pins.

Step 3 — Terminal Unit Replacement: Disconnect field wiring terminals systematically, labeling each conductor. Remove the TU818V1 from the DIN rail. Install the new ABB TU818V1 3BSE069209R1, ensuring correct DIN rail seating and locking. Re-terminate field wiring to the documented positions using calibrated torque.

Step 4 — Module Re-seating & Power-up: Re-seat the I/O signal module onto the new terminal unit. Apply power and confirm that the module LED status indicators show normal operation. Check the AC800M controller for any residual I/O fault alarms.

Step 5 — Loop Verification: Perform a live loop check on all signals associated with the replaced terminal unit. Confirm correct engineering unit readings at the DCS faceplate before returning the loop to automatic control.

Step 6 — Documentation Closure: Update the maintenance management system (CMMS) with the replaced part number, serial reference, and date of installation. Log the removed unit’s condition for root cause analysis.

Spare Parts Support FAQ

Q1: Is the ABB TU818V1 (3BSE069209R1) compatible with all S800 I/O signal modules?
The TU818V1 is designed for use with specific S800 I/O module types within the ABB AC800M system. Compatibility depends on the module variant and system configuration. NINERMAS recommends confirming the module type (e.g., AI810, DI810, DO810, AO810V2) against your system’s I/O list before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What testing is performed before the TU818V1 is shipped?
All units supplied by NINERMAS undergo visual inspection, connector integrity checks, and functional verification against ABB S800 I/O system specifications. Each unit is shipped with a test report and is covered by a 12-month warranty from the date of delivery. Units showing any sign of prior field damage or non-original modification are excluded from our inventory.

Q3: How should the TU818V1 be stored as a long-term spare?
Store the TU818V1 in its original ESD-protective packaging in a dry, temperature-controlled environment (recommended: 15°C–25°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or corrosive atmospheres. Inspect stored units annually for connector oxidation and re-test before deployment if stored for more than 24 months.

Q4: Can NINERMAS support long-term or repeat supply of the ABB 3BSE069209R1?
Yes. NINERMAS maintains a dedicated inventory program for ABB S800 I/O spare parts, including the TU818V1 / 3BSE069209R1. We support blanket purchase orders, scheduled delivery programs, and emergency same-week shipment for critical maintenance situations. Contact our team to discuss long-term supply agreements and volume pricing.
