ABB TK801V003 3BSC950089R1 Retrofit-Compatible I/O Extension Cable

ABB TK801V003 3BSC950089R1 Retrofit-Compatible I/O Extension Cable for Legacy Systems

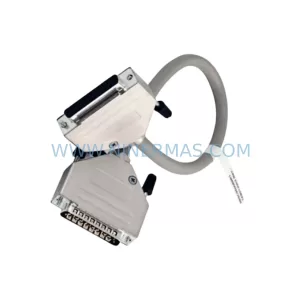

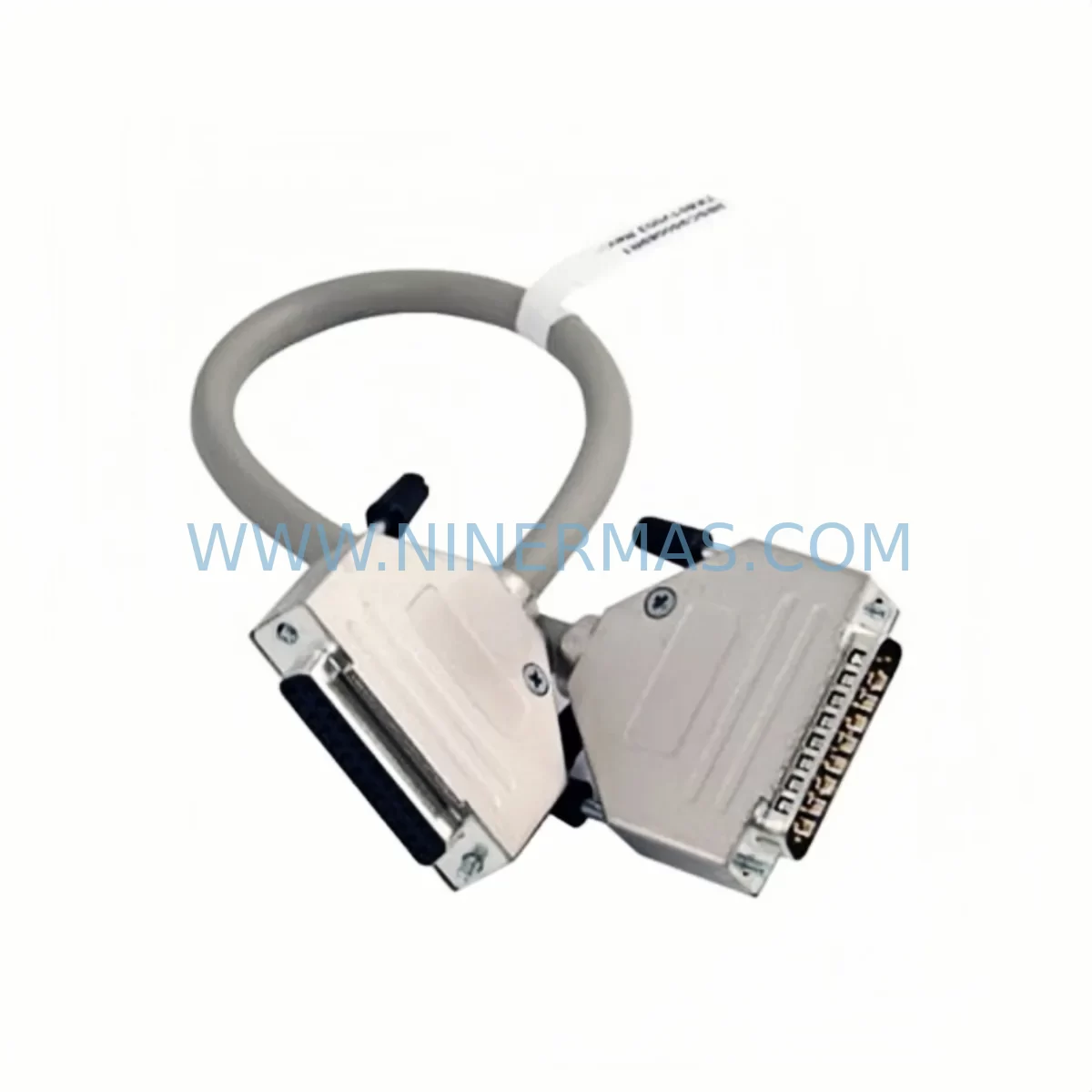

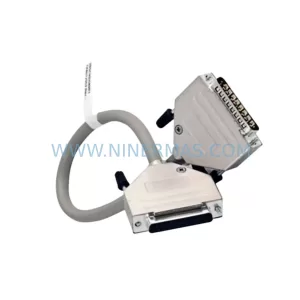

The ABB TK801V003 (catalog reference 3BSC950089R1) is a purpose-built I/O extension cable designed for the ABB S800 I/O series, widely deployed across process automation, power generation, oil & gas, and discrete manufacturing environments. As legacy ABB AC800M-based control systems approach end-of-life or require capacity expansion, the TK801V003 remains a critical interconnect component for maintaining system integrity during retrofit, upgrade, and migration projects. NINERMAS maintains verified stock of this cable to support planned maintenance shutdowns, emergency replacements, and phased modernization programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When modernizing a control cabinet built around the ABB AC800M controller and S800 I/O infrastructure, the TK801V003 extension cable is frequently the first component engineers identify as a bottleneck or failure point. Its role is to extend the S800 I/O bus between module bases, enabling distributed I/O expansion without requiring a full rack replacement. During retrofit planning, engineers must confirm the physical cable routing path within the control enclosure, ensuring that the replacement cable length matches the original installation — particularly in compact cabinets where bend radius and cable management trays constrain routing options.

A typical S800 I/O retrofit scenario involves the AC800M controller communicating with multiple I/O stations via CI801 or CI810B communication interface modules. These interface modules connect to AI810, AO810V2, DI810, and DO810 I/O modules mounted on TB807 or TB820V2 module termination units. The TK801V003 cable links these module bases in a daisy-chain topology, and any degradation in cable integrity — whether from insulation fatigue, connector oxidation, or mechanical stress — can cause intermittent I/O faults that are difficult to diagnose without substitution testing.

For projects involving I/O expansion, engineers often add additional S800 I/O stations connected via TK801V003 cables to existing CI830 or CI840A fieldbus communication interface modules. Before installation, it is essential to verify the total bus load against the communication interface module’s maximum supported I/O station count, confirm available backplane slot positions, and ensure that the new cable does not exceed the maximum permitted bus extension length specified in ABB’s S800 I/O hardware documentation.

In control cabinet upgrade projects where the original ABB Advant OCS or MOD 300 systems are being migrated to AC800M architecture, the S800 I/O platform is frequently retained as the field I/O layer while the controller is replaced. In these scenarios, the TK801V003 cable must be inspected and replaced as part of the migration bill of materials, alongside CI801 communication interface modules, SD802F power supply modules, and SB821 or SB822 S800 bus extender modules. Failure to replace aged extension cables during a controller migration is a common cause of post-commissioning instability.

For projects involving communication protocol migration — for example, transitioning from PROFIBUS DP to PROFINET or from serial Modbus to Ethernet-based protocols — the S800 I/O layer typically remains unchanged, with only the communication interface module being swapped. In these cases, the TK801V003 cable continues to serve its original function, and its condition should be verified before the new CI840A or CI801 module is commissioned. Signal isolation requirements between the new communication module and legacy field devices should also be reviewed, particularly where signal isolators or barriers are installed between the I/O module and field instrumentation.

Downtime Control During System Migration

Minimizing unplanned downtime during S800 I/O retrofit and cable replacement is a primary concern for plant engineers and maintenance teams. The TK801V003 cable replacement can typically be completed within a planned maintenance window of two to four hours, provided that the replacement cable has been pre-tested, the control program has been backed up, and the field I/O configuration has been documented prior to shutdown.

Before initiating the cable swap, engineers should export the current AC800M controller configuration using ABB Control Builder M, verify that all I/O module addresses and channel assignments are recorded, and confirm that the HMI faceplates — whether running on ABB 800xA, Freelance, or a third-party SCADA system — are in a known state. During the replacement, the S800 I/O bus should be powered down in the correct sequence to avoid residual voltage on the bus connectors. After the new TK801V003 cable is seated and secured, the bus should be powered up incrementally, with each I/O module’s status LED verified before the controller is returned to automatic mode.

For critical processes where even a brief interruption is unacceptable, a hot-standby AC800M redundancy configuration can be leveraged to perform the cable replacement on the standby controller path first, followed by a controlled switchover before replacing the cable on the primary path. This approach requires careful coordination with the control system vendor and the site’s safety management system, but it effectively reduces process impact to near zero during the physical cable replacement.

NINERMAS pre-tests all TK801V003 cables prior to shipment and provides documentation confirming cable continuity and connector integrity. This pre-shipment testing reduces the risk of receiving a defective replacement cable and supports the goal of completing the retrofit within the planned maintenance window.

Retrofit Support FAQ

Q: Is the TK801V003 a direct replacement for the original ABB S800 I/O extension cable in my existing rack?
A: Yes. The TK801V003 (3BSC950089R1) is a direct drop-in replacement for the original S800 I/O bus extension cable. No hardware modification, firmware update, or I/O address reconfiguration is required. Verify that the cable length matches your installation before ordering.

Q: Does NINERMAS test the TK801V003 before shipment?
A: Yes. All cables are inspected and continuity-tested prior to dispatch. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and connector integrity.

Q: What should I verify before installing the TK801V003 in a retrofit project?
A: Confirm the cable routing path and bend radius within the control cabinet, verify that the S800 I/O bus termination resistors are correctly positioned at the end of the bus chain, and ensure that the CI801 or CI810B communication interface module firmware is compatible with the number of I/O stations being connected. Back up the AC800M controller program before powering down the I/O bus.

Q: Can the TK801V003 be used in an expanded I/O configuration with additional S800 modules?
A: Yes, provided that the total number of I/O stations does not exceed the maximum supported by the communication interface module in use, and that the cumulative bus extension length remains within ABB’s specified limits. Consult the S800 I/O hardware documentation or contact NINERMAS for application-specific guidance.
