ABB PM866K01 3BSE050198R1 Retrofit-Compatible CPU for Legacy Systems

ABB PM866K01 3BSE050198R1 Retrofit-Compatible CPU for Legacy Systems: Seamless AC800M Upgrade & Compatibility

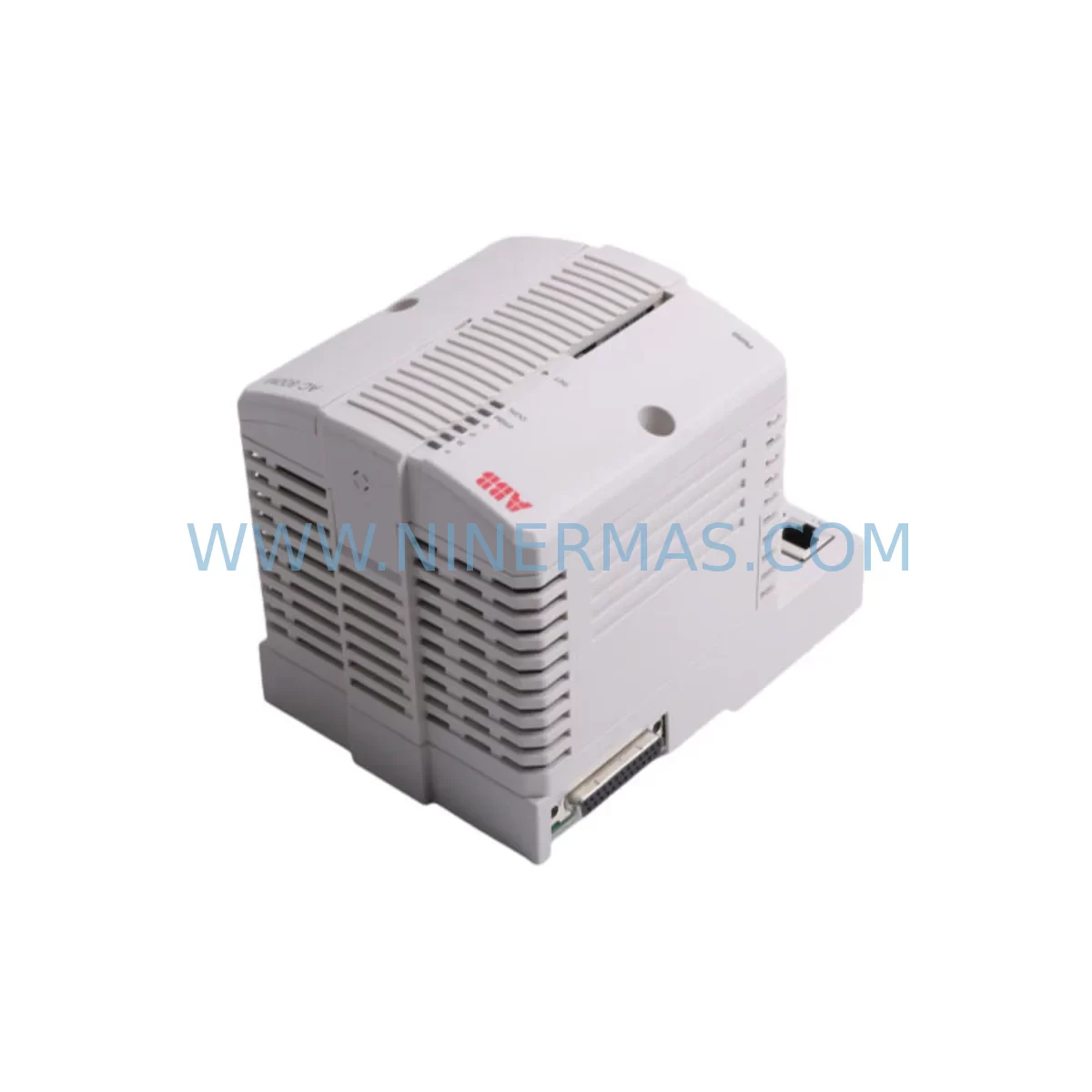

The ABB PM866K01 (catalog number 3BSE050198R1) is a high-performance processor module designed for the ABB AC800M distributed control system platform. As aging automation infrastructure reaches end-of-life, the PM866K01 has become one of the most sought-after retrofit and replacement solutions for facilities running legacy AC800M controllers. Whether you are managing a planned system upgrade, responding to an unexpected module failure, or executing a phased migration away from discontinued hardware, the PM866K01 delivers the processing power, communication flexibility, and backward compatibility required to keep your production line running without costly full-system replacements.

At NINERMAS, we maintain ready inventory of the PM866K01 3BSE050198R1 to support urgent retrofit projects and long-term spare parts programs. Every unit ships with a 12-month warranty and passes pre-shipment functional testing to ensure it arrives ready for installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a CPU module in a live automation environment requires careful pre-planning across multiple system layers. When integrating the PM866K01 3BSE050198R1 into an existing AC800M rack, engineers must first audit the current rack configuration. The AC800M platform supports a range of I/O and communication modules — including AI810 analog input modules, DI810 digital input modules, DO810 digital output modules, and AO810V2 analog output modules — all of which communicate with the CPU via the internal backplane bus. Confirming that the existing I/O module addresses and channel assignments remain consistent after the CPU swap is a critical pre-commissioning step.

Power supply capacity is another key consideration. The SD821 and SD822 power supply modules must be verified to provide sufficient current for the PM866K01 alongside all installed I/O modules. Overloaded power rails are a common cause of intermittent faults following a CPU retrofit, and this check should be completed before the new module is powered on.

For systems using fieldbus communication, the CI854A PROFIBUS DP communication interface module and CI857 Industrial Ethernet interface module must be re-verified for correct master/slave addressing and baud rate settings after the CPU replacement. In installations where the AC800M communicates upstream to an ABB 800xA distributed control system, the OPC server connection and historian data paths should be tested as part of the commissioning checklist.

Termination boards such as the TB840A and TB843 connect field wiring to the I/O modules and are not affected by the CPU swap, but their wiring documentation should be reviewed to confirm no terminal reassignments are required. If the retrofit is part of a broader control cabinet upgrade that includes replacing the TP830 processor module or migrating from an older PM864A CPU, the application program stored in Control Builder M must be re-compiled and downloaded to the new PM866K01 after installation.

HMI screens built in ABB Operate IT or the 800xA graphics environment may require faceplates to be re-linked to the new controller object after the module swap. This step is frequently overlooked during rapid replacement scenarios and can result in display anomalies even when the underlying control logic is functioning correctly. Allocating time for HMI verification in the commissioning schedule will prevent post-startup troubleshooting delays.

Downtime Control During System Migration

Minimizing production downtime during a CPU module replacement is the primary concern for most maintenance and engineering teams. The PM866K01 retrofit process is designed to support a structured, low-risk swap procedure when the following steps are observed.

Before powering down the existing controller, a full application backup must be exported from Control Builder M, including all function block diagrams, structured text programs, hardware configuration files, and communication parameter sets. This backup serves as both the restoration baseline and the source for the new module download. Storing this backup in at least two separate locations — including an off-system archive — protects against data loss during the transition.

Where the process allows, a cold standby approach using a pre-configured PM866K01 loaded with the application program can reduce live swap time to under 30 minutes. For systems with redundant CPU configurations, the PM866K01 supports hot-standby redundancy when paired with a second module and the appropriate redundancy license, allowing the switchover to occur without interrupting field I/O scanning or process control output.

After installation, the commissioning sequence should include a systematic verification of all I/O channel states, communication link status indicators on the CI854A and CI857 modules, and confirmation that the 800xA system has re-established its OPC connection to the new controller. Field instrument loop checks should be performed for any analog I/O channels that were active at the time of the swap to confirm signal integrity has been maintained through the termination boards and field wiring.

NINERMAS provides pre-shipment configuration support for customers who require the PM866K01 to be loaded with a specific firmware version or hardware configuration prior to delivery, further reducing on-site commissioning time and the risk of version mismatch errors.

Retrofit Support FAQ

Q1: Is the PM866K01 3BSE050198R1 a direct drop-in replacement for the PM864A or PM865?
A: The PM866K01 is physically and electrically compatible with the AC800M rack and backplane used by the PM864A and PM865. However, the application program must be re-downloaded using Control Builder M after installation, as the CPU memory is not transferred between modules. Communication parameters and I/O module addresses are retained in the hardware configuration file and will be restored during the download process.

Q2: What pre-shipment testing does NINERMAS perform on the PM866K01?
A: Every PM866K01 unit supplied by NINERMAS undergoes power-on functional verification, communication port testing, and firmware version confirmation before shipment. Units are shipped with original ABB packaging where available, and each order includes a test report. All units are covered by a 12-month warranty from the date of shipment.

Q3: How do I confirm the correct firmware version for my existing AC800M system?
A: The firmware version required for your PM866K01 depends on the version of Control Builder M installed on your engineering workstation and the firmware versions of the I/O and communication modules in your rack. NINERMAS technical support can assist with firmware compatibility verification prior to order confirmation. Please provide your existing module part numbers and CBM version when inquiring.

Q4: Can NINERMAS supply the PM866K01 with short lead times for emergency breakdown situations?
A: Yes. NINERMAS maintains stock inventory of the PM866K01 3BSE050198R1 and can arrange same-day or next-day dispatch for urgent breakdown orders. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and arrange expedited shipping to your site.
