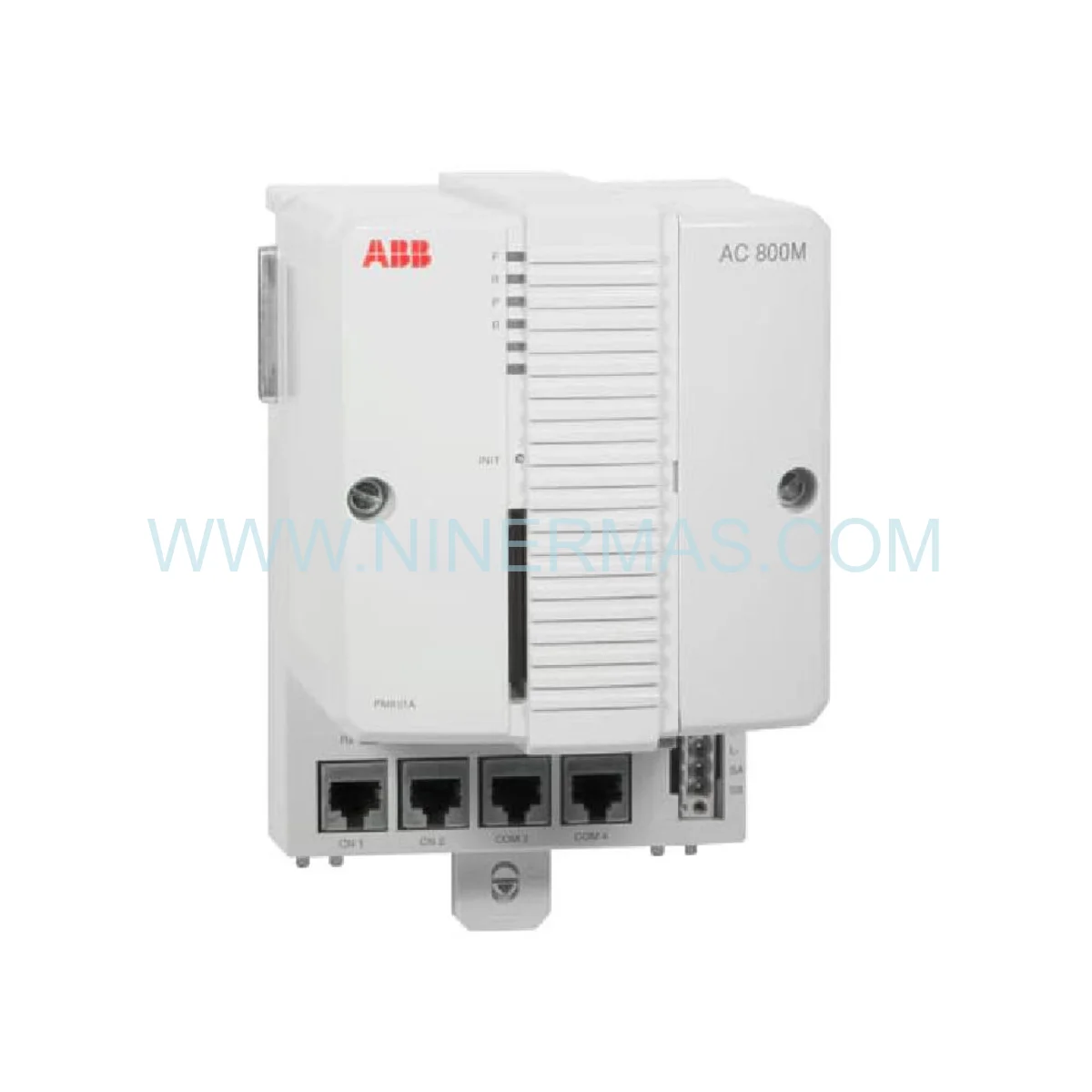

ABB PM866AK02 (3BSE081637R1) | Redundant Processor for AC800M Retrofit

ABB PM866AK02 (3BSE081637R1) — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, I consistently identify the ABB PM866AK02 (3BSE081637R1) as a cornerstone component in AC800M platform modernization initiatives. With its 64MB RAM and 133MHz processing architecture, this redundant processor module directly addresses the performance bottlenecks that plague aging DCS infrastructures — enabling facilities to extend operational lifecycles without committing to full greenfield replacements. The ABB PM866AK02 (3BSE081637R1) delivers measurable throughput improvements while preserving existing I/O wiring, field devices, and engineering logic investments.

From a legacy compatibility standpoint, this module is engineered to slot into existing AC800M controller racks with minimal mechanical or electrical modification. Its backward-compatible firmware architecture supports earlier AC800M generations, making it an ideal upgrade path for plants running PM864 or PM860 series processors. The hardware upgrade eliminates the need for parallel system commissioning, dramatically reducing migration risk during live production environments.

In terms of total migration economics, deploying the ABB PM866AK02 (3BSE081637R1) as a retrofit solution reduces capital expenditure by up to 60% compared to full DCS replacement programs. Downtime windows shrink from weeks to hours, and engineering teams can reuse validated control logic — preserving decades of process knowledge while achieving modern performance benchmarks.

Upgrade Highlights & Compatibility

• Full Redundancy Support: Automatic hot-standby switchover with sub-second failover — zero production interruption during processor faults
• ✅ Performance Enhancement: 133MHz clock speed with 64MB RAM handles complex multi-loop control programs with faster scan cycle execution
• Seamless Integration: Drop-in compatible with AC800M controller racks; supports existing S800 I/O modules, CI modules, and fieldbus networks
• ✅ Legacy Compatibility: Backward-compatible with PM864AK01 and PM860K01 series; preserves existing application programs and configuration databases
• Future-Proofing: Supports ABB Ability digital platform connectivity for IIoT-ready migration pathways
• ✅ Reduced Migration Risk: Factory-sealed, OEM-grade hardware eliminates compatibility uncertainty during system changeover

Modernization Use Cases & Success Stories

DCS Modernization in Petrochemical Refineries: Aging PM860-based DCS platforms in continuous process units face increasing spare parts scarcity and firmware support gaps. Replacing the primary processor with the ABB PM866AK02 (3BSE081637R1) restores full vendor support coverage, unlocks advanced diagnostics, and enables integration with modern historian and MES platforms — all without reengineering the existing S800 I/O infrastructure.

Turbine Supervisory Instrumentation (TSI) Upgrades: Power generation facilities operating legacy turbine control systems benefit from the PM866AK02’s enhanced processing headroom. The module’s redundant architecture meets the SIL-capable control requirements of modern turbine protection logic, enabling plants to satisfy updated safety standards without replacing the entire control cabinet assembly.

Pharmaceutical Batch Control Retrofit: GMP-regulated manufacturing environments require validated control platforms with full audit trail capabilities. The ABB PM866AK02 (3BSE081637R1) supports 21 CFR Part 11-compliant configurations within the AC800M framework, allowing facilities to upgrade processing power while maintaining existing validation documentation — a critical advantage for retrofit projects under regulatory scrutiny.

Water & Wastewater SCADA Integration: Municipal treatment facilities running first-generation AC800M controllers gain significant performance enhancement by migrating to the PM866AK02. Faster scan times improve real-time response to process upsets, while the expanded memory supports larger SCADA communication tables and alarm management databases.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: Every ABB PM866AK02 (3BSE081637R1) unit is sourced directly from authorized ABB distribution channels — factory-sealed packaging with full traceability documentation
• Expedited Global Logistics: Priority air freight available to all major industrial hubs; DDP (Delivered Duty Paid) shipping options for seamless cross-border procurement
• Technical Support for Legacy Hardware: Our engineering team provides pre-installation compatibility assessments, firmware version matching guidance, and post-installation commissioning support for obsolete and end-of-life system environments
• 12-Month Warranty: Comprehensive coverage against manufacturing defects with advance replacement program for critical production environments
• Documentation Package: Full ABB technical manuals, wiring diagrams, and migration checklists provided upon request

Retrofit FAQ — Upgrade Guide

Q1: Will the ABB PM866AK02 (3BSE081637R1) physically fit in my existing AC800M controller rack without mechanical modification?
A: Yes. The PM866AK02 is designed to occupy the same rack slot positions as earlier AC800M processor modules including PM864AK01 and PM860K01. No chassis modification or additional mounting hardware is required. Verify your rack firmware version supports PM866 series before installation.

Q2: How does the PM866AK02 handle communication with legacy fieldbus networks already installed in my plant?
A: The module maintains full compatibility with existing Profibus DP, FOUNDATION Fieldbus, and Ethernet-based communication interfaces through the AC800M’s CI (Communication Interface) modules. No fieldbus rewiring or protocol conversion is necessary — existing network configurations are preserved during the processor upgrade.

Q3: Can I migrate my existing application program from a PM864AK01 to the PM866AK02 without rewriting control logic?
A: In most cases, yes. Application programs developed in ABB Control Builder M are portable across AC800M processor generations. A firmware compatibility check and offline simulation run are recommended before live cutover to validate timing-sensitive control loops.

Q4: What is the recommended spare parts strategy when upgrading to the PM866AK02 in a redundant configuration?
A: For mission-critical applications, maintain a minimum of one cold-spare PM866AK02 (3BSE081637R1) unit on-site. Given the module’s Active lifecycle status, procurement lead times are currently predictable — however, establishing a strategic inventory buffer is advisable for facilities with extended maintenance intervals.

Q5: Is the PM866AK02 suitable as a direct replacement for obsolete or EOL processor modules in older AC800M installations?
A: Absolutely. The PM866AK02 is the recommended upgrade path for PM860 and PM864 series modules approaching end-of-life. It delivers a significant performance enhancement while maintaining backward compatibility with existing I/O configurations, reducing the scope and cost of the overall retrofit project.

Q6: Does your team provide on-site support for PM866AK02 installation in remote or international facilities?
A: We offer remote technical support via video conference and detailed step-by-step migration documentation for international deployments. For complex retrofit projects, we can coordinate with local ABB-certified system integrators to provide on-site commissioning assistance.
