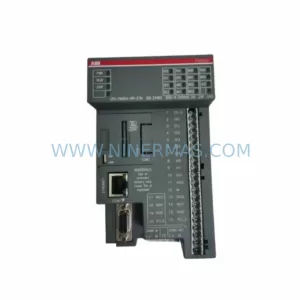

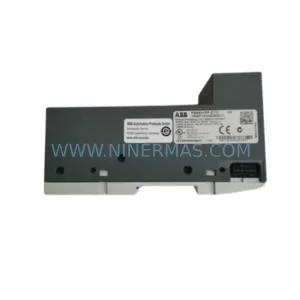

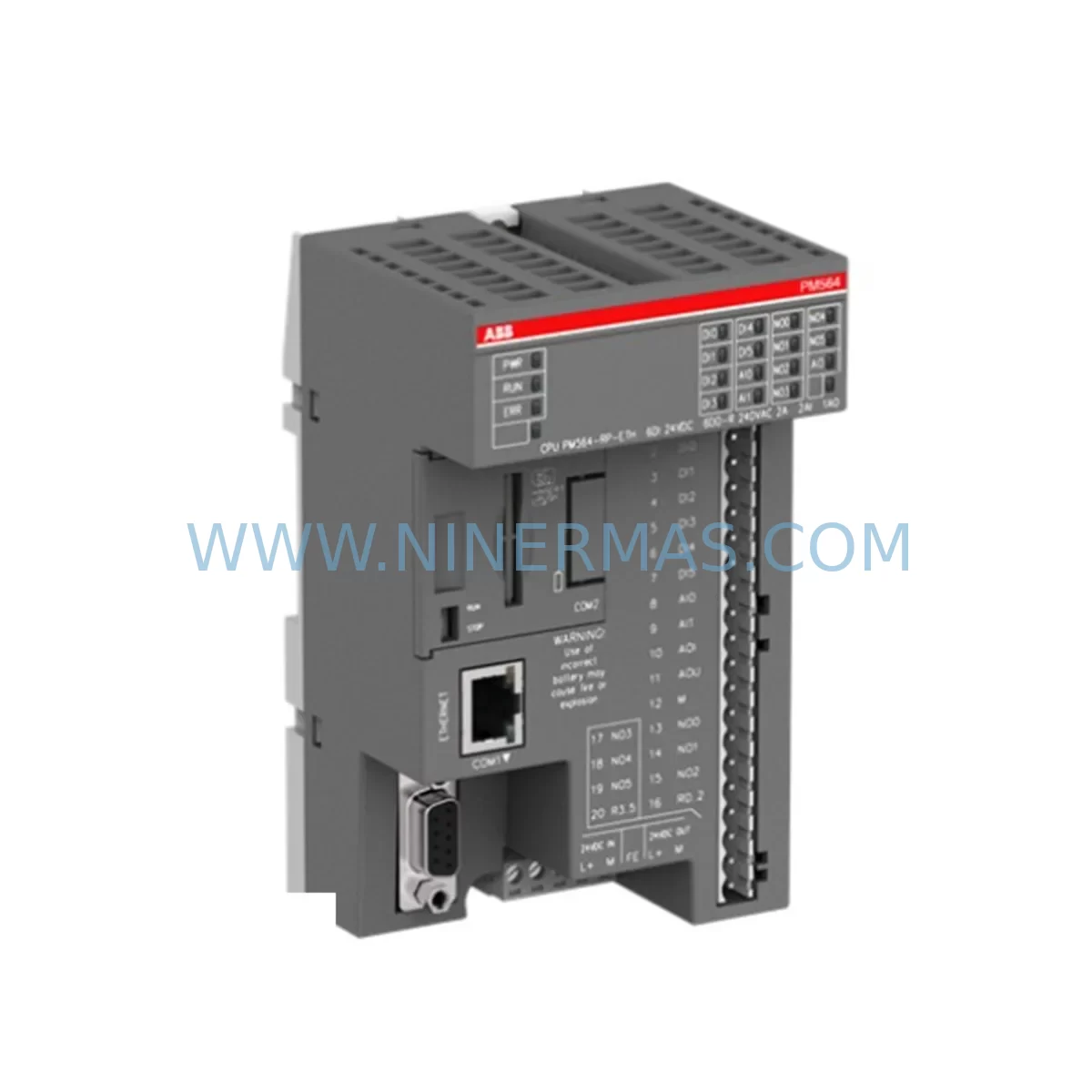

ABB PM564-RP-ETH 1SAP121000R0071 Retrofit Processor Module

ABB PM564-RP-ETH 1SAP121000R0071 Retrofit-Compatible Processor Module for Legacy Systems

The ABB PM564-RP-ETH 1SAP121000R0071 is a ruggedized CPU module from ABB’s AC500 series, engineered for demanding industrial environments where legacy PLC systems require a reliable, drop-in compatible upgrade path. Whether you are replacing an end-of-life controller, modernizing an aging control cabinet, or migrating from an obsolete communication architecture, the PM564-RP-ETH delivers the processing power, Ethernet connectivity, and environmental resilience needed to keep your automation infrastructure running without costly full-system replacements.

At NINERMAS, we maintain verified in-stock inventory of the PM564-RP-ETH 1SAP121000R0071, backed by a 12-month warranty and pre-shipment functional testing. Every unit is inspected and confirmed operational before dispatch, giving maintenance engineers and procurement teams the confidence they need when sourcing critical spare parts or retrofit components.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the PM564-RP-ETH 1SAP121000R0071 into an existing production line requires careful pre-engineering to avoid unplanned downtime and configuration errors. The first step is a thorough audit of the existing control cabinet: document the current CPU model (commonly a PM554-T or PM556-TP-ETH), the terminal base in use, and the number of I/O slots occupied on the rack. The PM564-RP-ETH mounts directly onto ABB AC500-compatible terminal bases such as the TB521 or TB541, so physical fitment is typically straightforward when the existing installation uses the same AC500 platform.

Power supply capacity is a critical checkpoint. Verify that the existing CP502 or CP503 power supply module can support the PM564-RP-ETH’s current draw alongside all connected I/O modules. If the cabinet was originally sized for a lower-specification CPU, a power budget recalculation is mandatory before commissioning. In many retrofit scenarios, engineers also take the opportunity to replace aging power supply units with a new CP504 to ensure long-term reliability.

On the I/O side, the PM564-RP-ETH communicates with expansion modules over the AC500 internal bus. Modules such as the DI581-S digital input module, DO581-S digital output module, and AI531 analog input module remain fully compatible and do not require replacement during a CPU-only upgrade. However, if the legacy system used older SM560-series mixed I/O modules, confirm firmware compatibility and update module firmware via Automation Builder before going live.

Communication protocol migration is another area requiring attention. Many older AC500 installations relied on Modbus RTU or PROFIBUS DP for field device communication. The PM564-RP-ETH’s integrated Ethernet port supports Modbus TCP natively, enabling direct migration of field instruments and SCADA connections to a modern TCP/IP architecture. If PROFIBUS DP connectivity must be retained, an CM572-DP PROFIBUS master/slave communication module can be added to the rack to bridge legacy field devices during a phased migration. Similarly, for installations requiring CANopen connectivity, the CM574-CN CANopen module provides a seamless extension path.

HMI compatibility should be validated early in the retrofit project. Existing CP600 or CP620 operator panels connected via Ethernet will typically reconnect to the PM564-RP-ETH without screen redesign, provided the PLC variable addresses and communication driver settings are preserved. Where HMI screens reference internal memory addresses that change during program migration, a full screen-by-screen validation pass is recommended before handover to operations.

For installations where the PM564-RP-ETH is replacing a CPU in a distributed I/O architecture, verify that remote I/O stations connected via CM589-PNIO PROFINET I/O modules or Ethernet couplers are addressed correctly in the new project. Address conflicts between the CPU’s built-in Ethernet port and any existing network infrastructure must be resolved during the engineering phase, not during commissioning.

Finally, ensure that a programming cable and a laptop with ABB Automation Builder installed are available on-site during the cutover. The PM564-RP-ETH supports USB programming connection, allowing engineers to download the validated project, perform a cold start, and verify I/O status within minutes of physical installation.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement is the primary concern for most maintenance teams. With the PM564-RP-ETH 1SAP121000R0071, a well-prepared retrofit can be completed within a single planned maintenance window, typically two to four hours for a standard AC500 rack installation.

The recommended approach is to pre-configure and validate the replacement CPU offline before the scheduled cutover. Using ABB Automation Builder, load the existing project from the legacy PM554 or PM556 CPU, re-compile it for the PM564-RP-ETH target, and simulate I/O behavior in the offline environment. This step catches the majority of address mapping issues and program incompatibilities before the production system is touched.

During the cutover window, follow a structured sequence: isolate the control cabinet from field power, document all terminal wiring connections with photographs, remove the legacy CPU from the terminal base, seat the PM564-RP-ETH, restore field power, download the pre-validated project via USB, and perform a controlled startup with all field devices in a safe state. The AC500 platform’s retain memory architecture means that data block values and counter states can be preserved across the CPU swap if the project is correctly configured with RETAIN variable declarations.

For critical processes where even a two-hour window is unacceptable, consider a parallel-run strategy: install the PM564-RP-ETH on a secondary rack alongside the live system, validate all I/O readings and communication links in shadow mode, then perform a hot-cutover by switching field wiring to the new rack during a brief process pause. This approach is particularly effective in water treatment, power distribution, and continuous manufacturing environments where the CP604 touch panel or SCADA system must remain operational throughout the transition.

Post-cutover, retain the legacy CPU as a cold standby spare for at least 90 days. Document the as-built configuration, update the cabinet drawings, and archive the validated Automation Builder project. NINERMAS provides 12-month warranty coverage from the date of shipment, ensuring that any hardware defect identified during the commissioning period or early operation phase is covered without additional cost.

Retrofit Support FAQ

Q1: Is the ABB PM564-RP-ETH 1SAP121000R0071 a direct replacement for the PM554-T or PM556-TP-ETH?
The PM564-RP-ETH is functionally compatible with the AC500 platform and can replace PM554 and PM556 series CPUs in the same terminal base. However, it is not a plug-and-play swap — the existing Automation Builder project must be re-compiled for the PM564-RP-ETH target, I/O module addresses must be verified, and communication settings must be updated to reflect the new CPU’s Ethernet configuration. NINERMAS recommends a pre-migration engineering review before ordering.

Q2: What pre-shipment testing does NINERMAS perform on the PM564-RP-ETH 1SAP121000R0071?
Every unit shipped by NINERMAS undergoes a functional verification test that includes power-on confirmation, Ethernet port link establishment, and AC500 backplane bus communication check. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Can the PM564-RP-ETH communicate with legacy PROFIBUS DP field devices?
The PM564-RP-ETH does not include a native PROFIBUS DP port. For installations requiring PROFIBUS DP connectivity, the CM572-DP communication module must be added to the AC500 rack. This module operates as a PROFIBUS DP master or slave and integrates transparently with the PM564-RP-ETH’s project configuration in Automation Builder, allowing legacy field devices to remain in service during and after the CPU upgrade.

Q4: What is the warranty coverage and lead time for the PM564-RP-ETH 1SAP121000R0071?
NINERMAS provides a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are typically dispatched within 1–3 business days. For urgent retrofit projects, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and delivery schedules.
