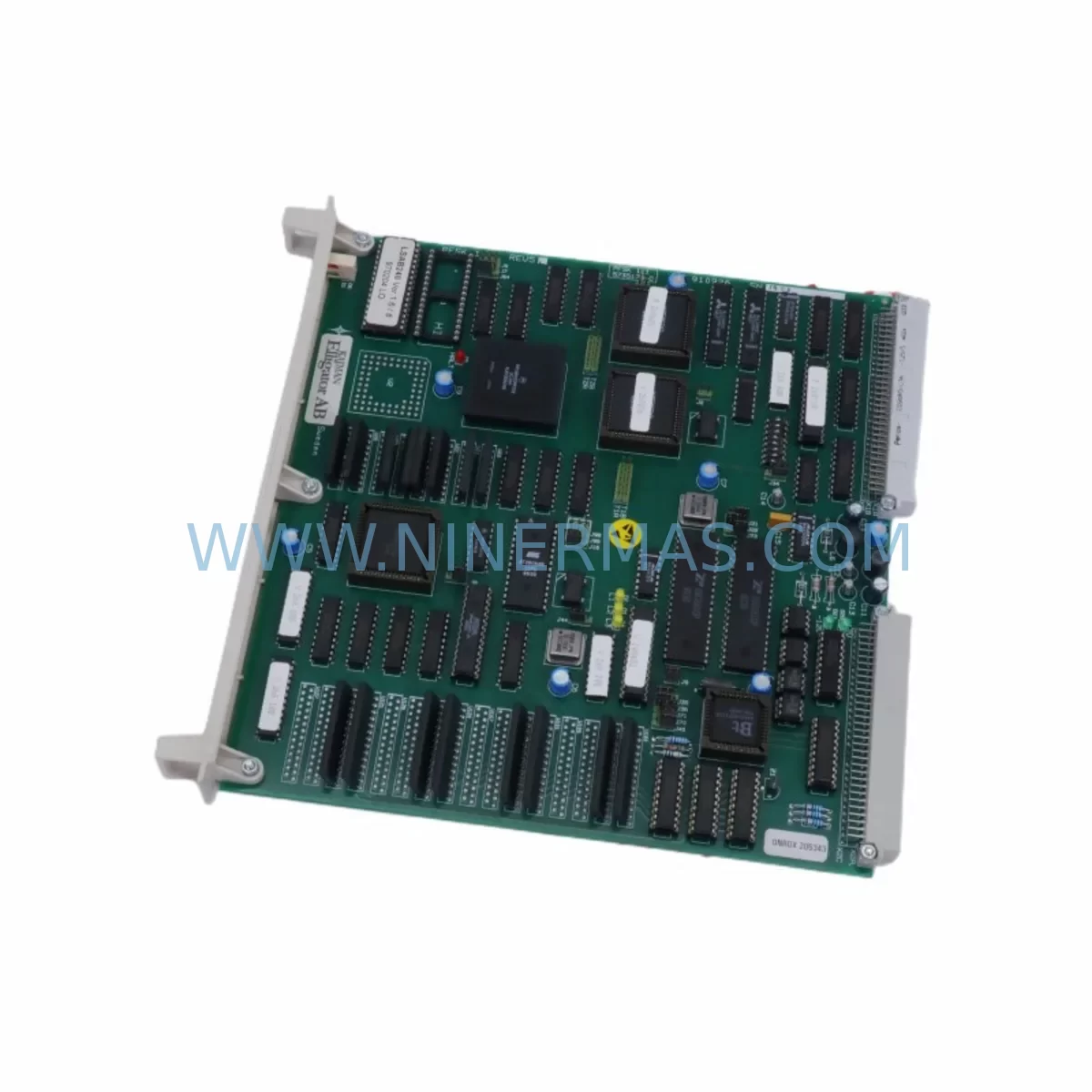

The ABB PFSK111 5735175-C is an original VDU (Video Display Unit) board engineered for ABB’s industrial automation and DCS control architectures. Sourced as a genuine service-ready spare, this board is a critical replacement component for maintenance engineers managing AC800M-based control systems, process automation cabinets, and legacy DCS installations where uptime continuity is non-negotiable. Whether you are executing a planned annual overhaul, responding to an unscheduled fault isolation event, or building a strategic spare parts inventory for a multi-year lifecycle program, the PFSK111 5735175-C delivers the compatibility, reliability, and traceability that industrial procurement demands.

At NINERMAS, every unit undergoes pre-shipment functional verification and is dispatched with full documentation support. Our 12-month warranty covers this board against manufacturing defects and operational failure under normal industrial service conditions, giving your maintenance and procurement teams the confidence to commit to long-term stock planning without quality risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a VDU board such as the PFSK111 5735175-C is flagged during a control cabinet inspection or fault diagnostic cycle, experienced maintenance engineers know that the board itself is rarely the only component requiring attention. A systematic replacement workflow should extend to the surrounding electrical environment to prevent repeat failures and reduce the risk of secondary downtime events.

Begin by verifying the ABB AC800M CPU module (such as the PM861 or PM864 series) for firmware currency and communication health — a degraded VDU board often masks upstream processor faults that only surface after the display interface is restored. Simultaneously, inspect the S800 I/O modules connected to the same backplane segment; loose field termination or corroded I/O terminal blocks can introduce signal noise that accelerates board wear. The TB820 Modulebus Modem and associated CI854 PROFIBUS communication interface should be checked for bus error counters, as communication faults frequently co-occur with VDU board degradation in high-cycle process environments.

Power integrity is equally critical. Confirm that the ABB SD831 or SD832 24VDC power supply module feeding the controller rack is within voltage tolerance and that its output ripple is within specification — undervoltage events are a leading cause of premature board failure in aging DCS cabinets. If the installation uses redundant power feeds, verify the power distribution terminal blocks (such as Phoenix Contact or Weidmüller DIN-rail mounted units) for contact resistance and thermal discoloration.

For installations where the PFSK111 interfaces with operator workstations or HMI panels, inspect the ABB Panel 800 or CP600 HMI communication cables and connectors for continuity and shielding integrity. Signal isolation barriers — particularly galvanic isolators on analog I/O loops — should be tested for drift if the system has been in service for more than three years without calibration. Additionally, review the fuse protection on the 24VDC bus and any surge protection devices (SPDs) on field signal entries to the cabinet, as these are frequently overlooked during routine inspections but are essential for protecting replacement boards from transient damage.

For sites running extended lifecycle programs on ABB Advant or MOD 300 DCS platforms, maintaining a curated spare parts kit that includes the PFSK111 5735175-C alongside compatible PFSK107 processor boards, PFSK152 communication modules, and DSQC series robot controller boards (where applicable) ensures that your maintenance team can execute full cabinet restoration without waiting on extended lead times from the OEM supply chain.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing board, document the current system status via the ABB Control Builder or Advant Station operator interface. Record all active alarms, I/O states, and communication diagnostics. Confirm that the replacement PFSK111 5735175-C carries the same hardware revision as the installed unit, or verify ABB’s cross-reference documentation for approved revision substitutions.

Step 2 — Safe Isolation: Follow your site’s Lockout/Tagout (LOTO) procedure for the affected controller rack. De-energize the backplane slot using the system’s hot-swap protocol if supported, or perform a controlled controller shutdown to avoid data corruption on connected process modules.

Step 3 — Board Extraction and Inspection: Remove the faulty board and inspect the backplane connector pins for oxidation, mechanical damage, or debris. Clean the connector with approved contact cleaner before inserting the replacement unit. This step is critical for ensuring long-term contact reliability and preventing the new board from inheriting the failure mode of the old installation.

Step 4 — Installation and Commissioning: Seat the PFSK111 5735175-C firmly into the backplane slot and secure the front panel locking mechanism. Re-energize the rack and monitor the system startup sequence via the operator interface. Confirm that all I/O modules, communication links, and HMI connections restore to their pre-fault states within the expected initialization window.

Step 5 — Post-Replacement Documentation: Log the replacement event in your CMMS (Computerized Maintenance Management System) with the board serial number, installation date, and technician ID. Update your spare parts inventory to trigger a replenishment order, maintaining your minimum stock level for this critical component. NINERMAS supports long-term supply agreements for high-priority SKUs, ensuring consistent availability across multi-year maintenance contracts.

Spare Parts Support FAQ

Q1: Is the PFSK111 5735175-C a new original part or a refurbished unit?
All PFSK111 5735175-C units supplied by NINERMAS are original ABB spare parts sourced through verified industrial supply channels. Each unit is pre-shipment tested for functional integrity and ships with a 12-month warranty. Condition and test records are available upon request for quality-critical procurement processes.

Q2: How do I confirm compatibility with my existing ABB AC800M or Advant Controller system?
Compatibility is determined by the hardware revision of the installed board and the firmware version of your controller. Provide your system’s controller type, existing board revision, and Control Builder software version to our technical team at sale@ninermas.com, and we will confirm compatibility or identify the correct cross-reference part before shipment.

Q3: What is the typical lead time, and can NINERMAS support long-term supply agreements?
In-stock units ship within 2–5 business days globally. For customers managing multi-site maintenance programs or annual overhaul schedules, NINERMAS offers long-term supply agreements with committed stock reservation, priority allocation, and fixed pricing — eliminating procurement risk for critical spare parts over extended contract periods.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month NINERMAS warranty covers the PFSK111 5735175-C against manufacturing defects and functional failure under normal industrial operating conditions. In the event of a warranty claim, contact sale@ninermas.com with your order reference, fault description, and installation details. NINERMAS will arrange a replacement dispatch or technical resolution within the agreed service timeline, minimizing your exposure to extended downtime.
