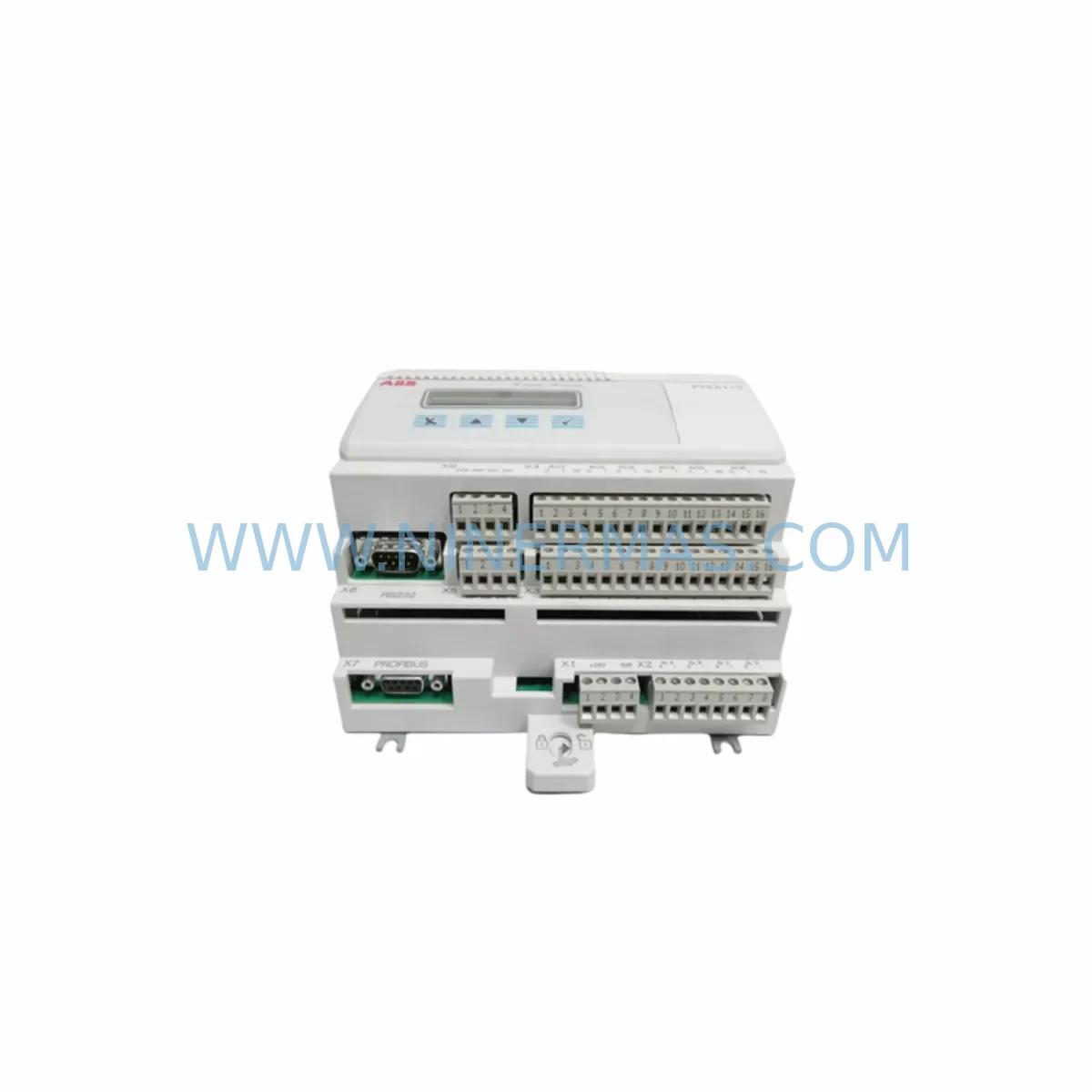

The ABB PFEA113-20 is a precision tension controller designed for demanding industrial web tension measurement and control applications. As a service-ready original spare part, the PFEA113-20 is engineered to deliver immediate drop-in replacement capability for aging or failed units in continuous process lines, printing machinery, paper mills, textile production, and metal foil processing systems. Sourced from verified supply channels and pre-tested prior to shipment, each unit is backed by a 12-month warranty — giving maintenance engineers and procurement teams the confidence to stock and deploy without hesitation.

Unplanned downtime caused by a failed tension controller can cascade across an entire production line within minutes. The PFEA113-20 addresses this risk directly: its compact DIN-rail-compatible form factor, standardized signal interface, and compatibility with ABB’s PFEA series ecosystem mean that a trained technician can complete a field swap in under 30 minutes with no firmware reconfiguration required in most installations. For facilities operating 24/7 shifts, having a verified spare on the shelf is not optional — it is a core element of any credible maintenance strategy.

This listing is intended for maintenance engineers, reliability engineers, and MRO procurement specialists who require a dependable, long-term supply source for ABB PFEA-series tension control components. All units are inspected, function-tested, and shipped with protective packaging to prevent transit damage to sensitive signal conditioning circuitry.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PFEA113-20 tension controller is flagged for replacement during a scheduled shutdown or emergency callout, experienced maintenance engineers know that the controller itself is rarely the only component that requires attention. A thorough site inspection should extend to the entire tension measurement loop and the surrounding control cabinet infrastructure.

Begin with the load cell transducer — typically an ABB PFTL101 or PFCL201 series unit — which feeds the analog signal into the PFEA113-20. A faulty or drift-prone transducer will cause the replacement controller to exhibit the same erratic behavior as the failed unit, leading to a misdiagnosed repeat failure. Inspect the transducer mounting, check for mechanical overload damage, and verify the mV/V output against the rated sensitivity.

Next, audit the 24 V DC power supply rail feeding the controller. Ripple voltage above 200 mV peak-to-peak or supply sag under load can corrupt the analog output and introduce measurement noise. If the cabinet uses a shared rail for multiple instruments, consider a dedicated SITOP or Phoenix Contact QUINT series power supply for the tension measurement circuit. Verify that the terminal blocks — particularly Weidmüller or Phoenix Contact screw-clamp types — are torqued correctly and show no signs of thermal discoloration or oxidation.

For installations where the PFEA113-20 feeds setpoint signals into an ABB ACS355, ACS580, or ACS880 variable speed drive, confirm that the analog input card on the drive is calibrated to match the controller’s output range. A mismatch between 0–10 V and 4–20 mA scaling is a common source of post-replacement tension instability. If the drive uses an RAIO-01 or AIAO-01 I/O extension module, inspect the module seating and connector integrity at the same time.

Where the PFEA113-20 is integrated into an ABB AC500 PLC system via an S800 I/O AI810 or AI820 analog input module, verify the channel configuration in the PLC program matches the new controller’s output type. Check the CI854 or CI857 communication interface module if the tension data is transmitted over PROFIBUS or PROFINET — a corrupted device description file (GSD/GSDML) can cause the PLC to misread the tension value even when the hardware is functioning correctly.

Do not overlook the signal isolation barrier between the load cell and the controller input, particularly in environments with high electromagnetic interference from large motors or welding equipment. A Pepperl+Fuchs or MTL series galvanic isolator in this signal path should be tested for loop resistance and isolation integrity. Similarly, inspect any surge protection devices on the analog signal lines — a sacrificed SPD after a nearby lightning strike or switching transient is a common silent failure mode.

Finally, if the cabinet houses an ABB CP600 or CP400 HMI panel displaying tension values, verify that the display scaling and engineering unit conversion are updated to reflect the replacement controller’s calibration. A correctly installed PFEA113-20 with a misconfigured HMI will generate operator confusion and unnecessary re-callouts.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the control cabinet and apply LOTO (Lockout/Tagout) per site safety procedures. Allow capacitors in the power supply to discharge for a minimum of 60 seconds before opening the enclosure.

Step 2 — Documentation: Photograph the existing wiring layout, terminal assignments, and DIP switch or potentiometer settings on the outgoing PFEA113-20 before disconnecting any cables. This is the single most effective step for reducing re-commissioning time.

Step 3 — Removal: Label and disconnect signal wiring from the terminal block. Release the DIN rail clip and remove the unit. Inspect the terminal block for corrosion or damaged contacts — replace if necessary before installing the new unit.

Step 4 — Installation: Clip the replacement PFEA113-20 onto the DIN rail. Reconnect wiring per the documented terminal assignments. Set DIP switches and span/zero potentiometers to match the recorded configuration of the outgoing unit.

Step 5 — Power-up and verification: Restore power and verify the 24 V DC supply at the controller terminals. Apply a known reference tension (or simulate the load cell signal using a calibrator) and confirm the analog output matches the expected value. Check the drive or PLC for correct tension readback before releasing the line to production.

Step 6 — Documentation close-out: Update the equipment maintenance record with the replacement date, new unit serial number, and calibration reference. Log the outgoing unit’s failure mode for trend analysis.

This structured workflow minimizes re-commissioning risk, reduces mean time to repair (MTTR), and ensures the replacement PFEA113-20 performs to specification from the first production run after restart.

Spare Parts Support FAQ

Q1: Is the PFEA113-20 a direct drop-in replacement for older PFEA series units?
In most installations, yes. The PFEA113-20 maintains backward compatibility with the PFEA series wiring interface and signal conventions. However, if the outgoing unit was a first-generation PFEA111 or PFEA112, verify the DIP switch configuration for gain and filter settings, as these may differ between sub-variants. Our technical team can assist with compatibility confirmation prior to shipment if you provide the existing unit’s nameplate data.

Q2: What pre-shipment testing is performed on each unit?
Every PFEA113-20 dispatched from our inventory undergoes a functional power-on test, analog output verification across the full measurement range, and a visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not offered for sale. A test record is available upon request for critical applications.

Q3: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or mechanical impact. To initiate a warranty claim, contact our support team at sale@ninermas.com with the order reference, unit serial number, and a description of the failure symptom. Replacement or repair will be arranged within the warranty period without additional charge.
