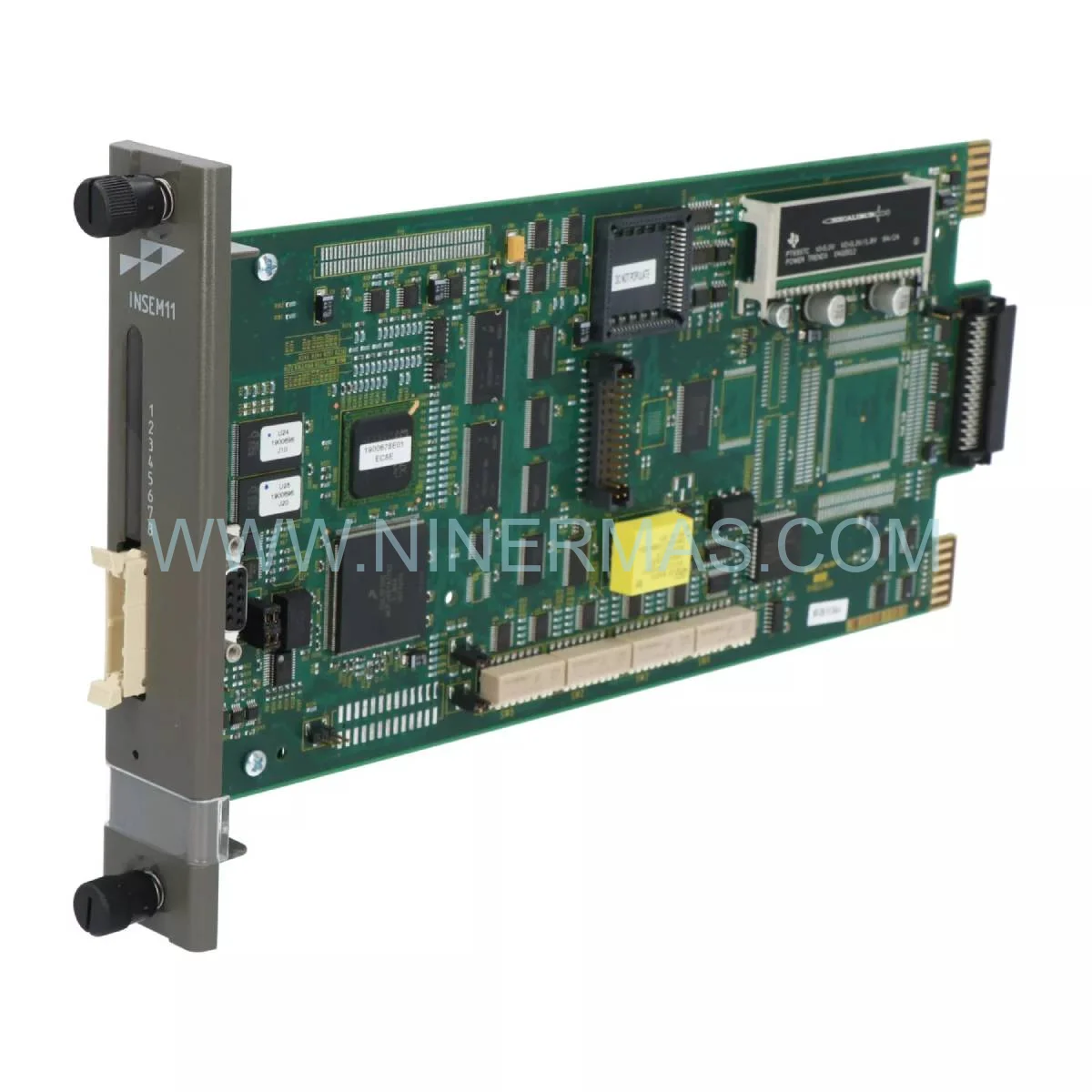

ABB INSEM11 SOE Master Module | Harmony Rack Event Recorder

ABB INSEM11 SOE Master Module | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the ABB INSEM11 is a cornerstone automation component in any high-availability Harmony Rack deployment. The INSEM11 functions as the central SOE (Sequence of Events) master controller, delivering sub-millisecond timestamping that is indispensable for system integration across power generation, substation protection, and process optimization environments. When a trip event or process anomaly occurs, the INSEM11 provides the forensic-grade event log that separates root cause from cascading consequence — a capability that directly reduces mean-time-to-repair (MTTR) and supports operational excellence.

Designed to withstand the thermal cycling, vibration, and EMI exposure inherent in heavy industrial environments, the ABB INSEM11 maintains timing accuracy and bus communication integrity under sustained operational stress. Installation requires proper card slot seating within the Harmony Rack chassis, verified backplane power continuity, and IRIG-B or GPS time source connection for absolute synchronization. Firmware version alignment with the host controller must be confirmed prior to commissioning to ensure seamless I/O module coordination.

For maintenance planners and procurement engineers, stocking the INSEM11 as a critical spare is a non-negotiable element of any reliability-centered maintenance (RCM) strategy. EOL and legacy module availability is increasingly constrained — securing verified original inventory now is the most effective hedge against unplanned downtime in mission-critical applications.

Key Operational Features

Sub-Millisecond Event Timestamping — Captures and sequences events with precision timing for accurate fault reconstruction
GPS / IRIG-B Time Synchronization — Absolute time reference ensures cross-system event correlation in complex automation architectures
High-Availability Master Coordination — Orchestrates multiple SOE slave modules across distributed I/O modules for redundancy and system-wide coverage
Seamless Integration with SCADA & Historians — Standard communication interfaces enable direct data export to plant-level systems for process optimization
FIFO Event Buffer Management — High-volume event capture with prioritized queue handling prevents data loss during burst fault conditions
Harmony Rack Native Architecture — Plug-and-play compatibility within ABB Harmony Rack chassis minimizes integration complexity and commissioning time

Maintenance & Performance Benchmarks

The INSEM11 is engineered to serve as the timing backbone in both small-scale distributed control nodes and large multi-rack industrial network architectures. In compact installations, a single INSEM11 can coordinate 8 to 16 SOE slave I/O modules, providing comprehensive event coverage for a localized control zone. In enterprise-scale deployments — such as multi-unit power stations or refinery-wide DCS networks — multiple INSEM11 units operate in a hierarchical topology, each synchronized to a common GPS time source to maintain microsecond-level coherence across geographically distributed control rooms.

Performance benchmarks confirm that the INSEM11 sustains full event capture throughput even during high-frequency alarm storms, a scenario common during major process upsets. Its FIFO buffer architecture ensures no event data is overwritten or lost, preserving the complete incident timeline for post-event analysis. Periodic firmware validation and backplane connector inspection are recommended at scheduled maintenance intervals to sustain long-term operational excellence.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every ABB INSEM11 unit dispatched from our facility ships in Original Factory Packaging, preserving ESD protection and physical integrity throughout international transit. For in-stock units, same-day dispatch is available upon order confirmation before the daily cut-off, enabling rapid deployment to minimize production downtime. We maintain a dedicated global supply channel for EOL (End-of-Life) and legacy Harmony Rack modules — a critical resource for facilities operating aging DCS infrastructure where OEM support has been discontinued. All units are traceable to original manufacturing documentation, and export compliance documentation is prepared for worldwide express logistics to any destination.

Engineering Support & FAQ

Q1: What are the installation steps for the INSEM11 in an existing Harmony Rack system?
A: Power down the rack chassis before insertion. Align the INSEM11 with the designated card slot, seat firmly until the backplane connector is fully engaged, and secure the front panel locking mechanism. Restore power and verify LED status indicators confirm normal operation. Consult the Harmony Rack system manual for slot assignment and address configuration procedures.

Q2: Which firmware versions are compatible with the INSEM11?
A: Firmware compatibility depends on the host Harmony controller version and the SOE slave module revisions in your system. Provide your existing controller firmware baseline and we will confirm compatibility or recommend a validated firmware pairing prior to shipment.

Q3: How is the warranty claim process handled?
A: All INSEM11 units carry a 1-year warranty against manufacturing defects. To initiate a claim, contact our technical support team with the unit serial number, purchase documentation, and a description of the observed fault. Replacement or repair is coordinated within 5 business days of claim verification.

Q4: Can the INSEM11 synchronize with a network time protocol (NTP) source instead of IRIG-B?
A: The INSEM11 natively supports IRIG-B and GPS time inputs. NTP synchronization may be achievable through an IRIG-B converter device in your network architecture. Contact our engineering team for configuration guidance specific to your site infrastructure.

Q5: Is the INSEM11 suitable for use in SIL-rated safety instrumented systems?
A: The INSEM11 is a SOE recording module, not a safety-rated actuator or logic solver. It can be integrated alongside SIL-rated components for event logging purposes. Consult your functional safety engineer for SIL assessment documentation requirements.

Q6: What is the lead time for out-of-stock INSEM11 units?
A: For units not immediately available, our global sourcing network typically delivers verified original stock within 3-10 business days depending on origin location. Contact us with your required delivery date and we will provide a committed timeline.
