ABB HIER460247R1 Safety-Reliable AVR for Critical Control Sites

ABB HIER460247R1 Safety-Reliable AVR for Critical Control Sites

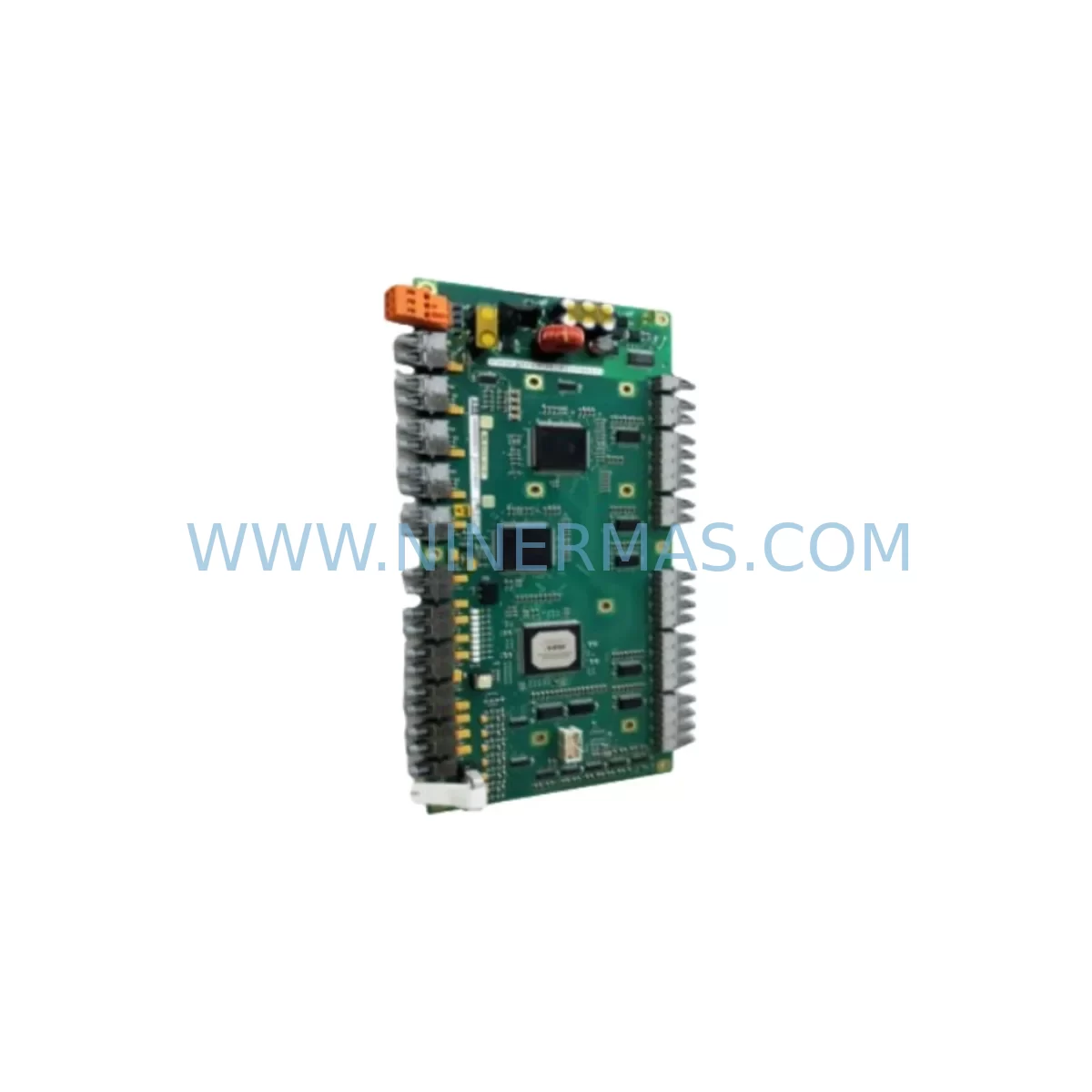

The ABB HIER460247R1 UN0806B-P V1 is a precision excitation control module from the ABB Unitrol 6000 series, engineered for continuous and uninterrupted operation in the most demanding power generation and industrial automation environments. As a core component of the Unitrol 6000 automatic voltage regulation (AVR) platform, this module governs generator field excitation with high-accuracy closed-loop control, ensuring stable terminal voltage under dynamic load conditions, grid disturbances, and fault events. Its robust design addresses the full spectrum of critical control site risks — from signal drift and power surges to electromagnetic interference and unplanned shutdown — making it an indispensable spare part for maintenance engineers, system integrators, and OEM service teams worldwide.

Sourced directly from verified supply channels and subjected to pre-shipment functional testing, every HIER460247R1 unit shipped by NINERMAS COMPANY LIMITED is backed by a 12-month warranty and confirmed compatibility with the Unitrol 6000 platform architecture. Long-term inventory agreements ensure consistent availability for planned maintenance cycles and emergency replacement scenarios alike.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical power generation control cabinets, the HIER460247R1 operates as the central AVR intelligence within the Unitrol 6000 excitation chain. Its reliable performance depends on — and directly supports — a coordinated ecosystem of protection, power, and communication components. When deploying or replacing this module, maintenance teams should audit the surrounding hardware to eliminate cascading failure risks.

The SDCS-CON-4 excitation controller board and SDCS-PIN-4 power interface module are frequently co-located with the HIER460247R1 in the same excitation cubicle. Degradation in either of these boards can introduce control loop instability that manifests as voltage oscillation or AVR hunting — symptoms that are often misattributed to the AVR module itself. Similarly, the SDCS-POW-4 power supply module must deliver clean, regulated DC to the excitation chain; any ripple or dropout from this unit will directly compromise the HIER460247R1’s signal processing accuracy.

Field excitation output is managed through the SDCS-FEX-4 field exciter, which interfaces directly with the generator rotor winding. Surge events on the field circuit — common in grid-connected generators during fault clearance — can propagate back into the AVR module if the SDCS-FEX-4 suppression circuits are not intact. Pairing the HIER460247R1 replacement with an inspection of the SDCS-FEX-4 is therefore a recommended best practice for any unplanned outage scenario.

For sites running ABB ACS880 variable speed drives in parallel with synchronous generators, the interaction between drive-induced harmonics and the excitation system is a known source of signal drift. Ensuring that the HIEE300936R0101 interface board — used in some Unitrol 6000 configurations for analog I/O expansion — is correctly calibrated will prevent false AVR corrections triggered by harmonic noise rather than genuine voltage deviations.

Additional components that should be reviewed during a HIER460247R1 replacement include the HIER454031R1 auxiliary control board, which handles supervisory logic and fault logging within the Unitrol 6000 platform, and the PPD113 B03-23-100110 processor module used in associated ABB protection relay panels. Communication integrity between the AVR and the plant DCS or SCADA system should also be verified, as a loss of the 4–20 mA or digital fieldbus link can cause the excitation system to revert to manual control — a condition that significantly increases the risk of over-excitation or under-excitation trips during load transients.

For legacy sites where the Unitrol 1000 series previously served as the excitation platform, the HIER460247R1 and its Unitrol 6000 ecosystem represent a direct upgrade path that delivers enhanced fault tolerance, faster AVR response, and improved compatibility with modern protection relay architectures — all without requiring a full generator rewind or control panel redesign.

Critical Industrial Safety Applications

The ABB HIER460247R1 UN0806B-P V1 is deployed across a wide range of critical industrial sectors where generator excitation stability is directly linked to process safety and production continuity.

In petrochemical and refinery plants, captive power generation units rely on precise AVR control to maintain stable bus voltage during motor starting events and emergency load shedding. An excitation fault in this environment can trigger a plant-wide blackout, with cascading consequences for safety-critical systems including fire and gas detection, emergency shutdown valves, and deluge systems.

In thermal and hydroelectric power stations, the HIER460247R1 governs reactive power output and participates in grid voltage support schemes. Its ability to respond within milliseconds to voltage deviations is essential for maintaining grid stability and preventing generator pole-slip events that can cause catastrophic mechanical damage.

In mining and mineral processing operations, where continuous haulage, crushing, and ventilation loads place severe demands on captive generation, the HIER460247R1 provides the AVR stability needed to prevent voltage collapse during peak demand periods. Its resistance to dust ingress and vibration makes it particularly suited to underground and open-cut mining environments.

In water treatment and pumping stations, where generator-backed pump drives must maintain constant pressure and flow, AVR instability can result in pump cavitation, pipe water hammer, and loss of potable water supply to large population centers. The HIER460247R1’s closed-loop control precision directly mitigates this risk.

In metallurgical and steel plants, arc furnace operations generate extreme reactive power swings that challenge excitation systems. The Unitrol 6000 platform, anchored by the HIER460247R1, is specifically rated for these high-disturbance environments, providing the fast AVR response needed to prevent voltage flicker from propagating to adjacent production lines.

In port and marine applications, where shipboard or quayside generators must respond to rapidly changing electrical loads from cranes, reefer containers, and vessel shore power connections, the HIER460247R1 ensures that voltage remains within the tight tolerances required by sensitive cargo handling and navigation equipment.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the HIER460247R1?
Every HIER460247R1 UN0806B-P V1 unit supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning. Warranty claims are processed promptly with replacement units dispatched from reserved stock to minimize site downtime.

Q2: How is the HIER460247R1 tested before shipment?
Each unit undergoes a comprehensive pre-shipment functional verification process. This includes power-on testing, AVR loop response checks, and communication interface validation where applicable. Units that do not meet ABB Unitrol 6000 platform specifications are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the HIER460247R1 compatible with all Unitrol 6000 configurations?
The HIER460247R1 UN0806B-P V1 is designed for use within the ABB Unitrol 6000 excitation platform. Compatibility with specific generator ratings, field current ranges, and communication protocols should be confirmed against the site’s existing Unitrol 6000 configuration documentation. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q4: Can long-term supply be secured for planned maintenance programs?
Yes. NINERMAS COMPANY LIMITED maintains reserved inventory agreements for end-of-life and long-lead ABB components including the HIER460247R1. Customers with annual maintenance schedules or multi-site spare parts programs can arrange forward stock reservations to guarantee availability at agreed lead times, eliminating the risk of extended outages caused by component scarcity.
