ABB HIEE400109R1 Service-Ready Spare Part for Industrial Maintenance

ABB HIEE400109R1 Service-Ready Spare Part for Industrial Maintenance

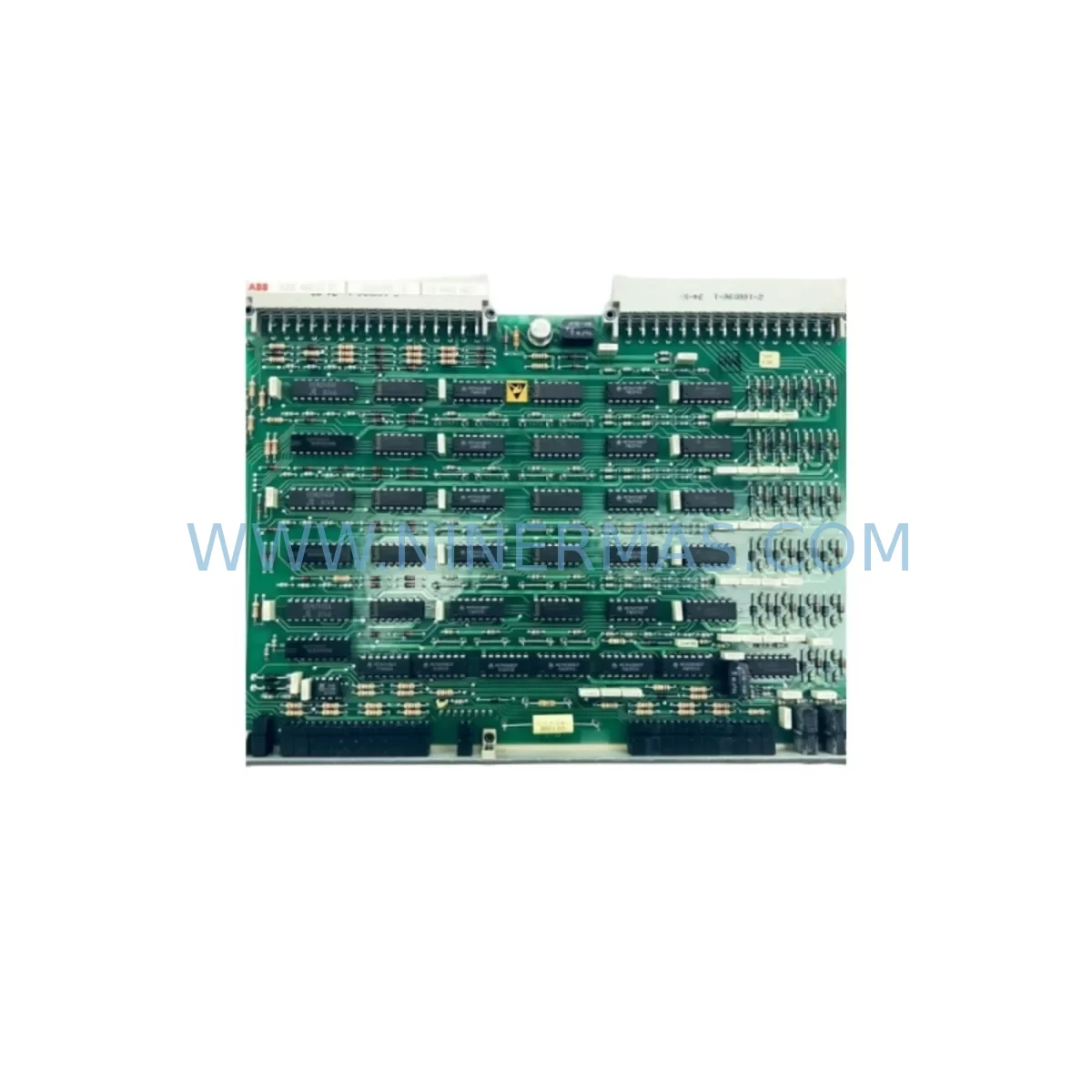

The ABB HIEE400109R1 is a ruggedized logic module designed for deployment in demanding industrial environments where process continuity is non-negotiable. Sourced as an original spare part, the HIEE400109R1 serves as a critical replacement component within ABB’s Symphony Plus and legacy Advant/Bailey Infi90 distributed control system (DCS) architectures. For maintenance engineers managing aging control infrastructure, securing a verified HIEE400109R1 unit is a direct line of defense against unplanned downtime, production loss, and costly emergency procurement delays.

Industrial facilities operating continuous processes — including power generation, oil and gas, chemical processing, pulp and paper, and water treatment — depend on the reliable operation of logic modules such as the HIEE400109R1 to execute control strategies, process I/O signals, and maintain communication integrity across the DCS network. When this module fails or degrades, the consequences extend beyond a single cabinet: entire control loops can be disrupted, operator visibility is compromised, and production recovery timelines stretch from hours into days without a ready replacement on hand.

NINERMAS maintains verified stock of the ABB HIEE400109R1, tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification to confirm logic execution integrity, signal processing accuracy, and communication bus compatibility before dispatch. This ensures that when your maintenance team installs the replacement module, it performs to original ABB specifications from the first power-on.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the HIEE400109R1 in isolation is rarely sufficient for a complete maintenance intervention. Experienced maintenance engineers understand that logic module failures in a DCS environment are frequently symptomatic of broader electrical stress, power quality issues, or aging within the same control cabinet. A structured inspection of adjacent components is essential to prevent repeat failures and ensure the restored system operates reliably through the next planned maintenance window.

Begin with the rack power supply module. ABB Symphony Plus and Infi90 systems rely on dedicated power modules — such as the HIEE300661R1 power supply unit — to deliver clean, regulated voltage to all backplane-mounted modules. A degraded or failing power supply is one of the most common root causes of logic module faults. Verify output voltage stability and ripple before commissioning the replacement HIEE400109R1.

Next, inspect the I/O modules connected to the same control loop. Analog input modules such as the HIEE200038R2 and digital output modules like the NTDO02 should be checked for signal integrity, terminal block tightness, and any signs of thermal stress or moisture ingress. Loose field wiring at terminal strips is a frequent source of intermittent faults that can be misdiagnosed as logic module failures.

Communication integrity is equally critical. If the HIEE400109R1 participates in an Infi-Net or PROFIBUS segment, inspect the communication cables, terminators, and any associated communication interface modules such as the CI830 or NTCL01. A degraded communication bus can cause the replacement module to report faults immediately after installation, leading to unnecessary re-replacement cycles.

For systems using relay output modules — such as the NTAI05 analog input module or relay interface cards — verify contact condition and coil resistance. Relay modules in the same cabinet often share the same power rail as the logic module and can introduce voltage spikes during switching that accelerate logic module wear.

Signal isolation is another area that warrants attention during any HIEE400109R1 replacement. Where field signals pass through signal isolators or barriers before reaching the DCS I/O, confirm that isolator output levels remain within the module’s input specification. Drifted isolators can cause the new module to log spurious alarms or fail calibration checks.

Finally, review the HMI and operator station connectivity. In Symphony Plus environments, the NKTU01 and NKTU02 keyboard and trackball units, along with associated display controllers, depend on stable communication from the logic layer. A replacement HIEE400109R1 that is not correctly configured in the system database will not restore full operator visibility, even if the module itself is functioning correctly. Confirm that the module address, node configuration, and control strategy download are completed as part of the site replacement workflow.

Site Replacement Workflow

A disciplined site replacement workflow minimizes downtime and reduces the risk of secondary faults during the HIEE400109R1 swap-out. Follow these steps to ensure a controlled, efficient replacement:

Step 1 — Pre-Replacement Verification: Confirm the replacement HIEE400109R1 part number and revision level match the installed unit. Cross-reference the system’s spare parts list and engineering documentation. Verify that the replacement unit has passed pre-shipment functional testing and that the 12-month warranty certificate is included.

Step 2 — System State Documentation: Before removing the failed module, capture the current system state: active alarms, I/O status, communication diagnostics, and any fault codes logged by the DCS. This baseline is essential for post-replacement verification and for identifying any pre-existing issues that the module failure may have masked.

Step 3 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected cabinet section. If the system supports hot-swap for this module type, confirm with the system integrator before proceeding without a full shutdown. For older Infi90 installations, a controlled shutdown of the affected node is typically required.

Step 4 — Module Swap and Configuration: Remove the failed HIEE400109R1 and install the replacement unit. Ensure backplane connectors are fully seated and retention screws are torqued to specification. Download the control strategy and module configuration from the engineering workstation. Confirm the module address matches the system database entry.

Step 5 — Post-Replacement Commissioning: Power up the module and monitor the diagnostic LEDs for normal startup sequence. Verify all I/O points are reading correctly, communication links are established, and no new alarms are generated. Conduct a loop check on critical control loops before returning the system to automatic operation.

Step 6 — Documentation and Spare Stock Review: Record the replacement in the maintenance management system (CMMS). Review your spare parts inventory: if the HIEE400109R1 was your last on-hand unit, initiate a reorder immediately. For facilities with multiple Symphony Plus or Infi90 nodes, maintaining a minimum of two HIEE400109R1 units in stock is recommended to cover simultaneous or rapid-succession failures.

Spare Parts Support FAQ

Q1: Is the HIEE400109R1 still available as a new original spare part?
The HIEE400109R1 is an end-of-life component within ABB’s legacy DCS portfolio. NINERMAS sources verified original units from authorized channels and maintains stock specifically to support facilities operating Symphony Plus and Infi90 systems beyond their standard product lifecycle. Each unit is functionally tested before shipment. Contact our team to confirm current stock availability and lead time.

Q2: How do I verify compatibility before ordering?
Compatibility verification requires confirming the system series (Symphony Plus, Advant OCS, or Bailey Infi90), the rack and backplane type, and the firmware revision of the installed system. Provide your system’s engineering documentation or the existing module’s label information when placing your inquiry. NINERMAS technical staff can cross-reference your configuration to confirm fit before shipment.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional defects identified under normal operating conditions consistent with the module’s published specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental parameters. Warranty claims are processed with return material authorization (RMA) and include replacement or repair at NINERMAS’s discretion.

Q4: Can NINERMAS support long-term supply for multiple units?
Yes. NINERMAS specializes in long-term spare parts supply for end-of-life industrial automation components. For facilities requiring ongoing HIEE400109R1 availability over a multi-year maintenance horizon, we offer reserved stock agreements and scheduled delivery programs. Contact sale@ninermas.com to discuss your facility’s long-term spare parts strategy.
