ABB HFBC150-2BW 3BHE044686R0001 Safety-Reliable Gate Driver for Critical Control

ABB HFBC150-2BW 3BHE044686R0001 Safety-Reliable Gate Driver for Critical Control

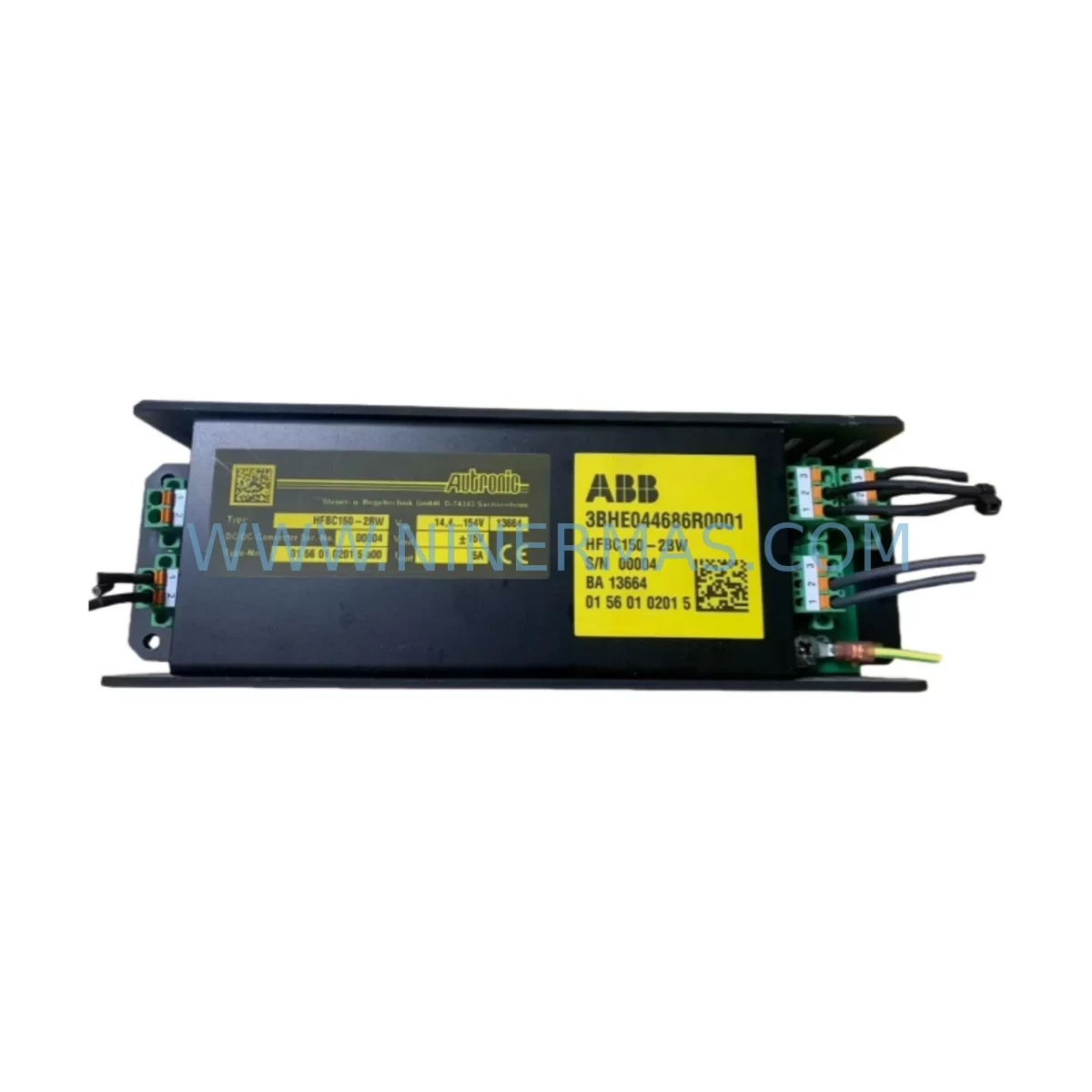

The ABB HFBC150-2BW (3BHE044686R0001) is a high-performance IGBT gate driver board engineered for the ABB ACS880 series of industrial AC drives. Designed to operate reliably in the most demanding continuous production environments, this gate driver board serves as the critical interface between the drive’s control logic and its power semiconductor stage. In applications where unplanned downtime carries severe operational, financial, or safety consequences — including petrochemical processing, electric power generation, mining hoists, water treatment pumping stations, metallurgical rolling mills, port crane systems, and continuous manufacturing lines — the HFBC150-2BW delivers the switching precision and fault isolation capability that modern industrial safety standards demand.

At its core, the HFBC150-2BW governs IGBT switching transitions with tight timing control, minimizing voltage overshoot and dV/dt stress on the power module. This directly reduces the risk of insulation breakdown, nuisance tripping, and catastrophic IGBT failure — failure modes that can cascade into full drive shutdown, motor runaway, or process interruption. In high-electromagnetic-interference environments such as large motor control centers, variable frequency drive cabinets, and switchgear rooms, the board’s isolated gate drive architecture ensures that control signals remain clean and immune to common-mode noise, preventing the signal drift and spurious firing events that compromise both process integrity and personnel safety.

For facilities operating under IEC 61508 or IEC 62061 functional safety frameworks, maintaining the integrity of the drive’s gate drive stage is non-negotiable. The HFBC150-2BW supports the ACS880’s built-in Safe Torque Off (STO) function by ensuring that gate pulses are reliably suppressed when the safety circuit commands a de-energized state. This makes it a key component in safety-instrumented systems (SIS) where the drive must respond predictably to emergency stop signals, interlock trips, and process safety management (PSM) demands.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered ACS880 drive cabinet, the HFBC150-2BW does not operate in isolation — it is one node in a tightly integrated protection and control architecture. Upstream of the gate driver, the ABB ACS880 RDCU-02C control unit generates the PWM reference signals that the HFBC150-2BW translates into precise gate pulses. Any degradation in the gate driver’s response time or isolation integrity directly undermines the control unit’s ability to regulate motor torque and speed, making the HFBC150-2BW a first-priority spare in any critical drive cabinet.

The power supply to the gate driver stage is typically sourced from the drive’s internal APBU auxiliary power board or an equivalent isolated DC/DC converter module. Voltage ripple or transient dips on this supply rail — often caused by nearby contactor switching, capacitor bank inrush, or utility grid disturbances — can trigger under-voltage lockout on the gate driver, causing an unintended drive trip. Pairing the HFBC150-2BW replacement with a verified ABB APBU-44C power supply board inspection or replacement eliminates this common root cause of nuisance tripping in aging drive cabinets.

On the power semiconductor side, the HFBC150-2BW interfaces directly with the drive’s ABB IGBT power module stack (typically 5SNA or 5SNE series modules in ACS880 frame sizes R6 and above). Desaturation detection circuitry on the gate driver monitors collector-emitter voltage during conduction; if a short-circuit condition develops in the power module, the HFBC150-2BW initiates a controlled soft shutdown within microseconds, protecting both the IGBT module and the connected motor from catastrophic overcurrent damage. This makes simultaneous inspection of the IGBT modules and the gate driver board a best practice during any unplanned drive shutdown investigation.

For communication integrity within the drive system, the ABB RDIO-01 digital I/O extension module and RAIO-01 analog I/O module provide the field signal interface layer that feeds process variables into the drive’s control logic. Signal drift or wiring faults at this layer can cause the drive to respond incorrectly to process demands — a risk that is compounded if the gate driver is simultaneously degraded. Maintaining calibrated I/O modules alongside a healthy gate driver board is essential for closed-loop process control reliability.

In safety-critical interlock circuits, the ABB FSO-12 safety functions module extends the ACS880’s functional safety capability to SIL 2 / PLd level, managing STO, Safe Stop 1 (SS1), and Safe Stop 2 (SS2) functions. The FSO-12 relies on the gate driver to faithfully execute its stop commands; a failing HFBC150-2BW that intermittently fires gate pulses after an STO command represents a direct safety system failure. Stocking the HFBC150-2BW as a critical spare alongside the FSO-12 module is a recognized risk mitigation practice in facilities operating under functional safety management systems.

Surge protection at the drive’s input terminals — provided by ABB OVR surge arresters or equivalent DIN-rail SPDs — shields the entire drive cabinet, including the gate driver board, from lightning-induced transients and switching surges propagating from the medium-voltage network. In coastal, tropical, or storm-prone industrial sites, surge events are a leading cause of gate driver board failure, making coordinated SPD maintenance a direct contributor to gate driver longevity.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as crude distillation, catalytic cracking, and compressor trains, ACS880 drives equipped with HFBC150-2BW gate drivers control critical pumps, compressors, and agitators that must never experience uncontrolled stops. The gate driver’s STO compatibility ensures that emergency shutdown system (ESD) commands are executed with the speed and reliability required by IEC 61511 process safety standards.

Electric Power Generation and Transmission: In power plant auxiliary systems — boiler feed pumps, induced draft fans, cooling water pumps — drive availability is directly linked to plant output. The HFBC150-2BW’s robust EMI immunity ensures stable operation in environments saturated with high-frequency switching noise from nearby transformers, bus bars, and generator excitation systems.

Mining and Mineral Processing: Hoist drives, conveyor drives, and mill drives in underground and surface mining operations are subject to extreme vibration, dust ingress, and wide ambient temperature swings. The HFBC150-2BW’s industrial-grade construction and ABB’s proven ACS880 platform deliver the mechanical and thermal robustness required for 24/7 operation in these harsh conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on variable-speed pump drives for energy-efficient flow control. Unplanned drive failures in these applications can disrupt water supply or cause environmental compliance violations. The HFBC150-2BW’s short-circuit protection and desaturation detection prevent single-point failures from escalating into full pump station outages.

Metallurgy and Steel Production: Rolling mill main drives, ladle crane drives, and continuous casting line drives demand microsecond-level switching precision to maintain product quality and prevent mechanical damage. The HFBC150-2BW’s tight gate timing control directly supports the torque accuracy and dynamic response required in these high-inertia, high-stakes applications.

Port and Marine Applications: Container crane drives, ship propulsion drives, and offshore platform motor control systems operate in salt-laden, high-humidity environments where corrosion and condensation accelerate component aging. Maintaining a stocked HFBC150-2BW spare minimizes crane downtime during peak cargo operations and ensures vessel propulsion reliability during critical navigation windows.

Safety and Quality FAQ

Q1: What warranty does the HFBC150-2BW 3BHE044686R0001 carry?
All HFBC150-2BW units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty support includes technical diagnosis assistance and replacement dispatch to minimize your site downtime.

Q2: Is the unit tested before shipment?
Yes. Every HFBC150-2BW board undergoes a full functional test prior to dispatch, verifying gate drive output signals, isolation integrity, and protection circuit response. A test record is available upon request for quality documentation purposes.

Q3: Is this gate driver compatible with all ACS880 frame sizes?
The HFBC150-2BW / 3BHE044686R0001 is designed for specific ACS880 frame configurations. Compatibility should be verified against your drive’s serial number and hardware revision. NINERMAS technical support can assist with cross-referencing your drive’s BOM to confirm fitment before purchase.

Q4: Can NINERMAS guarantee long-term supply of this part?
NINERMAS maintains dedicated inventory of critical ABB ACS880 spare parts, including the HFBC150-2BW, to support customers with long-term maintenance contracts and planned outage schedules. Contact our team to discuss consignment stock arrangements or priority supply agreements for your facility.
