ABB HESG447398R0020 70EA06A-E Retrofit-Compatible Controller

ABB HESG447398R0020 70EA06A-E Retrofit-Compatible Controller for Legacy Advant OCS Systems

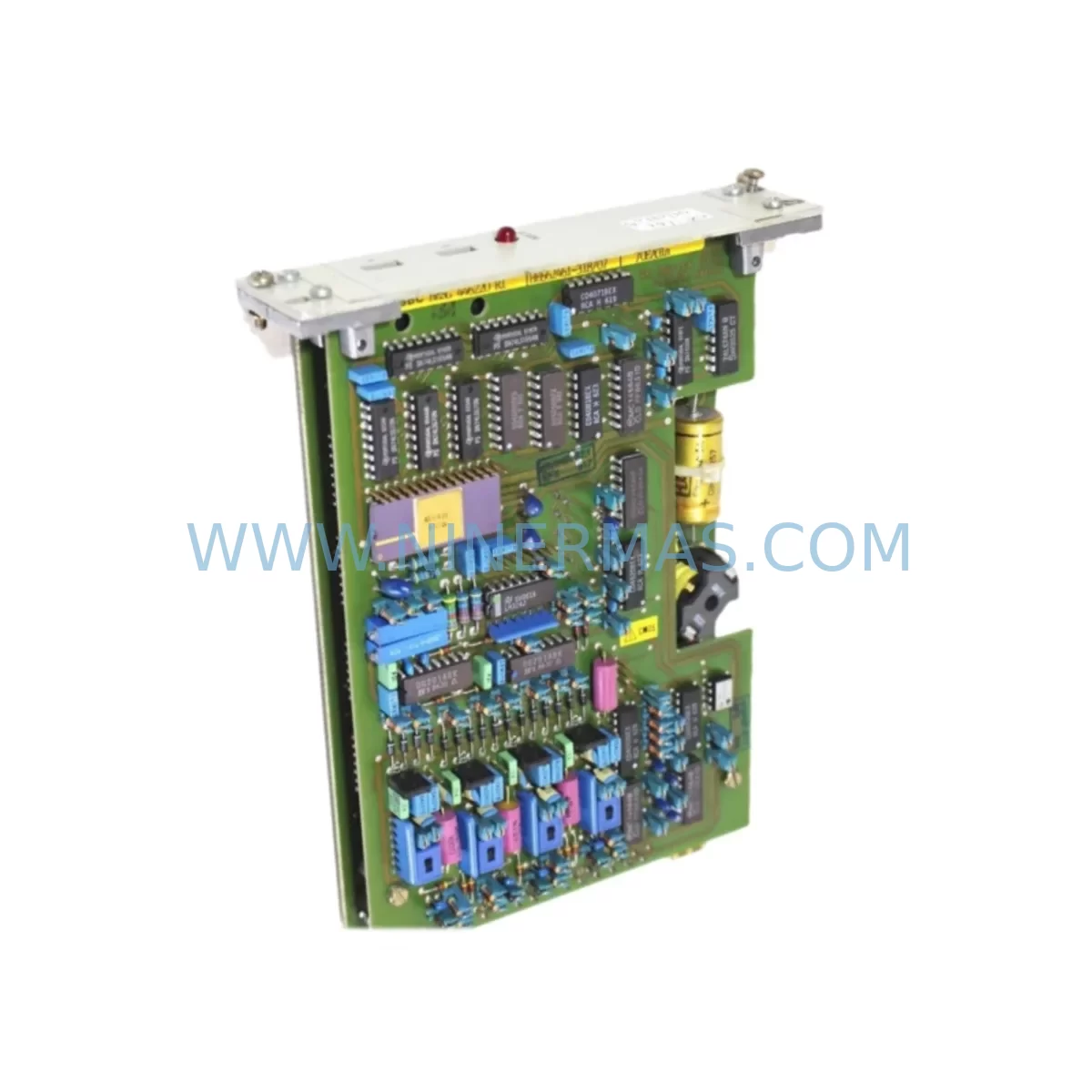

The ABB HESG447398R0020 70EA06A-E is a processor and controller module originally designed for the ABB Advant OCS (Open Control System) platform — one of the most widely deployed distributed control architectures in process automation, power generation, and heavy industry. As the Advant OCS series has reached end-of-life and spare parts availability has tightened globally, the HESG447398R0020 70EA06A-E has become a critical retrofit and replacement component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full DCS migration.

NINERMAS maintains verified stock of the HESG447398R0020 70EA06A-E, sourced from decommissioned systems and authorized surplus channels, with each unit subject to pre-shipment functional testing and covered by a 12-month warranty. Whether you are managing an emergency breakdown, planning a phased modernization, or building a strategic spare parts inventory, this module provides a reliable, cost-effective path forward.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the HESG447398R0020 70EA06A-E in an operating plant requires careful pre-engineering to avoid unplanned downtime and configuration errors. The module sits at the heart of the Advant OCS control loop, coordinating I/O data exchange, program execution, and communication with field devices and supervisory systems. Before removal of the legacy unit, engineers should document the existing rack layout, confirm the subrack backplane type, and verify that the replacement module carries a compatible hardware revision.

Power supply capacity is a frequent oversight in retrofit projects. The Advant OCS subrack relies on dedicated DC power modules — commonly the DSQC series or equivalent ABB power supply units — and the total load budget must be recalculated when swapping controller modules, particularly if the replacement carries a different current draw profile. Terminal wiring on associated I/O modules such as the DSDI series digital input cards, DSDO digital output modules, and DSAI analog input modules should be photographed and mapped before any physical work begins.

Communication link continuity is equally critical. The HESG447398R0020 70EA06A-E typically operates within a MasterBus 300 network segment, and any interruption to the bus during module replacement can affect upstream SCADA connectivity and downstream field device polling. Engineers should confirm that the MasterBus 300 termination resistors are correctly positioned and that the replacement module is assigned the correct station address before the bus is re-energized. Where the plant has already partially migrated to PROFIBUS DP, the coexistence of both protocols on the same control platform must be validated through the Advant OCS configuration tool.

For facilities that also operate ABB AC500 or AC800M controllers in adjacent control cabinets, the HESG447398R0020 70EA06A-E retrofit provides an opportunity to evaluate a longer-term migration roadmap. The AC800M with its PM866 processor module represents a natural upgrade path for Advant OCS installations, and a phased approach — retaining the Advant OCS for stable loops while migrating critical sequences to the AC800M — can significantly reduce project risk. Programming cables such as the TK212A or equivalent USB-to-serial adapters are required for local configuration access during commissioning.

HMI compatibility should also be assessed. Many Advant OCS installations use ABB Operate IT or legacy Panel Builder screens that communicate directly with the controller via proprietary OPC or DDE links. After replacing the HESG447398R0020 70EA06A-E, the HMI tag database and communication driver configuration should be verified to ensure that all process variables are correctly mapped and that alarm setpoints have been preserved. Where the HMI platform is also being upgraded, coordination between the controller replacement and the HMI migration schedule is essential to avoid a situation where the new controller is live but the operator interface is temporarily unavailable.

Downtime Control During System Migration

Minimizing production interruption during a controller module replacement on an Advant OCS platform requires a structured shutdown and restart sequence. The recommended approach begins with a full backup of the application program from the existing HESG447398R0020 70EA06A-E using the Advant Builder or equivalent configuration tool, exported to a secure offline storage location. This backup should include the complete I/O configuration, function block library references, communication parameters, and any custom logic developed for the specific installation.

Prior to physical module removal, the process should be brought to a safe hold state using the existing control system — not by cutting power abruptly. Analog output modules should be set to their defined safe-state values, and digital outputs should be confirmed in their de-energized or hold positions. Once the replacement HESG447398R0020 70EA06A-E is installed in the subrack, the program should be downloaded before the module is connected to the live bus, allowing a final offline verification of the configuration integrity.

Restart sequencing should follow the plant’s documented procedure, with field device feedback confirmed at each stage before advancing to the next. Where the installation includes redundant controller configurations, the switchover logic should be tested in simulation before the maintenance window to confirm that the standby module will assume control correctly if the primary fails during the transition period. NINERMAS recommends that a qualified ABB-trained engineer or experienced system integrator supervise the first restart after any controller module replacement to ensure that the 12-month warranty conditions are maintained and that any unexpected behavior is diagnosed promptly.

Retrofit Support FAQ

Q: Is the HESG447398R0020 70EA06A-E a direct drop-in replacement for the same part number already installed in my Advant OCS rack?
A: In most cases, yes — provided the hardware revision suffix (70EA06A-E) matches. Minor revision differences may require a firmware update or configuration adjustment. NINERMAS can advise on revision compatibility based on your existing system documentation before shipment.

Q: What pre-shipment testing does NINERMAS perform on this module?
A: Each HESG447398R0020 70EA06A-E unit undergoes power-on functional verification, communication interface testing, and visual inspection for component condition before dispatch. A test report is available on request. All units are covered by a 12-month warranty against functional failure.

Q: Can this module be used in a system that has been partially migrated to PROFIBUS DP?
A: The HESG447398R0020 70EA06A-E supports the native Advant OCS communication architecture. If your system includes a PROFIBUS gateway or a mixed-protocol configuration, compatibility should be verified against your specific network topology. NINERMAS technical support can assist with pre-installation compatibility review.

Q: What is the typical lead time and do you maintain stock?
A: NINERMAS maintains inventory of the HESG447398R0020 70EA06A-E and can typically ship within 3–5 business days for in-stock units. For urgent breakdown situations, expedited dispatch is available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock availability before placing your order.
