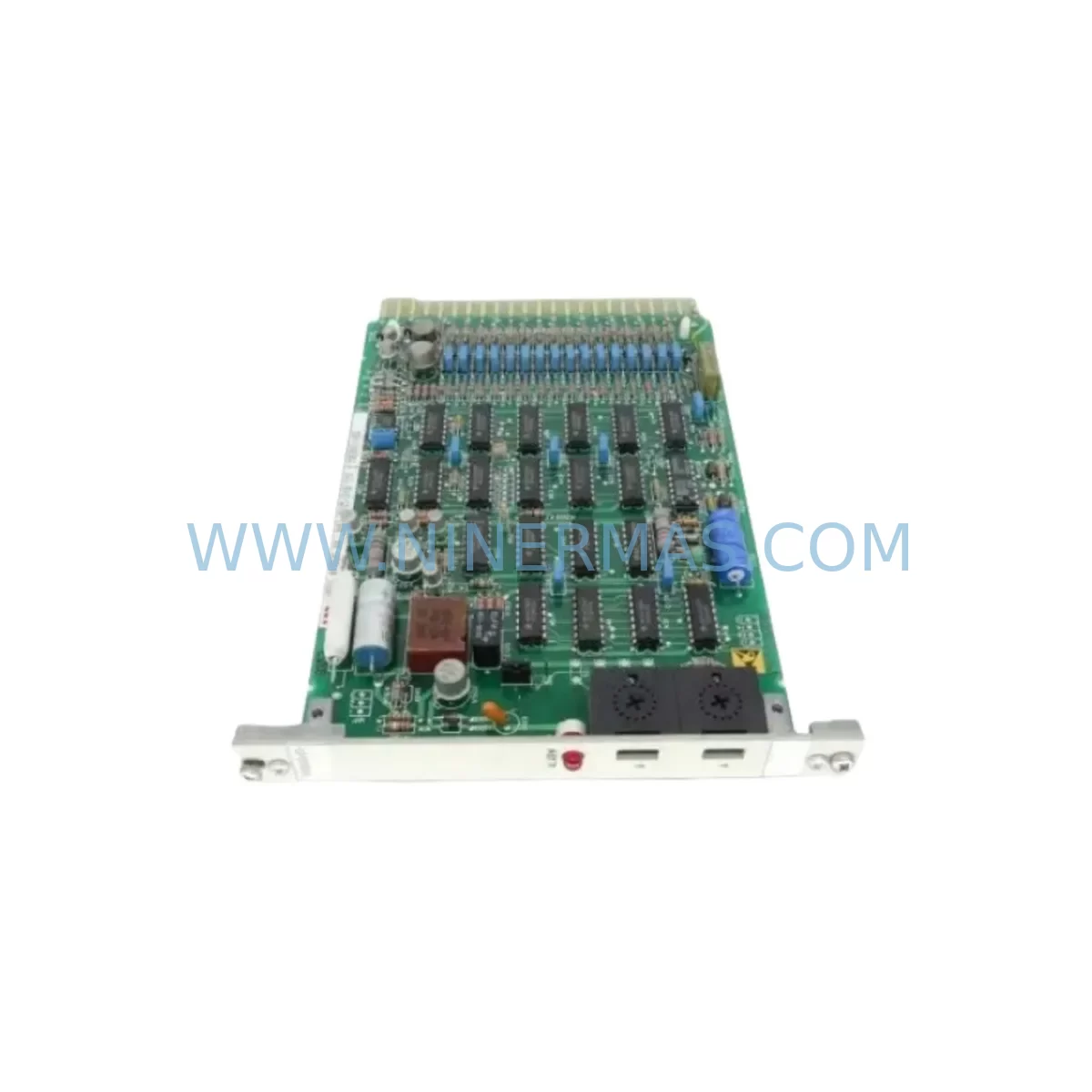

The ABB HESG447220R4 is a critical control module within the ABB Bailey Infi 90 distributed control system (DCS) platform — one of the most widely deployed process automation architectures in power generation, chemical processing, pulp and paper, and heavy manufacturing industries. As ABB has progressively phased out the Infi 90 product line, maintenance engineers and system integrators face increasing pressure to source verified replacement units that maintain full backward compatibility with existing backplane configurations, I/O wiring, and control logic without requiring a full system migration.

NINERMAS supplies the HESG447220R4 as a retrofit-compatible replacement module, pre-tested against original ABB factory specifications and validated for drop-in installation within existing Infi 90 control cabinets. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty, providing procurement teams and plant engineers with the confidence needed to authorize replacement without extended downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the HESG447220R4 within an active Infi 90 system requires careful pre-installation planning to avoid unplanned process interruptions. Before removing the original module, engineers should document the existing module address configuration — typically set via DIP switches on the module face — and verify that the replacement unit is configured identically. Failure to match the module address will prevent the controller from recognizing the new module on the Modulebus network, resulting in communication faults that cascade to dependent I/O modules.

Power capacity verification is equally important. The Infi 90 backplane distributes both 5 VDC logic power and 24 VDC field power across the rack. When replacing a controller module such as the HESG447220R4, confirm that the existing NTPS02 or NTPS03 power supply module has sufficient headroom to support the replacement unit alongside other installed modules including IMASI23 analog input modules, IMDSO14 digital output modules, and IMMPI01 multi-point input modules. Overloading the backplane power rail is a common cause of intermittent faults following module replacement.

For sites running INFI-NET communication loops, the HESG447220R4 interfaces with the network through the INNIS21 network interface module. Before replacement, verify that the INNIS21 firmware version is compatible with the replacement controller revision. In systems where the INNIS21 has also reached end-of-life, a parallel replacement of both modules may be advisable to avoid protocol handshake failures during commissioning.

I/O wiring continuity should be confirmed using the original loop drawings. The HESG447220R4 does not directly terminate field wiring, but its replacement affects the logical mapping of downstream I/O modules including INLIM03 loop interface modules and NTCL01 termination units. After module swap, reload the control strategy from the engineering workstation and perform a full I/O scan to confirm all channel assignments are intact before returning the loop to automatic control.

HMI screen updates are often overlooked during module replacement. If the plant uses an Infi 90-era operator interface or a modern SCADA system connected via OPC, verify that the tag database still resolves correctly after the module replacement. In some configurations, the HESG447220R4 hosts specific function blocks that are referenced directly by HMI faceplates — a module address mismatch will cause these tags to go offline, triggering operator alarms.

For control cabinets undergoing broader modernization, the HESG447220R4 replacement is often performed alongside upgrades to the NTMP01 master peripheral module and SPBRC410 bridge controller, which extend the life of the Infi 90 platform by enabling communication with modern Ethernet-based supervisory systems. This approach avoids a full DCS migration while restoring system reliability and extending the operational lifecycle of the existing control infrastructure by five to ten years.

Downtime Control During System Migration

Minimizing process downtime during HESG447220R4 replacement requires a structured hot-swap or planned outage strategy. For non-redundant controller configurations, the replacement window should be coordinated with the operations team to align with a scheduled process hold or low-production period. The original control strategy should be backed up from the engineering workstation immediately before the swap, and a verified copy should be available for immediate reload.

Where the Infi 90 system supports redundant controller pairs, the HESG447220R4 can often be replaced in the standby slot while the primary controller remains in service, allowing a bumpless transfer after the replacement unit has been commissioned and synchronized. This approach reduces the effective process interruption to the duration of the switchover command — typically less than one second for well-configured redundant pairs.

Field technicians should have the following items staged before beginning the replacement: the pre-tested HESG447220R4 replacement unit, the original module address documentation, a laptop with the Infi 90 engineering software loaded, and a copy of the current control strategy backup. Post-installation, perform a full diagnostic scan using the engineering workstation to confirm module health, verify I/O channel status, and check INFI-NET communication link integrity before releasing the loop to automatic control.

Retrofit Support FAQ

Q: Is the HESG447220R4 supplied by NINERMAS a direct replacement for the original ABB unit?
A: Yes. The HESG447220R4 supplied by NINERMAS is a verified retrofit-compatible replacement for the original ABB Bailey Infi 90 module. Each unit is pre-tested against original specifications and confirmed for drop-in installation in existing Infi 90 backplane slots without hardware modification.

Q: What pre-shipment testing is performed on the HESG447220R4?
A: Every HESG447220R4 unit undergoes full functional testing prior to shipment, including power-on verification, communication interface check, and module bus handshake validation. A test report is available upon request. All units ship with a 12-month warranty from the date of shipment.

Q: How do I confirm wiring and address compatibility before installation?
A: Before installation, document the DIP switch address settings on the original module and replicate them on the replacement unit. Verify backplane power rail capacity using the existing NTPS02 or NTPS03 power supply specifications. Cross-reference the original loop drawings to confirm I/O channel assignments and INFI-NET node addressing have not changed.

Q: What is the lead time and stock availability for the HESG447220R4?
A: NINERMAS maintains reserved inventory of the HESG447220R4 to support urgent maintenance requirements. Standard lead time is 3–7 business days for in-stock units. For large-quantity or long-term supply agreements, contact our team to discuss reserved stock arrangements and volume pricing.
