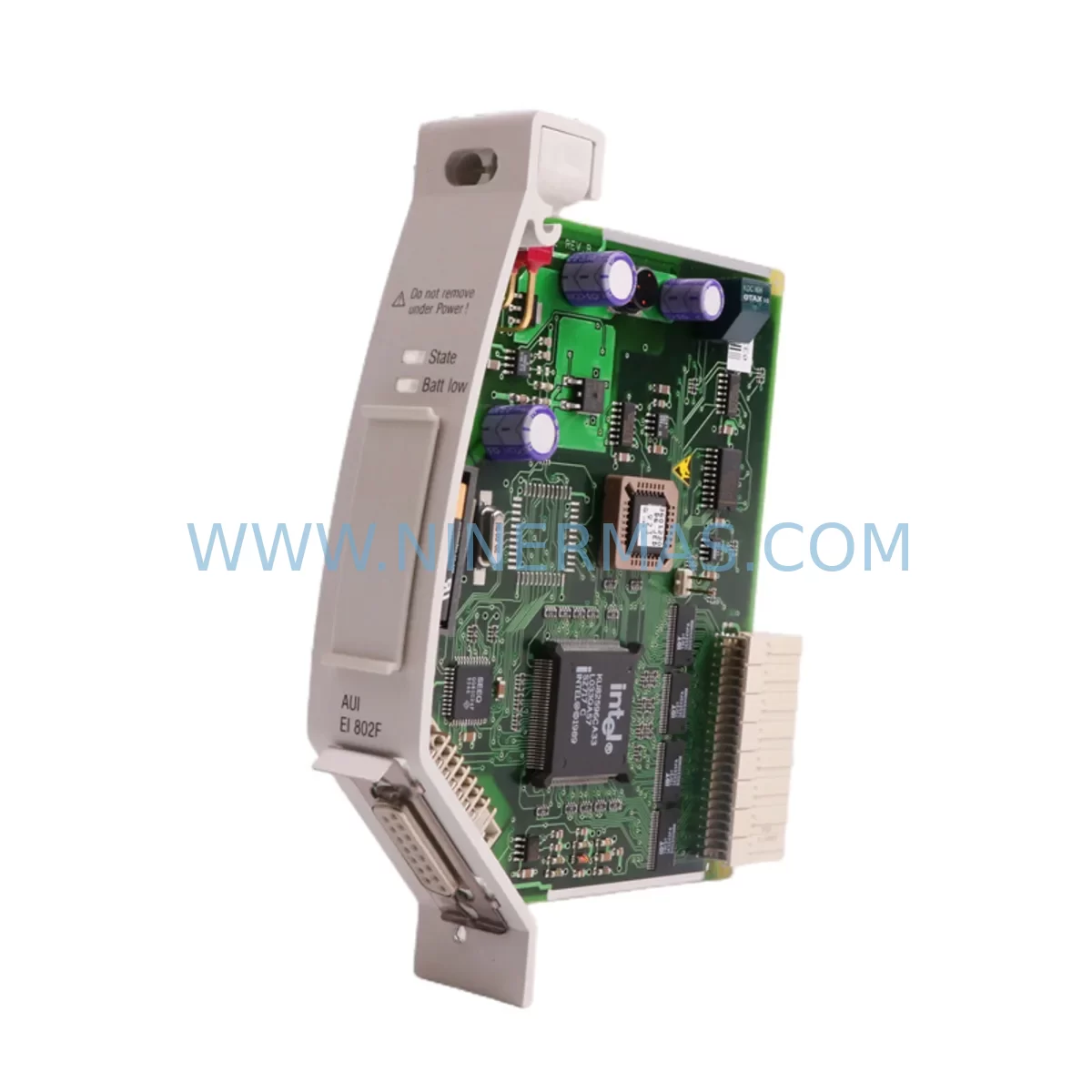

ABB EI802F 3BDH000016R1 Retrofit-Compatible I/O for Legacy Systems

ABB EI802F 3BDH000016R1 Retrofit-Compatible I/O for Legacy Systems

The ABB EI802F 3BDH000016R1 is a field-proven I/O interface module designed for the ABB AC800M distributed control platform — one of the most widely deployed DCS architectures in process automation, power generation, and heavy industry. As legacy AC800M installations age and original spare parts become increasingly difficult to source, the EI802F 3BDH000016R1 has become a critical component in retrofit projects, production line upgrades, and control cabinet modernization programs worldwide.

NINERMAS maintains verified inventory of the EI802F 3BDH000016R1 to support customers managing aging automation infrastructure. Whether you are replacing a failed module on an active production line, building a strategic spare parts buffer, or executing a phased migration from an end-of-life control system, this module provides the electrical and functional compatibility required for a low-risk, minimum-downtime retrofit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an AC800M-based control system requires careful coordination across hardware, software, and field wiring layers. The EI802F 3BDH000016R1 sits at the heart of many such projects, serving as the I/O interface between the controller and field devices. Before installation, engineers must audit the existing S800 I/O station configuration — including the number of occupied slots, the current TB820M or TB840A terminal block assignments, and the 24VDC power budget supplied by the SD821 or SD822 power supply modules already installed in the cabinet.

In many legacy installations, the control cabinet also houses CI854A or CI858 communication interface modules responsible for PROFIBUS DP or Modulebus connectivity. When replacing the EI802F 3BDH000016R1, it is essential to verify that the communication link between the I/O station and the PM866 or PM864A controller module remains intact and that no address conflicts are introduced. This is particularly important in multi-drop Modulebus topologies where several I/O stations share a single communication segment.

For plants running ABB 800xA as the supervisory layer, the replacement of an I/O module may require a brief re-scan of the hardware configuration in Control Builder M. Operators should confirm that all associated function block connections and signal tags remain correctly mapped after the module swap. In cases where the original module has been in service for more than a decade, it is also advisable to inspect the AI810 or AO810V2 analog I/O modules in adjacent slots for signs of drift or degradation, as these components share the same backplane bus and power rail.

Where the retrofit scope extends beyond a single module replacement — for example, when upgrading an entire I/O station or migrating from an older Advant OCS or MOD 300 platform to AC800M — the EI802F 3BDH000016R1 is frequently specified as part of a broader bill of materials that includes new racks, updated terminal blocks, signal isolators, and programming cables such as the TK212A. NINERMAS can assist in sourcing these complementary components to support a complete, single-source retrofit package.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any maintenance team executing a module replacement or system migration on a live process. For the EI802F 3BDH000016R1, the recommended approach is to prepare the replacement module offline before the scheduled maintenance window. This includes confirming the module firmware version, verifying the hardware configuration file in Control Builder M, and pre-labeling all field wiring according to the existing terminal block drawing.

Where the process permits, a cold-swap procedure — powering down the affected I/O station, replacing the module, and restoring power — is the safest method and eliminates the risk of transient signals affecting connected field devices. In applications where continuous monitoring is required, a hot-swap may be possible depending on the specific AC800M firmware version and I/O station configuration; this should be validated with the site’s control system engineer before execution.

To protect the original program logic, a full backup of the AC800M project should be taken in Control Builder M immediately before any hardware change. This backup preserves all function block diagrams, signal assignments, and communication configurations, allowing rapid restoration if an unexpected issue arises during commissioning. Post-replacement, the commissioning checklist should include verification of all analog and digital signal values at the 800xA operator station, confirmation of alarm and interlock functionality, and a review of the communication status indicators on the replacement EI802F module itself.

NINERMAS ships all EI802F 3BDH000016R1 units with pre-shipment functional testing documentation, reducing the risk of receiving a non-functional module during a time-critical maintenance window. Standard lead times from confirmed order to dispatch are clearly communicated at the time of quotation, and expedited shipping options are available for emergency breakdown situations.

Retrofit Support FAQ

Q1: Is the EI802F 3BDH000016R1 a direct drop-in replacement for my existing EI802F unit?
Yes. The 3BDH000016R1 is the ABB catalog reference for the EI802F module. Units supplied by NINERMAS are verified against this specification. Physical dimensions, backplane connector pinout, and electrical characteristics are identical to the original factory unit, making it a direct replacement without mechanical modification. Confirm your existing terminal block type (TB820M or TB840A) before installation to ensure wiring compatibility.

Q2: Does NINERMAS test the EI802F 3BDH000016R1 before shipment?
Yes. All units undergo pre-shipment inspection and functional verification. Test records are available upon request. Each module is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are handled directly by NINERMAS with a clear RMA process.

Q3: What should I check in Control Builder M after installing the replacement module?
After installation, open the hardware configuration in Control Builder M and perform a hardware scan to confirm the new module is recognized at the correct address. Verify that all I/O signal connections are intact and that no fault indicators are active on the module or in the 800xA system banner. Run a loop check on critical signals before returning the process to automatic control.

Q4: Can NINERMAS supply other AC800M components needed for a broader retrofit project?
Yes. NINERMAS maintains inventory of a wide range of ABB AC800M series components, including controller modules, communication interfaces, power supplies, terminal blocks, and I/O modules. Contact our technical sales team with your full bill of materials and we will provide availability and lead time information for all items.
