ABB DSTF610 HESN119032P1 Retrofit Filter for Advant Series

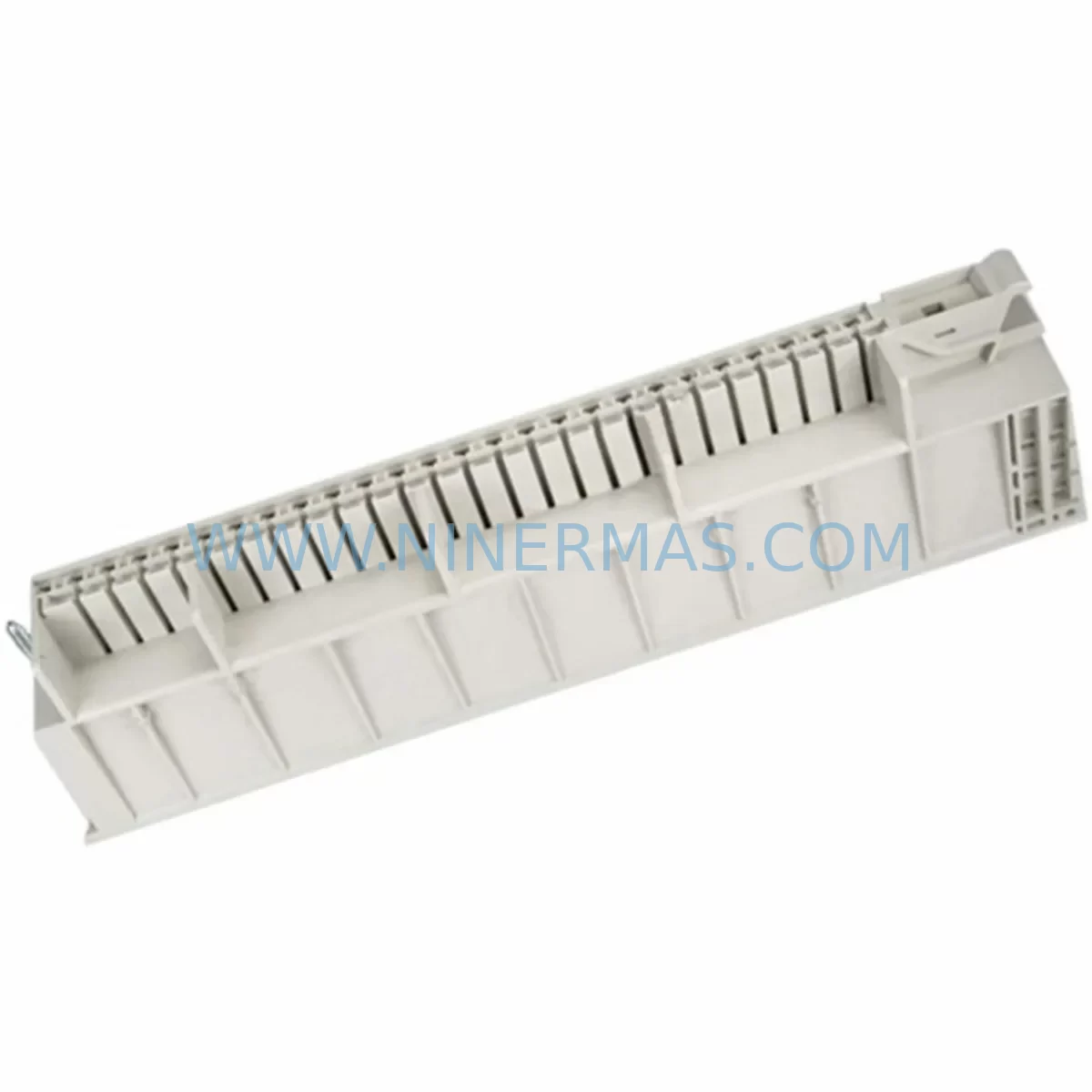

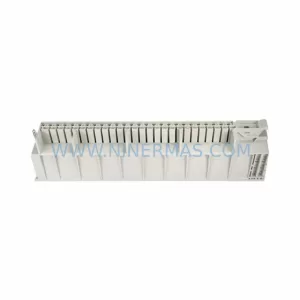

ABB DSTF610 HESN119032P1 Retrofit-Compatible EMC Filter for Advant Series Legacy Systems

The ABB DSTF610 (part number HESN119032P1) is an EMC filter module originally designed for the ABB Advant Controller series — a platform widely deployed across power generation, oil & gas, pulp & paper, and chemical processing industries. As the Advant OCS, AC110, AC160, and AC450 controller families approach end-of-life, procurement teams and maintenance engineers face increasing pressure to source retrofit-compatible spare parts that extend system life without triggering a full DCS migration. NINERMAS maintains verified stock of the DSTF610 HESN119032P1 to support exactly these scenarios: controlled lifecycle extension, emergency spares replenishment, and phased modernization programs.

The DSTF610 functions as an electromagnetic compatibility (EMC) filter within the Advant controller cabinet, suppressing conducted interference on the DC power bus and protecting sensitive I/O modules, communication processors, and CPU boards from noise-induced faults. In aging control cabinets where power supply units such as the DSQC604 or PSTX series have been in continuous service for over a decade, EMC filter degradation is a common root cause of intermittent CPU resets, communication dropouts on MasterBus 300 or PROFIBUS DP segments, and unexplained I/O read errors on DSDI or DSDO digital modules. Replacing the DSTF610 is frequently the first corrective action recommended during a root-cause analysis of such symptoms.

When planning a DSTF610 replacement, engineers should verify the following before ordering: the existing filter’s rated voltage and current capacity relative to the cabinet’s actual load profile; the physical mounting footprint and DIN rail or backplane slot compatibility within the S100, S400, or S800 I/O subrack; and the terminal block wiring layout, which must match the incoming AC/DC feed from the DSMB or DSBC bus connection boards. In most Advant installations, the DSTF610 is wired in series with the 24 VDC or 48 VDC supply rail feeding the processor module rack, so polarity and grounding continuity must be confirmed before energizing the replacement unit.

For sites running ABB’s Master software environment or Control Builder M, no firmware or software changes are required when replacing the DSTF610 — it is a passive hardware component with no addressable module identity. This makes it one of the lowest-risk replacements in an Advant retrofit program. However, maintenance teams should document the pre-replacement power rail noise floor using a clamp meter or oscilloscope, and repeat the measurement post-installation to confirm the filter is performing within specification. This baseline data is also valuable if the site is planning a future migration to ABB’s System 800xA or AC800M platform, where the DSQC661 communication interface or PM891 processor module will eventually replace the legacy Advant CPU stack.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A DSTF610 replacement rarely occurs in isolation. In a typical Advant cabinet retrofit, the filter module is replaced as part of a broader power subsystem audit that may also involve the DSBC172 or DSBC176 bus connection boards, the DSMB175 motherboard, and the DSQC604 power supply unit. If the site is also experiencing communication instability, the DSTAI110 analog input module or DSDP140 PROFIBUS DP interface board may be flagged for concurrent replacement, since EMC noise on the power rail is a known cause of spurious errors on these modules.

For sites operating mixed Advant and 800xA environments during a phased migration, the DSTF610 must remain functional in the legacy segment until all I/O signals have been remapped to the new AC800M controller and the PM891 or PM864A processor modules have been commissioned. During this transition period, the integrity of the 24 VDC supply rail — protected by the DSTF610 — is critical to maintaining scan cycle stability on the legacy CPU and preventing false trip signals from propagating to the safety instrumented system.

Engineers planning a control cabinet upgrade should also account for the physical space envelope of the DSTF610 relative to any new components being added to the cabinet. If the retrofit includes adding a CI854 PROFIBUS DP interface module or a TB820 ModuleBus optical interface for 800xA integration, the available DIN rail space and cable routing paths must be re-evaluated. Thermal management within the cabinet should also be reviewed, as the addition of new active modules alongside legacy hardware can increase the ambient temperature around the DSTF610 beyond its rated operating range.

NINERMAS recommends that customers request a wiring diagram cross-reference and terminal block mapping before installation. Our technical team can assist with confirming compatibility between the DSTF610 HESN119032P1 and the specific cabinet revision installed at your site, based on the cabinet serial number or original engineering documentation.

Downtime Control During System Migration

Replacing the DSTF610 in an operating Advant system requires a planned shutdown window, but the duration can be minimized with proper preparation. Because the filter is wired in series with the DC power rail, the affected controller rack must be de-energized before removal. In most installations, this means a controlled shutdown of the Advant CPU, a graceful handoff of control outputs to manual or safe-state positions, and a documented backup of the current application program using the Master software or Control Builder environment.

To protect the original program logic, engineers should export a full project backup — including function block diagrams, signal lists, and hardware configuration files — before beginning any physical work. This backup serves as the recovery baseline if the replacement procedure encounters unexpected issues. For sites running redundant Advant controllers, the switchover to the standby CPU should be executed and verified before the primary cabinet is taken offline, ensuring continuous process control throughout the filter replacement.

Post-installation commissioning of the DSTF610 is straightforward: restore power to the rack, verify DC bus voltage at the filter output terminals, confirm that all I/O modules — including any DSDI110 digital input or DSDO110 digital output modules in the subrack — are reporting correctly in the Master software, and check that MasterBus 300 or PROFIBUS DP communication links have re-established without error. Total planned downtime for a DSTF610 replacement in a well-prepared site is typically 30 to 90 minutes, depending on cabinet access and the number of terminal connections involved.

NINERMAS ships all DSTF610 HESN119032P1 units with a pre-shipment test report confirming functional performance and insulation resistance. This documentation supports your site’s maintenance records and quality management system requirements, and is included at no additional charge with every order.

Retrofit Support FAQ

Q1: Is the DSTF610 HESN119032P1 a direct drop-in replacement for the original ABB unit?
Yes. The DSTF610 HESN119032P1 supplied by NINERMAS is dimensionally and electrically equivalent to the original ABB factory part. No modifications to the cabinet wiring, terminal blocks, or mounting hardware are required. We recommend verifying the cabinet revision and power rail specification against the original engineering drawings before installation to confirm compatibility with your specific site configuration.

Q2: What pre-shipment testing is performed on the DSTF610?
Every DSTF610 unit undergoes functional performance testing and insulation resistance measurement before shipment. A test report is included with each order. Units are packaged in anti-static ESD-safe materials with protective foam inserts to prevent transit damage. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: Can the DSTF610 be used in a cabinet that is being partially migrated to ABB 800xA?
Yes. The DSTF610 operates independently of the controller platform and will continue to function correctly in a mixed Advant / 800xA cabinet during a phased migration. It protects the DC power rail regardless of whether the downstream modules are legacy Advant I/O or new AC800M-compatible hardware. No configuration changes are needed in either the Master software or Control Builder M environment.

Q4: What is the typical lead time and do you hold stock?
NINERMAS maintains inventory of the DSTF610 HESN119032P1 to support emergency and planned maintenance requirements. Standard lead time for in-stock units is 3 to 5 business days for international shipment. For customers with ongoing maintenance programs, we offer reserved stock arrangements and long-term supply agreements to ensure availability throughout your system’s operational lifecycle. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements.
