ABB DSSB140 48980001-P Service-Ready Spare Part

ABB DSSB140 48980001-P Service-Ready Spare Part for Industrial Maintenance

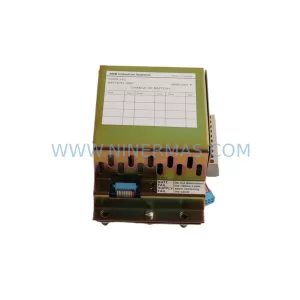

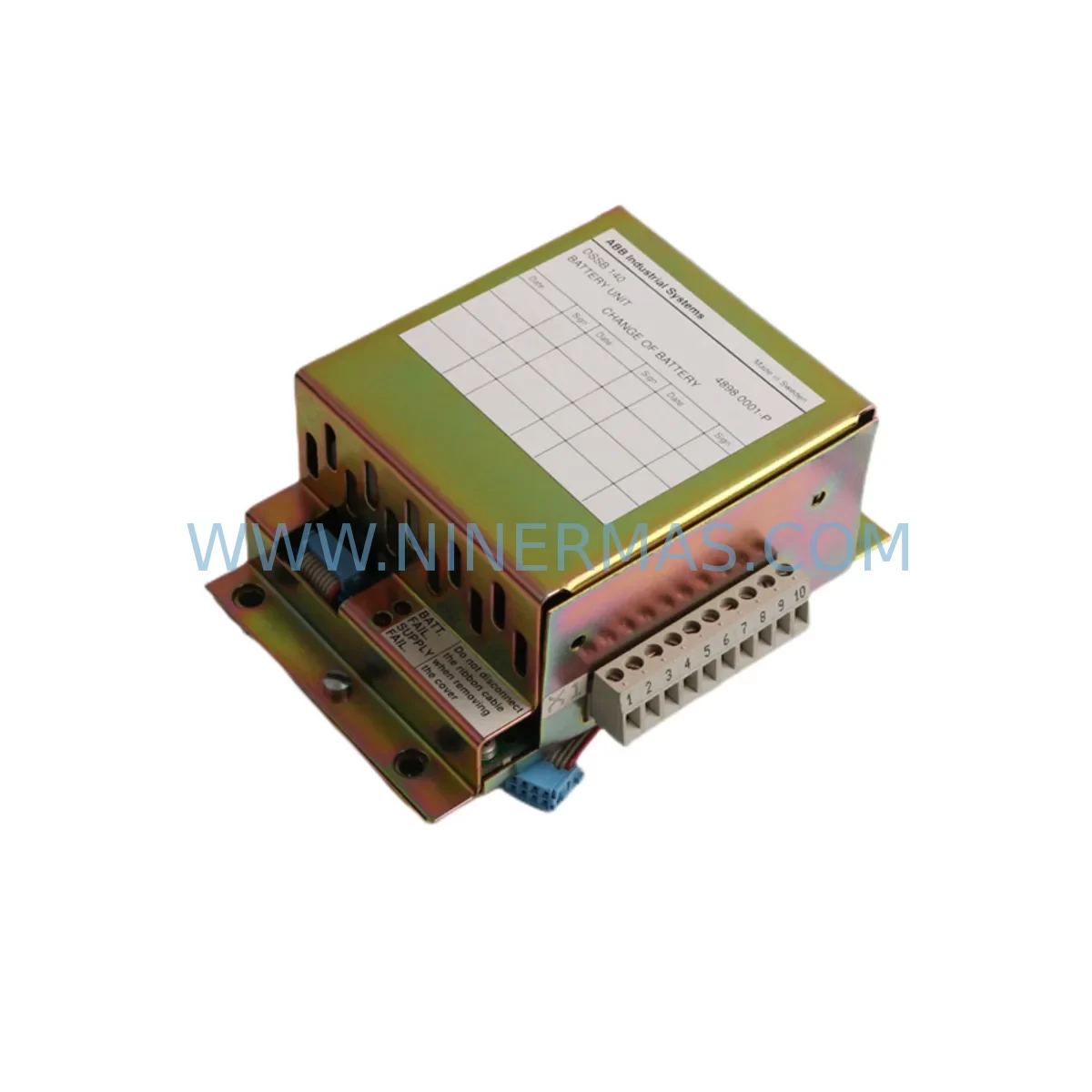

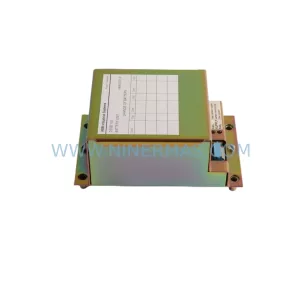

The ABB DSSB140 48980001-P is a ruggedized battery module engineered for continuous backup power in ABB’s industrial control architectures, including the AC70, AC80, and Advant Controller series. In process-critical environments — oil & gas, chemical processing, power generation, pulp & paper, and heavy manufacturing — this battery module serves as the last line of defense against data loss, program corruption, and unplanned shutdowns during power interruptions.

At NINERMAS, we stock the DSSB140 48980001-P as a tested, service-ready spare part, fully inspected before dispatch and backed by a 12-month warranty. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts inventory, this module ships promptly to minimize your downtime exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A battery module failure in an ABB Advant or AC70/AC80 controller is rarely an isolated event — it is a signal that the surrounding control cabinet ecosystem deserves a thorough inspection. When a maintenance or procurement engineer schedules replacement of the DSSB140 48980001-P, the following components and assemblies should be evaluated concurrently to prevent secondary failures and maximize the value of each planned maintenance window.

Begin with the CPU processor board (such as the DSPC110 or DSPC172 in AC70/AC80 systems) — the battery module interfaces directly with the processor’s SRAM, and a degraded board can accelerate battery drain or fail to retain program data even after a fresh battery installation. Alongside the CPU, inspect the DSMB127 or DSMB176 memory boards, which rely on battery-backed RAM to preserve configuration and runtime data during power loss events.

The power supply module — typically a DSSB110 or equivalent 24 VDC rail-mount unit — should be load-tested during the same maintenance cycle. An aging or undersized power supply can cause voltage sags that stress the battery module and shorten its effective service life. Check the DSDO115 or DSDO120 digital output modules for signs of relay contact wear or output card degradation, particularly in high-cycle applications.

For systems with active fieldbus or serial communications, the DSCS140 communication supervisor board and any PROFIBUS or MODBUS interface modules should be inspected for firmware currency and connector integrity. Communication faults during a power restoration sequence can mask underlying battery or CPU issues, complicating fault isolation.

Terminal blocks and DSAI130 or DSAI155 analog input modules in the same cabinet should be checked for loose wiring, corrosion, or signal drift — conditions that are often discovered only during a full cabinet inspection triggered by a battery-related maintenance event. Similarly, signal isolators and surge protection devices on I/O wiring should be verified, as transient events that deplete or damage battery modules can also stress unprotected signal paths.

If the control system interfaces with an ABB Panel 800 or PP845 HMI, confirm that the HMI’s own backup battery and communication link to the controller are functioning correctly. An HMI that loses its project data during a power event compounds the recovery time significantly. Finally, review the backplane and rack assembly for any signs of oxidation on card-edge connectors — a common cause of intermittent battery module contact failures in older Advant installations.

Proactive procurement of a small buffer stock — typically two to four units of the DSSB140 48980001-P — is strongly recommended for facilities operating multiple AC70 or AC80 controllers. Battery modules are consumable components with a finite service life, and having tested spares on the shelf eliminates the lead-time risk that turns a routine replacement into an extended production outage.

Site Replacement Workflow

Replacing the ABB DSSB140 48980001-P on-site is a straightforward procedure when approached systematically, but it requires careful attention to compatibility and sequencing to avoid data loss or system faults.

Step 1 — Compatibility Verification: Before ordering or installing, confirm the exact CPU or memory board part number in your Advant or AC70/AC80 rack. Cross-reference the DSSB140 48980001-P against the board’s hardware manual or ABB spare parts list to ensure pin and voltage compatibility. NINERMAS technical support can assist with cross-referencing if the original documentation is unavailable.

Step 2 — Backup and Preparation: Perform a full program and configuration backup to an external storage device or engineering workstation before beginning any hardware work. Even with a functioning battery, this step is non-negotiable for safety-critical or process-critical systems.

Step 3 — Controlled Power-Down: Follow your site’s lockout/tagout (LOTO) procedure. For hot-swap-capable boards, consult the specific board manual — some ABB Advant modules support battery replacement under auxiliary power, which eliminates the need for a full controller shutdown.

Step 4 — Module Removal and Installation: Remove the depleted DSSB140 battery module carefully, noting orientation. Install the new 48980001-P module, ensuring firm seating and correct polarity. Avoid touching battery contacts with bare hands.

Step 5 — System Restoration and Verification: Power up the controller and verify that program data, I/O configuration, and communication links are intact. Check the system event log for any battery-related fault codes and confirm they have cleared. Document the replacement date and new module serial number in your maintenance management system (CMMS).

This workflow applies equally to emergency replacements following an unplanned shutdown and to scheduled replacements during annual overhauls. The key difference is preparation time — emergency replacements benefit enormously from having a tested spare already on-site, which is why strategic inventory management of components like the DSSB140 48980001-P is a core element of industrial maintenance best practice.

Spare Parts Support FAQ

Q1: How do I confirm the DSSB140 48980001-P is compatible with my specific ABB controller?
The DSSB140 48980001-P is designed for ABB Advant Controller AC70 and AC80 series CPU and memory boards that use the DSSB-series battery interface. To confirm compatibility, identify the part number of your CPU or memory board (printed on the board label or in your system documentation) and cross-reference it with ABB’s hardware manual for that board. If you are unsure, contact NINERMAS with your board part number and we will verify compatibility before shipment.

Q2: What is the recommended replacement interval for the DSSB140 48980001-P, and how should I manage inventory?
ABB recommends inspecting battery modules every 12 to 24 months and replacing them proactively based on the manufacturer’s rated service life, operating temperature, and discharge history — rather than waiting for a low-battery alarm or system fault. For facilities with multiple AC70/AC80 controllers, maintaining a buffer stock of two to four units eliminates lead-time risk and supports a predictive maintenance strategy. NINERMAS offers long-term supply agreements for high-volume or repeat procurement needs.

Q3: How does NINERMAS test and verify spare parts before shipment?
Every DSSB140 48980001-P unit shipped by NINERMAS undergoes a pre-shipment inspection that includes visual examination, voltage verification, and functional testing where applicable. Units are sourced as original ABB spare parts and are not refurbished or remanufactured unless explicitly stated. Each shipment is accompanied by documentation confirming the test status, and all units are covered by a 12-month warranty from the date of shipment.

Q4: Can NINERMAS support long-term or repeat supply of the DSSB140 48980001-P for ongoing maintenance programs?
Yes. NINERMAS specializes in long-term spare parts support for industrial automation systems, including legacy and discontinued ABB product lines. We maintain stock of the DSSB140 48980001-P and related Advant series components to support annual maintenance programs, multi-site procurement, and emergency replenishment. Contact our team to discuss volume pricing, scheduled delivery, or consignment stock arrangements tailored to your maintenance calendar.

—
