ABB DSQC687 3HAC031166-001 Spare Part for IRC5 Profibus

ABB DSQC687 3HAC031166-001 Spare Part for IRC5 Profibus: Minimizing Downtime with Verified Network Replacement

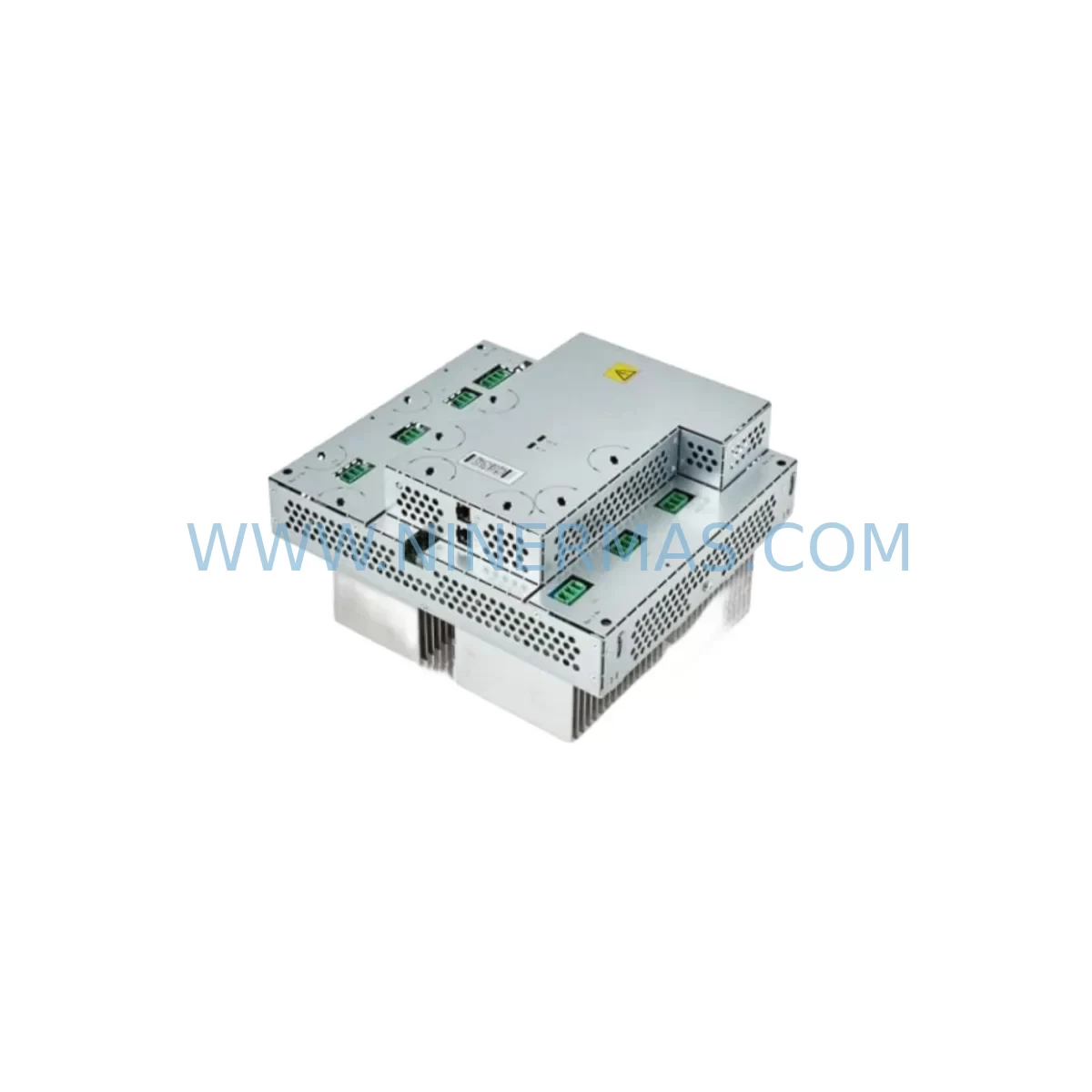

The ABB DSQC687, referenced under part numbers 3HAC031166-001 and the earlier-generation 3HAC023047-001, is the dedicated Profibus DP communication module installed in ABB IRC5 robot controller cabinets. This board provides the fieldbus interface between the IRC5 main computer and plant-level Profibus DP networks, enabling real-time I/O exchange with PLCs, DCS systems, and remote I/O stations across automotive, foundry, food processing, and general manufacturing environments. When this module fails or degrades, the entire robot cell loses network visibility — triggering immediate production stoppage and requiring rapid, verified replacement to restore operation.

At NINERMAS, every DSQC687 unit is sourced as an original ABB spare part, functionally tested prior to dispatch, and shipped with a 12-month warranty. Our inventory supports both emergency breakdown orders and planned annual maintenance procurement, with global logistics coverage to minimize lead time for facilities operating legacy IRC5 systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A Profibus communication fault on the DSQC687 rarely occurs in isolation. In most IRC5 cabinet inspections, the fieldbus module failure is accompanied by related degradation in adjacent components that share the same communication backbone or power rail. Maintenance engineers performing a DSQC687 replacement should treat the event as a trigger for a broader cabinet audit.

Begin by inspecting the DSQC639 main computer board or DSQC1000 main computer — the host board into which the DSQC687 plugs. A failing backplane connector or corrupted firmware on the main computer can cause repeated DSQC687 faults even after module replacement. Simultaneously, verify the DSQC609 power distribution board output voltages, as undervoltage on the 24 VDC logic rail is a known cause of intermittent Profibus dropouts.

On the network side, inspect the Profibus DP cable termination resistors at both ends of the segment. Damaged or missing termination is frequently misdiagnosed as a module fault. Check the DB9 connector and cable shield continuity from the DSQC687 port to the first downstream device — typically a Siemens S7 PLC, Allen-Bradley ControlLogix gateway, or a remote I/O rack such as a Siemens ET200S or Phoenix Contact Inline station.

For cabinets running DeviceNet or EtherNet/IP in parallel with Profibus, also inspect the DSQC688 DeviceNet module or DSQC690 EtherNet/IP module for signs of shared fault conditions. In multi-robot cells, a single Profibus segment may pass through several IRC5 cabinets — a fault on one DSQC687 can cascade network errors to adjacent robots, making it essential to isolate the faulty node before replacement.

Additional components to include in the annual spare parts inventory alongside the DSQC687: the DSQC662 fieldbus adapter for DeviceNet-equipped lines, DSQC643 I/O board for digital signal integrity verification, 3HAC025466-001 battery backup unit for main computer memory retention, and DSQC627 drive unit fuses and capacitors for power section health. Keeping these components in a local spare parts cabinet reduces mean time to repair (MTTR) from days to hours.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the fault using the IRC5 FlexPendant event log. Error codes 71xxx (Profibus communication lost) or 90xxx (fieldbus adapter fault) indicate DSQC687 involvement. Use RAPID diagnostic routines or the ABB RobotStudio online monitor to verify the Profibus segment status before physical intervention.

Step 2 — Safe Shutdown: Place the robot in manual mode, execute a controlled program stop, and de-energize the IRC5 cabinet following lockout/tagout (LOTO) procedures. The DSQC687 is a hot-swap-capable module in some IRC5 configurations, but ABB recommends a full cabinet power-down for first-time replacements to avoid backplane damage.

Step 3 — Module Extraction: Open the IRC5 cabinet door, locate the main computer assembly, and identify the DSQC687 by its DB9 Profibus connector and module label. Disconnect the Profibus cable, release the module retention latch, and slide the board out of the backplane slot. Note the slot position for correct reinstallation.

Step 4 — Replacement Installation: Insert the new DSQC687 (3HAC031166-001) into the same backplane slot. Reconnect the Profibus DB9 cable, ensuring the shield is properly grounded. The replacement module is a direct drop-in for both 3HAC031166-001 and the earlier 3HAC023047-001 — no firmware flashing or parameter reconfiguration is required in standard IRC5 installations.

Step 5 — System Restart and Verification: Power up the IRC5 cabinet and observe the DSQC687 status LED. A solid green LED indicates successful Profibus network acquisition. Verify I/O exchange with the upstream PLC or DCS using the FlexPendant I/O monitor. Run a test cycle before returning the robot to automatic production mode.

This workflow supports legacy IRC5 systems operating beyond their original design life, enabling facilities to extend system service life by 5–10 years without costly controller upgrades — a critical strategy for plants managing end-of-life automation infrastructure.

Spare Parts Support FAQ

Q1: Is the DSQC687 3HAC031166-001 a direct replacement for the older 3HAC023047-001?
Yes. The 3HAC031166-001 is the current production part number and is fully backward-compatible with all IRC5 cabinets that previously used the 3HAC023047-001. No software changes or parameter adjustments are required. Both part numbers reference the same DSQC687 Profibus DP module with identical electrical and mechanical specifications.

Q2: How do you verify the module before shipment?
Each DSQC687 unit undergoes functional testing on an IRC5-compatible test bench prior to dispatch. We verify Profibus communication initialization, backplane power draw, and LED status behavior. A test report is available upon request. All units are shipped in anti-static packaging with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can you support long-term supply for facilities running multiple IRC5 robots?
Yes. NINERMAS maintains standing inventory of DSQC687 and related IRC5 spare parts to support multi-robot facilities with annual maintenance contracts and emergency breakdown requirements. We recommend facilities operating 5 or more IRC5 robots maintain a minimum of 2 DSQC687 units in their local spare parts cabinet. Contact our team to discuss volume pricing, consignment stock arrangements, and scheduled delivery programs.

Q4: What is the typical lead time and what happens if the module fails within the warranty period?
In-stock units ship within 2 business days via DHL Express, FedEx International Priority, or customer-nominated freight. For warranty claims, NINERMAS provides a replacement unit advance shipment upon fault confirmation — minimizing downtime while the defective unit is returned for inspection. Warranty coverage is 12 months from the date of shipment and applies to all original spare parts supplied by NINERMAS.
