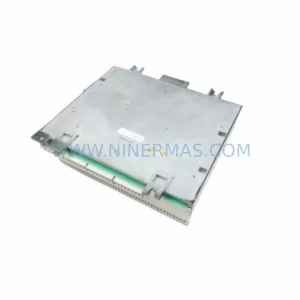

ABB DSDX451 5716075-K Service-Ready Spare Part

ABB DSDX451 5716075-K Service-Ready Spare Part for Industrial Maintenance

The ABB DSDX451 (part number 5716075-K) is a critical digital I/O module designed for the ABB Advant Master distributed control system (DCS). In industrial automation environments — including pulp and paper, oil and gas, power generation, and chemical processing — this module serves as a foundational component for discrete signal acquisition and output control. When this module fails or degrades, the consequences can range from erratic process behavior to complete production line shutdown. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path to restoring normal operations and minimizing unplanned downtime costs.

At NINERMAS, every ABB DSDX451 5716075-K unit is inspected, function-tested, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford long lead times or counterfeit components. Whether you are responding to an emergency fault, building a preventive maintenance stock, or planning an annual overhaul, we provide consistent long-term supply with pre-shipment testing documentation available on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB DSDX451 5716075-K in the field is rarely an isolated task. Experienced maintenance engineers know that a failed digital I/O module is often a symptom of broader stress in the control cabinet — and a planned replacement is the right moment to inspect and, where necessary, refresh adjacent components to prevent secondary failures.

When servicing the DSDX451 slot in an Advant Master subrack, begin by verifying the 24 VDC field power supply feeding the I/O bus. A degraded or undersized power supply module — such as the ABB DSQC 508 or equivalent Advant Master power unit — can cause intermittent I/O faults that are misdiagnosed as module failures. Confirm voltage stability under load before inserting the replacement module.

Next, inspect the backplane and subrack connectors. The Advant Master subrack (DSBC 172 or DSBC 176 series) uses edge connectors that can oxidize or develop micro-cracks after years of thermal cycling. Clean connector contacts and check for bent pins before seating the new DSDX451. A faulty backplane connection will cause the replacement module to report faults immediately, wasting time and creating false diagnostics.

Review the field wiring terminal blocks connected to the DSDX451’s I/O channels. Loose or corroded terminals on the marshalling cabinet side are a common source of signal errors. This is also the right time to check signal isolators or barriers — particularly if the DSDX451 interfaces with field instruments in hazardous areas. Zener barriers or galvanic isolators (such as those in the ABB DSAI or DSAO signal conditioning range) should be tested for correct isolation resistance and signal fidelity.

For systems where the DSDX451 handles interlock or safety-related outputs, verify the associated output relay modules and intermediate relay panels. Relay coils and contacts degrade over time; if the DSDX451 was driving a relay that has since welded or failed open, the new module will inherit the same fault condition. Check relay modules such as the DSDO 115 or equivalent output relay boards in the same cabinet.

On the communication side, confirm that the Advant Master communication bus — typically the MB300 or AF100 fieldbus — is operating without errors. The DSCS 140 or DSCB 110 communication interface modules should be checked for firmware version compatibility and bus error counters. A noisy or degraded fieldbus can cause the newly installed DSDX451 to report spurious faults during commissioning.

Finally, if the plant runs an ABB Operator Station or HMI connected to the Advant Master system, verify that the I/O channel mapping in the engineering database correctly reflects the replacement module’s slot address. Incorrect channel assignment after a module swap is a common commissioning error that delays production restart. Update the Advant Builder or MOD 300 engineering tool configuration if the module address has changed, and perform a loop check on all channels before returning the system to automatic control.

Building a structured spare parts kit around the DSDX451 is sound procurement practice. A recommended minimum stock for an Advant Master installation includes at least one spare DSDX451 5716075-K, one spare power supply module, one spare communication interface card, and a set of replacement terminal blocks and fuse holders for the I/O marshalling cabinet. This approach ensures that any single-point failure can be resolved within one shift, without waiting for international shipping.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the Advant Master diagnostic display or the connected operator station to confirm the DSDX451 module fault. Record the fault code and affected I/O channel list before beginning any physical work. This prevents confusion during post-replacement loop checks.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the field-side 24 VDC supply to the affected subrack. Do not rely solely on software inhibit — physically isolate field power at the marshalling cabinet fuse or circuit breaker.

Step 3 — Module Removal: Release the DSDX451 module locking lever and slide the module out of the subrack slot. Inspect the backplane connector for damage or contamination. If the connector shows signs of arcing or corrosion, clean with appropriate contact cleaner before installing the replacement.

Step 4 — Replacement Installation: Insert the new ABB DSDX451 5716075-K into the same subrack slot. Ensure the module is fully seated and the locking lever is engaged. Restore field-side power and observe the module status LED. A green or steady status indication confirms successful initialization.

Step 5 — Loop Check and Commissioning: Perform a channel-by-channel loop check against the I/O list. Confirm that all discrete inputs and outputs respond correctly from the operator station. Clear any latched alarms in the DCS and return the loop to automatic control only after all channels are verified.

Step 6 — Documentation: Record the replacement in the plant maintenance management system (CMMS). Note the module serial number, installation date, and loop check results. Update the spare parts inventory to trigger a replenishment order for the consumed DSDX451 unit.

This workflow applies equally to planned annual maintenance shutdowns and emergency breakdown recovery. The key advantage of holding a pre-tested NINERMAS spare is that Steps 1 through 6 can be completed within a single maintenance window — typically two to four hours — rather than waiting days or weeks for a new module to arrive from the OEM.

Spare Parts Support FAQ

Q1: Is the ABB DSDX451 5716075-K still available as a new original part, or is it discontinued?
The DSDX451 is a legacy Advant Master module that ABB has phased out of active production. However, NINERMAS maintains a dedicated inventory of original, tested units to support plants that continue to operate Advant Master and MOD 300 systems. Our stock is sourced from verified channels and each unit undergoes functional testing before shipment. We provide long-term supply continuity for customers who cannot migrate to newer ABB 800xA or AC 500 platforms in the short term.

Q2: How do I verify compatibility between the DSDX451 5716075-K and my existing Advant Master subrack?
Compatibility depends on your subrack model (DSBC 172 or DSBC 176 series), the firmware revision of your Advant Master controller, and the I/O channel configuration in your engineering database. In most cases, the DSDX451 5716075-K is a direct slot-for-slot replacement for the same part number. If you are replacing a different DSDX4xx variant, contact our technical team at sale@ninermas.com with your subrack model and controller firmware version, and we will confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the return process if a fault is found after installation?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. If a fault is identified after installation, contact NINERMAS at sale@ninermas.com with the fault description and installation date. We will arrange a replacement shipment or full refund depending on the fault assessment. Pre-shipment test records are available for all units to support warranty claims.

Q4: Can NINERMAS supply multiple DSDX451 units for a planned annual overhaul or a multi-site spare parts program?
Yes. NINERMAS supports bulk procurement for annual maintenance shutdowns, multi-site spare parts standardization programs, and strategic inventory builds. Volume pricing is available for orders of three or more units. We can also provide a scheduled delivery plan aligned with your maintenance calendar. Contact our procurement team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements.
