ABB DSCA180A 57520001-GY Retrofit-Compatible I/O for Legacy Systems

ABB DSCA180A 57520001-GY Retrofit-Compatible I/O Module for Legacy Symphony Systems

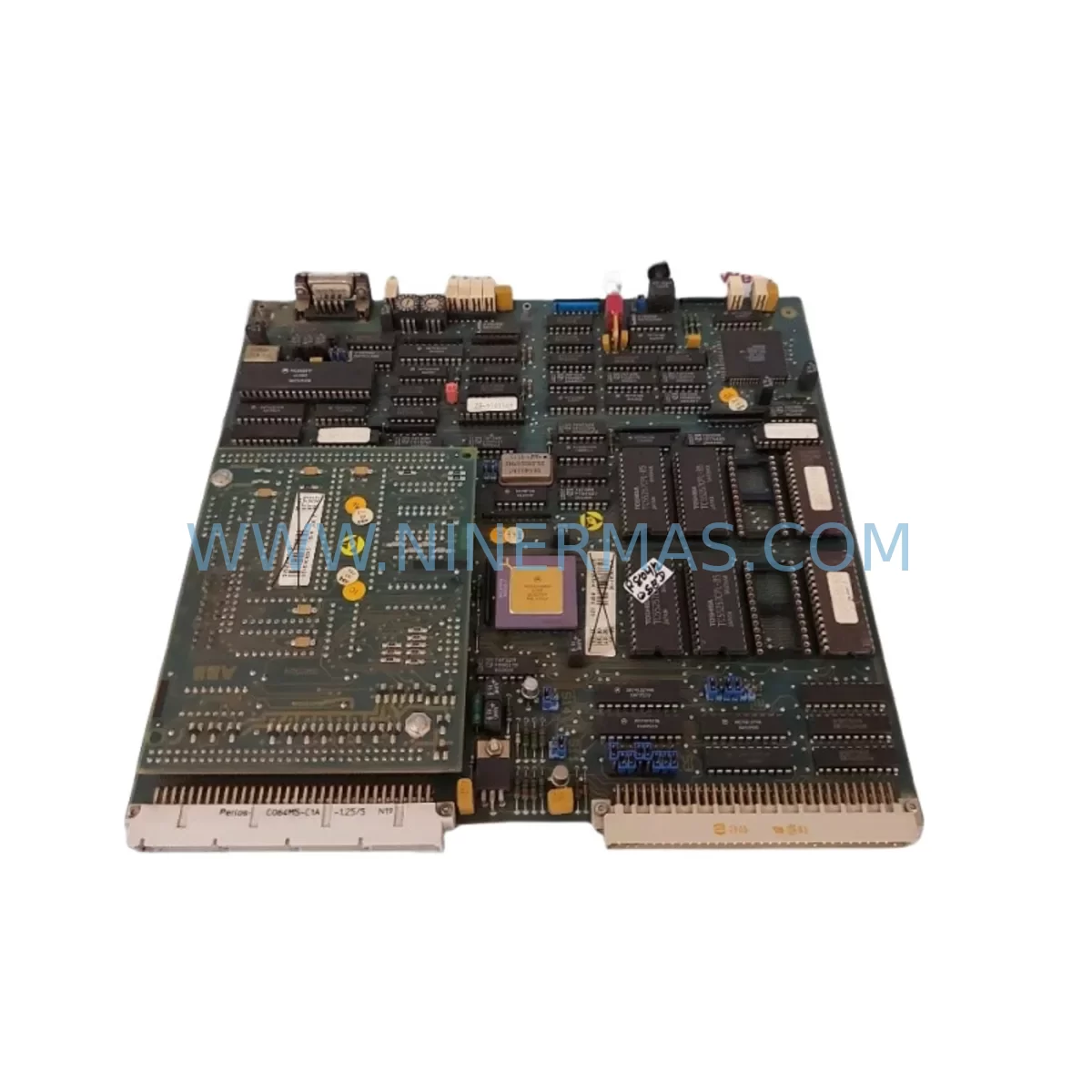

The ABB DSCA180A (part number 57520001-GY) is a proven analog I/O module from ABB’s Symphony Series (formerly INFI 90 / Harmony) distributed control platform. As original production of many Symphony Series components winds down, plant engineers and automation integrators increasingly rely on verified surplus and refurbished stock of the DSCA180A to sustain aging control architectures without committing to a full DCS migration. NINERMAS maintains ready inventory of this module, fully tested and backed by a 12-month warranty, to support brownfield retrofit projects, emergency spare replenishment, and phased system upgrades across power generation, pulp and paper, chemical processing, and water treatment facilities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a DSCA180A 57520001-GY in an operating Symphony Series DCS requires careful pre-outage planning to protect process continuity and avoid unplanned downtime. Before scheduling the swap, engineers should audit the target rack to confirm the host controller — typically an IMMFP12 or IMMFP02 function processor — is running a firmware version that recognizes the replacement module’s hardware revision. If the plant’s Symphony system has been extended with INNIS21 network interface modules or INICT03 communication controllers for Modbus or PROFIBUS bridging, those communication links must be verified to remain stable during the hot-swap window.

Field wiring connected through an NTAI05 or NTAI09 termination unit should be documented channel by channel before removal. Photograph or record the terminal assignments, signal ranges (4–20 mA or 1–5 V), and any jumper configurations on the termination unit itself. When the DSCA180A is reseated, the termination unit remains in place, which eliminates the need to disturb field cables — one of the key advantages of the Symphony modular architecture. After insertion, use the ABB configuration workstation or a compatible COMPOSER / System 800xA engineering tool to verify that the module’s I/O tags are correctly mapped and that the IMMFP controller has re-established communication with the new card.

For plants running parallel redundant I/O, the DSCA180A retrofit can often be completed without a full process shutdown by switching the affected loop to the redundant path, replacing the faulted module, and then rebalancing. Confirm with your DCS vendor documentation whether your specific rack configuration supports bumpless transfer before attempting a live swap. Power supply loading should also be recalculated: adding a replacement module to a rack already near the NTPS02 or NTPS03 capacity limit can cause nuisance trips on adjacent modules including DSAI130A analog input cards, DSAO120A analog output cards, or DSDI110A digital input modules sharing the same power bus.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a standalone Symphony node to an 800xA integrated architecture — the DSCA180A may serve as a bridging component while new S800 I/O modules (such as AI810, AO810, or DI810) are installed in parallel. During this transition period, maintaining the original Symphony rack in service while commissioning the new I/O cluster allows engineers to validate signal integrity and HMI faceplate behavior before cutting over. Operator graphics built in the legacy Conductor NT or Harmony HMI environment will need to be re-mapped to the new tag structure, and this work should be completed and tested in a simulation environment before the final cutover.

Programming compatibility is another critical checkpoint. Control logic residing in the IMMFP12 function processor references the DSCA180A by module address and channel number. If the replacement module is assigned a different address — even temporarily — the controller will generate fault alarms and may drive outputs to their configured safe state. Always restore the original module address via DIP switch configuration before powering the rack, and confirm the address with the controller’s diagnostic display or engineering workstation before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing process interruption during a DSCA180A replacement begins with preparation, not execution. A well-structured pre-outage checklist — covering module address verification, termination unit inspection, spare fuse inventory, and engineering workstation connectivity — can reduce the actual swap time to under 30 minutes for a single module. For multi-module replacements across several racks, NINERMAS recommends staging all verified units on-site before the maintenance window opens, so that each module can be inserted, addressed, and confirmed sequentially without waiting for logistics.

Protecting the original control program is non-negotiable. Before any hardware change, export and archive the current function processor configuration from the COMPOSER or 800xA engineering environment. If the plant does not have a recent backup, this step alone can prevent hours of re-engineering in the event of an unexpected controller reset. For systems where the DSCA180A interfaces with a third-party SCADA or historian via an OPC server running on a INNIS21 or dedicated gateway, confirm that the OPC tag paths will remain valid after the module is replaced and re-commissioned.

Field control continuity can be maintained by placing affected loops in manual mode at the operator station before the module is removed. Operators should be briefed on the expected duration of the maintenance window and the fallback procedure if the replacement module does not come online within the planned timeframe. Having a tested spare DSCA180A — sourced from NINERMAS stock and pre-verified against the plant’s firmware baseline — on the shelf before the outage begins is the single most effective way to compress the risk window and protect production schedules.

Retrofit Support FAQ

Q1: Is the DSCA180A 57520001-GY a direct drop-in replacement for other DSCA180 variants?
The DSCA180A is functionally compatible with other DSCA180-series modules in the same rack slot, but suffix letters and hardware revisions can affect firmware compatibility with specific IMMFP controller versions. NINERMAS recommends confirming the target controller firmware revision before ordering. Our technical team can assist with cross-reference verification at no charge.

Q2: What testing is performed before shipment?
Every DSCA180A 57520001-GY unit shipped by NINERMAS undergoes a full functional test on a live Symphony Series rack, including analog channel verification, module bus communication check, and power consumption measurement. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in an 800xA system alongside S800 I/O?
Yes. In hybrid migration architectures, the DSCA180A can remain active in its original Symphony rack while new S800 I/O modules are commissioned in parallel under 800xA. The two I/O families operate independently on their respective buses. Full cutover to S800 I/O can be scheduled once the new hardware is validated, allowing a phased migration with minimal process risk.

Q4: What is your lead time and stock availability?
NINERMAS maintains buffer stock of the DSCA180A 57520001-GY to support emergency and planned replacement requirements. Standard orders ship within 3–5 business days. For urgent plant breakdowns, expedited dispatch is available — contact our team directly to confirm current inventory and arrange priority shipment.
