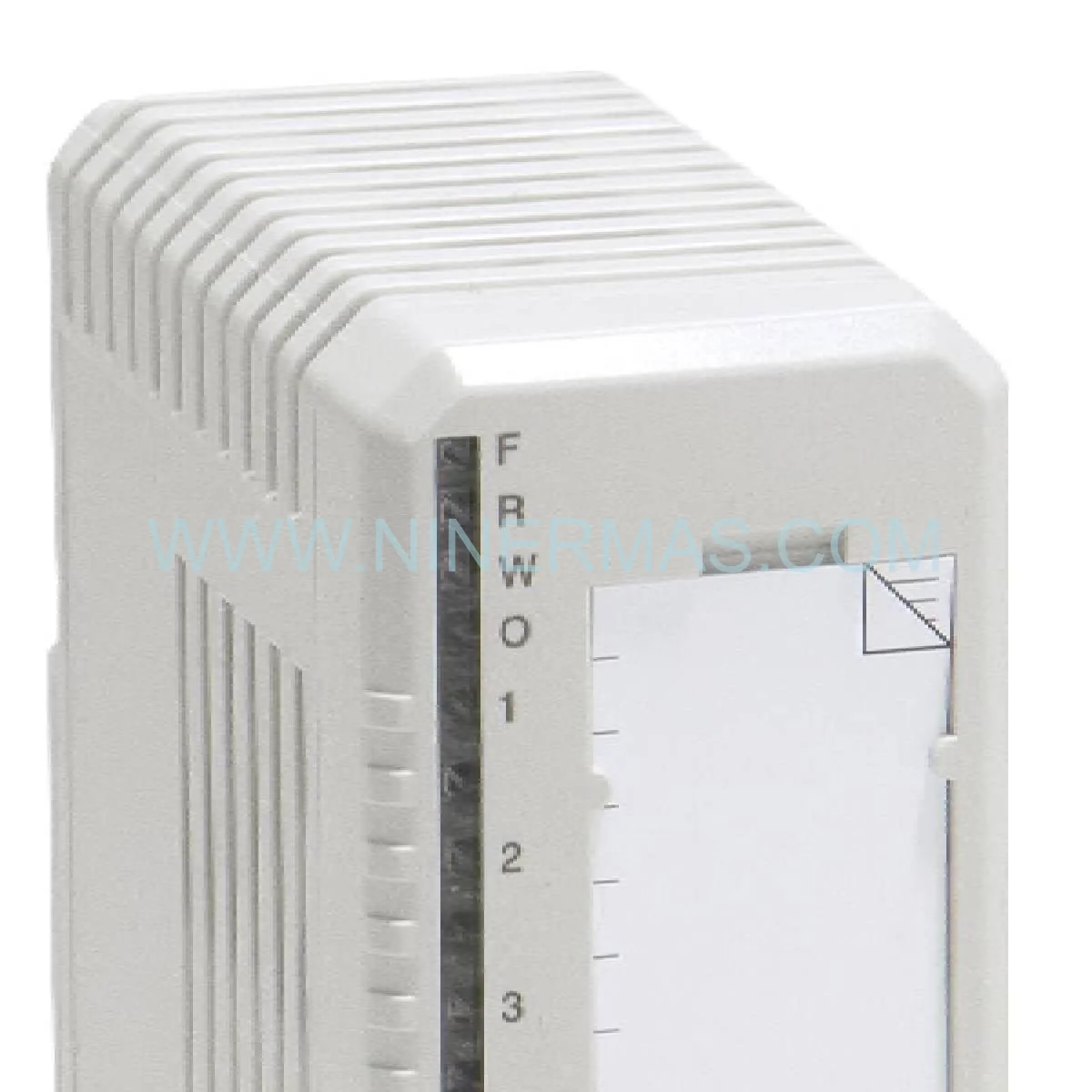

ABB DO820 (3BSE008514R1) | 8-Ch Relay Output Module S800 I/O

ABB DO820 (3BSE008514R1) – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the ABB DO820 (3BSE008514R1) represents a cornerstone component in maintaining the operational integrity of distributed control architectures. As a certified eight-channel digital output relay module within the ABB S800 I/O platform, the ABB DO820 (3BSE008514R1) fulfills a critical role in bridging control logic with field-level actuation — a function that demands absolute precision, galvanic isolation, and long-term signal fidelity. Its design philosophy is rooted in the principles of Safety Integrity and Compliance Standards that govern mission-critical industrial environments worldwide.

Within the evolving landscape of Industrial 4.0 architecture, this module demonstrates exceptional long-term compatibility with ABB’s 800xA Distributed Control System, supporting seamless integration across legacy and next-generation process networks. Its wide operating voltage range (24-230V AC/DC) and extended temperature tolerance ( 40°C to +70°C) ensure sustained System Performance across diverse deployment scenarios — from arctic upstream oil facilities to high-temperature chemical processing plants. Asset Optimization is achieved through its hot-swap capability, which eliminates the need for system-wide shutdowns during module replacement, directly reducing lifecycle maintenance costs.

As a factory-sealed, Original Documentation-backed component, the DO820 (3BSE008514R1) delivers the assurance that only genuine ABB-certified hardware can provide. Its provenance through authorized supply chains guarantees that every unit meets the exacting quality control benchmarks established by ABB’s global manufacturing standards — a non-negotiable requirement for systems operating under IEC 61511 and IEC 62443 compliance frameworks.

Compliance & Safety Benchmarks

✅ Galvanic Channel Isolation: Each of the eight relay outputs is independently isolated, preventing cross-channel interference and protecting control electronics from field-side transients — a fundamental requirement under IEC 61010 safety standards.

✅ Wide Voltage Tolerance (24-230V AC/DC): Engineered to accommodate diverse field device specifications without additional signal conditioning, reducing system complexity and potential failure points.

Extended Environmental Durability: Rated for operation from 40°C to +70°C with robust EMC shielding, ensuring Standard Adherence in harsh industrial environments including offshore platforms and heavy manufacturing facilities.

✅ Hot-Swap Architecture: Supports live module replacement without process interruption, a critical Certification requirement for high-availability systems operating under SIL-rated safety instrumented system (SIS) protocols.

DIN Rail Mounting Compliance: Conforms to EN 60715 mounting standards, ensuring mechanical Durability and compatibility with standardized industrial enclosure configurations.

✅ ABB 800xA DCS Integration: Native compatibility with ABB’s flagship distributed control platform enables unified diagnostics, firmware management, and compliance reporting through a single engineering environment.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: In cleanroom and fab environments where process repeatability is paramount, the DO820 (3BSE008514R1) provides the deterministic switching performance required for precise valve sequencing and equipment interlock management. Its galvanic isolation architecture prevents ground loop contamination that could compromise sensitive metrology equipment.

Pharmaceutical & Life Sciences: GMP-compliant facilities demand components with full traceability and Original Documentation. The DO820’s certified provenance and ABB’s comprehensive validation documentation packages support 21 CFR Part 11 and EU Annex 11 compliance requirements for automated batch control systems.

Chemical Processing & Petrochemicals: In ATEX-adjacent control panel configurations, the module’s robust isolation and wide voltage range enable reliable actuation of solenoid valves, motor starters, and emergency shutdown (ESD) systems — directly supporting Lifecycle Management objectives in high-hazard process environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities benefit from the DO820’s corrosion-resistant design philosophy and extended operational temperature range, ensuring continuous Asset Optimization across seasonal environmental extremes.

Power Generation & Utilities: In turbine control and substation automation applications, the module’s compliance with IEC 61850 ecosystem integration principles supports the transition toward smart grid architectures while maintaining backward compatibility with legacy SCADA infrastructure.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every ABB DO820 (3BSE008514R1) unit is dispatched in its original, factory-sealed packaging with full Original Documentation — including ABB’s certificate of conformity, test records, and firmware version documentation. This ensures complete traceability from manufacturing origin to installation site, a prerequisite for regulated industry procurement processes.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to all major industrial regions, including North America, Europe, Southeast Asia, and the Middle East. Priority dispatch protocols are available for emergency maintenance scenarios where system downtime costs are critical.

12-Month Quality Guarantee for Legacy Systems: We provide a comprehensive 12-month quality guarantee covering manufacturing defects and performance deviations from ABB’s published specifications. This extended warranty support is specifically designed to address the Lifecycle Management needs of facilities operating aging S800 I/O infrastructure where OEM support timelines may be constrained.

Technical Support: Our engineering team offers pre-sales compatibility consultation, installation guidance, and post-delivery technical support to ensure seamless integration of the DO820 (3BSE008514R1) into your existing control architecture.

Expert Technical FAQ

Q1: Is the ABB DO820 (3BSE008514R1) compatible with both legacy S800 I/O systems and current 800xA DCS platforms?
A: Yes. The DO820 (3BSE008514R1) is designed for full backward and forward compatibility within the ABB S800 I/O ecosystem. It integrates natively with 800xA versions 5.x and 6.x, and can also function within older Advant OCS and MOD 300 migration architectures with appropriate interface modules. Firmware version alignment should be verified with ABB’s compatibility matrix prior to installation.

Q2: What installation compliance requirements apply when deploying this module in a SIL-rated safety instrumented system?
A: When deploying the DO820 (3BSE008514R1) within a Safety Instrumented System (SIS), the installation must conform to IEC 61511 Part 1 requirements, including proof test interval documentation, common cause failure analysis, and functional safety assessment by a qualified SIL verification engineer. ABB’s functional safety documentation for the S800 I/O platform provides the necessary FMEDA data to support SIL 1 and SIL 2 loop calculations.

Q3: How does the galvanic isolation architecture protect against ground loop interference in mixed-voltage field environments?
A: Each of the eight relay channels in the DO820 (3BSE008514R1) is independently isolated from both the control bus and adjacent channels. This architecture eliminates ground loop current paths that commonly arise in mixed 24VDC/230VAC field environments, preventing induced noise from corrupting control signals and protecting the module’s internal logic from field-side overvoltage events.

Q4: What environmental certifications apply to this module for use in offshore or hazardous area control panels?
A: The DO820 (3BSE008514R1) is designed to meet IEC 60068 environmental testing standards for temperature, humidity, and vibration resistance. For ATEX Zone 2 or IECEx-classified installations, the module must be housed within a certified Ex e or Ex p enclosure. ABB’s S800 I/O platform documentation provides detailed guidance on enclosure selection and cable entry requirements for hazardous area compliance.

Q5: Can the firmware of the DO820 (3BSE008514R1) be updated in the field, and does this affect its certification status?
A: Firmware updates for S800 I/O modules are managed through the ABB 800xA engineering environment and do not require physical module removal. However, any firmware revision that affects the module’s safety-relevant functions must be re-validated against the applicable IEC 61511 or IEC 62443 requirements. It is strongly recommended to consult ABB’s release notes and obtain written confirmation from your functional safety engineer before applying firmware updates in SIL-rated loops.

Q6: What is the recommended proof test procedure for the DO820 (3BSE008514R1) in a high-availability process control environment?
A: ABB recommends a channel-by-channel functional verification test at intervals defined by the SIL verification report for your specific loop. The hot-swap capability of the DO820 (3BSE008514R1) allows proof testing of individual modules without process shutdown, significantly reducing the operational impact of mandatory safety validation activities. Test results should be documented in the facility’s safety management system in accordance with IEC 61511-1 Clause 16.
