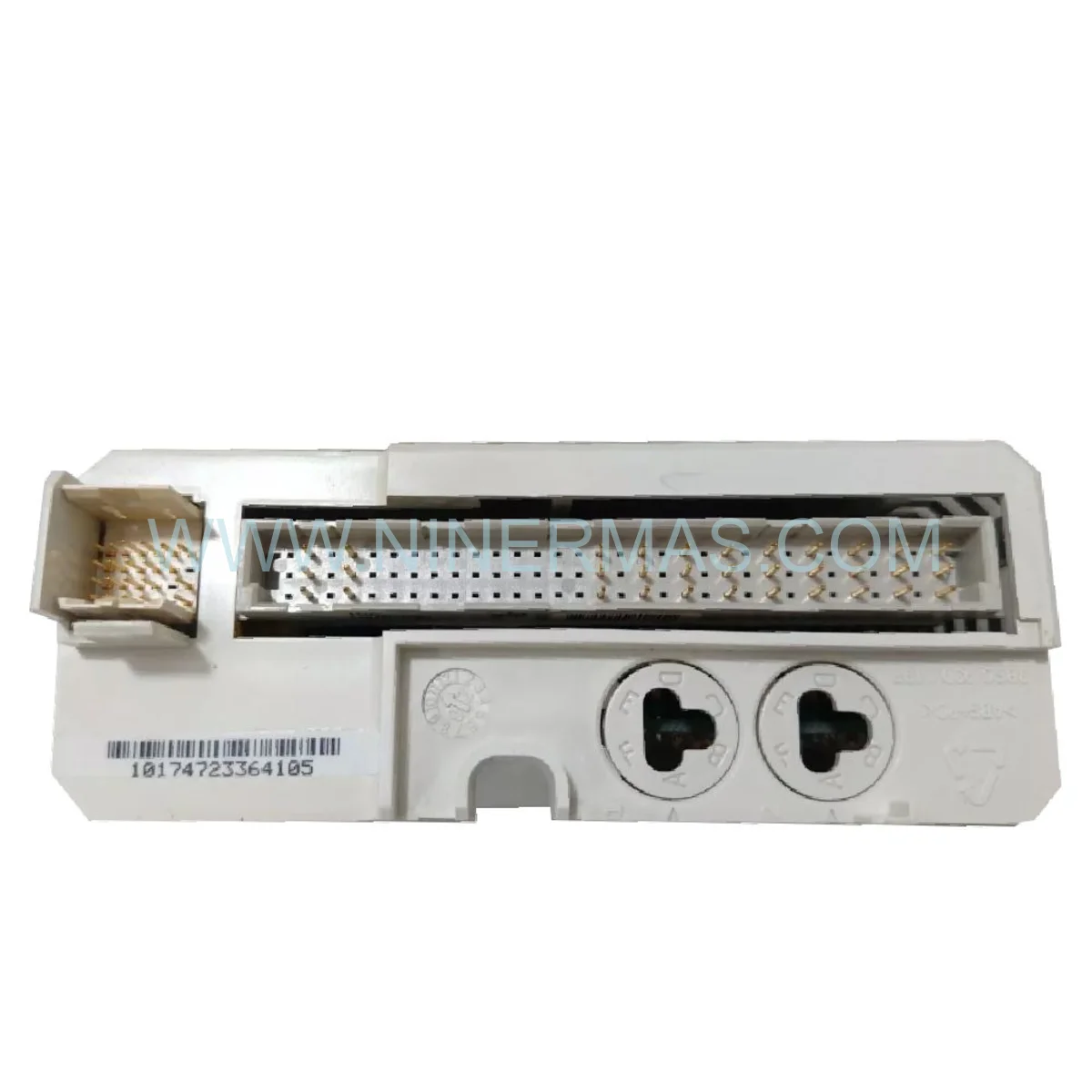

ABB DI890 3BSC690073R1 NAMUR Digital Input Module | S800 I/O

ABB 3BSC690073R1 – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the ABB 3BSC690073R1 (DI890 Digital Input Module) occupies a foundational role in maintaining the operational integrity of safety-critical process control architectures. As a certified NAMUR-interface I/O component within the ABB S800 platform, the 3BSC690073R1 ensures that field-level signal acquisition adheres to IEC 60947-5-6 compliance standards — a prerequisite for any installation operating under functional safety mandates such as IEC 61508 or IEC 61511. Its eight intrinsically safe input channels, each equipped with integrated current-limited sensor power, eliminate the dependency on external safety barriers, thereby reducing system complexity while preserving Safety Integrity across the entire signal chain.

Within the evolving framework of Industry 4.0 and digital plant transformation, the 3BSC690073R1 demonstrates sustained long-term compatibility with ABB’s System 800xA distributed control environment. Its modular architecture supports hot-swap replacement without process interruption — a critical attribute for Asset Optimization in continuous manufacturing operations. The module’s deterministic signal processing and diagnostic transparency contribute directly to System Performance benchmarks required by modern lifecycle management protocols.

As a factory-sealed, Original Documentation-backed component, the 3BSC690073R1 delivers the provenance assurance that compliance auditors and plant engineers demand. Counterfeit or non-certified substitutes introduce latent failure modes that compromise both regulatory standing and operational continuity — risks that certified original parts categorically eliminate.

Compliance & Safety Benchmarks

✅ NAMUR Standard Adherence: Full compliance with IEC 60947-5-6 for two-wire proximity sensor interfacing in hazardous environments.
? Intrinsic Safety Certification: Designed for safe-area installation with IS-rated field connections to Zone 1/Zone 2 hazardous locations.
Integrated Diagnostics: Continuous per-channel monitoring for wire break, short circuit, and sensor fault — supporting IEC 61511 proof-test requirements.
? Hot-Swap Durability: Supports bumpless module replacement in redundant S800 configurations, preserving system uptime during maintenance cycles.
Manufacturing Origin Traceability: Produced in Sweden under ABB’s ISO 9001-certified quality management system, ensuring full component traceability for compliance audits.
? RoHS & REACH Conformity: Material composition meets global environmental compliance standards for industrial electronic components.

Vertical Industry Integration & Optimization

The 3BSC690073R1 is engineered to address the signal acquisition challenges inherent to precision-critical industries where process deviations carry significant safety and financial consequences:

• Pharmaceutical Manufacturing: Supports 21 CFR Part 11-compatible control architectures by providing validated, traceable digital input data for batch record integrity and contamination-prevention interlocks.
• Semiconductor Fabrication: Enables sub-millisecond response sensing for cleanroom environmental controls and equipment state monitoring, where process yield is directly correlated to signal fidelity.
• Chemical & Petrochemical Processing: Delivers intrinsically safe field connectivity for valve position feedback and flow detection in explosive atmosphere zones, reducing SIL verification complexity.
• Oil & Gas Upstream/Midstream: Provides certified IS input channels for wellhead and pipeline monitoring applications, supporting ATEX and IECEx compliance frameworks.
• Mining & Minerals Processing: Withstands high-vibration, high-dust operational environments while maintaining signal accuracy for conveyor and crusher interlock systems.

Across all verticals, the module’s integration into the S800 I/O ecosystem enables centralized lifecycle management — from commissioning through decommissioning — via System 800xA’s asset management toolset.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 3BSC690073R1 unit is dispatched in its original ABB factory packaging with intact tamper-evident seals, ensuring component integrity from warehouse to installation point. Original Documentation — including datasheets, conformity declarations, and calibration records — accompanies each shipment to support compliance audits and commissioning validation.

Rapid Global Logistics: Our fulfillment infrastructure supports expedited international shipping to major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas. Priority dispatch options are available for critical maintenance scenarios where extended downtime carries significant operational cost.

12-Month Quality Guarantee for Legacy Systems: The 3BSC690073R1 is covered by a comprehensive 12-month quality guarantee addressing manufacturing defects and component performance deviations. For legacy S800 installations operating beyond standard ABB support windows, our Lifecycle Management program provides extended sourcing continuity and technical consultation to defer costly platform migrations.

Technical Support Services: Our engineering team offers application-specific configuration guidance, compatibility verification for mixed S800 I/O configurations, and troubleshooting support throughout the asset lifecycle — from initial system design through long-term operational maintenance.

Expert Technical FAQ

Q1: What installation compliance requirements apply when deploying the 3BSC690073R1 in a SIL-rated safety loop?
A: The 3BSC690073R1 must be installed in accordance with ABB’s certified installation guidelines and the applicable IEC 61511 functional safety management plan. The module’s intrinsic safety design supports SIL-rated architectures when combined with appropriately certified field devices and validated wiring practices. A formal proof-test procedure must be established per the Safety Requirements Specification (SRS) of the target safety instrumented function.

Q2: What are the environmental operating limits for the 3BSC690073R1 in demanding industrial conditions?
A: The module is rated for operation within standard S800 I/O environmental parameters, including industrial temperature ranges and humidity levels consistent with IEC 60068 environmental testing standards. For installations in extreme ambient conditions — such as high-altitude facilities or tropical coastal environments — consult ABB’s environmental derating guidelines and ensure enclosure IP ratings are matched to site classification.

Q3: How does firmware versioning affect the compliance certification status of the 3BSC690073R1?
A: The 3BSC690073R1 is a hardware I/O module; its operational firmware is managed at the FCI (Field Communication Interface) level within the S800 architecture. Compliance certifications are tied to the hardware revision of the module itself. Any FCI firmware updates should be validated against the module’s certified hardware revision matrix to ensure continued conformance with applicable safety standards.

Q4: Can the 3BSC690073R1 be used as a direct replacement in an existing S800 I/O installation without reconfiguration?
A: Yes, provided the replacement unit shares the same hardware revision as the installed module. The S800 platform’s modular architecture supports direct substitution with automatic configuration download from the FCI, minimizing reconfiguration effort. However, a post-replacement functional verification test is recommended as part of the site’s Management of Change (MOC) procedure to confirm Compliance Standards are maintained.

Q5: What documentation is provided to support regulatory audits and asset lifecycle records?
A: Each 3BSC690073R1 shipment includes the original ABB product datasheet, EU Declaration of Conformity (where applicable), and packing documentation with traceable batch information. Upon request, we can provide additional sourcing chain documentation to support customer asset management systems and third-party compliance audits.

Q6: How does the integrated diagnostic capability of the 3BSC690073R1 contribute to predictive maintenance programs?
A: The module’s per-channel diagnostic reporting — covering wire break, short circuit, and sensor malfunction states — feeds directly into System 800xA’s asset monitoring framework. This enables condition-based maintenance scheduling, reducing reliance on time-based inspection intervals and supporting the transition to data-driven Asset Optimization strategies aligned with ISO 55000 asset management principles.
