ABB DAI01 Service-Ready Spare Part for Industrial Maintenance

ABB DAI01 Service-Ready Spare Part for Industrial Maintenance: Spare Replacement and Downtime Risk Control

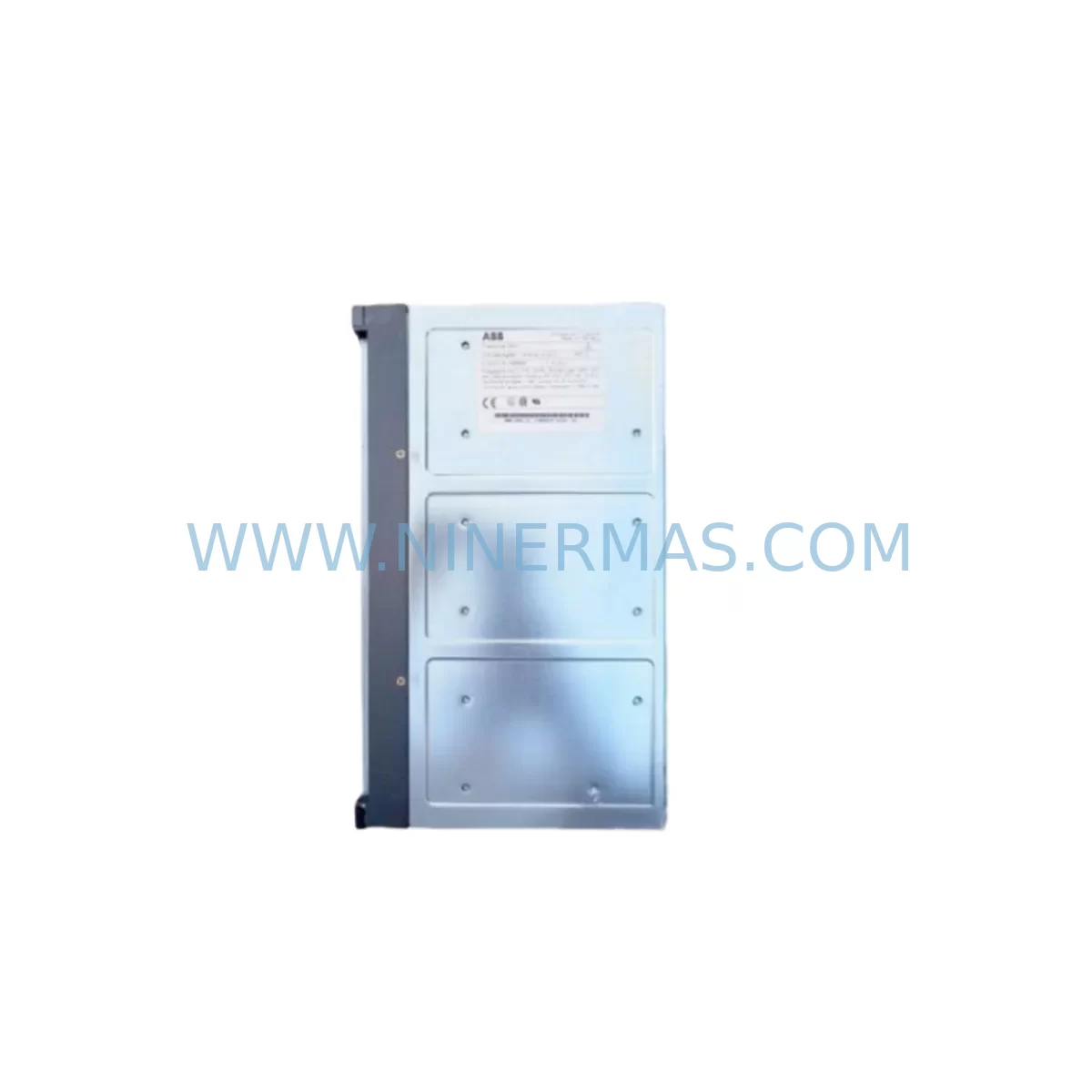

The ABB DAI01 (ordering reference P37131-4-0369628) is a critical analog input module deployed across Symphony Plus and legacy Bailey INFI 90 distributed control systems in power generation, chemical processing, oil & gas, and heavy manufacturing environments. When this module fails or degrades, the consequences extend far beyond a single I/O channel — process visibility is lost, alarm thresholds become unreliable, and unplanned downtime can cascade across an entire control loop. Maintaining a verified, service-ready DAI01 spare in your cabinet inventory is the single most effective measure to protect continuous operation and reduce mean time to repair (MTTR) for analog signal acquisition faults.

At NINERMAS, every ABB DAI01 unit is sourced from original manufacturer channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty covering component integrity and signal performance. Our global logistics network ensures fast delivery to maintenance teams in Asia, Europe, the Middle East, and the Americas — so your spare arrives before the next scheduled outage window, not after an emergency shutdown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB DAI01 in isolation rarely resolves the root cause of an analog input fault. Experienced maintenance engineers know that a single module failure often signals broader stress across the control cabinet. During any DAI01 replacement event, a structured inspection of adjacent components is essential to prevent repeat failures and protect the integrity of the entire control loop.

Begin with the backplane and rack assembly. The DAI01 seats into a Symphony Plus I/O backplane — inspect the backplane connector pins for oxidation, mechanical damage, or intermittent contact. A faulty backplane can cause recurring module faults even after a new DAI01 is installed. If the rack has been in service for more than ten years, consider scheduling a backplane replacement during the next planned outage.

Next, verify the 24 VDC power supply module feeding the I/O rack. Voltage ripple or transient spikes on the backplane bus are a leading cause of premature analog module failure. Cross-check the power supply output with a calibrated meter and compare against the nominal bus voltage specification. ABB’s PP846 and similar Symphony Plus power supply units should be inspected for capacitor aging and output stability.

Examine all field wiring and terminal blocks connected to the DAI01 input channels. Loose terminations, corroded ferrules, or undersized cable cross-sections introduce resistance that distorts 4–20 mA signals and causes false readings. Terminal blocks from the same installation vintage as the DAI01 should be torque-checked and visually inspected for discoloration or heat damage.

For systems using signal isolators or signal conditioners between field transmitters and the DAI01, verify that each isolator is functioning within its rated accuracy band. Aging signal isolators can introduce offset errors that mimic module faults. Replacing the DAI01 without addressing a degraded isolator will result in persistent signal quality issues.

Review the status of the CI830 or CI854AK01 communication interface modules in the same rack. These modules handle the fieldbus and control network communication for the I/O cluster. A communication fault on the CI854AK01 can mask or misreport DAI01 channel data at the DCS operator station, leading to misdiagnosis. Confirm that communication module firmware is current and that network cables are properly seated.

Inspect the DI810 digital input modules and DO810 digital output modules sharing the same backplane. While these are separate module types, they share the backplane power bus and communication path. A failing DO810 drawing excessive current can degrade bus voltage and affect DAI01 accuracy. Include these modules in your cabinet inspection checklist whenever an analog fault is reported.

For process loops that include AO810V2 analog output modules — for example, in PID control loops where the DAI01 provides the process variable and the AO810V2 drives the control element — verify that the output module is also within calibration. A drift in the AO810V2 output can create a feedback condition that appears as an input anomaly on the DAI01 channel.

Finally, check the PM861 process controller module or equivalent controller card that processes the DAI01 data. Confirm that the controller’s I/O configuration database correctly maps the DAI01 channels and that no configuration mismatch exists after the module replacement. An incorrect slot assignment in the controller configuration is a common post-replacement commissioning error that delays return to service.

Maintaining a cabinet-level spare kit — including at minimum one DAI01, one DI810, one DO810, and one AO810V2 — reduces average repair time from hours to minutes and eliminates the risk of extended downtime caused by parts procurement delays.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s slot address, channel assignments, and engineering unit ranges from the DCS configuration database before removing the module. Document the current signal values for all active channels.

Step 2 — Safe isolation: Place the affected control loops in manual mode at the DCS operator station. Notify the process team of the planned I/O interruption. De-energize the field wiring at the terminal block, not at the module, to avoid backplane disturbance.

Step 3 — Module extraction: Release the module locking mechanism and extract the DAI01 from its backplane slot. Inspect the backplane connector for damage before inserting the replacement unit. Do not force the module — misalignment can damage both the module and the backplane.

Step 4 — Replacement insertion: Insert the new ABB DAI01 (P37131-4-0369628) into the correct slot. Confirm the module status LED sequence matches the expected initialization pattern per the ABB Symphony Plus commissioning guide.

Step 5 — Configuration confirmation: From the DCS engineering workstation, verify that the replacement module is recognized at the correct slot address and that all channel configurations are intact. For systems using automatic module recognition, confirm that the new module’s hardware revision is compatible with the existing configuration.

Step 6 — Signal verification: Return field wiring to service and verify that each channel reads within the expected engineering unit range. Compare live readings against the pre-replacement baseline. Confirm alarm setpoints are active and correctly configured.

Step 7 — Return to automatic: Once all channels are verified, return the affected control loops to automatic mode. Monitor the process for a minimum of 30 minutes before closing the maintenance work order.

This workflow is compatible with both hot-swap capable Symphony Plus racks and traditional INFI 90 racks requiring a controlled power-down sequence. Consult the ABB site-specific maintenance procedure for your installation before proceeding.

Spare Parts Support FAQ

Q1: How do I confirm that the ABB DAI01 (P37131-4-0369628) is compatible with my existing Symphony Plus or INFI 90 rack?
Compatibility is determined by the rack generation, backplane revision, and controller firmware version. The DAI01 is designed for Symphony Plus I/O racks and is backward-compatible with select INFI 90 configurations. Provide your rack model number and controller firmware version to our technical team at sale@ninermas.com and we will confirm compatibility before shipment. We do not ship without a compatibility confirmation for critical DCS components.

Q2: What pre-shipment testing does NINERMAS perform on the ABB DAI01?
Every DAI01 unit undergoes functional power-on testing, channel signal integrity verification across the full 4–20 mA input range, and visual inspection for connector and component condition. Units that do not meet original ABB performance specifications are quarantined and not dispatched. A test report summary is available upon request for quality-critical procurement.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and signal performance outside the published ABB specification. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sale@ninermas.com with the order reference, failure description, and site installation details. Replacement units are dispatched within 5 business days of claim approval.

Q4: Can NINERMAS support long-term supply agreements for the ABB DAI01 and related Symphony Plus modules?
Yes. NINERMAS maintains reserved inventory agreements for end-of-life and long-lead ABB DCS components, including the DAI01, DI810, DO810, AO810V2, CI830, and PM861 series. Long-term supply contracts with defined lead times, pricing, and quality inspection protocols are available for maintenance teams managing multi-year asset life extension programs. Contact our procurement team to discuss volume requirements and delivery scheduling.
