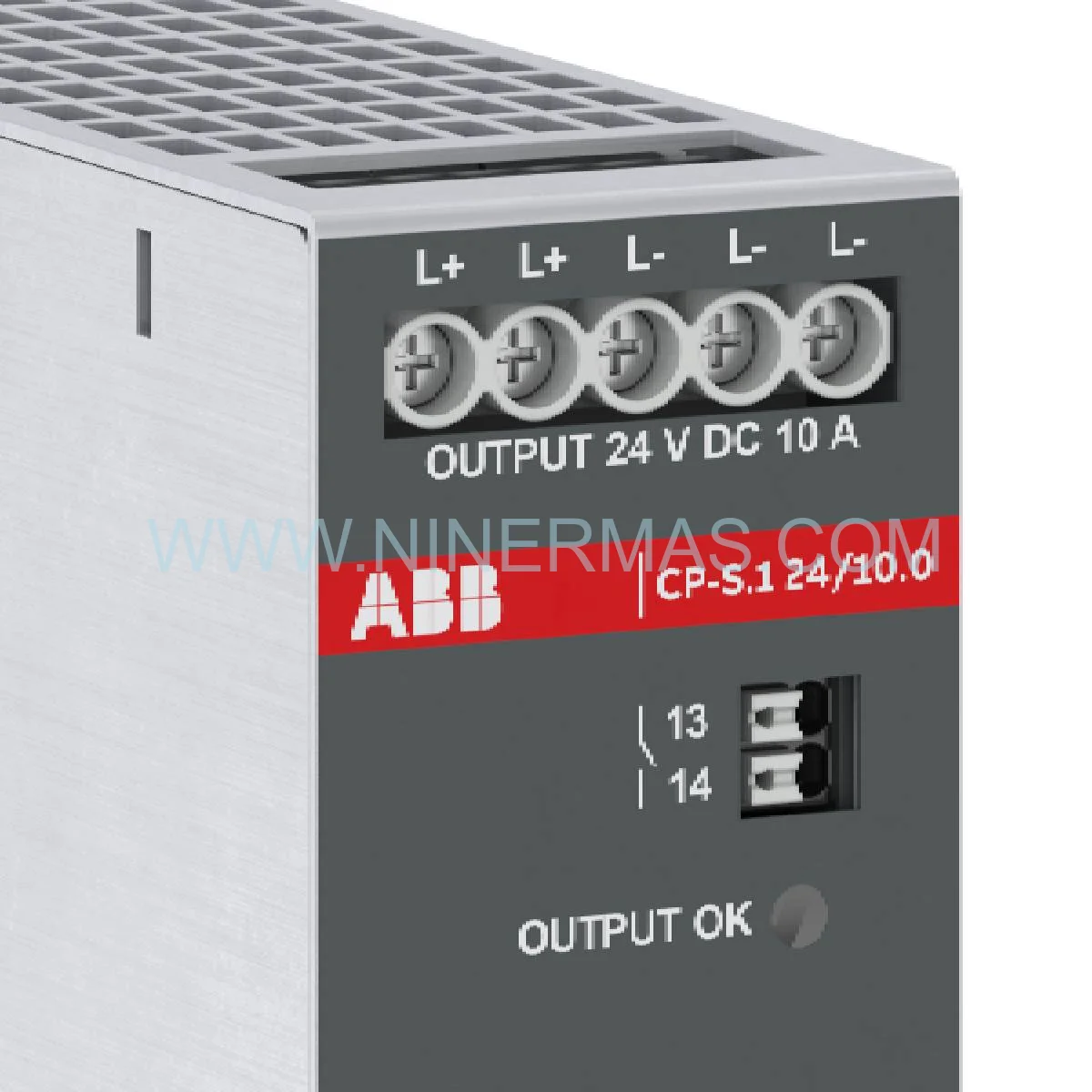

ABB CP-S2410.0 (1SVR320661R1000) | Industrial Retrofit Power Supply 24V 10A

ABB CP-S2410.0 (1SVR320661R1000) – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, I consistently identify the power supply layer as the most critical — and most overlooked — element in any modernization initiative. The ABB CP-S2410.0 (1SVR320661R1000) stands at the center of this challenge: it is a primary switch mode power supply engineered to deliver stable 24V DC at 10A continuous output, purpose-built to sustain performance in aging automation architectures while serving as the foundation for phased system upgrades. Its role in extending equipment lifespan and enhancing overall system reliability cannot be overstated.

Legacy control environments — particularly those built on first- and second-generation DCS platforms or early TSI (Turbine Supervisory Instrumentation) frameworks — frequently suffer from degraded power quality, voltage instability, and obsolete supply modules that are no longer manufactured. The ABB CP-S2410.0 (1SVR320661R1000) addresses this directly: its wide AC input range (100-240V, 50/60Hz) and tight DC output regulation (±1%) ensure seamless backward compatibility with existing field wiring, terminal blocks, and load profiles — eliminating the need for costly panel redesigns during migration.

From a total cost of migration perspective, deploying this unit as a direct replacement or upgrade component dramatically reduces commissioning risk. Its DIN rail form factor, standardized terminal interfaces, and compliance with IEC/UL/CE certifications mean it integrates into existing enclosures without structural modification — compressing retrofit timelines and protecting capital investment in legacy infrastructure.

Upgrade Highlights & Compatibility

• ✅ Drop-in Legacy Replacement: Standard 35mm DIN rail mount matches footprint of most first-generation ABB and third-party PSUs — zero panel rework required
• Enhanced Efficiency: >89% conversion efficiency vs. 60-70% typical of older linear supplies — reduces heat load and extends surrounding component life
• ✅ Wide Input Tolerance: 100-240V AC universal input absorbs grid fluctuations common in aging industrial facilities without output disruption
• Active Power Factor Correction: PFC compliance (EN 61000-3-2) future-proofs installations against increasingly strict grid harmonics regulations
• ✅ DC-OK Signal Output: Relay contact enables integration with modern SCADA/PLC health monitoring — bridging old hardware to new supervisory layers
• Extended Temperature Range: -25°C to +70°C operation sustains performance in thermally stressed legacy enclosures without additional cooling
• ✅ Parallel Redundancy Ready: Supports N+1 configurations for mission-critical retrofit projects requiring zero-downtime power architecture

Modernization Use Cases & Success Stories

DCS Power Layer Retrofit — Chemical Processing Plant:
A regional petrochemical facility operating a 15-year-old distributed control system faced recurring power supply failures causing unplanned shutdowns. By replacing aging linear PSUs with the ABB CP-S2410.0 (1SVR320661R1000) across 12 control cabinets, the facility achieved a 94% reduction in power-related fault events within the first quarter. The unit’s DC-OK relay contacts were wired directly into the plant’s new Yokogawa CENTUM VP supervisory layer, enabling real-time power health monitoring without replacing field I/O modules.

TSI System Modernization — Gas Turbine Power Station:
A turbine monitoring system upgrade project required stabilizing 24V DC supply rails feeding legacy Bently Nevada 3300 series vibration monitors. The CP-S2410.0’s tight output regulation and high MTBF rating made it the preferred hardware upgrade choice, allowing the TSI backbone to remain operational while the upper monitoring layers were migrated to a modern platform — a phased retrofit approach that eliminated the need for a full outage window.

PLC Panel Modernization — Automotive Assembly Line:
An automotive OEM modernizing Siemens S5-based control panels to S7-1500 architecture retained existing 24V DC field wiring by standardizing on the ABB CP-S2410.0 (1SVR320661R1000) as the common power backbone. This hardware upgrade strategy preserved $180,000+ in field cabling investment while delivering the clean, regulated power required by the new generation PLC hardware.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | ABB CP-S2410.0 (1SVR320661R1000) | | **Output Voltage** | 24V DC (regulated, ±1%) | | **Output Current** | 10A continuous (240W rated) | | **AC Input Range** | 100-240V AC, 50/60Hz (universal) | | **Conversion Efficiency** | >89% at full load | | **Power Factor Correction** | Active PFC, EN 61000-3-2 compliant | | **Mounting Standard** | 35mm DIN rail (EN 60715) | | **Operating Temperature** | -25°C to +70°C | | **Protection Functions** | Overload / Short-circuit / Over-temperature | | **DC-OK Signal** | Relay contact output for system monitoring | | **Certifications** | UL, CE, cULus | | **Lifecycle Status** | Active — Current Production | | **Retrofit Compatibility** | Direct replacement for legacy 24V/10A DIN rail PSUs | | **Redundancy Support** | Parallel N+1 operation capable | | **Terminal Wire Range** | 0.5-4mm² (solid & stranded) |

Supply Chain & Deployment Support

Original & Factory Sealed Units:
Every ABB CP-S2410.0 (1SVR320661R1000) unit supplied is sourced as original factory-sealed stock, complete with ABB documentation, test certificates, and full manufacturer traceability. No refurbished, reconditioned, or grey-market units are offered — critical for retrofit projects requiring audit-compliant hardware provenance.

Expedited Global Logistics:
Understanding that retrofit and emergency replacement projects operate under compressed timelines, we maintain strategic inventory and offer expedited international shipping to minimize system downtime. DDP (Delivered Duty Paid) options available for key markets.

Technical Support for Legacy & Obsolete Hardware:
Our engineering support team specializes in legacy system compatibility analysis. Whether you need cross-reference verification, wiring diagram review, or guidance on integrating this unit into an existing obsolete control architecture, pre-sales and post-sales technical assistance is available.

Retrofit FAQ (Upgrade Guide)

Q1: Can the ABB CP-S2410.0 (1SVR320661R1000) physically replace my existing PSU without panel modification?
In the vast majority of cases, yes. The standard 35mm DIN rail mounting and compact footprint are designed to match the installation space of most legacy 24V/10A industrial power supplies. Terminal block positions and wire entry directions are compatible with common panel layouts. We recommend confirming enclosure depth clearance (>90mm) before installation.

Q2: How does this unit communicate with modern PLC or SCADA systems during a migration project?
The integrated DC-OK relay contact (volt-free, normally open) provides a hardware-level status signal that can be wired directly into any PLC digital input module or SCADA I/O card. This allows new supervisory systems to monitor legacy power supply health without requiring protocol converters or additional hardware — a key advantage for phased migration architectures.

Q3: What legacy systems is this unit confirmed compatible with as a retrofit power source?
The CP-S2410.0 has been successfully deployed as a retrofit power component in systems including: ABB Advant OCS/800xA field cabinets, Siemens S5/S7 control panels, Rockwell Allen-Bradley SLC/MicroLogix installations, Bently Nevada TSI power rails, and general-purpose 24V DC instrumentation loops. Its universal input and regulated output make it broadly compatible across platforms.

Q4: Can this unit support redundant power configurations in a legacy system upgrade?
Yes. The CP-S2410.0 supports parallel operation for N+1 redundancy. Two units can be connected in parallel using appropriate diode ORing modules to create a redundant 24V DC bus — a common requirement in critical infrastructure retrofit projects where zero-downtime power continuity is mandatory.

Q5: What is the expected service life improvement over the legacy PSU it replaces?
Switch mode technology delivers significantly longer MTBF compared to aging linear or older SMPS designs. The >89% efficiency reduces internal thermal stress — the primary cause of capacitor degradation in older units. In typical industrial environments, users report 3-5x improvement in mean time between failures compared to 10+ year old legacy supplies.

Q6: Are spare parts or backup units available for long-term retrofit project support?
Yes. We support long-term retrofit programs with reserved inventory agreements and multi-unit procurement packages. For facilities managing phased modernization over 2-5 year horizons, we offer project-based supply chain support to ensure consistent hardware availability throughout the migration lifecycle.
