ABB CI854BK01 3BSE069449R1 Service-Ready Spare Part

ABB CI854BK01 3BSE069449R1 Service-Ready Spare Part: Minimizing Downtime Risk in AC800M Control Systems

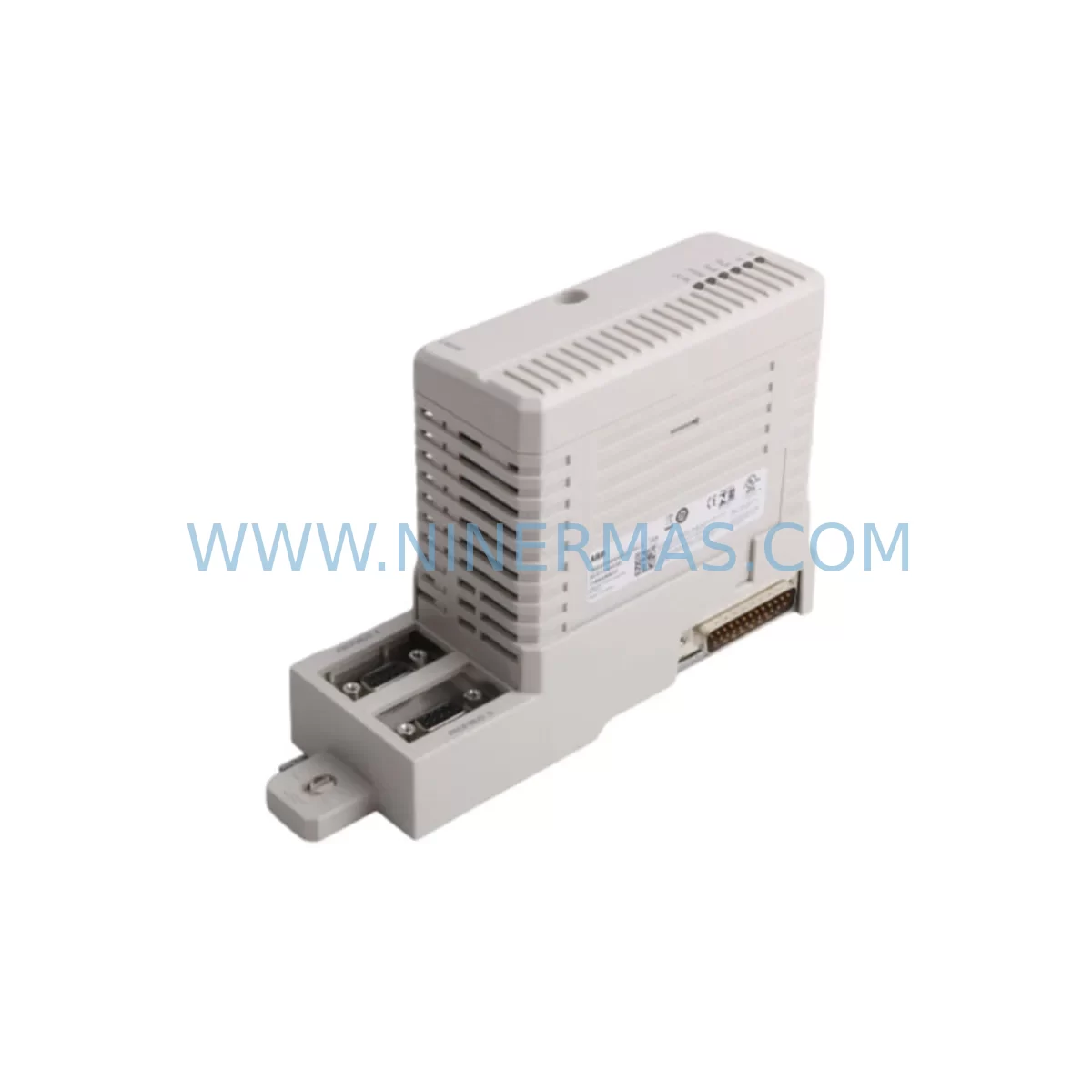

The ABB CI854BK01 (catalog reference 3BSE069449R1) is a PROFIBUS DP communication interface module designed for the ABB AC800M controller platform — one of the most widely deployed DCS/PLC architectures in process automation, power generation, oil & gas, and chemical manufacturing. When this module fails or degrades, the consequences extend beyond a single I/O channel: the entire PROFIBUS segment it manages goes offline, potentially isolating dozens of field devices, drives, and remote I/O stations from the controller. Maintaining a verified, service-ready spare of the CI854BK01 is therefore a critical element of any responsible maintenance strategy for AC800M-based control systems.

At NINERMAS, every CI854BK01 3BSE069449R1 unit is sourced from verified supply channels, inspected upon receipt, and tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our global logistics network supports rapid dispatch to maintenance teams across Asia, Europe, the Middle East, and the Americas — ensuring that a confirmed spare can reach your site before a planned outage window closes or an emergency shutdown extends.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The CI854BK01 does not operate in isolation. In a typical AC800M control cabinet, it works alongside a range of interdependent components whose condition directly affects the reliability of the PROFIBUS segment. When planning a replacement or conducting a scheduled inspection, maintenance engineers should simultaneously evaluate the following associated components:

The AC800M processor module (such as the PM864 or PM866) hosts the firmware that manages the CI854BK01’s communication stack — a processor with degraded memory or firmware corruption can cause intermittent PROFIBUS faults that are incorrectly attributed to the interface module itself. Alongside the processor, the TB807 or TB840 termination boards and backplane bus connectors should be inspected for oxidation or mechanical wear, as poor backplane contact is a common root cause of module communication errors.

On the fieldbus side, the PROFIBUS cable and bus termination resistors at both ends of the segment are critical. A missing or incorrect termination — particularly after a cable extension or device addition — will cause reflections that degrade communication quality across all devices on the segment, including remote I/O stations such as the ABB S800 I/O modules (AI810, AO810, DI810, DO810) connected downstream. These I/O modules should be checked for firmware version compatibility and channel-level diagnostics during any CI854BK01 replacement event.

The 24 VDC power supply modules feeding the controller rack and field device panels — such as the ABB SD831 or SD832 — should be load-tested during annual maintenance. An undersized or aging power supply can introduce voltage sag during high-communication-load periods, causing the CI854BK01 to generate spurious bus errors. Similarly, fuse blocks and circuit protection within the control cabinet should be verified to ensure that a field-side short circuit cannot propagate back to the controller backplane.

For systems using PROFIBUS PA segments in addition to DP, the DP/PA coupler or segment coupler (such as the Pepperl+Fuchs SK2 or equivalent) should be included in the inspection checklist, as its health directly affects the availability of field instruments — pressure transmitters, flow meters, and level sensors — that report through the CI854BK01’s bus segment.

Where the AC800M system integrates with an ABB Freelance or Symphony Plus DCS, the OPC server configuration and communication watchdog settings should be reviewed after any module swap to confirm that the new CI854BK01 is correctly recognized by the engineering workstation and that no address conflicts exist on the PROFIBUS network. Finally, signal isolators and surge protection devices on the PROFIBUS cable entry points should be inspected — particularly in plants with high electromagnetic interference from variable frequency drives or large motor starters — to prevent future module damage from transient overvoltage events.

Site Replacement Workflow

Replacing the CI854BK01 in an AC800M system is a structured process that, when executed correctly, can be completed within a planned maintenance window of 30 to 60 minutes without requiring a full system restart in most configurations.

Step 1 — Pre-replacement verification: Confirm the replacement unit’s part number (CI854BK01) and catalog reference (3BSE069449R1) match the installed module. Check the AC800M engineering tool (Control Builder M) to record the current PROFIBUS node addresses, baud rate setting, and GSD file assignments for all slave devices on the affected segment.

Step 2 — Segment isolation: In Control Builder M, set the PROFIBUS master to offline or diagnostic mode to prevent the controller from generating alarms during the swap. Notify the control room operator and confirm that the affected process loop is in manual or safe state before proceeding.

Step 3 — Module removal: Power down the controller rack if a hot-swap is not supported by the installed firmware version. Remove the CI854BK01 by releasing the module locking mechanism and sliding it out of the backplane slot. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit.

Step 4 — Replacement and configuration restore: Insert the new CI854BK01 into the same backplane slot. Power up the rack and allow the module to complete its self-test sequence (indicated by LED status). In Control Builder M, download the PROFIBUS configuration to the new module and verify that all slave devices return to online status with no diagnostic errors.

Step 5 — Functional verification: Confirm that all I/O channels on the PROFIBUS segment are reading correctly, that process values match field instrument readings, and that no persistent bus errors appear in the controller diagnostic log. Return the process loop to automatic control and document the replacement in the site maintenance management system.

This workflow is compatible with AC800M systems running firmware versions 5.x and 6.x. For older firmware versions, consult ABB’s AC800M Hardware Unit manual (document 3BSE036351) before proceeding.

Spare Parts Support FAQ

Q1: Is the CI854BK01 (3BSE069449R1) still available as a new original spare, or only as a refurbished unit?
NINERMAS supplies the CI854BK01 from verified stock that includes both new original and professionally refurbished units. All units — regardless of source condition — undergo functional testing before shipment and are covered by a 12-month warranty. The unit condition (new or refurbished) is confirmed at the time of order inquiry so that procurement engineers can make an informed decision based on budget and criticality requirements.

Q2: How do I confirm compatibility between the CI854BK01 and my specific AC800M processor version?
The CI854BK01 is compatible with the full range of AC800M PM8xx processor modules (PM851, PM856, PM860, PM861, PM864, PM866) and is supported by ABB Control Builder M engineering software. Compatibility is determined by the AC800M hardware generation and firmware version rather than the processor model number alone. If you provide your controller’s firmware version and hardware revision, our technical team can confirm compatibility before shipment.

Q3: What is included in the pre-shipment testing process, and how is the test result documented?
Each CI854BK01 unit is tested for PROFIBUS communication functionality, backplane interface integrity, and LED diagnostic response before dispatch. A test record is prepared for each unit and can be provided upon request. Units that do not pass functional verification are not shipped. This process ensures that the spare you receive is ready for immediate installation without requiring additional bench testing on site.

Q4: Can NINERMAS support long-term spare parts supply agreements for the CI854BK01 and other AC800M modules?
Yes. NINERMAS offers long-term supply arrangements for critical spare parts including the CI854BK01 and related AC800M components. These arrangements can include reserved stock allocation, priority dispatch for emergency orders, and scheduled replenishment aligned with your annual maintenance calendar. Long-term supply agreements are particularly valuable for plants operating aging AC800M systems where OEM availability is declining and lead times from standard distribution channels are extending.
