ABB CI854AK01 3BSE030220R1 Retrofit-Compatible Interface

ABB CI854AK01 3BSE030220R1 Retrofit-Compatible PROFIBUS Interface for Legacy AC800M Systems

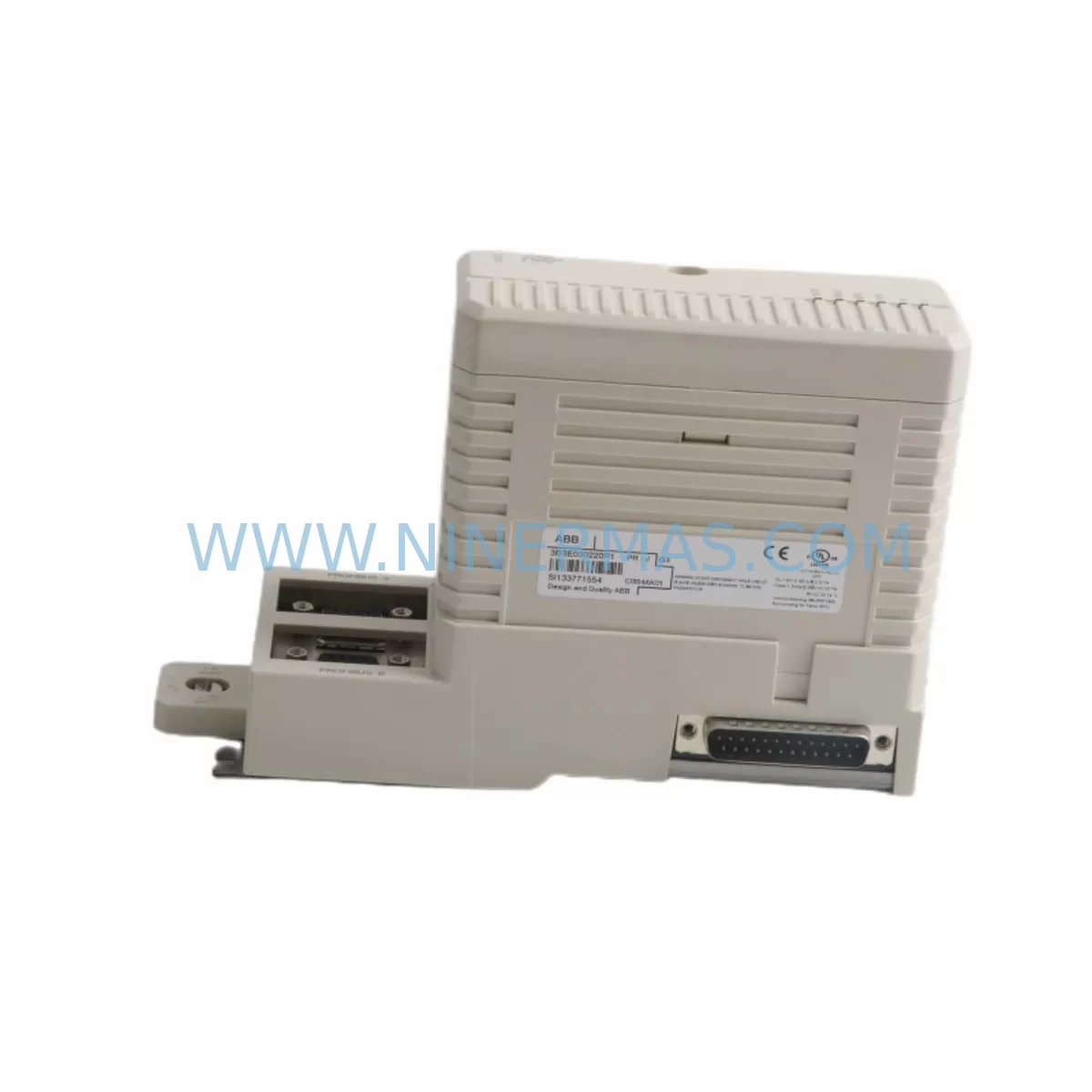

The ABB CI854AK01 (catalog reference 3BSE030220R1) is a PROFIBUS DP communication interface module designed for the AC800M controller platform. As industrial facilities face increasing pressure to extend the operational life of existing DCS and PLC infrastructure, the CI854AK01 has become a critical component in legacy system preservation, control cabinet upgrades, and phased migration projects. NINERMAS maintains verified stock of this module with full functional testing and a 12-month warranty, supporting customers who require a reliable, drop-in retrofit solution without committing to a full platform replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When a facility operates an AC800M-based control system that relies on PROFIBUS DP for field device communication — including remote I/O stations, variable frequency drives, valve positioners, and intelligent field instruments — the CI854AK01 is typically the first module to be evaluated during a retrofit assessment. Its role is to maintain the PROFIBUS DP master function within the controller rack, ensuring that all downstream S800 I/O modules such as the AI810, AO810, DI810, and DO810 continue to receive scan cycles without interruption.

In practice, retrofit planning for a CI854AK01 replacement begins with a full audit of the existing PROFIBUS segment. Engineers must document the number of DP slaves on the segment, their GSD files, station addresses, and baud rate settings. The CI854AK01 supports baud rates up to 12 Mbit/s, and in most legacy installations the segment operates at 1.5 Mbit/s or 500 kbit/s — both of which are fully supported by the replacement module without any reconfiguration of the field devices.

The physical installation requires the controller to be powered down or the specific rack slot to be isolated, depending on whether the AC800M system supports hot-swap at the module level. After seating the CI854AK01 in the correct slot, the engineer must open Control Builder M, navigate to the hardware configuration, and re-assign the module to its hardware unit. If the previous module was a CI854A or CI854B revision, the hardware unit type must be updated to reflect the AK01 revision. The application program itself does not require modification — only the hardware configuration layer needs to be refreshed and re-downloaded to the PM8xx controller module.

For systems that also include a CI857K01 Modbus TCP interface or a CI858K01 DeviceNet interface in adjacent slots, the retrofit team must verify that the module address table in Control Builder M remains consistent after the CI854AK01 is re-registered. In multi-rack configurations using TB807 or TB840A termination boards, the backplane bus continuity must be confirmed before powering up. Where the control cabinet also houses an ABB Panel 800 HMI or a third-party SCADA terminal connected via OPC, the HMI tag database should be validated after the module swap to confirm that all PROFIBUS-sourced process values are updating correctly.

For facilities that are simultaneously planning an I/O expansion — for example, adding new AI810 analog input modules or DI810 digital input modules to an existing S800 I/O station — the CI854AK01 replacement provides an ideal checkpoint to review the overall PROFIBUS segment load and confirm that the new I/O addresses do not conflict with existing slave assignments.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a CI854AK01 module swap on a live production system. NINERMAS recommends a structured pre-swap preparation process that begins at least 48 hours before the scheduled maintenance window. This includes exporting the full Control Builder M project backup, documenting all PROFIBUS slave addresses and GSD configurations, photographing the existing wiring at the D-sub connector, and confirming that a tested replacement CI854AK01 unit is on-site and verified.

During the maintenance window, the recommended sequence is: initiate a controlled shutdown of the affected PROFIBUS segment, record all current process values and controller outputs for post-restart verification, remove the faulty or end-of-life CI854AK01, install the replacement unit, restore the hardware configuration in Control Builder M, re-download the application, and perform a staged restart of the PROFIBUS segment before returning the process to automatic control. This sequence typically requires between 45 minutes and 2 hours depending on the complexity of the PROFIBUS network and the number of DP slaves that must be re-initialized.

For facilities that cannot tolerate even a brief interruption to the control loop, a parallel commissioning approach can be used: the replacement CI854AK01 is pre-configured in a test rack alongside a PM856 or PM864 controller module, the application is loaded and verified offline, and the physical swap is reduced to a hot-transfer of the pre-tested module. This approach is particularly effective in continuous process industries such as chemical, pharmaceutical, and power generation, where the cost of an unplanned trip far exceeds the cost of additional engineering preparation time.

After the module swap, the commissioning engineer should verify that all PROFIBUS DP slaves have returned to data exchange state (green LED on the CI854AK01 DP port), that all S800 I/O channels are reading correctly in the HMI, and that no diagnostic alarms are active in the controller event log. A 30-minute observation period under normal operating conditions is recommended before the maintenance window is formally closed.

Retrofit Support FAQ

Q1: Is the CI854AK01 (3BSE030220R1) a direct replacement for the CI854A and CI854B?
Yes. The CI854AK01 is the current hardware revision of the CI854 PROFIBUS DP interface family and is a direct physical and functional replacement for the CI854A and CI854B. The module occupies the same rack slot, uses the same D-sub PROFIBUS connector, and supports the same GSD-based slave configuration. The only required action after installation is to update the hardware unit type in Control Builder M and re-download the hardware configuration to the controller.

Q2: Does the CI854AK01 require any wiring changes when replacing a legacy CI854A in an existing control cabinet?
No wiring changes are required. The CI854AK01 uses the same 9-pin D-sub PROFIBUS DP connector as all previous CI854 revisions. Existing field cables, bus termination resistors, and cable shields can be reconnected directly to the replacement module without modification. If the existing cable is a standard PROFIBUS cable (IEC 61158-2 compliant), no additional hardware is needed.

Q3: What pre-shipment testing does NINERMAS perform on the CI854AK01?
Each CI854AK01 unit supplied by NINERMAS undergoes a full functional test prior to shipment. This includes power-on verification, PROFIBUS DP communication test with a live DP slave device, and firmware version confirmation. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions.

Q4: Can NINERMAS supply the CI854AK01 for urgent breakdown situations, and what is the typical lead time?
Yes. NINERMAS maintains inventory of the CI854AK01 (3BSE030220R1) for immediate dispatch. For urgent breakdown orders, same-day or next-day shipment is available subject to stock confirmation at the time of order. Customers are encouraged to contact the sales team directly to confirm availability and arrange expedited logistics. For planned maintenance projects, NINERMAS can also provide advance reservation of stock to guarantee availability on the required date.
