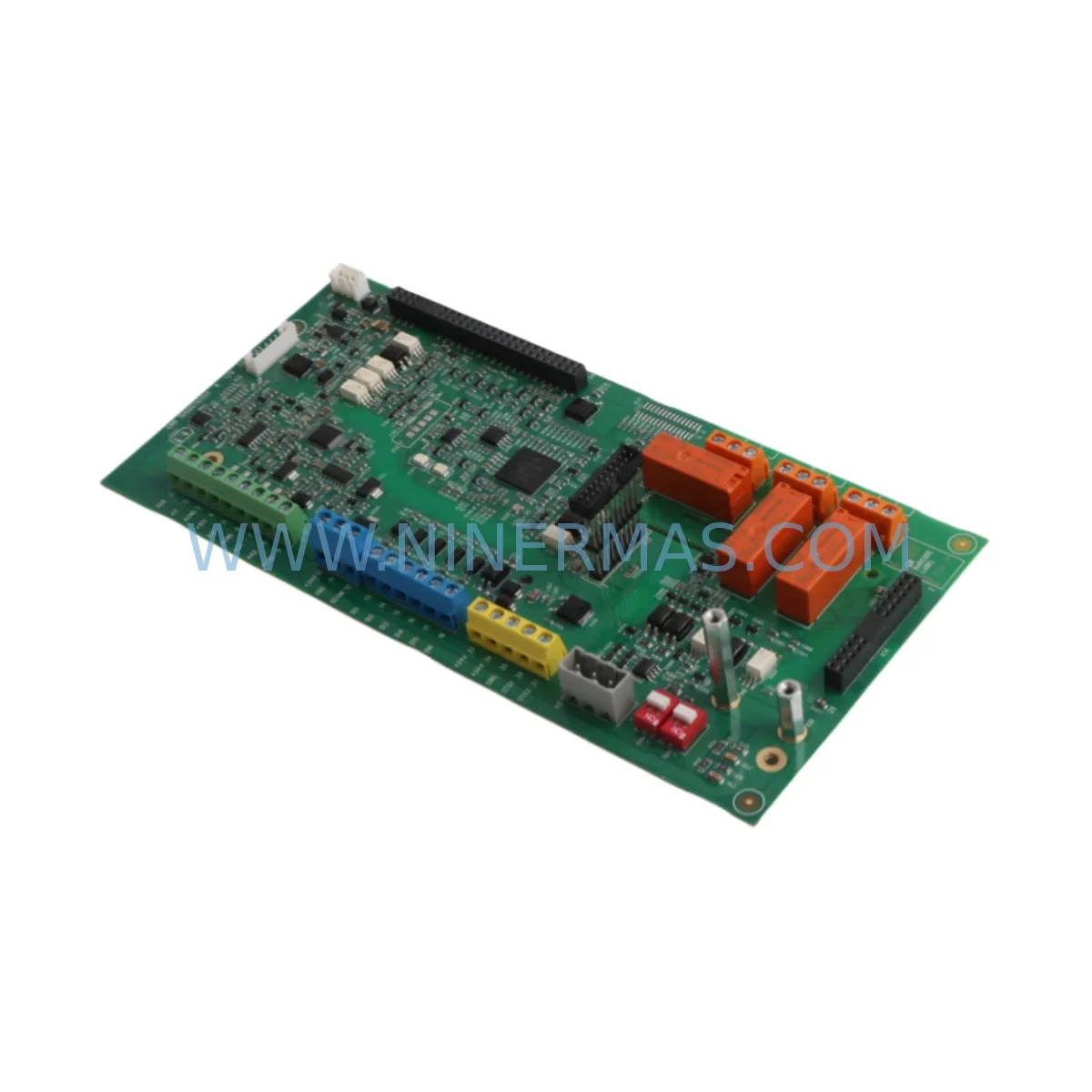

The ABB CCON-23 10000110155 is an original PCB communication card designed for use in ABB industrial drive and automation systems. As a critical interface component within the control architecture, this card manages communication between the drive control unit and external fieldbus or I/O networks. When this module fails or degrades, it can cause immediate production stoppages, loss of process visibility, and extended unplanned downtime. Sourcing a verified, pre-tested replacement from a reliable spare parts supplier is the fastest path to restoring full system operation.

At NINERMAS, every ABB CCON-23 10000110155 unit is inspected and functionally tested prior to shipment. We maintain dedicated stock of this part to support emergency replacement, scheduled maintenance shutdowns, and long-term spare parts inventory programs. Our 12-month warranty covers all tested spare parts, giving maintenance engineers and procurement teams confidence in every order.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB CCON-23 10000110155 communication card, a thorough inspection of the surrounding control cabinet is strongly recommended. Maintenance engineers should treat this replacement as an opportunity to audit the full drive control section and associated electrical circuits to prevent secondary failures and reduce the risk of repeat downtime.

Begin by verifying the 24 VDC logic power supply feeding the drive control board — a degraded or noisy power supply is a common root cause of communication card failures. Inspect the ABB SDCS-CON or equivalent drive control board for signs of thermal stress or capacitor aging. Check all fieldbus wiring and terminal blocks connected to the CCON-23 slot; loose or corroded connections on PROFIBUS DP or Modbus RTU lines can cause intermittent communication faults that damage the card over time.

Review the I/O module assignments and signal wiring connected to the drive. ABB RDIO or RAIO I/O extension modules installed in the same drive should be inspected for proper seating and connector integrity. If the drive is part of a larger DCS or PLC network, verify that the communication adapter settings — baud rate, node address, and protocol parameters — are correctly configured after card replacement to avoid network conflicts.

For drives integrated with ABB Panel Bus or DDCS fiber optic communication links, inspect the fiber connectors and optical transceivers for contamination or physical damage. The ABB NDBU-95 or NDBU-85 branching unit, if present in the system, should also be checked for proper operation. Additionally, inspect the drive’s main control board fuses and any surge protection devices on the signal lines to ensure the replacement card is not immediately exposed to transient overvoltages.

In cabinet-level maintenance, check the ABB ACS or ACH drive’s cooling fan module and heat sink for dust accumulation, as thermal overload is a leading cause of PCB card degradation. Verify that the drive’s firmware version is compatible with the CCON-23 10000110155 hardware revision. If the system includes an ABB ACS800 or ACS880 with a panel-mounted HMI (such as the CDP312R or ACS-AP-I assistant control panel), confirm that the HMI communication link is restored and functioning after the card swap.

For facilities running long-lifecycle systems, consider establishing a minimum stock level of one spare CCON-23 10000110155 per critical drive line. Pairing this with a scheduled inspection of relay output modules, signal isolators, and 24 VDC distribution fuse terminals will significantly reduce the probability of unplanned outages during peak production periods.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow LOTO (Lockout/Tagout) procedures. De-energize the drive and wait for the DC bus to fully discharge before opening the control section.

Step 2 — Document Current Configuration: Record all parameter settings, fieldbus node addresses, and I/O assignments from the drive’s HMI or commissioning software (ABB Drive Composer or DriveWindow) before removing the faulty card.

Step 3 — Remove Faulty Card: Carefully unseat the CCON-23 10000110155 from its slot. Inspect the connector pins and slot contacts for corrosion or mechanical damage.

Step 4 — Install Replacement Card: Insert the new CCON-23 10000110155 firmly into the slot. Ensure all locking clips or retaining screws are secured.

Step 5 — Restore Parameters: Re-enter or upload the saved parameter set. Verify fieldbus communication is re-established and all I/O signals are responding correctly.

Step 6 — Functional Test: Run the drive at low speed under no-load conditions to confirm stable communication and correct operation before returning to full production.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement card is validated before the line resumes full operation. NINERMAS supplies the ABB CCON-23 10000110155 with a pre-shipment test report available on request, reducing on-site commissioning risk.

Spare Parts Support FAQ

Q1: Is the ABB CCON-23 10000110155 supplied as an original part?
Yes. All units supplied by NINERMAS are original ABB spare parts sourced through verified industrial supply channels. Each unit undergoes pre-shipment functional testing, and a test report is available upon request.

Q2: What is the warranty coverage for this spare part?
NINERMAS provides a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance from our engineering team.

Q3: Can I order multiple units for long-term inventory stock?
Yes. NINERMAS supports blanket orders and stock commitment programs for the ABB CCON-23 10000110155. This is recommended for facilities operating multiple ABB drives or managing lifecycle extension programs for aging automation systems. Contact our team to discuss fixed lead times and volume pricing.

Q4: How do I confirm compatibility before ordering?
Provide your drive model number, existing card part number, and firmware version to our technical team at sale@ninermas.com. We will verify compatibility against the ABB drive documentation and confirm the correct replacement before shipment.
