ABB Bailey NKTU02-30 Service-Ready Spare Part for Industrial Maintenance

ABB Bailey NKTU02-30 Service-Ready Spare Part for Industrial Maintenance

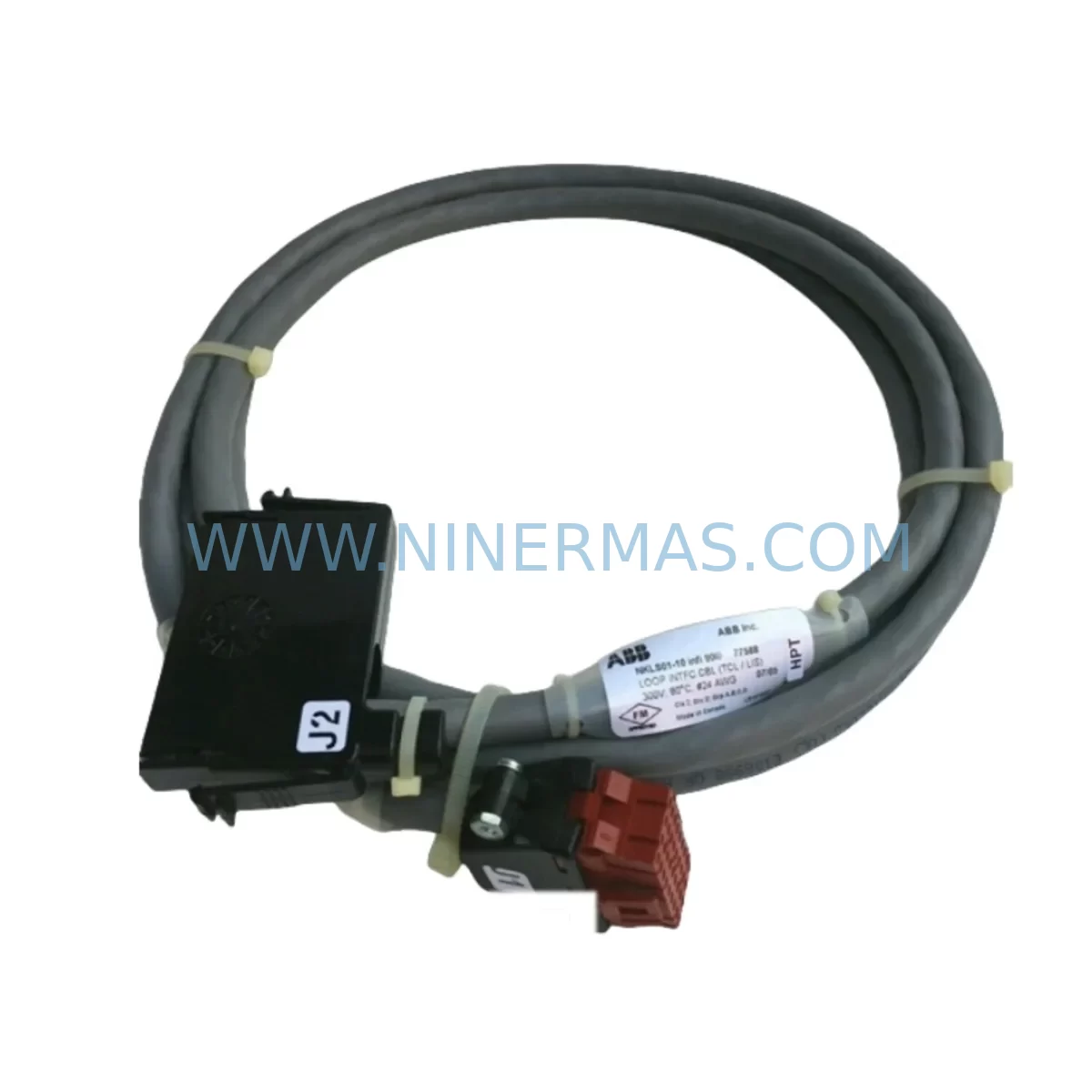

The ABB Bailey NKTU02-30 is a ruggedized termination unit module engineered for demanding industrial environments where signal integrity, electrical isolation, and long-term reliability are non-negotiable. As a critical interface component within the ABB Bailey Series control architecture, the NKTU02-30 serves as the field-side termination point for I/O wiring, bridging field instrumentation signals to the Bailey INFI 90 or Network 90 distributed control system (DCS) backplane. When this module fails or degrades, the consequences extend far beyond a single I/O channel — entire process loops can go blind, safety interlocks may become unreliable, and unplanned downtime can cascade across production lines.

At NINERMAS, we stock the NKTU02-30 as a tested, service-ready spare part, fully inspected before shipment and backed by a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times when a critical DCS component fails mid-shift. Whether you are managing a planned annual shutdown, responding to an emergency fault, or building a strategic spare parts buffer for aging Bailey systems, the NKTU02-30 we supply is ready to install.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the NKTU02-30 in a Bailey DCS cabinet is rarely an isolated task. Experienced maintenance engineers understand that a termination unit failure is often a symptom of broader wiring, power, or environmental stress affecting the entire I/O subsystem. When scheduling a replacement of this module, a thorough site inspection should encompass the following associated components to prevent repeat failures and ensure full loop restoration.

Begin with the paired ABB Bailey IMASI23 or IMASI03 analog input module that connects directly to the NKTU02-30 via the I/O cable assembly. Verify that the ribbon cable or field cable connecting the termination unit to the I/O module shows no signs of insulation breakdown, pin corrosion, or mechanical stress. Next, inspect the NKTU02-30’s terminal screws for proper torque — loose terminations are a leading cause of intermittent 4–20 mA signal drift in process control loops.

Check the Bailey INFI 90 power supply module (such as the NKPS02 or equivalent 24 VDC field power supply) that energizes the field instruments wired through this termination unit. A degraded power supply delivering marginal voltage will cause erratic readings even after a clean termination unit replacement. Similarly, inspect the IMFEC12 or IMFEC08 fieldbus or communication interface module upstream in the same I/O rack to confirm that data transmission to the operator station remains stable.

For loops involving temperature measurement, verify the condition of any signal isolators or signal conditioners installed between the thermocouple or RTD transmitters and the termination unit. Brands such as Phoenix Contact MINI MCR or Pepperl+Fuchs KFD series isolators are commonly found in Bailey DCS installations and should be tested for drift or output offset. If the control cabinet houses relay output modules such as the ABB Bailey IMRLY02, inspect the relay contacts for wear, especially in high-cycle discrete output applications.

During the same maintenance window, audit the DCS backplane and module card cage for dust accumulation, loose module seating, and any signs of moisture ingress — particularly in coastal or high-humidity plant environments. The NKTU02-30 is rated for ruggedized use, but the I/O modules it serves may be more sensitive to environmental contamination. Check that all fuse holders and fuse blocks on the field power distribution rail are intact and that fuse ratings match the loop design specifications. Blown or degraded fuses on the 24 VDC field power rail are a common cause of unexplained I/O failures that are misdiagnosed as termination unit faults.

Finally, if the plant operates an HMI or operator workstation connected to the Bailey Network 90 system, confirm that the I/O channel associated with the replaced NKTU02-30 is correctly mapped in the control database and that the engineering workstation reflects the restored signal after commissioning. For older Bailey systems approaching end-of-life, this replacement is also an appropriate time to evaluate whether IMCPM05 or IMCPM10 processor modules and associated communication cards require firmware review or spare unit pre-positioning.

Site Replacement Workflow

Replacing the NKTU02-30 on a live Bailey DCS system requires a structured approach to minimize loop disruption and ensure safe, verified restoration. Follow this workflow to achieve the fastest possible return to normal operation:

Step 1 — Isolation and Documentation: Before removing the existing termination unit, photograph or document all field wiring connections at the terminal block. Label each wire with its loop tag and terminal number. Place the associated I/O module in manual or bypass mode at the DCS operator station to prevent false alarms or spurious outputs during the swap.

Step 2 — Module Removal: Loosen all terminal screws and carefully remove field wiring. Disconnect the I/O cable assembly linking the NKTU02-30 to the paired I/O module. Remove the termination unit from its mounting rail or panel position, noting any mechanical alignment features.

Step 3 — Inspection of Mating Surfaces: Before installing the replacement NKTU02-30, inspect the I/O cable connector pins and the mounting rail for corrosion or mechanical damage. Clean contact surfaces with appropriate electrical contact cleaner if required.

Step 4 — Installation and Wiring: Mount the new NKTU02-30 and reconnect the I/O cable assembly. Re-terminate all field wiring according to the documented loop schedule, torquing terminal screws to the manufacturer’s specification (typically 0.5–0.6 Nm for this terminal class). Verify wire insulation integrity and confirm no cross-terminations.

Step 5 — Loop Verification: Restore the I/O module to automatic mode at the DCS. Inject a known test signal (e.g., 4 mA and 20 mA for analog loops) from the field instrument or a loop calibrator and confirm that the DCS operator station displays the correct engineering unit value. Check for any active alarms or diagnostic messages on the associated I/O module.

Step 6 — Documentation and Spare Parts Update: Record the replacement in the plant maintenance management system (CMMS), update the spare parts inventory to reflect consumption of one NKTU02-30 unit, and initiate a replenishment order to maintain your minimum stock level. For plants with multiple Bailey DCS cabinets, consider stocking a minimum of two NKTU02-30 units per cabinet cluster to support rapid response to future failures.

Spare Parts Support FAQ

Q1: Is the NKTU02-30 you supply an original ABB Bailey part or a compatible replacement?
The NKTU02-30 we supply is an original ABB Bailey spare part sourced from authorized channels and surplus industrial inventories. Each unit undergoes functional inspection and testing before shipment. We do not supply counterfeit or reverse-engineered substitutes. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility with my existing Bailey DCS system before ordering?
The NKTU02-30 is designed for use within the ABB Bailey INFI 90 and Network 90 DCS I/O subsystems. Compatibility is determined by the paired I/O module type and the I/O cable assembly used in your installation. Please provide your existing I/O module part number and cabinet configuration when contacting us, and our technical team will confirm compatibility before shipment. We can also cross-reference your plant’s spare parts list or maintenance records to verify fit.

Q3: What is your lead time and how do you handle urgent or emergency orders?
The NKTU02-30 is maintained in stock at our warehouse and ships within 1–3 business days under standard conditions. For emergency plant shutdowns or critical production stoppages, we offer expedited processing and can arrange express international freight. Contact us directly at sale@ninermas.com or +0086 187 5021 5667 to discuss urgent requirements. We understand that every hour of unplanned downtime has a direct cost, and we prioritize emergency spare part requests accordingly.

Q4: Do you support long-term supply agreements for obsolete or end-of-life Bailey components?
Yes. Many ABB Bailey INFI 90 and Network 90 components are no longer in active production, making long-term supply continuity a critical concern for plant operators running legacy DCS systems. NINERMAS maintains strategic inventory of hard-to-find Bailey spare parts and can support blanket purchase orders, annual supply agreements, and consignment stock arrangements for qualified customers. We also provide condition reports and test documentation for each unit supplied, supporting your quality assurance and maintenance audit requirements.
