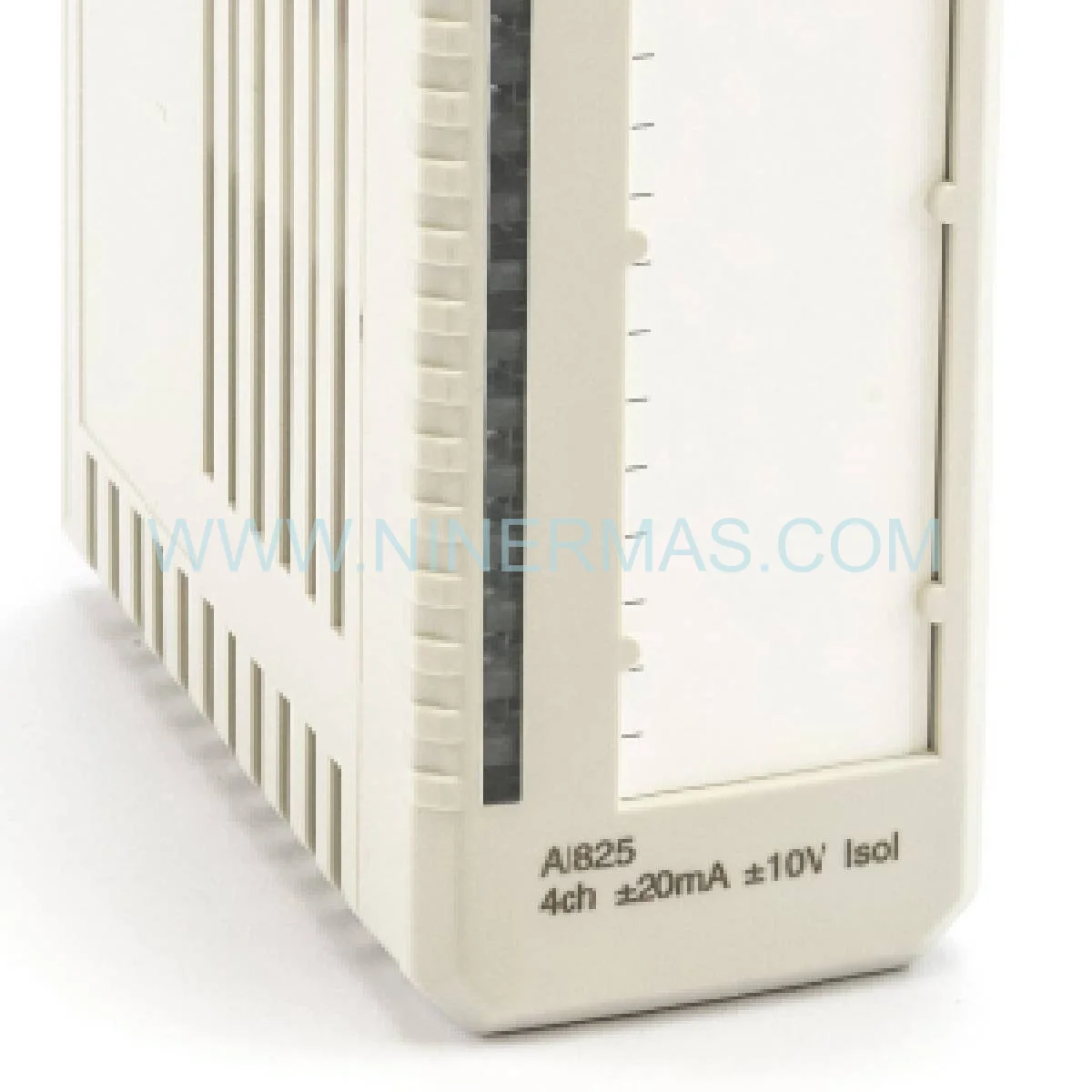

ABB AI825 3BSE036456R1 | 4-Ch Isolated Analog Input S800 I/O

ABB AI825 3BSE036456R1 Analog Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the ABB AI825 3BSE036456R1 represents a cornerstone component within ABB’s S800 I/O platform — a Distributed Control System (DCS) hardware family engineered for mission-critical Process Control environments. This 4-channel galvanically isolated analog input module serves as the primary signal acquisition interface between field instrumentation and the AC 800M controller, enabling precise measurement of current and voltage signals across petrochemical, power generation, and advanced manufacturing facilities. Its role in DCS Hardware architecture is not merely functional; it is foundational.

What distinguishes the ABB AI825 3BSE036456R1 from generic alternatives is its deep integration with the ModuleBus Fieldbus architecture and its compatibility with HART-enabled smart transmitters. Unlike third-party substitutes that may introduce signal drift or protocol mismatches, this module delivers 14-bit resolution with ±0.1% full-scale accuracy — a specification that directly impacts process yield and safety margins in regulated industries. For engineers managing Legacy Components within aging DCS installations, this level of technical compatibility is non-negotiable.

Original stock of this module is increasingly scarce. As ABB continues to evolve its automation portfolio, Factory Sealed units of the AI825 3BSE036456R1 represent a finite and diminishing supply — making immediate procurement a strategic priority for maintenance teams responsible for system uptime and regulatory compliance.

Key Technical Highlights

4 Galvanically Isolated Channels — 250V AC channel-to-bus isolation eliminates ground loop interference in electrically noisy plant environments
Dual Input Mode — Configurable per channel: -20 to +20 mA or -10 to +10 V, supporting diverse field transmitter types without additional signal conditioners
14-Bit + Sign Resolution — ±8191 counts per channel delivers high-fidelity signal acquisition for tight process control loops requiring Stability and precision
10 ms Update Rate — Per-channel-group scan cycle supports High-speed process monitoring in fast-response applications such as compressor surge control
Redundancy-Ready Architecture — Designed for hot-swap replacement within live S800 I/O racks, supporting Redundancy strategies without process interruption
Extended Temperature Range — Operates reliably from -40°C to +70°C, qualifying for outdoor enclosures and harsh industrial zones
ModuleBus & Fieldbus Compatible — Native integration with ABB AC 800M via S800 ModuleBus; supports HART pass-through for smart device diagnostics

Vertical Industry Applications

Petrochemical & Refining: Deployed in crude distillation units and reactor temperature monitoring loops, the AI825 3BSE036456R1 provides the signal integrity required for safe process operation. Its galvanic isolation prevents common-mode interference from high-voltage motor drives from corrupting critical measurement data — directly reducing unplanned shutdowns.

Mining & Mineral Processing: In ore processing plants where vibration, dust, and electrical noise are constant challenges, this module’s robust isolation and wide operating temperature range ensure continuous analog signal acquisition from pressure and flow transmitters, minimizing costly conveyor and crusher downtime.

Marine & Offshore Platforms: Offshore DCS installations demand components certified for harsh environments. The AI825 3BSE036456R1’s compact form factor and galvanic isolation make it suitable for engine room automation and ballast control systems, where signal reliability directly impacts vessel safety.

Power Generation: Turbine control and boiler management systems rely on precise analog inputs for fuel flow, steam pressure, and exhaust temperature monitoring. This module’s 14-bit resolution supports the tight control tolerances required by modern combined-cycle power plants.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the AI825 3BSE036456R1 for level transmitter interfacing and flow measurement in dosing systems, where accurate analog data acquisition is essential for regulatory compliance and chemical efficiency.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the ABB AI825 3BSE036456R1 supplied through our inventory is 100% Original — sourced directly from authorized distribution channels and verified against ABB’s genuine part specifications. We do not supply refurbished, remarked, or counterfeit components. Each module ships in its original Factory Sealed packaging with full traceability documentation available upon request.

Our 12-Month Comprehensive Warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams and maintenance engineers with the confidence required for long-term asset planning. For Emergency Repair scenarios — where production line downtime translates directly to revenue loss — we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for in-stock units. Global delivery to over 150 countries ensures that no matter where your facility is located, critical DCS Hardware reaches you when it matters most.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that the ABB AI825 3BSE036456R1 I receive is a genuine original part?
A: Authentic units feature ABB’s holographic label with the full part number AI825 3BSE036456R1 printed on both the module body and the original packaging. The PCB should display ABB’s internal revision markings. We provide a Certificate of Authenticity and, upon request, can share incoming inspection photos before shipment. If you have access to an ABB AC 800M system, the module’s firmware version and hardware revision can be verified via Control Builder Plus diagnostics after installation.

Q2: Where can I obtain the official datasheet for the AI825 3BSE036456R1?
A: The official product datasheet (document reference 3BSE036456R1) is available through ABB’s Library portal. We can also provide a copy of the technical specification sheet with your order confirmation. Our technical team is available to walk you through key parameters relevant to your specific application — simply contact us with your system configuration details.

Q3: Is the AI825 3BSE036456R1 compatible with all versions of the ABB AC 800M controller?
A: The AI825 3BSE036456R1 is compatible with AC 800M controllers running firmware version 5.0 and above, when used with S800 I/O Module Base Units. Compatibility with earlier firmware versions depends on the specific hardware revision of the module. We recommend confirming your AC 800M firmware version and S800 base unit type before ordering. Our engineering team can assist with compatibility verification at no charge.

Q4: Can this module be used as a direct replacement for an EOL (End-of-Life) analog input module in an existing DCS installation?
A: Yes. The AI825 3BSE036456R1 is a hot-swappable module within the S800 I/O architecture, meaning it can be replaced without shutting down the entire control system — a critical advantage for Emergency Repair situations. Configuration parameters are stored in the AC 800M controller, so the replacement module will automatically adopt the correct channel settings upon insertion, minimizing reconfiguration time.

Q5: What is the typical lead time for the ABB AI825 3BSE036456R1, and do you offer emergency delivery?
A: For in-stock units, same-day dispatch is available with delivery to most global destinations within 2-5 business days via DHL/FedEx/UPS express services. For units requiring sourcing, lead times typically range from 3-10 business days depending on regional availability. We specialize in emergency procurement for critical Process Control and DCS Hardware components — contact us directly for urgent requirements and we will provide a committed delivery timeline within 2 hours.

Q6: Is the AI825 3BSE036456R1 classified as a Critical Part for Industry Safety systems?
A: While the AI825 3BSE036456R1 is primarily designed for standard DCS applications, it is widely deployed in Safety Instrumented System (SIS) adjacent architectures where analog signal integrity is critical to process safety. For SIS-certified applications, please consult ABB’s functional safety documentation and confirm SIL rating requirements with your system integrator. We can supply documentation packages to support your safety case review.
