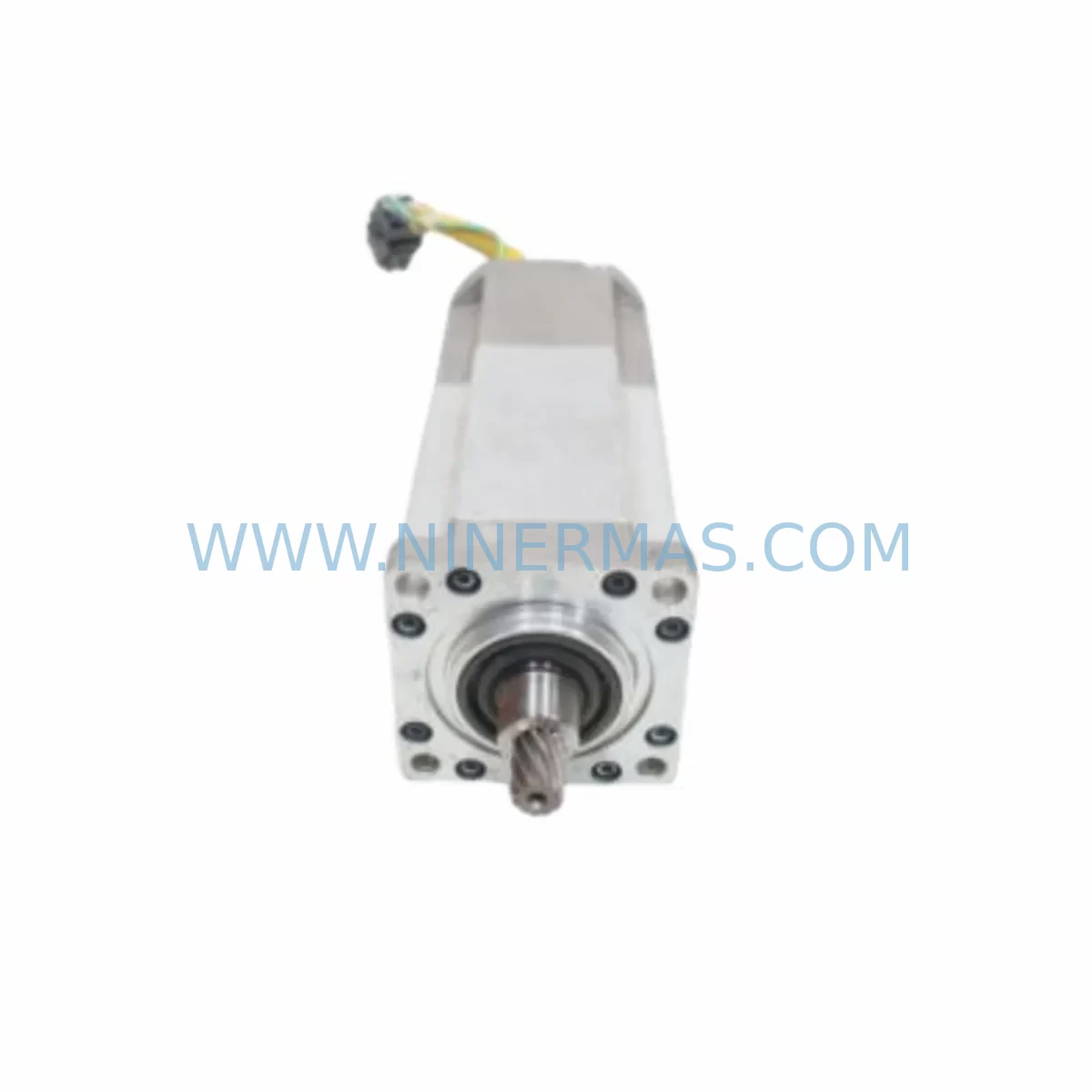

The ABB 3HNP04378-1 is a ruggedized servo motor module engineered for demanding industrial environments where vibration, dust, moisture, and thermal stress are constant operational realities. As a critical motion control component within ABB’s robotics and automation ecosystem — most commonly deployed in IRC5 robot controller cabinets and associated drive systems — this module plays a central role in maintaining axis precision, torque delivery, and positional feedback integrity across continuous production cycles.

For maintenance engineers managing aging automation lines or planning scheduled overhauls, sourcing a verified, service-ready replacement for the 3HNP04378-1 is not merely a procurement task — it is a direct risk mitigation strategy. Unplanned servo failures account for a significant share of unscheduled downtime in robotic welding, material handling, and assembly applications. Keeping this module in your spare parts inventory eliminates the lead-time gap that turns a two-hour fault into a two-day production loss.

NINERMAS supplies the ABB 3HNP04378-1 as a fully tested, OEM-specification spare part backed by a 12-month warranty, with pre-shipment electrical verification and documented inspection records available upon request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a servo motor module like the ABB 3HNP04378-1 is flagged for replacement — whether through predictive diagnostics, fault code analysis, or physical inspection during a scheduled shutdown — experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough cabinet inspection and system audit conducted in parallel with the servo swap will prevent repeat failures and extend the interval before the next intervention.

Begin with the ABB DSQC series drive units that interface directly with the servo module. Drive boards accumulate thermal stress over time, and a degraded drive can cause premature failure in a newly installed servo module. Inspect capacitor banks, gate driver circuits, and cooling fan operation before closing the cabinet.

Next, verify the integrity of the servo feedback cables and resolver/encoder wiring harnesses. Ruggedized environments accelerate insulation breakdown, particularly at cable entry points and bend radii near moving robot axes. A marginal cable that passes continuity testing may still introduce intermittent position errors under vibration — replace any cable showing cracking, abrasion, or connector corrosion.

The ABB 3HAC series power supply modules supplying the drive section should be load-tested during the maintenance window. An under-voltage condition at the drive bus is a common root cause of servo module stress and premature failure. If the power supply is approaching its rated service life or shows output ripple beyond specification, schedule its replacement alongside the 3HNP04378-1.

For systems using ABB DSQC 661 or DSQC 662 I/O modules, confirm that all digital output channels controlling servo enable, brake release, and safety interlock signals are functioning within specification. A stuck or slow-responding I/O channel can cause the servo module to receive conflicting enable/disable commands, leading to fault conditions that are often misdiagnosed as servo hardware failure.

Inspect the terminal blocks and bus bar connections within the IRC5 cabinet. Loose or oxidized power terminals are a leading cause of intermittent drive faults in high-vibration environments. Torque all connections to specification and apply anti-oxidation compound where appropriate.

If the robot system includes an ABB DSQC 693 or similar communication module for DeviceNet, PROFIBUS, or EtherNet/IP connectivity, verify that the fieldbus link to the PLC or DCS remains stable after the servo replacement. A communication timeout during axis homing or program execution can trigger safety stops that are incorrectly attributed to the new servo module.

For older installations, check the condition of the ABB 3HAC backplane and axis computer boards. These components manage the real-time servo loop and are sensitive to power quality and thermal cycling. If the axis computer is logging memory errors or watchdog resets, address this before returning the robot to production.

Finally, review the status of any installed signal isolators and surge protection devices on the I/O and feedback signal lines. In environments with heavy welding equipment or variable-frequency drives nearby, induced transients can degrade servo module electronics over time. Replacing worn surge suppressors as part of the maintenance cycle is a low-cost measure that protects high-value components like the 3HNP04378-1.

Site Replacement Workflow

Replacing the ABB 3HNP04378-1 in the field follows a structured sequence designed to minimize downtime and ensure system compatibility from the first power-on after installation.

Step 1 — Fault Confirmation: Before ordering or installing a replacement, confirm the fault is isolated to the servo module. Use the IRC5 FlexPendant or RobotStudio to retrieve active fault codes. Cross-reference with ABB’s fault code documentation to distinguish servo module faults from drive, cable, or axis computer issues.

Step 2 — Safe Isolation: De-energize the robot controller following lockout/tagout procedures. Discharge the drive bus capacitors per ABB’s service manual — do not rely solely on the power-off indicator. Verify zero voltage at the drive terminals before proceeding.

Step 3 — Module Removal: Document all cable connections with photographs before disconnection. Label each connector if not already marked. Remove the module following the mechanical disassembly sequence in the ABB service documentation for your specific robot model.

Step 4 — Compatibility Verification: Confirm the replacement 3HNP04378-1 matches the revision level and hardware configuration of the removed unit. Check the serial number and any hardware jumper or DIP switch settings that may be model-specific.

Step 5 — Installation and Commissioning: Install the new module, reconnect all cables in reverse order, and restore power. Perform a controlled axis test at reduced speed before returning to full production speed. Monitor drive temperature and fault logs for the first 30 minutes of operation.

This workflow applies equally to emergency breakdown replacements and planned maintenance swaps, and is compatible with both new and refurbished-to-spec units supplied by NINERMAS.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ABB 3HNP04378-1 supplied by NINERMAS?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Units that fail within the warranty period are replaced or refunded following a brief technical review. Warranty claims are processed directly through NINERMAS without requiring involvement from the original equipment manufacturer.

Q2: How do I confirm compatibility between the 3HNP04378-1 and my specific robot model or controller revision?
Provide your robot serial number, controller type (IRC5 single or dual cabinet), and the software version displayed on the FlexPendant when contacting NINERMAS. Our technical team will cross-reference the part against ABB’s compatibility matrix and confirm suitability before shipment. For S4C+ installations, additional revision verification may be required.

Q3: Can NINERMAS support long-term or blanket purchase orders for MRO inventory programs?
Yes. NINERMAS supports scheduled delivery agreements, consignment stock arrangements, and project-based bulk procurement for the ABB 3HNP04378-1 and related spare parts. Long-term supply agreements include priority allocation, fixed pricing for the contract period, and dedicated account management. Contact our sales team to discuss your annual consumption volume and delivery requirements.

Q4: What pre-shipment testing is performed on each unit?
Every ABB 3HNP04378-1 dispatched by NINERMAS undergoes electrical continuity testing, insulation resistance measurement, and functional verification of servo response characteristics. Test records are available upon request and can be included with the shipment documentation for quality assurance purposes. Units that do not meet OEM specification thresholds are quarantined and not offered for sale.

—
