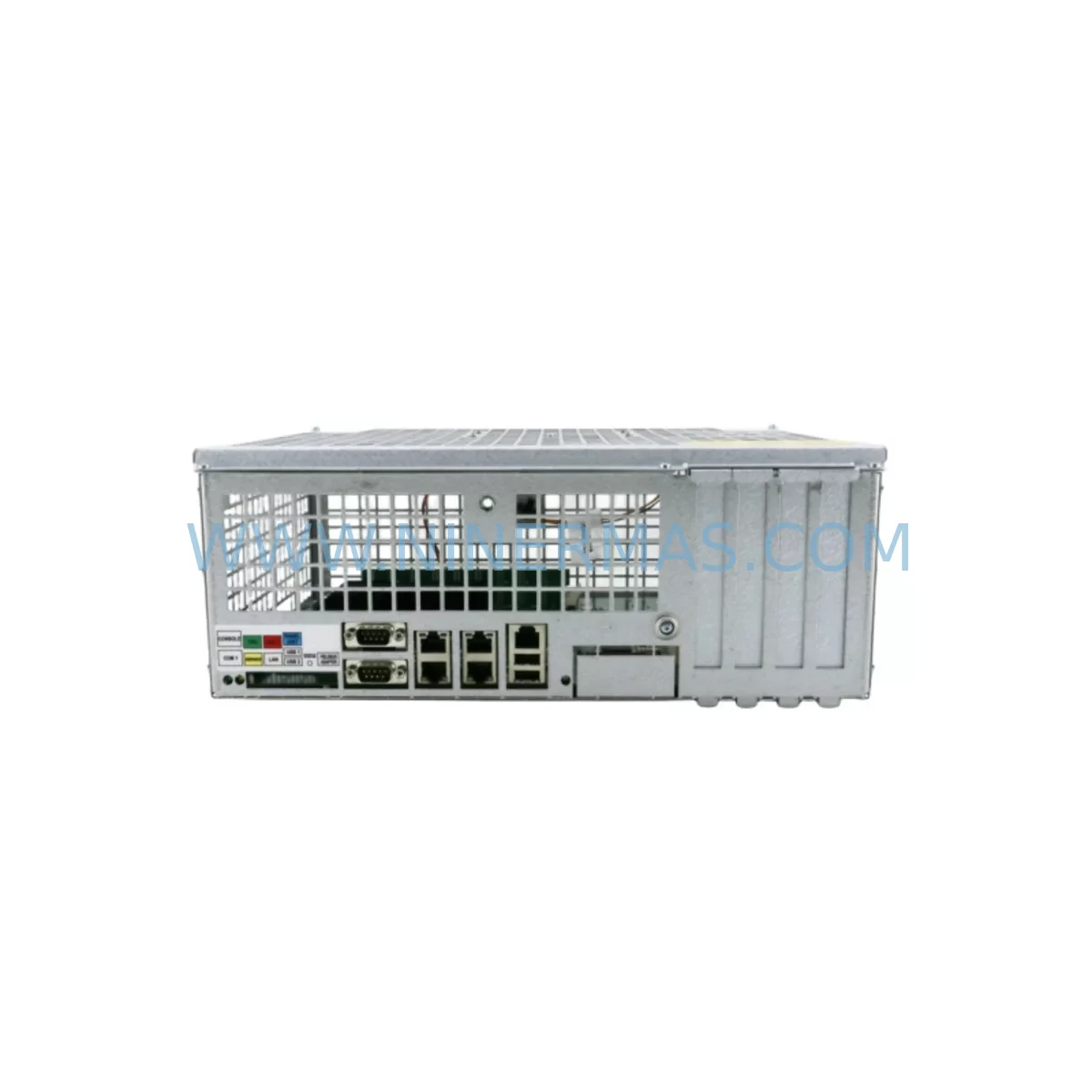

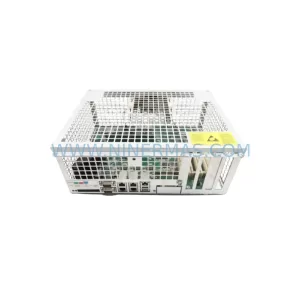

The ABB 3HAC055439-003 is a ruggedized top assembly module engineered for deployment within ABB IRC5 robot controller cabinets operating in harsh industrial environments. Designed to withstand elevated ambient temperatures, vibration, and contamination exposure common to foundry, automotive body shop, press shop, and heavy fabrication lines, this module serves as a critical structural and electrical interface component within the IRC5 single-cabinet and dual-cabinet controller architecture. For maintenance engineers managing aging robot fleets or procurement teams building strategic spare parts inventories, securing a verified, service-ready 3HAC055439-003 is essential to minimizing unplanned downtime and sustaining production continuity.

In daily inspection routines, the top assembly module is often overlooked until physical damage, connector wear, or thermal stress causes intermittent faults or full controller shutdown. Proactive replacement during scheduled annual overhauls — rather than reactive replacement during emergency breakdowns — significantly reduces mean time to repair (MTTR) and protects the broader IRC5 controller investment. The 3HAC055439-003 is compatible with IRB 6700, IRB 6600, IRB 7600, and related heavy-payload robot families where the IRC5 controller is the standard motion control platform.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3HAC055439-003 top assembly module during a planned or emergency maintenance event, experienced maintenance engineers treat this as an opportunity to audit the full IRC5 controller cabinet. Failure to inspect adjacent components during the same maintenance window frequently results in repeat callouts within weeks of the initial repair.

Begin with the IRC5 main computer unit — the DSQC1030 or its predecessor DSQC639 — which manages all motion control, I/O coordination, and communication tasks. A degraded main computer exhibiting intermittent reboots or axis errors should be replaced in the same maintenance cycle. Alongside the main computer, inspect the axis computer board (DSQC668) responsible for servo drive coordination; connector oxidation and thermal cycling damage are common failure modes in harsh environments.

The drive unit and rectifier assembly — including the DSQC661 drive module — should be checked for capacitor bulging, bus voltage irregularities, and cooling fan performance. In foundry or press shop environments, cooling fan assemblies (3HAC044168-001 fan unit) accumulate metallic dust rapidly and should be cleaned or replaced on a 6-month cycle rather than annually.

Power distribution within the IRC5 cabinet relies on the system power supply (3HAC046408-001 or equivalent), which feeds 24VDC logic power to the controller boards, I/O modules, and safety circuits. A failing power supply often manifests as random controller faults before complete failure — always verify output voltage stability when the cabinet is opened for any module replacement.

I/O expansion modules such as the DSQC652 digital I/O board and DSQC651 analog I/O board should be inspected for terminal block integrity, wiring insulation condition, and LED status indicators. In high-vibration environments, terminal screws loosen over time, causing intermittent signal faults that are difficult to diagnose remotely. Tighten all terminal connections and replace any boards showing burn marks or cracked PCB traces.

The FlexPendant interface unit (3HAC028357-001 or current equivalent) and its cable assembly (3HAC031683-001) are frequent wear items in active production environments. Inspect the cable for jacket cracking, connector pin damage, and strain relief integrity. A damaged FlexPendant cable can cause teach pendant communication errors that mimic controller faults.

Safety relay modules and the Electronic Position Switch (EPS) board — where fitted — must be verified for correct operation after any cabinet intervention. Safety circuit integrity is non-negotiable; always perform a full safety function test before returning the robot to automatic mode. Additionally, inspect the SMB (Serial Measurement Board, 3HAC058663-001) which manages resolver feedback from all robot axes; a failing SMB causes axis calibration loss and position errors that halt production immediately.

For sites running multiple IRC5 controllers, maintaining a consolidated spare parts kit — including the 3HAC055439-003 top assembly, a spare DSQC1030 main computer, one DSQC661 drive module, a system power supply, and a set of I/O boards — reduces emergency response time from days to hours. Procurement engineers should negotiate long-term supply agreements for end-of-life IRC5 components to protect against market scarcity as ABB transitions to IRC5 successor platforms.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Obtain the 3HAC055439-003 and verify the part number label against the installed module. Download the current robot configuration backup via RobotStudio or the FlexPendant before any hardware intervention. Confirm the replacement module’s physical dimensions match the installed unit — minor revision differences between -001, -002, and -003 suffixes may affect fitment.

Step 2 — Safe Isolation: Place the robot in manual mode, engage the mechanical brake, and isolate the IRC5 cabinet from mains power at the main disconnect switch. Follow LOTO (Lockout/Tagout) procedures per site safety policy. Allow capacitors in the drive section to discharge for a minimum of 5 minutes before opening the cabinet.

Step 3 — Module Removal: Document all cable routing and connector positions with photographs before disconnection. Label each connector if not already marked. Remove the top assembly module fasteners in the sequence specified in the ABB IRC5 Product Manual (document 3HAC021313-001). Retain all hardware for reinstallation.

Step 4 — Installation of 3HAC055439-003: Position the replacement module, align mounting points, and secure fasteners to the specified torque. Reconnect all cables in reverse order of removal, verifying each connector seats fully and locking tabs engage. Inspect the cabinet door seal and gasket condition before closing — a compromised seal defeats the IP54 rating in harsh environments.

Step 5 — Commissioning and Verification: Restore mains power, boot the IRC5 controller, and verify no fault codes are present on the FlexPendant. Restore the robot configuration backup if required. Perform a full axis calibration check and run a slow-speed test cycle before returning to automatic production mode. Document the replacement in the site maintenance log with the part number, serial number, and date.

Spare Parts Support FAQ

Q1: Is the 3HAC055439-003 compatible with all IRC5 cabinet variants?
The 3HAC055439-003 is specifically designed for IRC5 cabinets deployed with heavy-payload robots (IRB 6700, IRB 6600, IRB 7600 series) in harsh or ruggedized configurations. It is not a universal fit for all IRC5 variants — confirm your cabinet type and robot model before ordering. Our technical team can assist with compatibility verification based on your robot serial number.

Q2: What pre-shipment testing is performed on this spare part?
Every 3HAC055439-003 unit undergoes visual inspection for physical damage, connector integrity check, and functional verification prior to shipment. Units that do not pass inspection are not dispatched. A 12-month warranty from the date of shipment covers manufacturing defects and premature failure under normal operating conditions.

Q3: How should I manage long-term supply risk for end-of-life IRC5 components?
As ABB progressively transitions its installed base toward next-generation controller platforms, availability of IRC5-specific components like the 3HAC055439-003 will tighten in the open market. We recommend procurement engineers establish a reserved inventory agreement or blanket purchase order for critical IRC5 spare parts. Contact our team to discuss long-term supply commitments, volume pricing, and reserved stock arrangements tailored to your maintenance schedule.

Q4: What is the recommended spare parts holding strategy for a multi-robot IRC5 site?
For sites operating 5 or more IRC5 controllers, we recommend holding at minimum: one top assembly module (3HAC055439-003), one main computer unit (DSQC1030), one system power supply (3HAC046408-001), one drive module (DSQC661), and a set of digital I/O boards (DSQC652). This kit covers the most common failure modes and enables same-shift recovery from the majority of controller faults without waiting for emergency freight delivery.
