ABB 3HAC031683-004 Service-Ready Spare Part for Industrial Maintenance

ABB 3HAC031683-004 Service-Ready Spare Part for Industrial Maintenance

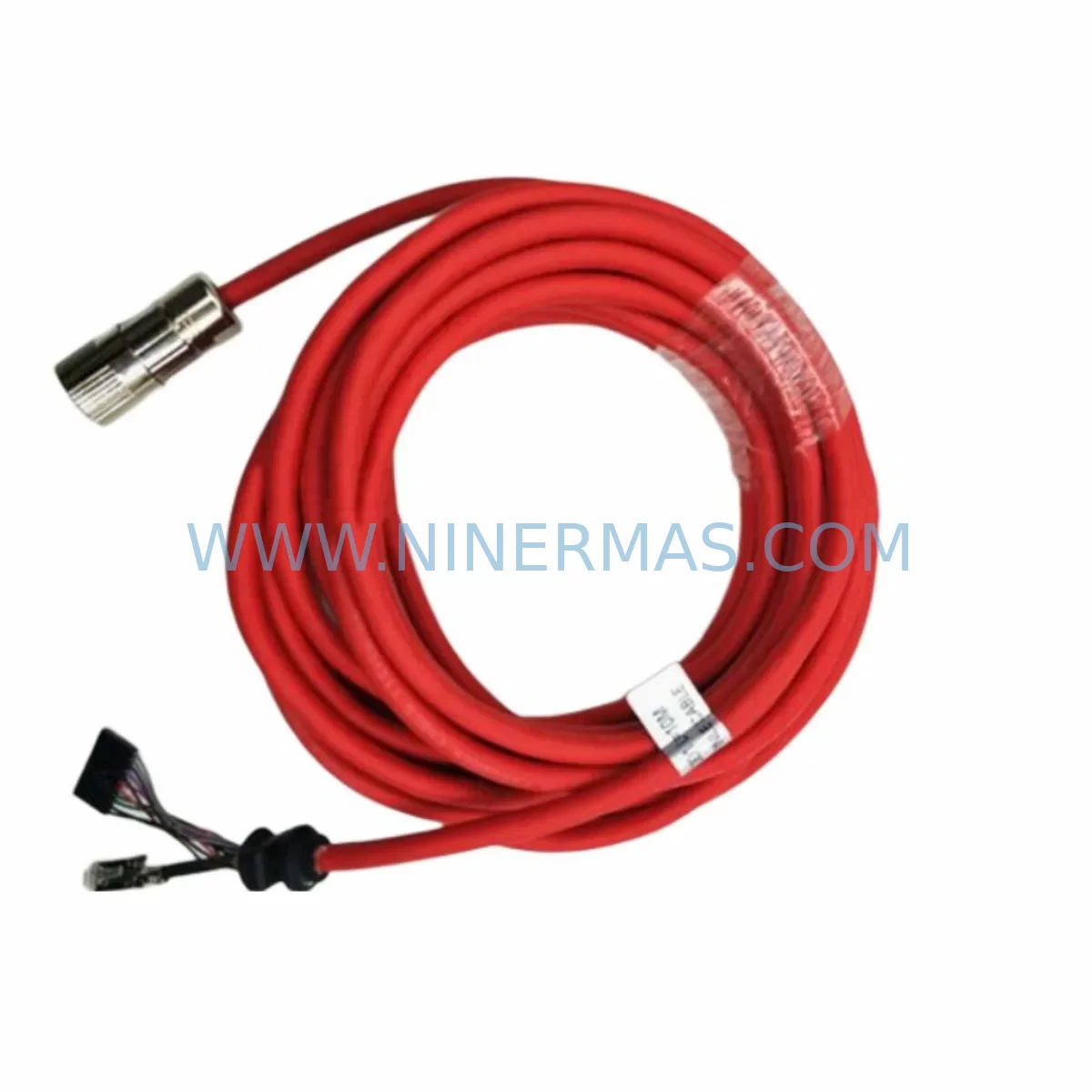

The ABB 3HAC031683-004 is an original 30-metre teach pendant cable engineered for ABB IRC5 robot controller systems. In industrial automation environments where robot uptime is directly tied to production output, having a verified, service-ready replacement cable on hand is a fundamental element of any proactive maintenance strategy. Whether you are managing a single robot cell or a multi-robot production line, an unexpected cable failure between the FlexPendant and the IRC5 controller can bring operations to a complete halt. Stocking the 3HAC031683-004 as a critical spare eliminates that risk and enables rapid, same-shift restoration of robot functionality.

This cable is purpose-built for ABB’s IRC5 single-cabinet and dual-cabinet controller platforms, providing the full-length 30M reach required for large work envelopes, perimeter-fenced cells, and elevated pendant mounting configurations. The connector interface is factory-matched to the FlexPendant (DSQC 679 / 3HAC028357-001) and the IRC5 controller front panel, ensuring plug-and-play compatibility without field modification. Each unit supplied by NINERMAS undergoes continuity and insulation resistance testing prior to dispatch, and is covered by a 12-month warranty from the date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the ABB 3HAC031683-004 teach pendant cable is rarely an isolated task. Experienced maintenance engineers treat a cable replacement event as an opportunity to inspect the broader robot control system and prevent secondary failures. When the FlexPendant cable is removed for replacement, the IRC5 controller front panel connector and the pendant-side socket should both be inspected for pin damage, corrosion, and debris ingress — conditions that can cause intermittent communication faults even with a new cable installed.

At the same time, it is good practice to verify the condition of the ABB DSQC 679 FlexPendant (3HAC028357-001) itself. A degraded touchscreen, cracked housing, or faulty emergency stop button on the pendant can mask cable-related symptoms and lead to misdiagnosis. If the pendant has accumulated significant operating hours, scheduling its replacement alongside the cable reduces the risk of a repeat callout.

Within the IRC5 controller cabinet, the maintenance window created by a cable swap should also be used to inspect the DSQC 661 axis computer (3HAC026254-001) and the DSQC 662 I/O unit for status LED anomalies, loose backplane connectors, and dust accumulation on cooling vents. The IRC5 main computer DSQC 639 (3HAC025097-001) should be checked for firmware currency and memory module seating. Any loose connections on the DSQC 608 power distribution board or the DSQC 627 drive unit should be re-torqued to specification.

For sites operating multiple IRC5 robots, a recommended spare parts inventory should include at minimum: one 3HAC031683-004 teach pendant cable (30M), one spare FlexPendant DSQC 679, a set of DSQC 662 digital I/O modules, one DSQC 661 axis computer, and a supply of ABB IRC5 controller fuses matched to the installed drive configuration. For robots integrated into safety-rated collaborative or perimeter-fenced cells, the DSQC 643 safety board (3HAC026263-001) should also be held as a critical spare, as safety board failures can trigger unrecoverable E-stop conditions that halt the entire cell.

Communication-intensive installations using DeviceNet, PROFIBUS, or EtherNet/IP fieldbus modules (such as the DSQC 651 or DSQC 652) should include those modules in the annual spare parts review, particularly in high-vibration or high-humidity environments where connector fatigue is accelerated. Signal integrity on these fieldbus links should be verified after any cable replacement using the IRC5 diagnostic tools available through RobotStudio or the FlexPendant service menu.

Site Replacement Workflow

Step 1 — Preparation and Safety Isolation: Before beginning any cable replacement, place the IRC5 controller in manual mode via the FlexPendant mode selector. Confirm that all robot motion has ceased and that the safety chain is open. If the controller is part of a multi-robot cell using an ABB SafeMove2 configuration, verify that the safety supervision system has registered the maintenance state correctly.

Step 2 — Cable Disconnection: Disconnect the 3HAC031683-004 cable at both the IRC5 controller front panel port and the FlexPendant connector. Inspect both connector housings for pin damage or contamination. Clean with dry compressed air if required. Do not use solvents on the connector bodies.

Step 3 — New Cable Installation: Route the replacement 3HAC031683-004 cable through the existing cable management tray or pendant arm, ensuring no sharp bends exceed the cable’s minimum bend radius. Seat both connectors fully until the locking collar clicks into position. Do not force the connector — misalignment will damage the pin array.

Step 4 — System Verification: Power on the IRC5 controller and observe the FlexPendant boot sequence. Confirm that the pendant displays the correct robot model, controller IP address, and program state. Navigate to the event log and clear any cable-related fault codes (e.g., 20223 — FlexPendant communication error). Run a slow-speed manual jog cycle across all axes to confirm full pendant control authority.

Step 5 — Documentation: Record the replacement date, cable serial number, and technician ID in the robot’s maintenance log. Update the spare parts inventory to trigger reorder of a replacement 3HAC031683-004 unit, maintaining minimum stock levels for continuous coverage.

This workflow is compatible with all IRC5 variants including the IRC5 Compact and IRC5 Panel Mounted Controller (PMC). For legacy IRB robot models previously operated with IRC4 controllers that have been upgraded to IRC5, confirm that the pendant cable routing and length remain appropriate for the new controller cabinet position before finalising the installation.

Spare Parts Support FAQ

Q1: Is the ABB 3HAC031683-004 compatible with all IRC5 controller variants?
Yes. The 3HAC031683-004 is the standard 30M FlexPendant cable for the IRC5 single-cabinet, dual-cabinet, and IRC5 Compact controllers. It is compatible with all ABB FlexPendant units using the DSQC 679 platform. If your installation uses an older IRC4 controller or a non-standard pendant interface, please contact our technical team to confirm compatibility before ordering.

Q2: What pre-shipment testing is performed on this cable?
Every 3HAC031683-004 unit supplied by NINERMAS undergoes a full continuity test across all conductors, an insulation resistance check between signal pairs and shield, and a physical inspection of both connector assemblies. A test report is available upon request. The cable is shipped in original or equivalent protective packaging to prevent transit damage.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, connector failures, and conductor faults under normal operating conditions. It does not cover damage resulting from incorrect installation, cable crushing, chemical exposure, or use outside the specified operating environment. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. NINERMAS maintains dedicated stock of the ABB 3HAC031683-004 and can support scheduled delivery programmes, annual maintenance contracts, and multi-site procurement consolidation. For customers managing fleets of IRC5 robots across multiple facilities, we offer reserved stock arrangements and priority dispatch to ensure that critical spare parts are available when needed, without lead time uncertainty.
