ABB 3HAC025917-001 DSQC652 Retrofit for IRC5 Legacy Systems

ABB 3HAC025917-001 DSQC652 Retrofit for IRC5 Legacy Systems: Seamless Compatibility & Smooth Upgrade

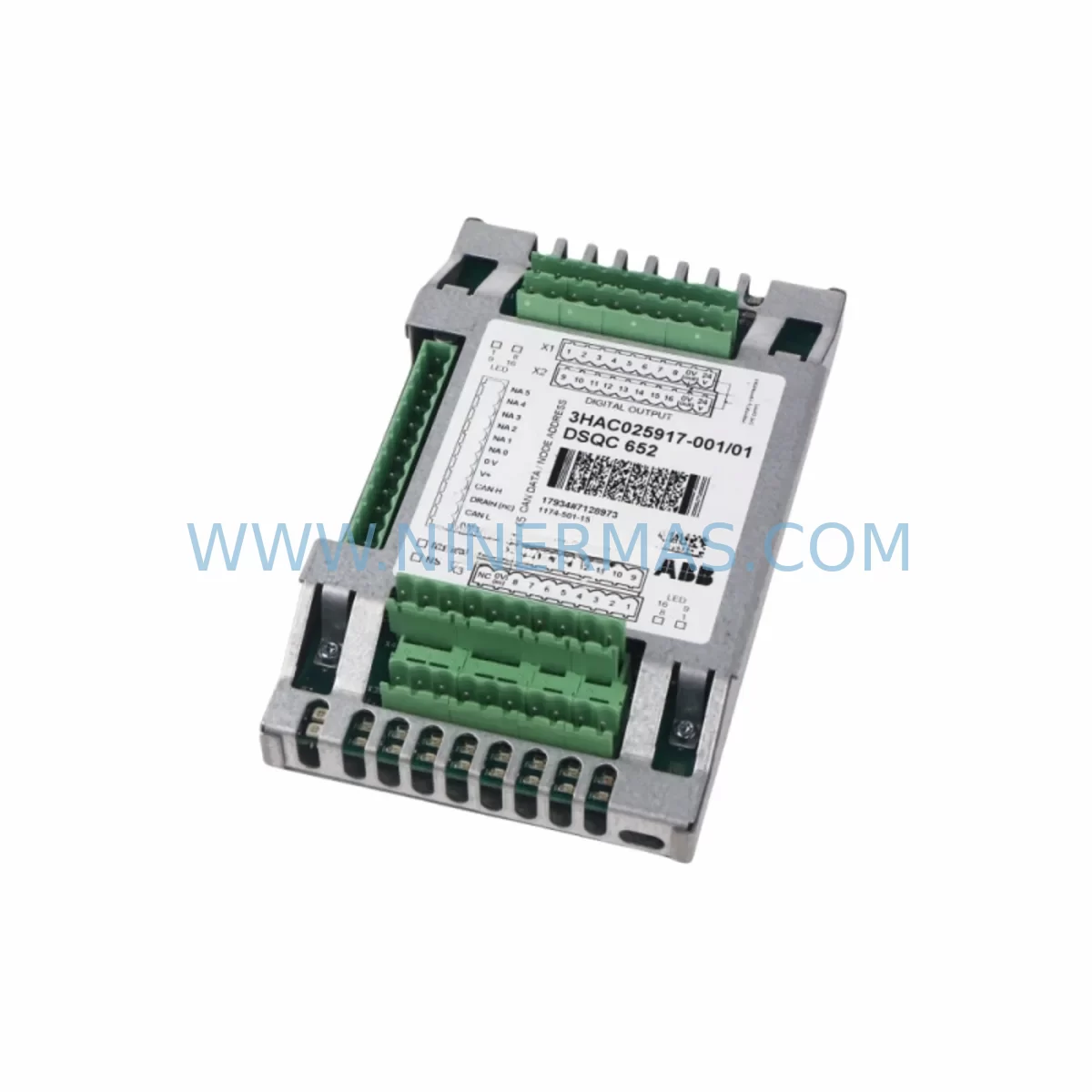

The ABB 3HAC025917-001 DSQC652 is the Ethernet/DeviceNet communication board integrated into the IRC5 robot controller cabinet. As ABB progressively phases out legacy IRC5 hardware, maintenance engineers and automation integrators worldwide face a critical challenge: sourcing verified replacement units before unplanned downtime forces a full controller overhaul. NINERMAS supplies new and tested 3HAC025917-001 DSQC652 boards with a 12-month warranty, enabling plant teams to extend the operational life of existing IRC5 cabinets without committing to a full system replacement.

The DSQC652 board manages Ethernet communication between the IRC5 main computer (typically a DSQC1000 or DSQC645 compute module) and external networks, PROFINET I/O devices, and remote service interfaces. A failed or degraded DSQC652 typically manifests as loss of remote monitoring, EtherNet/IP timeout faults, or inability to establish a RobotStudio connection. Replacing the board with a verified 3HAC025917-001 restores full communication capability without requiring a software re-license or controller re-configuration in most IRC5 generations.

Before installation, engineers should confirm the IRC5 cabinet variant — single-cabinet (IRC5 S4C+ migration path) or dual-cabinet — and verify that the backplane slot assignment matches the original board position. The DSQC652 occupies a dedicated slot on the IRC5 axis computer backplane; incorrect slot addressing will prevent the controller from recognizing the board during boot. Terminal wiring for Ethernet ports should be inspected for corrosion or bent pins, particularly in high-humidity foundry or food-processing environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC652 retrofit begins well before the board arrives on-site. The maintenance team should pull the IRC5 controller’s current configuration backup via RobotStudio, capturing the system parameters, I/O signal mapping, and RAPID program modules. This backup protects against any configuration drift during the board swap and provides a restore point if the new board requires a firmware update.

In multi-robot cells, the IRC5 cabinet communicates with upstream PLCs — commonly Siemens S7-300 or S7-400 series controllers — via PROFINET or DeviceNet. The DSQC652 replacement must preserve the existing network node address and device name to avoid forcing a PLC program modification. Engineers should document the MAC address of the outgoing board and pre-configure the replacement unit’s network identity before powering down the cell.

The IRC5 axis computer backplane also hosts other critical modules that should be inspected during the retrofit window: the DSQC668 (drive system interface board), the DSQC643 (I/O board for digital signals), and the DSQC609 (power distribution unit). If any of these show signs of wear — capacitor bulge, discoloration, or intermittent fault codes — replacing them concurrently with the DSQC652 minimizes future downtime. The DSQC1000 main computer module should also be checked for firmware currency, as older RobotWare versions may not fully support the DSQC652’s PROFINET stack.

For cells that include ABB’s FlexPendant (teach pendant), verify that the pendant cable and DSQC679 teach pendant interface board are undamaged. A faulty pendant interface can mimic communication board symptoms and lead to misdiagnosis. Similarly, the DSQC611 serial measurement board, which handles resolver feedback from robot axes, should be confirmed operational before attributing all communication faults to the DSQC652.

Where the retrofit involves migrating from an older S4C+ controller to IRC5, the I/O signal architecture changes significantly. The legacy DSQC328A digital I/O boards used in S4C+ are not directly compatible with IRC5’s EtherNet/IP I/O framework. A migration plan should include mapping all existing I/O addresses to the IRC5 equivalent, typically using DSQC651 or DSQC652 communication boards alongside new I/O modules. Signal isolators may be required where field wiring voltage levels differ between the old and new cabinet standards.

Installation space inside the IRC5 cabinet is generally sufficient for a direct board swap, but engineers working on IRC5 Compact variants should confirm clearance around the backplane connector before removal. Anti-static precautions are mandatory: the DSQC652 contains sensitive Ethernet PHY components that can be damaged by electrostatic discharge during handling.

Downtime Control During System Migration

Minimizing production downtime during a DSQC652 replacement requires a structured changeover plan. The recommended approach is to schedule the swap during a planned maintenance window, pre-stage the replacement board with the correct network configuration, and prepare a tested RobotStudio backup of the controller system. With these preparations in place, the physical board swap and network re-commissioning can typically be completed within two to four hours for a single IRC5 cabinet.

To protect the original RAPID program logic, engineers should export all task programs and system parameters before powering down. The IRC5 controller’s warm-start capability allows the system to resume from its last known state after a board replacement, provided the system configuration file (SYS.CFG) remains intact. If the controller requires a cold start after the swap, the pre-exported backup can be loaded via RobotStudio or the FlexPendant’s restore function.

For continuous-process environments where even a brief stop is costly, a parallel commissioning approach is recommended: configure and test the replacement DSQC652 in a bench IRC5 cabinet before bringing it to the production floor. This allows the network identity, IP address, and PROFINET device name to be verified offline, reducing on-floor commissioning time to a simple board swap and network handshake confirmation.

NINERMAS ships all 3HAC025917-001 DSQC652 units with a pre-shipment functional test report. Each board is powered and tested for Ethernet link establishment and DeviceNet communication before dispatch, reducing the risk of receiving a non-functional unit and extending unplanned downtime.

Retrofit Support FAQ

Q1: Is the 3HAC025917-001 DSQC652 a direct replacement for all IRC5 variants?
The DSQC652 is compatible with the full IRC5 family, including IRC5 standard, IRC5 Compact, and IRC5 Panel versions. However, engineers should verify the RobotWare version installed on the controller, as very early IRC5 releases (RobotWare 5.07 and below) may require a firmware update to fully support the DSQC652’s PROFINET functionality. NINERMAS can advise on firmware compatibility based on your controller serial number.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation, power on the IRC5 controller and confirm that the DSQC652 is recognized in the controller’s hardware configuration (visible in RobotStudio under Controller > Configuration > Communication). Assign or confirm the board’s IP address, verify the PROFINET device name matches the PLC’s configuration, and perform a test cycle of all I/O signals mapped through the board. Document the new board’s MAC address for asset records.

Q3: Does NINERMAS provide pre-shipment testing for the 3HAC025917-001?
Yes. Every DSQC652 unit shipped by NINERMAS undergoes a functional test covering Ethernet link establishment, DeviceNet communication, and power-on self-test before dispatch. A test report is included with each shipment. Units are packaged in anti-static bags with foam protection to prevent transit damage.

Q4: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty on all 3HAC025917-001 DSQC652 units from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, electrostatic discharge, or operation outside the IRC5 cabinet’s specified environmental range. Warranty claims are processed with a replacement unit dispatched upon confirmation of the fault.
