ABB 3BHE009319R0001 Retrofit Control Unit for Legacy Systems

ABB 3BHE009319R0001 Retrofit Control Unit for Legacy Automation Systems

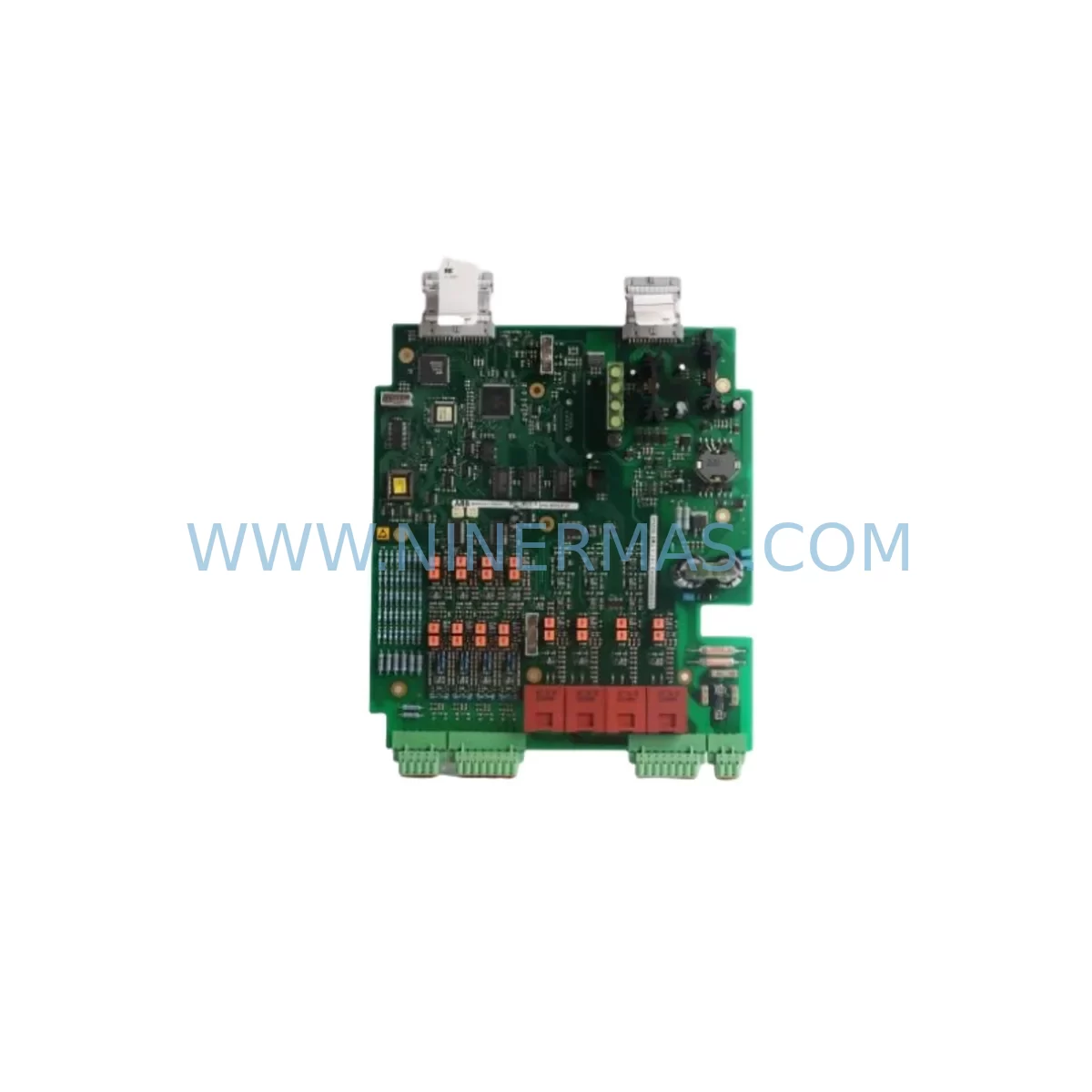

The ABB 3BHE009319R0001 is a processor and control unit module from the UNS2881B-P, V1 series, designed for use within ABB’s AC800M and Symphony Plus distributed control architecture. As legacy installations age and OEM support windows close, this module has become a critical retrofit and replacement component for engineers managing brownfield upgrades, spare parts lifecycle extension, and control cabinet modernization projects.

Whether you are replacing a failed unit in an active production line, building a spare parts buffer for a long-running DCS installation, or executing a phased migration from an older ABB Master series platform to the AC800M ecosystem, the 3BHE009319R0001 provides a verified, pre-shipment tested solution with a 12-month warranty and confirmed in-stock availability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a legacy ABB control system around the 3BHE009319R0001 requires a structured approach that accounts for the full scope of the control architecture. In most AC800M-based installations, the control unit does not operate in isolation — it communicates with a range of peripheral modules that must be verified for compatibility before any swap is initiated.

On the I/O side, engineers typically need to audit connected S800 I/O modules such as the AI810 (analog input), AO810 (analog output), DI810 (digital input), and DO810 (digital output) modules. These modules communicate with the control unit via the ModuleConnect bus, and their addressing must be preserved or re-mapped after the processor replacement. Any change to the module address table in Control Builder M will require a corresponding update to the application program logic.

Power supply integrity is a critical pre-check. The SD831 or SD832 power supply modules feeding the AC800M rack must be confirmed to deliver stable 24 VDC within tolerance. A degraded PSU that was previously masked by a failing processor can cause repeated faults after the new 3BHE009319R0001 is installed. Measure rail voltage under load before commissioning.

For installations that include PROFIBUS-DP fieldbus segments, the CI854 PROFIBUS communication interface module must be checked for firmware compatibility with the replacement control unit. Similarly, if the system uses Ethernet-based communication via IEC 61850 or OPC-UA, the CI873 or CI867 interface modules should be verified against the new processor’s supported protocol stack.

HMI connectivity is another area requiring attention. If the plant uses ABB 800xA or a third-party SCADA system connected via OPC-DA or OPC-UA, the server node configuration may need to be refreshed after the control unit is replaced, particularly if the module’s network identity or IP address changes. Operators should prepare updated HMI faceplates and alarm configurations in advance to avoid confusion during the cutover window.

In systems where the 3BHE009319R0001 is part of a redundant controller pair, the redundancy synchronization link between the primary and standby PM866 or PM864 processor modules must be re-established and tested after the swap. Redundancy switchover tests should be performed during a planned maintenance window, not during live production.

For older installations migrating from the ABB Master series (e.g., MASTER 200 or MASTER 90), the migration path to AC800M typically involves replacing the legacy DSPC110 or DSPC172 processor boards with the AC800M controller family. In these cases, the 3BHE009319R0001 may serve as the target platform for the migrated application, and the engineering team must plan for full program re-compilation in Control Builder M rather than a direct binary transfer.

Signal isolators and marshalling panels connected to legacy terminal blocks should also be reviewed. Where the original wiring used DSAI130 or DSDO110 I/O boards, the field wiring termination scheme may need to be adapted to match the S800 I/O module pinout. Pre-wired terminal adapter kits can reduce field wiring time significantly during the cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during a control unit replacement is the primary concern for most plant engineers. A well-executed swap of the ABB 3BHE009319R0001 can typically be completed within a planned maintenance window of two to four hours, provided all preparatory steps are completed in advance.

Before the maintenance window: Export and archive the full application program from Control Builder M, including all function block diagrams, structured text routines, and I/O signal lists. Capture a snapshot of the current module address configuration and PROFIBUS node assignments. Photograph or document all physical wiring connections at the backplane and terminal blocks. Confirm that the replacement 3BHE009319R0001 unit has been pre-tested and is on-site before scheduling the outage.

During the swap: Power down the affected rack segment following the site’s lockout/tagout (LOTO) procedure. Remove the failed or end-of-life control unit and install the replacement module. Restore power and allow the module to complete its self-diagnostic boot sequence. Download the archived application program via Control Builder M and verify that all I/O modules are recognized and reporting correctly. Check PROFIBUS segment status and confirm that all slave devices are online before releasing the system to operations.

After commissioning: Run a functional verification test covering all critical control loops, interlocks, and alarm outputs. If the system includes a redundant controller, perform a manual switchover test to confirm that the standby unit assumes control correctly. Document the completed replacement in the plant’s maintenance management system (CMMS) and update the spare parts register to reflect the consumed unit.

Maintaining a buffer stock of one or two 3BHE009319R0001 units on-site is strongly recommended for installations where this module is a single point of failure. Given the extended lead times associated with discontinued or low-volume industrial components, on-site inventory is the most reliable downtime mitigation strategy available.

Retrofit Support FAQ

Q1: Is the 3BHE009319R0001 a direct drop-in replacement for the UNS2881B-P V1?
Yes, the 3BHE009319R0001 is the OEM part number for the UNS2881B-P, V1 control unit. It is a direct physical and functional replacement for units of the same revision. If your existing installation uses a different hardware revision of the UNS2881B series, verify the revision suffix before ordering to confirm compatibility.

Q2: Does the replacement unit require firmware re-flashing before installation?
The unit ships with factory firmware. In most cases, the application program is downloaded from Control Builder M after installation, and the firmware version is managed by the engineering workstation. If your site requires a specific firmware version for compatibility with existing I/O modules or communication interfaces, please confirm the required version at the time of order so we can verify the shipped unit’s firmware baseline.

Q3: What wiring or terminal changes are required when replacing the control unit?
The 3BHE009319R0001 uses the standard AC800M backplane connector. No field wiring changes are required at the I/O terminal level — the S800 I/O modules remain in place and reconnect automatically once the new control unit is installed and the application program is downloaded. Ethernet and PROFIBUS cables connected directly to the processor module must be re-seated after installation.

Q4: What does the 12-month warranty cover, and is pre-shipment testing included?
Every 3BHE009319R0001 unit supplied by NINERMAS undergoes a functional pre-shipment test to verify power-on self-test completion, communication port integrity, and basic I/O bus response. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost. Contact sale@ninermas.com for warranty claims or technical pre-sales support.
