ABB 3BHE009319R0001 Retrofit-Compatible Module for UNS Series

ABB 3BHE009319R0001 Retrofit-Compatible Module for Legacy UNS Series Systems

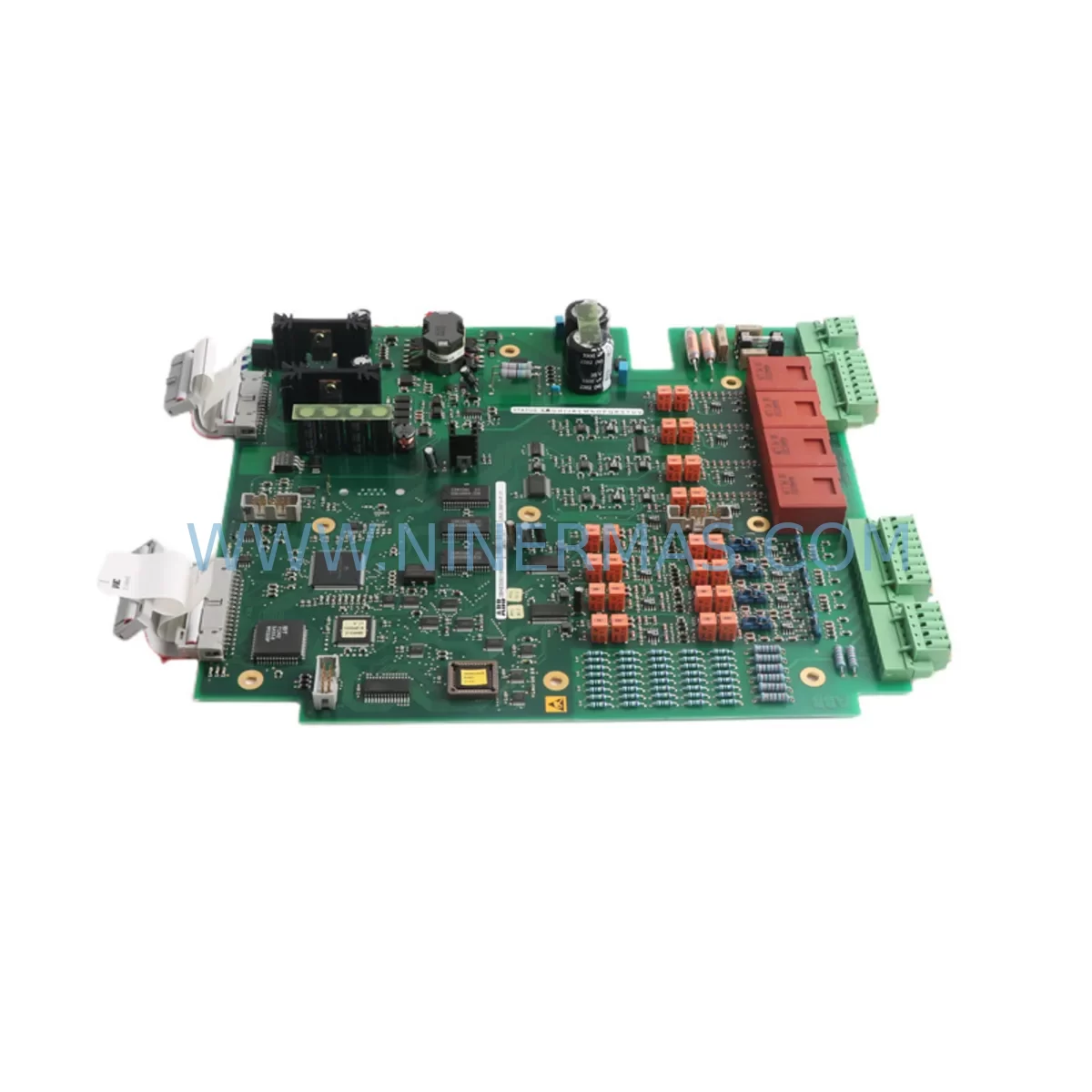

The ABB 3BHE009319R0001 UNS2881B-P V1 is a critical control module designed for integration within ABB’s UNS Series automation platform. As legacy DCS and industrial control systems age beyond their supported lifecycle, plant engineers and maintenance teams face increasing pressure to source discontinued spare parts, validate drop-in replacements, and execute system upgrades with minimal disruption to production continuity. NINERMAS supplies this module as a retrofit-compatible replacement solution, backed by rigorous pre-shipment testing, verified compatibility documentation, and a 12-month warranty.

Whether you are managing a brownfield retrofit project, extending the operational life of an existing control cabinet, or executing a phased migration from an end-of-life ABB platform to a current-generation architecture, the 3BHE009319R0001 plays a central role in maintaining system integrity during the transition. This module is commonly deployed in power generation, pulp and paper, oil and gas, and heavy industrial environments where the UNS Series has historically served as the backbone of distributed control.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3BHE009319R0001 UNS2881B-P V1 into an existing control system requires a structured pre-retrofit assessment. Before the module is physically installed, engineers must audit the current cabinet layout to confirm available rack space, verify that the existing UNS Series backplane supports the module’s slot interface, and review the power distribution architecture to ensure the 24 VDC supply rail can accommodate the additional load without triggering protection thresholds on the cabinet’s power supply module.

Terminal wiring adaptation is a common challenge during legacy system retrofits. If the original wiring harness was designed for an earlier hardware revision, field technicians should cross-reference the terminal block pinout against the replacement module’s I/O specification sheet. In many UNS Series installations, the UNS0860A-P I/O expansion module and UNS0868A-P analog input module are co-located in the same rack, and their signal routing must be preserved without interruption during the swap.

Communication link continuity is equally important. Many UNS Series systems rely on PROFIBUS DP or the proprietary INSUM communication protocol to exchange data between the control module and field devices. During the replacement of the 3BHE009319R0001, the PROFIBUS segment address and baud rate settings must be re-confirmed and, if necessary, re-programmed using the appropriate ABB engineering workstation software. If the site also operates ABB AC800M controllers or Symphony Plus infrastructure in adjacent control loops, the communication topology map should be reviewed to prevent address conflicts.

For facilities that have already begun migrating from legacy UNS platforms toward current-generation ABB architecture, the 3BHE009319R0001 can serve as a bridging component — maintaining operational stability in the legacy section of the plant while the migration proceeds in parallel. This approach is particularly effective when combined with signal isolators to decouple legacy field wiring from new I/O infrastructure, and when the HMI system — whether running on an older ABB Operate IT platform or a newer ABB Ability System 800xA — is updated to reflect the revised tag structure and alarm configuration associated with the replacement module.

Programming compatibility should be validated prior to hot-swap or cold-swap execution. The existing application logic stored in the UNS Series controller must be confirmed compatible with the hardware revision of the replacement UNS2881B-P V1. In some cases, a firmware update or parameter re-initialization is required. NINERMAS recommends that customers request the module’s firmware version documentation at the time of order to allow pre-commissioning preparation. Additionally, if the control cabinet houses a 3BHE022294R0101 or similar companion module, its configuration should be backed up before any physical intervention begins.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a control module in a live industrial environment. For the ABB 3BHE009319R0001 UNS2881B-P V1, NINERMAS recommends a structured cold-swap procedure executed during a scheduled maintenance window. Prior to shutdown, the full application program — including function block diagrams, I/O assignments, module addresses, and communication parameters — should be exported and archived using the site’s engineering workstation.

During the physical swap, the replacement module should be pre-configured offline where possible, including setting the correct module address, verifying DIP switch or jumper positions, and confirming that the hardware revision matches the system’s firmware expectations. This pre-staging approach significantly reduces the time the control loop remains offline.

Once the module is installed and powered, a structured commissioning sequence should be followed: confirm backplane communication, verify I/O channel mapping against the original configuration, check that the HMI displays are receiving correct process values, and validate alarm setpoints. If the system includes redundant control paths — for example, a secondary UNS2882A-P module operating in hot-standby — the switchover logic should be tested before returning the primary loop to automatic control.

Field technicians should document all as-found and as-left conditions, including terminal torque values, cable labeling, and any deviations from the original wiring diagram. This documentation supports future maintenance cycles and reduces risk during subsequent interventions. NINERMAS provides pre-shipment functional test reports for all modules, which can be used as a baseline reference during on-site commissioning to confirm that the module’s behavior matches factory-verified performance.

Retrofit Support FAQ

Q1: Is the ABB 3BHE009319R0001 UNS2881B-P V1 a direct drop-in replacement for the original module?
In most UNS Series installations, the 3BHE009319R0001 is a direct physical and functional replacement for the original UNS2881B-P V1. However, customers should verify the hardware revision and firmware version of the existing module before ordering, as minor revision differences may require a parameter re-initialization or firmware update during commissioning. NINERMAS can assist with compatibility verification based on your system’s serial number and configuration data.

Q2: What pre-shipment testing does NINERMAS perform on this module?
All modules supplied by NINERMAS undergo functional power-on testing and visual inspection prior to shipment. A test report is available upon request. The module is shipped with anti-static packaging and is covered by a 12-month warranty from the date of delivery. If the module is found to be defective within the warranty period, NINERMAS will arrange a replacement or repair at no additional cost.

Q3: How do I confirm wiring compatibility between the replacement module and my existing terminal blocks?
Customers should cross-reference the terminal block pinout of the 3BHE009319R0001 against the original wiring diagram for the UNS2881B-P V1. In most cases, the terminal assignment is identical across hardware revisions. If your installation uses a custom wiring harness or a third-party terminal adapter, NINERMAS recommends consulting the module’s technical datasheet — available upon request — before proceeding with installation.

Q4: What is the typical lead time and stock availability for this module?
NINERMAS maintains inventory of the ABB 3BHE009319R0001 and can confirm current stock availability upon inquiry. Standard lead time for in-stock units is 3–7 business days for international shipment. For urgent requirements, expedited shipping options are available. Contact our sales team at sale@ninermas.com or call +0086 187 5021 5667 to confirm availability and arrange shipment.
