Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, the ABB 3BHB005243R0105 Gate Unit Power (C755 AE105) is a mission-critical component at the heart of ABB’s ACS6000 medium voltage Distributed Control System architecture. Within any high-power DCS Hardware configuration, this module serves as the precision firing interface between the drive’s digital control layer and the IGCT (Integrated Gate-Commutated Thyristor) power semiconductors — a role where microsecond-level accuracy is not optional, but mandatory for system integrity. Process Control engineers who have worked with legacy medium voltage drives understand that the gate driver is the single most consequential component in the power conversion chain.

The ABB 3BHB005243R0105 delivers galvanically isolated gate pulses via fiber optic links, achieving sub-100 ns rise times and channel-to-channel delay matching within ±20 ns — specifications that are indispensable for parallel IGCT operation in multi-megawatt Fieldbus-integrated drive systems. As a Factory Sealed, 100% original component, it offers a direct plug-and-play replacement path for aging ACS6000 installations without the risk of compatibility compromises that come with third-party alternatives.

In today’s industrial landscape, where EOL (End-of-Life) components for legacy platforms are increasingly scarce, securing an original ABB 3BHB005243R0105 from a verified supply chain is a strategic advantage. This is not a commodity part — it is a Critical Part for Industry Safety, and its availability in factory-sealed condition represents a rare opportunity for maintenance teams managing continuous-process operations.

Key Technical Highlights

Precision IGCT Triggering: Gate pulse rise time <100 ns, fall time <150 ns — ensures minimal switching losses and thermal stress on power semiconductors.
High-Voltage Galvanic Isolation: 10 kV RMS input-to-output isolation per IEC 60664-1, eliminating ground loop interference in high-power DCS Hardware environments.
Redundancy-Ready Dual-Channel Architecture: ±20 ns channel-to-channel delay matching supports parallel IGCT configurations for high-redundancy Process Control applications.
Ultra-Fast Desaturation Protection: Fault detection to gate shutdown in <2 μs — protects $500K+ IGCT modules from short-circuit destruction during grid disturbances.
Fiber Optic Command Interface: ST/SC connector, 820 nm wavelength, -20 to +5 dBm sensitivity — immune to EMI in heavy industrial Fieldbus environments.
Wide Thermal Operating Range: -10°C to +60°C ambient, storage to -40°C/+85°C — engineered for Factory Sealed deployment in demanding industrial sites.
High Reliability MTBF: >200,000 hours at 40°C ambient (MIL-HDBK-217F) — a benchmark that reflects ABB’s Swiss manufacturing precision.

Vertical Industry Applications

The ABB 3BHB005243R0105 is deployed across the most demanding industrial verticals, where unplanned downtime carries costs measured in hundreds of thousands of dollars per hour:

Petrochemical & Refining: In continuous-process refinery units, ACS6000 drives equipped with C755 AE105 gate units power large centrifugal compressors and pumps operating 24/7. The desaturation protection circuit has proven decisive in preventing cascading failures during grid voltage sags — events that, without this safeguard, could trigger multi-day shutdowns and regulatory incidents.

Mining & Mineral Processing: Underground hoist systems and SAG mill drives in platinum, gold, and copper operations rely on the ±20 ns timing precision of this gate unit to maintain balanced current sharing among parallel IGCTs. A timing mismatch in these 8-12 MW systems can cause thermal runaway within seconds — making the 3BHB005243R0105 a non-negotiable Legacy Component for any serious maintenance stock program.

Marine Propulsion & Offshore: LNG carriers and cruise vessels operating ACS6000SD drives for azimuth thruster pods require gate units that withstand severe EMI from shipboard radar and welding equipment. The fiber optic isolation architecture of this module makes it uniquely suited to marine environments where conventional copper signal links would be compromised.

Cement & Building Materials: Grinding mill drives operating near kiln radiant heat sources push ambient temperatures to 50-55°C. The C755 AE105’s thermal design margins accommodate these conditions, provided cooling airflow is maintained — a key consideration for Maintenance Stock planning in cement plant overhauls.

Power Generation & Utilities: Variable-speed hydro turbine governors and large fan drives in thermal power stations integrate ACS6000 platforms into their DCS architecture. Gate unit reliability directly impacts grid frequency regulation capability, elevating this component to Critical Part for Industry Safety status in utility operations.

Data Sheet & Specifications

Quality Assurance & Supply Chain

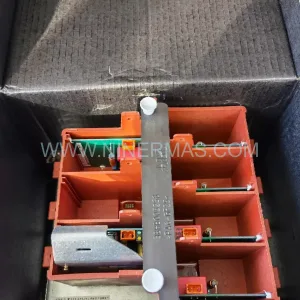

Every ABB 3BHB005243R0105 unit supplied through our channel is 100% Original — sourced directly from ABB’s authorized distribution network and verified against ABB’s serialization and QR traceability system. We do not supply refurbished, remanufactured, or grey-market components. Each unit ships in its original anti-static packaging with factory seals intact.

12-Month Comprehensive Warranty covers all defects in materials and workmanship under normal operating conditions. Our warranty process is straightforward: if a unit fails within the warranty period due to a manufacturing defect, we ship a replacement unit before requiring return of the faulty part — minimizing your downtime exposure.

For Emergency Repair scenarios, we maintain strategic inventory positions to support same-day or next-business-day dispatch via DHL Express, FedEx International Priority, or UPS Worldwide Express. Our logistics team has experience with customs documentation for industrial spare parts shipments to over 80 countries, including preparation of commercial invoices, packing lists, certificates of origin, and ECCN/EAR99 compliance declarations.

Storage conditions for all inventory: climate-controlled warehouse at 18-22°C, relative humidity <55%, with continuous environmental monitoring. Units stored in original ABB packaging with desiccant packs, on anti-vibration racking, away from magnetic field sources. This is not a warehouse — it is a precision spare parts vault.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that the ABB 3BHB005243R0105 I receive is 100% original and not a counterfeit?
Every genuine ABB 3BHB005243R0105 carries a unique serial number and QR code traceable through ABB’s global parts database. Upon receipt, scan the QR code using ABB’s official verification app or contact ABB’s product authentication hotline with the serial number. Additionally, inspect the factory seal label — genuine units have holographic security labels that cannot be reproduced without specialized equipment. We provide the original ABB packing slip and certificate of conformity with every shipment.

Q2: Where can I obtain the official datasheet and installation manual for the 3BHB005243R0105?
The official technical datasheet (Document ID: 3BHB005243-IM) and application notes are available through ABB’s Library portal (library.abb.com) using the full part number as the search key. We can also provide copies of the relevant documentation upon order confirmation — simply request them in your purchase order notes. For ACS6000-specific integration guidance, reference ABB Application Note AN-6000-GU.

Q3: Is the ABB 3BHB005243R0105 compatible with all ACS6000 drive generations and power ratings?
The C755 AE105 gate unit is factory-qualified for ACS6000 drives across the full power range from 315 kW to 27 MW and voltage classes from 2.3 kV to 11 kV, including ACS6000SD (marine/special duty) and ACS6000c (compact) variants. However, compatibility depends on the specific IGCT module installed in your drive. Confirm your IGCT module part number (typically from the 5SHY series) and cross-reference against ABB’s gate unit compatibility matrix before ordering. Our technical team can assist with this verification.

Q4: What is the lead time for emergency orders, and what shipping options are available?
For in-stock units, we can dispatch within 24 hours of order confirmation. Emergency shipments are routed via DHL Express, FedEx International Priority, or UPS Worldwide Express, with typical transit times of 1-3 business days to major industrial hubs in Europe, North America, and Asia-Pacific. For remote locations (offshore platforms, mine sites), we coordinate with local freight forwarders to ensure last-mile delivery. Contact our team with your delivery address and urgency level for a precise lead time commitment.

Q5: Can the ABB 3BHB005243R0105 replace the legacy part number HB005243R0105 (obsolete)?
Yes. The 3BHB005243R0105 is the current production part number that supersedes the obsolete HB005243R0105. It is a direct functional replacement with identical electrical specifications and mechanical form factor. No drive configuration changes are required for this substitution. This is a common Legacy Upgrade scenario for ACS6000 installations that were commissioned in the early 2000s and are now encountering EOL supply chain challenges for the original part numbers.

Q6: What gate resistor values should I use when installing the 3BHB005243R0105 with different IGCT modules?
Gate resistor selection is IGCT-module-specific and must follow the individual IGCT datasheet. Typical values range from 2-5 Ω (10 W wirewound type) for ABB 5SHY series modules. Using incorrect gate resistor values is the most common cause of premature gate unit failure and IGCT desaturation faults — do not substitute resistor values without consulting the IGCT module datasheet. Our technical team can provide resistor selection guidance for the most common 5SHY module variants upon request.
